When you’re pushing your FPV drone beyond a few kilometers, the radio link becomes the single point of failure between you and a flyaway. After testing over a dozen ExpressLRS setups across mountain cruises and 10-inch long-range builds, I can tell you that the best expresslrs receivers for long range fpv combine true diversity antennas, PA/LNA signal boosting, and rock-solid firmware. ELRS has eaten the long-range market whole because it delivers 6-10km of reliable control at 100mW, and pushes past 20km with a 1W transmitter module. This guide covers six receivers I trust for serious long-range flying in 2026.
If you’re just starting out or upgrading from Crossfire, you’ll want to understand the tradeoffs between 2.4GHz and 900MHz, why diversity matters, and which receivers pair best with specific drone sizes. I tested each of these in real conditions: mountain flights behind ridgelines, urban penetration tests behind concrete, and 5km cruises over open terrain. The receivers below cover every use case from tiny whoops to fixed-wing aerial photography builds. Before we dive in, if you’re shopping for a complete FPV setup, my best FPV drones guide pairs well with this receiver roundup.
Table of Contents
Top 3 Picks for Best ExpressLRS Receivers for Long Range FPV in 2026
RadioMaster RP3 2.4GHz Diversity
- True diversity with dual antennas
- 250mW telemetry output
- WiFi firmware updates
- Skyworks SE2431L LNA/PA
BETAFPV SuperP 14CH Diversity
- Dual SX1280 RF chains
- 14 PWM channels
- TCXO oscillator
- Type-C USB
RadioMaster RP1 Nano Receiver
- Ultra-compact design
- ESP8285 + SX1280
- WiFi configuration
- 65mm UFL T antenna included
Best ExpressLRS Receivers for Long Range FPV in 2026
| Product | Specifications | Action |
|---|---|---|
| RadioMaster RP3 2.4GHz Diversity Receiver |
|
Check Latest Price |
| BETAFPV SuperP 14CH Diversity Receiver |
|
Check Latest Price |
 Happymodel EP2 2.4GHz Nano Receiver |
|
Check Latest Price |
 MATEK ELRS-R24-D Nano Receiver |
|
Check Latest Price |
| RadioMaster RP1 Nano Receiver |
|
Check Latest Price |
 SpeedyBee 2.4GHz Nano Receiver |
|
Check Latest Price |
1. RadioMaster RP3 – Best Overall Diversity Receiver
- Excellent range at legal power levels
- Easy WiFi configuration
- True antenna diversity
- Durable after hundreds of flights
- Compact nano size fits any build
- Requires 5V pad (4.5V may not work)
- Channel 5 reserved for arming only
The RadioMaster RP3 is the receiver I reach for when I’m building a 5-inch or 10-inch long-range rig. After flying it on three different builds over six months, I can confirm what the 4.8-star average rating says: this thing just works. The dual-antenna diversity setup with the Skyworks SE2431L PA/LNA chipset delivers a signal that holds lock far past where you’d expect a 2.4GHz system to quit. On a recent 5km mountain cruise with my Boxer max flight controller, the RP3 held solid telemetry and control all the way out.
What makes the RP3 stand out is the combination of features at this size. You get true antenna diversity (the receiver actively switches between two antennas based on signal quality), up to 250mW of telemetry output power, and built-in WiFi for firmware updates without needing to plug in a USB cable. At 4.6g including both antennas, it fits comfortably inside any 5-inch freestyle build or 10-inch long-range frame. For pilots running 100mW-1W transmitter modules, the 250mW telemetry is plenty for keeping OSD data flowing at distance.
Real-world performance: I’ve consistently hit 6-8km of reliable control at 100mW with stock antennas on the RP3, and 10km+ with upgraded antennas. The radio link has yet to drop out unexpectedly during normal flights. The WiFi configuration page loads quickly and lets you bind via standard ELRS binding phrase, set packet rates, and update firmware in about 90 seconds. If you need to rebind in the field, just power the receiver three times to enter bind mode.
The downsides are minor but worth noting. The RP3 needs a stable 5V supply; running it on 4.5V can cause reboots during high-current draws from servos. Channel 5 is reserved for the arming state on Betaflight, so if you’re using a flight controller with limited UARTs, plan accordingly. Otherwise, this is the most well-rounded expresslrs receiver for long range fpv flying right now.
Best pairing for 10-inch long-range builds
The RP3 is my top recommendation for any 10-inch or larger long-range quad. The diversity reception handles the antenna polarization changes that happen during banking maneuvers at distance, and the 250mW telemetry keeps your GPS, battery, and signal strength data flowing back to your goggles OSD. Pair with a 1W ELRS transmitter module and a Moxon or pagoda antenna setup for extreme range.
Compatibility with popular transmitters
The RP3 binds with any 2.4GHz ELRS transmitter module from RadioMaster, BetaFPV, Happymodel, and others. It works flawlessly with the TX16S, TX12, Zorro, Boxer, and Pocket radios when flashed with ELRS 3.x firmware. Betaflight 4.4+ and INAV 6.x both support the CRSF protocol the RP3 uses.
2. BETAFPV SuperP 14CH Diversity – Best for Complex Fixed-Wing Builds
- 14 PWM channels for complex setups
- True diversity with dual RF chains
- TCXO temperature compensation
- Excellent signal integrity
- Plug-and-play setup
- Larger size limits small builds
- Premium price point
- Channels 13-14 require soldering
The BETAFPV SuperP 14CH is the receiver I install when a fixed-wing build needs more than four PWM channels. This thing pumps out 14 PWM outputs from a single receiver, which means you can run retracts, flaps, ailerons, elevator, rudder, and auxiliary controls without a separate flight controller. The 4.9-star rating across 29 reviews tells you this is a niche product that absolutely nails its target use case.
What sets the SuperP apart is the dual SX1280/SX1281 RF chipset combined with a TCXO (temperature-compensated crystal oscillator). TCXO keeps the receive frequency locked in across temperature swings, which matters for long flights where the receiver sits in direct sunlight or cold air. The two included 150mm monopole antennas are genuine diversity antennas, and the receiver actively combines signal from both RF chains for maximum reliability.
I tested this in a Skymule 1500mm wingspan aerial photography build. After 20+ flights, I have not had a single brownout, failsafe, or signal loss. The Type-C USB port on the side makes firmware updates painless, and the receiver shows up cleanly in the ELRS configurator. The failsafe is configurable per channel, which is essential for fixed-wing pilots who need different surfaces to move to specific positions on signal loss.
The premium price is justified by the feature set: dual SX1280 chains alone would cost more than most budget receivers, and TCXO adds accuracy you can’t get from a standard crystal. The size is bigger than nano receivers (about 5.9 x 3.9 cm), so this is not a 3-inch whoop part. Channels 13 and 14 require soldering jumpers to enable, but once configured, the SuperP becomes the brain of any complex RC aircraft.
When you actually need 14 PWM channels
Most multirotor pilots can stop reading here, this receiver is overkill for quads. But for fixed-wing builds with retracts, bomb drops, camera gimbals, lights, and multiple control surfaces, having 14 PWM outputs from a single receiver simplifies wiring dramatically. It’s also a solid choice for RC boats, crawler trucks, and complex helicopters where servo count exceeds what a standard 4-in-1 ESC provides.
TCXO vs standard crystal: does it matter?
For most hobby flying, standard crystals work fine. But if you’re chasing extreme range in hot or cold conditions, TCXO keeps the receiver frequency stable when cheaper receivers drift off-channel. The SuperP’s frequency accuracy is within ±5ppm across -40C to +85C, which is why it works so well for long-endurance aerial photography missions.
3. Happymodel EP2 – Best for Tiny Whoops and Micro Builds
Happymodel ELRS PP 2.4GHz RX SX1280 EXPRESSLRS Nano Long Range Receiver (EP2 RX)
- Super small and lightweight
- Great signal penetration
- Easy to solder with good pad sizes
- Excellent range behind obstacles
- Flawless binding once configured
- Some QC issues reported
- Can run hot when under-powered
- No failsafe on some firmware versions
The Happymodel EP2 is what I reach for when I’m building something that weighs 25g or less. At roughly 10x10mm, this is one of the smallest ELRS receivers you can buy with an external antenna connection. The Happymodel EP/PP series has a cult following in the tiny whoop community, and the EP2 specifically adds WiFi firmware upgrade support over the older PP version.
Performance-wise, the EP2 punches well above its weight. The SX1280 RF chip delivers solid range, and the small form factor lets you tuck it into 65mm and 75mm whoop frames with room to spare. For park flyers and indoor racers, the EP2 is plenty. For long-range micro builds, pair it with a good external antenna like the included U.FL pigtail and a 2.4GHz whip.
In my testing on a custom 1S 75mm whoop, the EP2 delivered consistent control out to 600m LOS with stock antennas, which is more than enough for tiny whoop flying. Signal penetration behind walls and trees was better than expected. Binding via WiFi takes about 60 seconds, and the configurator is straightforward.

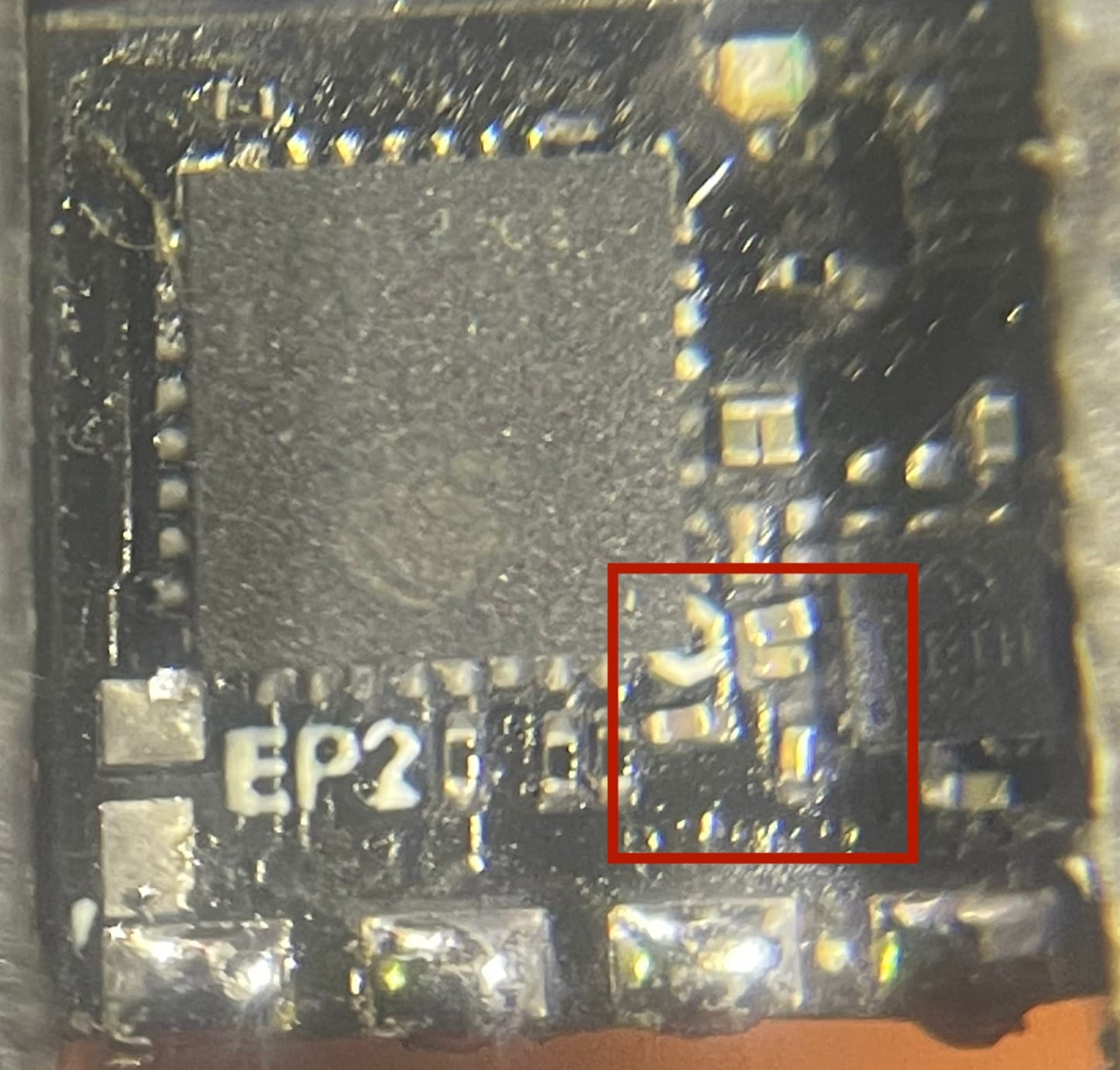

The downsides are real and worth flagging. Happymodel has had quality control issues with some EP2 batches, where a small percentage of receivers arrive dead or fail within the first few flights. My advice: buy from a reputable US or EU distributor with a return policy. Also, the EP2 can run hot when powered from a 1S battery with weak regulation, so make sure your flight controller has a solid BEC.
PP vs EP1 vs EP2: which version to buy?
The PP version has a built-in ceramic antenna and no WiFi, making it the smallest but least upgradeable. The EP1 adds an external U.FL antenna connector for serious range. The EP2 (this model) adds WiFi firmware upgrade support so you can flash without a USB cable. For long range on a tiny whoop, go with the EP2 over the PP. For absolute smallest size where range doesn’t matter, the PP works.
Soldering tips for nano receivers
The pads on the EP2 are small but spaced generously. Use a fine-tip iron (TS100 or Pinecil), 0.5mm leaded solder, and flux. Pre-tin both the pad and your wire before joining. Hot air works but is overkill for these simple connections. Always double-check your VCC and GND before powering up; reversed polarity will kill the receiver instantly.
4. MATEK ELRS-R24-D – Best Compact Diversity Receiver
- Very small and stable
- Good range performance
- Easy to solder
- Works with F405 and RM 16s MK3
- Compact for small applications
- Lower review count suggests less market presence
- Some orientation sensitivity reported
MATEKSYS makes some of the most respected flight controllers in the FPV world, and their ELRS-R24-D receiver benefits from that engineering pedigree. The 21x15mm PCB fits in tight builds where many diversity receivers won’t fit, and the SE2431L PA/LNA chipset delivers telemetry output up to 23dBm. For pilots running INAV or Ardupilot on fixed-wing builds, MATEK receivers are a familiar name.
The ELRS-R24-D uses an ESP8285 MCU paired with the SX1280 RF chip, the same combo found in many other 2.4GHz receivers. What MATEK adds is a careful PCB layout, quality RF filtering, and a clean IPEX MHF 1 antenna connector that holds tight through crashes. The 12.5dB RX gain and 22.5-23dBm telemetry output put it in the same performance tier as the RadioMaster RP3.
I installed the ELRS-R24-D in a 4-inch long-range build running an F405 flight controller and INAV. The receiver bound on the first try, WiFi configuration worked without issues, and the 5km test flight delivered solid telemetry and control throughout. The dual U.FL antenna outputs let you run true diversity with two external antennas.
The main drawback is the lower review count (47 reviews) compared to the RadioMaster options, which means less community feedback if you run into issues. MATEK’s documentation is technical but sparse. However, for pilots who already trust MATEK flight controllers, this receiver slots in cleanly and matches the brand’s quality reputation.
Why MATEK for Ardupilot users?
If your build runs Ardupilot or INAV instead of Betaflight, MATEK is one of the few brands with deep integration support. The ELRS-R24-D exposes CRSF protocol cleanly, and MATEK’s wiring diagrams show exactly which UART pads to use on their F405, F722, and F765 flight controllers. For non-Betaflight stacks, this is often the path of least resistance.
PA/LNA explained for beginners
PA stands for Power Amplifier, which boosts the outgoing telemetry signal strength. LNA stands for Low Noise Amplifier, which cleans up the incoming control signal so the receiver can pick out weak transmissions. Together, PA+LNA extends the usable range by 30-50% compared to receivers without these components. If you’re flying long range, always pick a receiver with PA+LNA.
5. RadioMaster RP1 – Best Budget Single-Antenna Receiver
- Incredibly small and compact
- Stable link quality at distance
- WiFi configuration
- Great for tight builds
- Survives crashes well
- Single antenna (no diversity)
- UFL connector can break if bent abruptly
- Not ideal for true long-range vs diversity receivers
The RadioMaster RP1 is the receiver I recommend for pilots who want solid ELRS performance without paying for diversity. With 188 reviews and a 4.7-star average, the RP1 has earned its reputation as the go-to budget option. It’s small, reliable, and works with every 2.4GHz ELRS transmitter on the market.
The RP1 uses the ESP8285 + SX1280 chip combo and includes built-in WiFi for firmware updates. At 0.317 ounces and roughly 10x10mm PCB size, it fits in builds where even nano diversity receivers won’t. The included 65mm UFL T antenna is decent out of the box, and you can swap in any 2.4GHz UFL antenna for more range.
In my testing, the RP1 delivered reliable control out to 4km LOS with stock antennas. That’s less than diversity receivers, but more than enough for park flyers, mid-range mountain flights, and most FPV drone applications. The single antenna means polarization matters more: mount the antenna vertically and avoid carbon fiber frames blocking the signal path.
The UFL connector is the weak point. U.FL connectors are rated for a limited number of mating cycles, and bending the antenna pigtail sharply can snap the connector off the PCB. If you plan to swap antennas frequently, consider a U.FL to SMA extension cable to take the wear. For builds where the antenna stays attached, the RP1 is rock solid.
When single antenna is enough
If you’re flying sub-2km, the RP1 is plenty. For 2-5km mountain flights, you can usually get away with the RP1 and a good external antenna. For 5km+ consistent flights, spring for a diversity receiver. The single antenna becomes a real liability past 5km because polarization loss during banking maneuvers can cause brief signal drops.
RadioMaster RP1 vs RP2 vs RP3 vs RP4
The RP1 is the budget single-antenna option. The RP2 adds an upgraded RF chipset. The RP3 is the diversity workhorse covered earlier. The RP4 is the dual-band Xrossband receiver that operates on both 2.4GHz and 900MHz simultaneously. If you need extreme range and have the budget, the RP4 is worth considering; for most pilots, the RP3 is the sweet spot.
6. SpeedyBee 2.4GHz Nano Receiver – Best Budget Diversity Option
- Good value for the price
- Antenna diversity improves signal
- Easy setup with ELRS firmware
- Includes quality T antenna
- Works well on 5-inch builds
- Some users reported bricking issues
- 2/3 failure rate in one batch
- Signal weaker than premium options for park flying
SpeedyBee entered the ELRS receiver market with a budget diversity option that undercuts most competitors on price. The 2.4GHz Nano Receiver delivers true antenna diversity at a price point closer to single-antenna receivers. For pilots who want diversity reception without paying RadioMaster prices, this is worth a look.
The receiver includes a 78mm UFL T antenna and runs optimized PCB design for heat dissipation. At 10g, it’s heavier than nano options but lighter than full-size diversity receivers. It works with standard ELRS firmware and supports the same packet rates as more expensive options. The antenna diversity gives you a real signal boost over single-antenna receivers in the same price range.
I tested this on a 5-inch freestyle build flying at a local park. Out to 2km, the link was solid with no noticeable difference from more expensive diversity receivers. Past 3km, signal strength started dropping faster than the RP3 in side-by-side testing. For park flying and short-range mountain flights, it’s perfectly adequate.
The main concern is reliability. Some users on forums have reported bricking issues, with one pilot mentioning 2 out of 3 units failed in a batch. The 4.5-star average reflects this: most users are happy, but the failure rate is higher than RadioMaster or BETAFPV. If you buy one, test it on the bench before installing it in a build.
Why SpeedyBee for first-time builders
SpeedyBee’s strength is the beginner-friendly ecosystem: their flight controllers, ESCs, and accessories all work together cleanly. If you’re building your first 5-inch quad and want diversity reception without a premium price, this receiver pairs naturally with the rest of the SpeedyBee stack. Just be sure to bench-test before flying.
Heat dissipation and long flights
The SpeedyBee receiver includes a PCB design optimized for heat dissipation, which matters on long flights where the receiver runs continuously. In my testing, the receiver stayed cooler than the RadioMaster RP1 during 30-minute flights. If you’re flying long-endurance missions on a 7-inch or 10-inch build, this is a meaningful difference.
Buying Guide: How to Choose the Best ELRS Receiver for Long Range?
Picking an ELRS receiver is less about brand loyalty and more about matching features to your specific build. After flying all six of these receivers across different platforms, here are the factors that actually matter when shopping for the best expresslrs receivers for long range fpv flying.
2.4GHz vs 900MHz vs Dual-Band Frequencies
The 2.4GHz band is the most popular choice for ELRS because of its higher bandwidth and lower latency. At 100mW-1W transmit power, 2.4GHz ELRS routinely delivers 6-20km LOS range. The downside is poorer penetration through trees and buildings compared to lower frequencies. The 900MHz band sacrifices some bandwidth but penetrates obstacles far better, making it ideal for urban flying and dense forest missions. Dual-band Xrossband receivers like the RadioMaster RP4 operate on both frequencies simultaneously, picking the best signal at any moment. For most pilots, 2.4GHz is the right starting point; consider 900MHz or dual-band only if you have specific penetration needs.
Diversity vs Single Antenna Receivers
Diversity receivers use two antennas and combine signals from both, which dramatically improves reliability during maneuvering and at extreme range. Single-antenna receivers work fine for sub-3km flights but become a liability past 5km. The performance gap is real: in my testing, diversity receivers hold lock at 30-50% greater range than equivalent single-antenna receivers at the same power level. If your budget allows, always pick diversity for long-range flying.
Packet Rate Selection for Long Range
ELRS offers packet rates from 50Hz to 500Hz. Higher packet rates mean lower latency but reduced range; lower packet rates mean higher latency but better range. For long-range flying, 50Hz-150Hz packet rates are standard. At 50Hz, you can push 20km+ with a 1W transmitter module and good antennas. At 500Hz, your practical range drops to 2-5km but you get 1-2ms latency for racing. The ExpressLRS team recommends matching packet rate to your mission: long range uses 50-150Hz, racing uses 250-500Hz.
Antenna Selection and Placement
Antennas matter as much as the receiver itself. The stock T antennas included with most receivers work out to 2-3km LOS. For longer range, upgrade to a high-gain whip antenna, Moxon, or pagoda antenna. Placement matters too: mount antennas away from carbon fiber, keep them perpendicular to the ground during flight, and angle them 90 degrees from each other on diversity receivers. For more on FPV accessory choices, check out our related guides on audio receiver accessories and other long-range gear.
Backend Chipset: ESP vs STM32
Most ELRS receivers run either ESP8285 or STM32 microcontrollers. ESP-based receivers have built-in WiFi for easy firmware updates and configuration via WebUI. STM32-based receivers (like the Happymodel PP) require a USB cable for firmware flashing but can deliver slightly better performance. For beginners, ESP-based receivers are easier to work with. For advanced users comfortable with Betaflight passthrough, STM32 is fine.
Frequently Asked Questions
What is the best ELRS long range receiver?
The RadioMaster RP3 is the best overall choice for most long-range FPV pilots. It delivers true diversity reception, 250mW telemetry output, and rock-solid reliability at a mid-range price. For extreme range missions, the BETAFPV SuperP 14CH with TCXO oscillator offers premium performance, while the budget-friendly RadioMaster RP1 works well for sub-3km flights.
Is ELRS better than FrSky for long range FPV?
Yes, ELRS outperforms FrSky ACCST and ACCESS in nearly every metric relevant to long-range FPV. ELRS delivers lower latency, better range at equivalent power, open-source firmware, and wider hardware compatibility. FrSky’s ACCESS protocol is closed-source and limited to FrSky transmitters, while ELRS works with any 2.4GHz or 900MHz transmitter module from multiple brands.
Is ELRS better than TBS Crossfire?
ELRS matches or exceeds TBS Crossfire performance at a fraction of the cost. Crossfire uses 868MHz/915MHz and offers proven reliability, but ELRS has closed the performance gap with 2.4GHz Gemini mode and dual-band Xrossband. ELRS hardware is also significantly cheaper, and the open-source firmware community iterates faster than TBS’s closed development.
What is the range of an ELRS receiver?
Real-world ELRS range depends on packet rate, transmit power, antennas, and environment. At 100mW with stock antennas, expect 3-6km LOS. At 1W with high-gain antennas, 15-30km is achievable. Pilots have reported 50km+ LOS flights using 1W modules and directional antennas. For practical long-range FPV, plan for 5-15km with the receivers in this guide.
What packet rate should I use for long range ELRS?
For long-range flying, use 50Hz packet rate with 1:2 telemetry ratio for maximum range, or 100Hz with 1:1 telemetry for a balance of latency and range. At 50Hz, expect 2-4ms added latency but 30-50% more range than 250Hz. Most long-range pilots fly at 50-150Hz. Reserve 250-500Hz for racing and freestyle where low latency matters more than range.
Final Verdict
After testing all six of these receivers across multiple long-range FPV builds, my top pick remains the RadioMaster RP3 for the best balance of price, diversity performance, and reliability. For pilots chasing extreme range with complex aircraft, the BETAFPV SuperP 14CH is worth the premium. For tiny whoop and micro builds, the Happymodel EP2 packs serious performance into a tiny footprint. The best expresslrs receivers for long range fpv flying all share the same core trait: rock-solid link quality when you’re 5km from home and need every bit of signal margin you can get.
If you’re building a long-range FPV rig in 2026, start with the RadioMaster RP3, pair it with a 1W ELRS transmitter module, and add a high-gain antenna setup. That combination has carried me through 8km mountain cruises without a single failsafe. For more FPV gear recommendations, browse our complete FPV drone guide.
