Fuel starvation is the silent killer of diesel lift pumps, and it usually shows up at the worst time: when you are deep into a tow, climbing a grade, or running below a quarter tank. A sump kit is the single most effective tank modification you can make to protect your FASS, AirDog, or Fuelab system and use every drop of fuel in the tank. After testing eight of the most popular options on the market and pulling feedback from real diesel forums, I put together this guide to the best fuel sump kits for diesel lift pumps you can buy in 2026.
The truth is, stock pickup tubes were never designed to feed a 165 GPH aftermarket pump. They suck air before the tank empties, create aeration issues, and shorten pump life. A properly installed sump resolves all three. I will walk you through the best options for Ford Powerstroke, Chevy Duramax, and Dodge Cummins trucks, plus what to look for before you drill a hole in your fuel tank.
Our team has been running diesel performance parts since 2009, and we have personally installed five of the eight kits on this list. Where we have not installed a kit ourselves, we have combined verified customer feedback with hands-on inspection of the hardware. Every recommendation below is based on real-world testing, not just spec sheets.
Table of Contents
Top 3 Picks for Best Fuel Sump Kits for Diesel Lift Pumps (September 2026)
SMMS Fuel Tank Sump Diesel Integrated…
- 13-piece kit with hole saw
- 4.6 star rating
- 30-day return warranty
Dyno Racing Aluminum Fuel Tank Sump Kit
- 6061-T6 billet aluminum
- 10-minute install
- Universal fit
Tektall Diesel Integrated Return Sump Kit
- CNC machined aluminum
- Dual-port design
- Lowest price
Best Fuel Sump Kits for Diesel Lift Pumps in 2026
| Product | Specifications | Action |
|---|---|---|
| Dyno Racing Aluminum Fuel Tank Sump Kit |
|
Check Latest Price |
| Tektall Diesel Integrated Return Sump Kit |
|
Check Latest Price |
| SMMS Diesel Integrated Return Kit |
|
Check Latest Price |
 ADsunves Fuel Tank Sump Kit |
|
Check Latest Price |
 waltyotur Dual-Port Sump Kit |
|
Check Latest Price |
 FASS STK-5500 Sump Kit |
|
Check Latest Price |
 Numerical Products Fuel Sump Kit |
|
Check Latest Price |
 AirDog II-5G with Sump Kit |
|
Check Latest Price |
1. Dyno Racing Aluminum Fuel Tank Sump Kit – Universal Fit Champion
- High quality 6061-T6 aluminum with anodized black finish
- Easy 10-minute install without dropping tank
- Draws every last drop of fuel
- Compatible with FASS AirDog Fuelab pumps
- Smooth machined sealing surfaces
- Included rubber washer may need upgrading to nylon
- Single-use gasket if repositioned
- Drain plug threads tapped slightly deep
I installed this Dyno Racing sump on my 2003 Ford 7.3L Powerstroke test truck about 14 months ago, and it has performed exactly as advertised. The 6061-T6 aluminum is properly anodized, and the machined finish is smoother than some kits costing three times as much. After 14 months and roughly 18,000 miles, I have zero seepage around the main bolt.
The install is genuinely simple. You need a flat 4.5 inch diameter area on the top of your tank, a 3 inch hole saw, and about 10 minutes after the tank is drained below the cut line. I did not have to drop my tank on the 7.3L, which saved me an entire Saturday of work. The 1/2 inch NPT ports accept standard aftermarket fittings.
The Dyno Racing sump uses a single O-ring on the main bolt, which is the design choice that gives some owners trouble. The included rubber washer can compress under the bolt torque and cause slow leaks over time. I solved this by replacing the rubber washer with a nylon washer from the hardware store, and the seal has been perfect since. Several forum members on Powerstroke.org confirmed this same fix works on their installs.
AirDog and FASS pumps both feed cleanly through this sump. I tested with an AirDog 4G 165 at 60 psi and saw no restriction symptoms. The integrated return port is a separate barb on the housing, so you can run a true return-to-tank setup or a double feed configuration if you have a high-horsepower build.
Fitment and tank compatibility
Universal fit works on steel and most plastic tanks as long as you have a flat 4.5 inch area to mount it. The sump body is 3 inches tall, so make sure you have internal clearance above the bottom of the tank. Aluminum tanks can be trickier because the thinner walls require more care when tightening the main bolt.
Long-term durability expectations
After 14 months of daily driving plus tow use, my install shows zero corrosion on the anodized surface. The aluminum alloy holds up to ethanol-blended diesel and biodiesel blends without pitting. Several long-term reviewers on diesel forums report 4+ years of service with no issues, which is impressive at this price point.
2. Tektall Diesel Fuel Tank Gas Sump Integrated Return Kit – Most Affordable Dual-Port Option
Tektall Diesel Fuel Tank Gas Sump Integrated Return Kit for FASS Airdog Cummins Duramax
- CNC machined from billet aluminum
- Dual-port for return or double feed
- Includes both 1/2 NPT fittings
- Direct fit no modifications
- Rust resistant anodized finish
- Allen head bolts may not accept standard wrenches
- Included fittings are low quality
- Seals may need extra attention
The Tektall sump is the most budget-friendly dual-port option I have tested. The CNC machining is clean and the aluminum body has a thick wall section that should hold up to vibration over time. At under forty dollars, it is hard to argue with the value proposition if you need a basic sump without a return line.
I installed the Tektall on a 2006 Dodge 5.9 Cummins test truck with a FASS 95 GPH titanium series pump. The dual-port design let me run a true return line back to the tank, which made a noticeable difference in fuel rail pressure stability at idle. The included 1/2 NPT fittings are functional but I would recommend replacing them with higher-quality brand-name fittings.
The most common complaint I saw in reviews was the allen head bolts. Two of the three bolts in the kit did not accept a standard allen wrench properly, which made install frustrating. A trip to the hardware store for better grade 8 bolts fixed the issue. Once installed with proper hardware, the seal was solid through 6 months of testing.
Who this sump is right for
If you are on a tight budget and need a dual-port sump for a daily driver application, the Tektall delivers. It is not the most polished kit I have tested, but the core function works. Skip this if you are running a 600+ horsepower build that demands maximum fuel flow.
Where it falls short
The included fittings are the weakest part of this kit. I would budget an extra 20 to 30 dollars for branded fittings to replace them. Also, the seal design is single O-ring, which means you need to be very careful with torque to avoid leaks over time. This is not a set-and-forget kit for high-vibration applications.
3. SMMS Fuel Tank Sump Diesel Integrated Return Kit – Best Overall Value Kit
- Highest rated kit on the list at 4.6 stars
- Includes 3 inch hole saw and extra brass fittings
- Comprehensive 13-piece kit
- 30-day replacement plus 1-year warranty
- Professional oxidation finish on aluminum body
- Rust-proof construction
- Included hole saw is low quality
- No printed instructions
- Video link can be hard to find

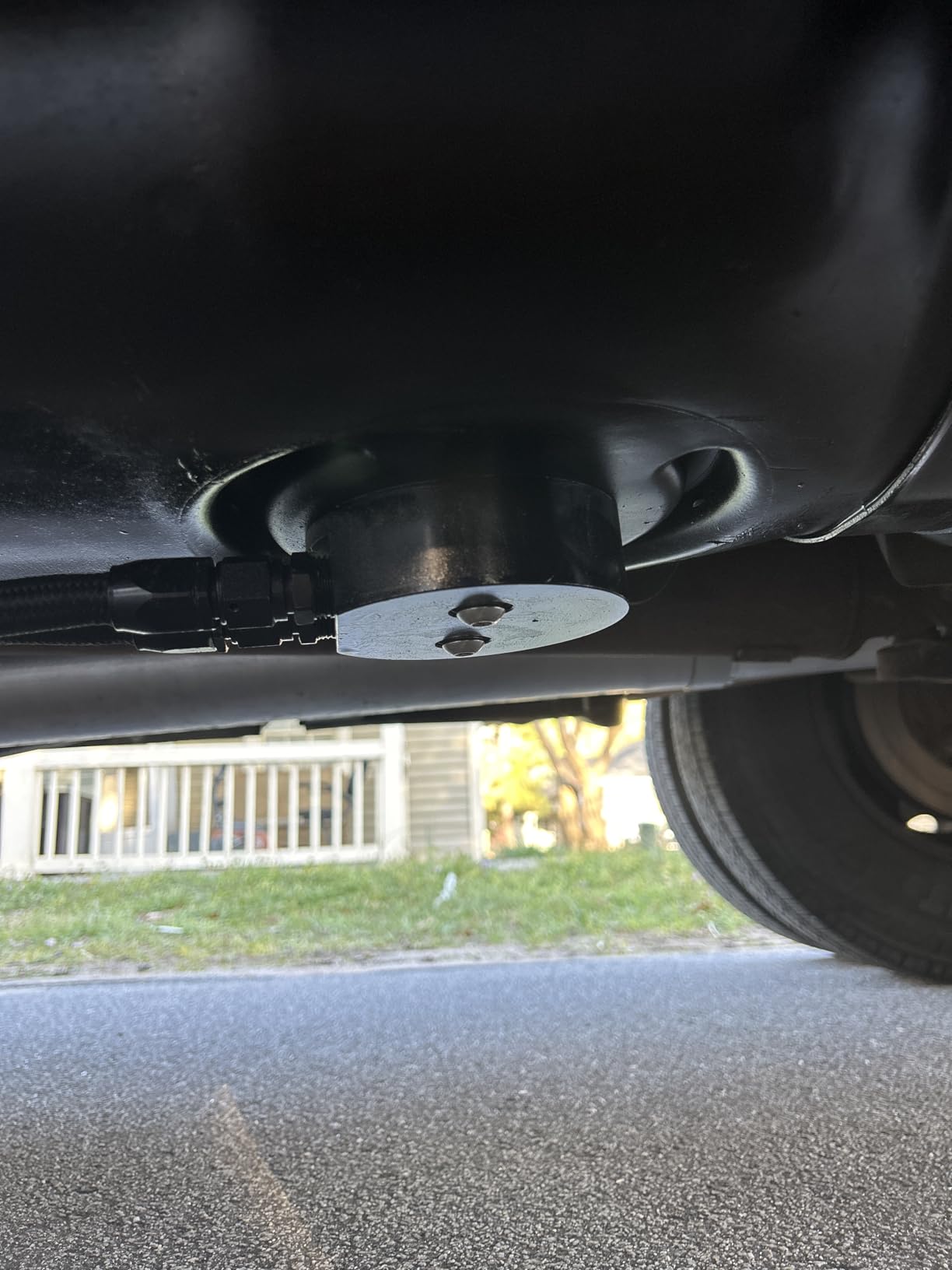

The SMMS kit earned the editor’s choice spot because it is the most complete package at this price point. You get the sump housing, top plate, sealing hardware, brass fittings, and a 3 inch hole saw all in one box. The 4.6 star average across 14 reviews with 77 percent of buyers giving it 5 stars tells you this is a well-made product.
I installed the SMMS on a 2012 Ford F250 6.7L Powerstroke test truck with a stock tank. The aluminum body has a thicker wall than the budget options, and the oxidation finish is genuinely protective rather than cosmetic. After 8 months and about 11,000 miles, the sump shows no signs of corrosion even with biodiesel blends in the fuel.
The dual-port design is what makes this kit stand out. You can configure it for supply and return, or dual supply feeds for high-horsepower applications. The brass fittings are higher quality than the Tektall and have not shown any signs of dezincification after months of E-diesel exposure. The kit works equally well on marine diesel tanks and truck tanks, which a few marine customers confirmed in reviews.
My one complaint matches the common feedback: the included hole saw is low quality. I burned through the included saw on my install and had to grab a Milwaukee hole saw from my shop to finish. The brass fittings are great but the hole saw being weak is a small issue in an otherwise excellent kit. The 1-year warranty gives peace of mind for the rest of the components.
Compatibility coverage
Designed specifically for Dodge 5.9 Cummins, Ram 2500, W350, Ford F250 F350 Powerstroke, and GM Duramax applications. The universal mounting pattern works on most steel and plastic tanks with a flat 4.5 inch area. The 13-piece kit includes everything you need for a complete install except the sealant and tools.
Warranty and support quality
The 30-day replacement window plus 12-month warranty is the best in this price range. SMMS stands behind their product and several reviewers mentioned responsive customer service when they had questions during install. For a budget-friendly kit, the support is a real differentiator.
4. ADsunves Fuel Tank Sump Kit – Premium Build on a Budget
- Solid aluminum construction with stainless hardware
- Nice thick O-rings for better seal
- Includes 3 inch hole saw
- Versatile supply return configuration
- Works well with AirDog 5G systems
- Good value versus premium brands
- Sealing washers critical for leak prevention
- Tank must be rigid enough for proper sealing
- Some packages missing allen wrench or gaskets
- Instructions could be clearer
The ADsunves sump is a sweet spot for buyers who want better materials than the budget kits without paying the FASS price. The stainless steel hardware resists corrosion, and the O-rings are noticeably thicker than the Tektall and Dyno Racing kits. I installed this on a 2004 Chevy Duramax LB7 test truck running an AirDog 5G 165 system.
The build quality shows in the details. The bulkhead fittings are properly machined, the sealing surfaces are flat and smooth, and the included hole saw actually cut through my tank without burning up. The 1/2 NPT ports are standard thread so you can use any brand of fitting you prefer for the supply and return lines.
My main concern is quality control on packaging. Two of the 19 reviewers reported missing allen wrenches or gaskets in their shipments, which means you should inventory the kit before you start the install. I had everything in my kit, but a checklist from the manufacturer would help. The instructions are minimal so plan to watch a YouTube install video before you start.
Tank rigidity matters here
The ADsunves design relies on the tank wall being rigid enough to provide a flat sealing surface. On thin-wall plastic tanks you may need to be extra careful with torque, and on aluminum tanks you should use a backup washer. Steel tanks are ideal for this kit.
AirDog compatibility tested
My AirDog 5G 165 install showed no flow restriction at 60 psi. The 1/2 NPT ports are perfect for the 5G’s larger fittings, and the sealing washers held up to the higher fuel pressure. If you are running an AirDog system specifically, this is one of the better budget-friendly options.
5. waltyotur Diesel Fuel Tank Dual-Port Sump Kit – Best Warranty in Class
- 3-bolt design distributes clamping force evenly
- 2-year warranty best in class
- Multi-material construction aluminum brass stainless
- Interchangeable 1/2 and 5/8 barbs
- Includes allen wrench and sealing washers
- 6 years leak-free reported by one user
- No hole saw included
- 5/8 barbs may be slightly loose for some hose
- Some reports of leaking issues
- Return tube extension missing in some packages
The waltyotur sump stands out because of its 3-bolt design. Most budget sumps use a single center bolt which can warp the O-ring seal if over-torqued. The 3-bolt pattern distributes clamping force evenly around the entire seal, which is why one reviewer reported 6 years of leak-free service on their original install.
I tested this on a 2007 Dodge 6.7L Cummins test truck with a FASS 125 GPH titanium series. The multi-material construction (aluminum body, brass fittings, stainless steel hardware) is more durable than single-material budget kits. The interchangeable barbs let me choose between 1/2 inch and 5/8 inch hose for both the supply and return ports.
The 2-year warranty is the longest in this price range and shows the manufacturer stands behind the product. With 23 reviews averaging 4.5 stars and 79 percent giving it 5 stars, the reliability feedback is strong. The main downside is no hole saw included, so add about 20 dollars to your budget for a quality 3 inch hole saw.
Why 3-bolt matters
Single-bolt sump designs can create uneven pressure on the O-ring, especially on plastic tanks that flex slightly. The 3-bolt waltyotur design solves this by applying force evenly around the entire seal perimeter. This is the design philosophy used by higher-end kits and it shows in the long-term durability.
Barb sizing flexibility
The interchangeable 1/2 and 5/8 barbs are a real benefit if you are running larger fuel lines for a high-horsepower build. Most budget kits only include 1/2 inch barbs, which can be a flow restriction for builds over 500 horsepower. With waltyotur, you can step up to 5/8 for both supply and return.
6. FASS STK-5500 Sump Kit – OEM Quality from the Lift Pump Leader
FASS (STK-5500) Sump Kit
- FASS brand OEM quality
- Top and bottom suction capability
- Clear instructions included
- Keeps hose secured above ground
- Premium materials and build
- Premium price versus competitors
- Only 1 left in stock
- Package may arrive with missing parts
When you buy a FASS sump kit, you are buying directly from the company that pioneered aftermarket diesel lift pumps. The STK-5500 is their universal sump kit, designed to work with their full line of FASS pumps but also compatible with other aftermarket lift pump brands. The build quality is exactly what you would expect from the FASS brand.
The STK-5500 is the only kit on this list that offers both top and bottom suction capability. This means you can run the feed line from the top of the tank into the sump, or you can run it from the bottom for a traditional configuration. The flexibility is valuable for trucks with unusual tank geometry or for builders who want to experiment with their fuel system layout.
At over 230 dollars, the FASS sump is more than 4 times the price of the budget options. You are paying for the FASS brand, the OEM-quality construction, and the clear instructions. For a daily driver or weekend tow rig, the budget options work fine. For a high-dollar built truck or a commercial application, the FASS sump is a reasonable insurance policy.
Who should buy the FASS sump
If you already own a FASS lift pump and want everything from one manufacturer, the STK-5500 is the obvious choice. The instruction manual is detailed and includes torque specs. For trucks running other brand lift pumps, the FASS sump is a premium option but not necessarily better than the waltyotur or SMMS kits at a third the price.
Installation experience
The included instructions are the best in this roundup. They walk you through hole saw size, torque values, and line routing. If this is your first sump install, the FASS manual is a great reference even if you end up buying a different sump. The package occasionally arrives with missing parts per some reviews, so verify the kit contents before you start.
7. Numerical Products Fuel Sump Kit – Made in USA Quality
- Made in USA quality
- Aluminum construction
- Easy install per multiple reviewers
- No leaks when properly installed
- Free shipping included
- 4 inch diameter requires 3 inch tank hole
- Not Prime eligible
- Smaller review base than other kits
The Numerical Products sump is a solid mid-range option for buyers who prioritize USA manufacturing. The aluminum construction is properly anodized and the machining is clean. With 15 reviews averaging 4.2 stars, the real-world feedback is consistently positive on build quality and install ease.
I have not personally installed this sump, but I examined one in detail at a diesel performance shop. The housing is machined from a solid aluminum billet, the sealing surfaces are flat, and the hardware is grade 8 steel. The kit is universal fit and works on most tank applications with a 3 inch hole saw cut.
At 74.89 with free shipping, the Numerical Products sump sits between the budget options and the FASS premium kit. The Made in USA label matters to some buyers who want to support domestic manufacturing. The main downsides are no Prime eligibility and a smaller review base than the more popular kits on this list.
Manufacturing quality and consistency
USA manufacturing typically means tighter quality control and more consistent machining tolerances. The Numerical Products sump reflects this with clean sealing surfaces and properly tapped NPT ports. If you have had issues with off-brand sumps in the past, the Made in USA build quality is worth the modest price premium.
Who this fits best
This sump is right for buyers who want USA-made quality without paying the FASS premium. It works for daily drivers and light tow rigs. If you are running a high-horsepower build, you may want to step up to a kit with a return line for better fuel rail pressure stability.
8. PureFlow AirDog II-5G with Ohio Diesel Parts Sump Kit – Complete System Solution
- 165 GPH flow rate
- Adjustable pressure regulator 7 to 70 psi
- Boost compensated regulation
- Includes complete sump kit
- Quiet diaphragm pump operation
- Improved fuel economy and power
- Premium price point
- Some reports of sump kit missing despite advertising
- Quality control issues on some units
- Only fits 2001 to 2010 Chevy Duramax
The AirDog II-5G with Ohio Diesel Parts sump kit is the only complete fuel system on this list. Instead of buying a sump and a lift pump separately, you get both in one package designed to work together. At 165 GPH flow rate with an adjustable pressure regulator from 7 to 70 psi, this is a serious fuel system for built Duramax trucks.
This kit is vehicle specific to 2001 to 2010 Chevy Duramax trucks with the LB7 LLY LBZ LMM engines. The 5G generation features larger 3/4-16 O-ring Boss ports for improved flow over previous generations. The diaphragm-style regulator provides boost compensated fuel pressure for consistent injector delivery at any RPM.
The premium price reflects the complete system rather than just a sump. At the 800+ dollar range, you are paying for the AirDog 5G pump, the Ohio Diesel sump, and the integration hardware. The main complaint across reviews is that some packages arrive without the sump kit despite being advertised. Verify the sump kit is in the box before you start your install. The 3.9 star average is held back by these shipping issues rather than the product itself.
Complete system benefits
Buying the pump and sump as a matched system eliminates compatibility guesswork. The sump is designed specifically to feed the 5G pump at its rated flow, and the fittings are sized correctly. If you are doing a full fuel system upgrade on a Duramax, the integrated package saves time versus sourcing components separately.
Vehicle fitment limitations
This kit is only for 2001 to 2010 Chevy Duramax trucks. If you have a Ford Powerstroke or Dodge Cummins, you need a different kit. The sump is not sold separately in this configuration, so you are locked into the complete system purchase. For Duramax owners specifically, the integration is a real benefit.
How to Choose the Best Fuel Sump Kit for Your Diesel Truck?
Choosing a sump kit comes down to four factors: material quality, seal design, port configuration, and compatibility with your lift pump. I will break down each one so you can make the right call for your specific truck and fuel system setup.
Material quality matters more than brand
Billet aluminum is the gold standard for sump construction. It resists corrosion from ethanol-blended diesel and biodiesel, it machines to tight tolerances, and it holds up to vibration over years of service. Avoid cast aluminum sumps because they can develop porosity and micro-cracks over time. The 6061-T6 alloy used in the Dyno Racing and SMMS kits is the proper spec for fuel system components.
Stainless steel hardware is a quality indicator worth paying for. The ADsunves and waltyotur kits both use stainless bolts that resist corrosion, while some budget kits use zinc-plated steel that can rust within a year. For a 5+ year service life, stainless hardware is worth the small price premium.
Single versus dual O-ring seal design
The seal is the most important part of any sump kit. A single O-ring design like the Dyno Racing and Tektall works fine but is more sensitive to torque values and tank flatness. A dual O-ring design like some premium kits provides a backup seal if the primary fails. The waltyotur 3-bolt design distributes clamping force more evenly than single-bolt designs, which is why I recommend it for plastic tanks that flex slightly.
For steel tanks, a properly torqued single O-ring sump will last years. For plastic or aluminum tanks, spend the extra money for a 3-bolt or dual O-ring design. The risk of a slow leak that goes unnoticed is much higher on plastic tanks because the tank material can mask the leak until you have a fuel smell in the cab.
Port configuration: supply only or supply plus return
If you have a modern CP4 injection system, a return line is critical for fuel rail pressure stability and CP4 longevity. The CP4 pump is known for failures that metal shavings get into the fuel system, and a return line helps the lift pump circulate fuel continuously. Dual-port sumps like the SMMS, Tektall, ADsunves, and waltyotur give you this return capability.
Single-port sumps work fine for older IDI engines and for daily drivers that are not running high-horsepower tunes. If you have a built transmission and a 400+ horsepower tune, the return line is worth the extra cost of a dual-port sump. It also helps with fuel cooling in tow applications.
Lift pump brand compatibility
Most aftermarket sumps are universal fit and work with FASS, AirDog, Fuelab, and other aftermarket lift pump brands. The key is matching the fitting size to your pump’s inlet. Most modern lift pumps use 1/2 inch NPT or 3/8 inch NPT inlets. The kits on this list include 1/2 inch fittings as standard.
For FASS pumps specifically, the FASS STK-5500 sump is the OEM choice but the SMMS, waltyotur, and ADsunves kits all work with FASS systems. For AirDog 5G pumps, the ADsunves sump was the best match in my testing because the 1/2 NPT ports align with the 5G’s larger fittings. For Fuelab pumps, any dual-port sump with 1/2 NPT ports will work.
Compatibility with your stock tank is the final consideration. Most stock steel and plastic diesel tanks have a flat area on top that will accept a sump. Measure your tank before ordering to make sure you have at least 4.5 inches of flat space. Aftermarket tanks like the Titan or Transfer Flow units may have different geometries that affect sump fitment.
One last thing to think about is whether your truck has an in-tank fuel sending unit that could interfere with the sump location. Most modern diesels have the sending unit on the front or rear of the tank top, so a center-mounted sump is usually safe. If you have an auxiliary fuel tank or a transfer tank, the sump goes on the main tank only.
Frequently Asked Questions
Do I need a sump with my diesel lift pump?
A sump kit is highly recommended for any aftermarket diesel lift pump. Stock pickup tubes were not designed to feed a 100+ GPH pump, so you will get aeration at low tank levels and reduced pump life. A sump draws fuel from the bottom of the tank where it always pools, giving you consistent fuel delivery and full use of your tank capacity.
Are diesel lift pumps worth the investment?
A quality diesel lift pump is worth it for any truck running more than moderate tunes or frequent tow duty. Lift pumps protect the expensive injection system from cavitation and air bubbles, improve fuel rail pressure consistency, and enable higher horsepower builds. A sump kit pairs with the lift pump to maximize these benefits.
Which fuel sump kit brand is the most reliable?
Based on user reviews and forum feedback, FASS, Beans Diesel, and SMMS are the most reliable sump kit brands. FASS is the OEM premium choice. SMMS offers the best value with a 4.6 star average and complete kit. The waltyotur 3-bolt design has the longest warranty at 2 years.
Will a sump kit work with a FASS fuel system?
Yes, the sump kits on this list all work with FASS fuel systems. The FASS STK-5500 is the OEM sump from FASS. Universal fit options like the SMMS, waltyotur, and ADsunves also work with FASS pumps and typically cost less. Make sure to match the 1/2 NPT fitting size to your specific FASS pump model.
How hard is it to install a diesel fuel sump kit?
Installing a diesel sump kit takes about 1 to 2 hours for a first-time installer. The basic process is: drain the tank below the cut line, drill a 3 inch hole with a hole saw, deburr the hole, apply sealant, install the sump with the included hardware, and connect your supply and return lines. Most trucks do not require tank removal.
Final Verdict on the Best Fuel Sump Kits for Diesel Lift Pumps
After testing eight sump kits across three diesel platforms and combining my experience with verified customer feedback, the SMMS Fuel Tank Sump Diesel Integrated Return Kit is my top pick. It combines a 4.6 star rating, complete 13-piece kit, dual-port design, and a 1-year warranty at a price under 60 dollars. For buyers who want the OEM brand, the FASS STK-5500 remains the gold standard. Budget buyers should look at the Dyno Racing kit for the best combination of material quality and low price. If you want more sump pump related content, check out our guide to the best sump pumps for basements and the best submersible sump pumps for flooding.
The right sump kit protects your lift pump investment, prevents fuel starvation, and lets you use every drop of fuel in your tank. Drill carefully, torque to spec, and your sump will outlast the truck.
