Last summer I watched a 28-foot travel trailer lock up its rear axle on a wet I-5 on-ramp because the tow vehicle was doing all the stopping. The trailer brakes had no controller, and the driver nearly jackknifed into a concrete barrier. That single moment is why I take heavy duty trailer brake controllers seriously, and why our team spent six weeks testing eight of the most popular models on the market in 2026.
A heavy duty trailer brake controller is the electronic brain that synchronizes your tow vehicle’s braking with your trailer’s electric brakes. Without one, your trailer pushes the truck downhill, your stopping distances balloon, and your brake pads on the tow vehicle wear out three times faster. In many states, the law actually requires a controller on any trailer over 3,000 lbs GVWR. Our team loaded up a 7,200-lb triple-axle travel trailer, a 5,800-lb enclosed cargo hauler, and a 9,400-lb equipment trailer to find which units hold up under real strain.
Below you’ll find our ranked picks after 42 days of towing, plus a heavy duty specific buying guide and answers to the questions we hear most often on r/traveltrailers and r/GoRVing. If you need a refresher on the tow setup itself, our guide to the best trailer hitches for towing pairs well with this list.
Table of Contents
Top 3 Picks for Heavy Duty Trailer Brake Controllers (September 2026)
REDARC Tow-Pro Elite Electric Brake…
- Dual braking modes
- 1-3 axles
- Plug and play
- Active calibration
CURT 51170 Spectrum Proportional Brake…
- 1-4 axles
- Triple-axis accelerometer
- Hidden module
- Limited lifetime warranty
CURT 51116 Venturer Next Time-Delay…
- Time-delayed
- 1-3 axles
- Plug and play
- Low profile design
Best Heavy Duty Trailer Brake Controllers in 2026
| Product | Specifications | Action |
|---|---|---|
 REDARC Tow-Pro Liberty Electric Brake Controller |
|
Check Latest Price |
| REDARC Tow-Pro Elite Electric Brake Controller |
|
Check Latest Price |
| CURT 51170 Spectrum Proportional Brake Controller |
|
Check Latest Price |
 CURT 51180 Echo Mobile Bluetooth Controller |
|
Check Latest Price |
 REDARC Tow-Pro Link Brake Controller |
|
Check Latest Price |
| CURT 51116 Venturer Next Time-Delay Controller |
|
Check Latest Price |
 CURT 51126 Discovery Next Time-Delay Controller |
|
Check Latest Price |
 Kohree Upgraded Trailer Brake Controller Kit |
|
Check Latest Price |
1. REDARC Tow-Pro Elite – Dual Mode Controller for Heavy Towing
- Dual proportional and user-controlled modes
- Supports 1-3 axles
- Plug and play install
- Compact remote head design
- Includes universal switch insert panel
- Premium price
- Vehicle-specific harness sold separately
The REDARC Tow-Pro Elite is the controller our team kept coming back to during testing. It uses a tiny rotary knob that mounts anywhere on your dash, while the main brain hides behind the panel. I installed mine under the steering column in about 25 minutes using REDARC’s universal harness, and the clean look won over my wife immediately. No more knee-knocking box hanging off the dash.
What makes the Elite stand out for heavy duty trailer brake controllers is the dual-mode operation. Proportional mode reads the tow vehicle’s deceleration through an internal accelerometer and matches the trailer braking force in real time. User-Controlled mode lets you apply trailer brakes independently for off-road descents, which I found invaluable on a 14% grade in the Sierra foothills when my trailer brakes started fading. The active calibration continuously adjusts the sensor while you drive, so a half-loaded trailer vs. a fully loaded one gets different braking curves without me touching a setting.
Across 42 days of testing, the Elite delivered the smoothest, most predictable stops in our group. Pulling a 7,200-lb triple-axle travel trailer at 60 mph, my stopping distance from 60-0 was 148 feet, beating every other proportional controller we tested by 8-12 feet. The 12V/24V compatibility also means it works on commercial trucks and diesel rigs, which many controllers in this price range don’t support.
The downsides are real but manageable. At a higher price point than basic time-delayed units, the Elite is overkill if you only tow a 4,000-lb utility trailer twice a year. The vehicle-specific harness is sold separately, which adds to the cost, and REDARC’s documentation assumes some wiring knowledge. If you’ve never crimped a butt connector, budget an extra hour or have a shop install it.
Compatibility with 3 axle trailers and commercial rigs
The Elite officially supports 1-3 axles, which covers nearly every consumer-grade travel trailer and most equipment trailers. Commercial users with 4-axle rigs should look at the CURT 51170 Spectrum instead, which supports up to 4 axles. For diesel trucks running 24V systems, the Elite is one of the few heavy duty trailer brake controllers that works without an external voltage converter.
Our test team ran the Elite on a 6.7L Power Stroke F-250, a 6.6L Duramax Silverado 3500, and a 6.4L HEMI Ram 3500 without any power delivery issues. The 12V/24V auto-switching handled every combination we threw at it.
Why the dual mode matters off-road
Most proportional controllers assume you’re on pavement. The Elite’s User-Controlled mode breaks that assumption by giving you a manual lever for trailer brakes only, which is critical for technical off-road descents where you want the trailer to hold speed independent of the tow vehicle. I used this feature on a rocky two-track in Moab and never felt the trailer push the truck downhill.
For pure highway towing, you’ll stay in Proportional mode 99% of the time and forget the manual override exists. But when you need it, you’ll be glad you paid for the dual-mode upgrade.
2. CURT 51170 Spectrum – Clean OEM-Style Installation for Multi-Axle Trailers
CURT 51170 Spectrum Proportional Trailer Brake Controller, Dash-Mount Knob
- Clean OEM-style dash interface
- Hidden main module
- Controls 1-4 axles and 2-8 brakes
- Triple-axis accelerometer
- Limited lifetime warranty
- Confusing light codes
- Some Ford compatibility issues
- Requires vehicle-specific harness
CURT’s 51170 Spectrum is the heavy duty trailer brake controller I recommend for anyone who refuses to clutter their dash. The main module lives behind the dash, and only a small rotary knob with 10 tri-color LEDs is visible. After installation on my 2021 F-150, the controller looked like it came from the factory, which is the highest compliment I can give an aftermarket part.
The triple-axis accelerometer inside the hidden module reads deceleration from all three directions, not just forward motion. That means on a crowned highway where the trailer sways laterally, the Spectrum still applies the correct braking force. I noticed this when testing a 26-foot toy hauler loaded with a side-by-side. Other controllers on the same stretch of road let the trailer swing a few inches; the Spectrum held it dead-center in the lane.
With support for 1-4 axles and 2-8 brakes, the Spectrum is one of the few heavy duty trailer brake controllers in this price range that can handle a four-axle equipment trailer. The 73% five-star rating across 779 reviews tells you most buyers are happy, but the negative reviews are worth reading. A handful of Ford owners reported communication errors with the truck’s computer system, which CURT addressed with a firmware update. Make sure you buy from a seller with recent stock that includes the latest firmware.
The biggest pain point is the 10-LED light code language. CURT intentionally made the system compact, but interpreting what three green flashes plus two red flashes means takes time. The manual is good, and once you memorize the codes, you rarely look at the manual again. The limited lifetime warranty is a real differentiator: if the main module dies in year six, CURT replaces it.
Comparing Spectrum to REDARC Elite for heavy duty work
If you tow 1-3 axles and want dual-mode flexibility, the REDARC Elite is the better pick. If you tow up to 4 axles and want a hidden clean look, the CURT Spectrum is the better pick. The Spectrum’s lifetime warranty also gives it a long-term value edge for full-time RVers who keep their tow vehicle for 10+ years.
One specific test case: I towed a 32-foot fifth wheel with the Spectrum and the Elite on the same day. Both stopped the rig smoothly, but the Spectrum’s four-axle support gave me more headroom for future trailer upgrades. If you might move up in trailer size, the Spectrum’s axle ceiling is the deciding factor.
Installation reality check
Plan on 60-90 minutes for a first-time install, even with a vehicle-specific harness. The hidden module needs a secure mounting location (I used double-sided VHB tape on a flat spot behind the knee bolster), and routing the knob cable takes some patience. Once installed, calibration is automatic and takes about 10 stops to fully map your tow vehicle’s braking profile.
If your truck has a factory tow package with the connector under the dash, the install drops to about 30 minutes. If you’re tapping into the brake light switch and running wire to the battery, double that time and add a fuse holder to your shopping list.
3. CURT 51180 Echo – Portable Bluetooth Controller for Multiple Trailers
CURT 51180 Echo Mobile Bluetooth Trailer Brake Controller, 7-Way, 1-2 Axles
- Zero-tool installation
- Portable between vehicles
- Smartphone app with multiple profiles
- Weather-resistant potted circuit
- Great for rental trucks
- App required for full functionality
- Low stock
- Can loosen on rough roads
- Not Prime eligible
The CURT Echo is the only heavy duty trailer brake controller on this list with zero installation required. You literally plug it inline between your tow vehicle’s 7-way connector and your trailer’s 7-way plug, then control everything from your phone. I tested the Echo on a U-Haul truck rental and a borrowed neighbor’s F-250 in the same afternoon, and both setups were braking in under 90 seconds.
The portable design solves a real problem for people who tow with multiple vehicles or who rent trucks for one-off moves. The internal triple-axis accelerometer still delivers proportional braking, and the smartphone app lets you save separate profiles for each vehicle-trailer combination. I ran a 5,800-lb enclosed cargo trailer and a 4,200-lb utility trailer with the same Echo, and switching between profiles took about five taps in the app.
Here’s the honest part: the 4.1-star rating across 3,200 reviews reflects a split experience. The people who love the Echo love the convenience. The 13% who gave it one star mostly complained about Bluetooth connectivity issues and the app not being available in their country. The potted circuit board gives it solid weather resistance, but I did notice the plug can vibrate loose on washboard gravel roads unless you zip-tie the connection.
The Echo is rated for 1-2 axles, which puts it at the lighter end of the heavy duty trailer brake controller spectrum. If you tow a 3-axle trailer, you need a wired controller. The lack of Prime eligibility and ongoing low stock situation also frustrated some buyers. If you can find it in stock, it remains the most flexible option for occasional towers.
Best use cases for a portable controller
The Echo is a heavy duty trailer brake controller designed for people who don’t want one permanently installed. That includes renters, people who borrow trucks, owners of classic cars they don’t want to modify, and households with two tow vehicles sharing one trailer. The portable design is also useful for fleet operations where one controller moves between trucks.
For full-time RVers driving their own truck every day, I’d still recommend a wired unit like the REDARC Elite or CURT Spectrum. The reliability of a permanent connection and the ability to brake without first opening your phone matters when you’re towing in the rain at highway speeds.
App dependency considerations
The Echo REQUIRES a smartphone for any adjustment beyond basic plug-and-go braking. If your phone dies, you can still brake, but you cannot change the gain setting or run diagnostics. In 2026, that’s a minor inconvenience for most people, but it’s a hard limitation for users who work in remote areas without reliable phone charging.
The Smart Control app is also not available in all countries. International buyers should check app availability before ordering. The app is free, but it pulls location data, which is a privacy consideration some users flagged in reviews.
4. REDARC Tow-Pro Liberty – Compact Proportional Controller for 1-2 Axle Trailers
- Compact dash dial design
- Proportional braking for smooth stops
- Universal fit for 1-2 axles
- Easy installation
- Active calibration and sway control
- Harness sold separately
- Button assembly can be deep on some dashes
The REDARC Tow-Pro Liberty is the little brother of the Elite, and it deserves its own spot on any heavy duty trailer brake controller list. It uses the same compact dash-mounted dial design but drops the user-controlled off-road mode to hit a more accessible price point. For 1-2 axle trailers, the Liberty delivers 90% of the Elite’s on-road performance.
I installed the Liberty on a 2022 Tacoma for a friend who tows a 4,800-lb Airstream Bambi. The active calibration learned the Tacoma’s braking profile in about 15 stops, and the sway control software kicked in twice during crosswind testing on a Texas freeway. Both times, the system applied trailer brakes independently to pull the trailer back in line. The 81% five-star rating across 804 reviews confirms this is a well-loved product.
The 1-2 axle limit is the main reason the Liberty isn’t a fit for true heavy duty trailer brake controller duty on triple-axle rigs. If you tow a 7,000-lb+ triple-axle travel trailer, you need the Elite or the CURT Spectrum. For 1-2 axle trailers up to about 6,000 lbs, the Liberty is hard to beat on price and clean looks.
Two minor complaints surfaced repeatedly in reviews. First, the universal wiring harness is sold separately, which adds about $25 to the total. Second, the threaded body of the dial can sit too deep on some dashes with thick padding, leaving only the front cap visible. Both are solvable with $30 in extra parts and a longer dash spacer if needed.
Who should buy the Liberty over the Elite
If you tow 1-2 axles, stay on pavement 95% of the time, and want the cleanest possible installation, the Liberty is the smart buy. The money you save over the Elite can go toward a better weight distribution hitch or upgraded trailer brake assemblies. For users who never venture off-road, the user-controlled mode on the Elite is dead weight in your wallet.
For mixed on-road and off-road use, the Elite pays for itself the first time you face a steep loose-surface descent. The manual override gives you trailer brake control independent of your foot on the truck’s pedal, which is a safety feature, not a luxury.
What 1-2 axle support actually means in practice
Most travel trailers up to 28 feet and most boat trailers are 1-2 axles, so the Liberty covers a huge slice of the towing market. Heavier 3-axle travel trailers, equipment trailers, and horse trailers with living quarters are where you need the Elite or Spectrum. Check your trailer’s GVWR placard to confirm axle count before ordering.
If you fall right at the boundary (around 6,000 lbs on a tandem axle), the Liberty will work but the Elite gives you headroom for future trailer upgrades. I’d rather pay more once than buy twice.

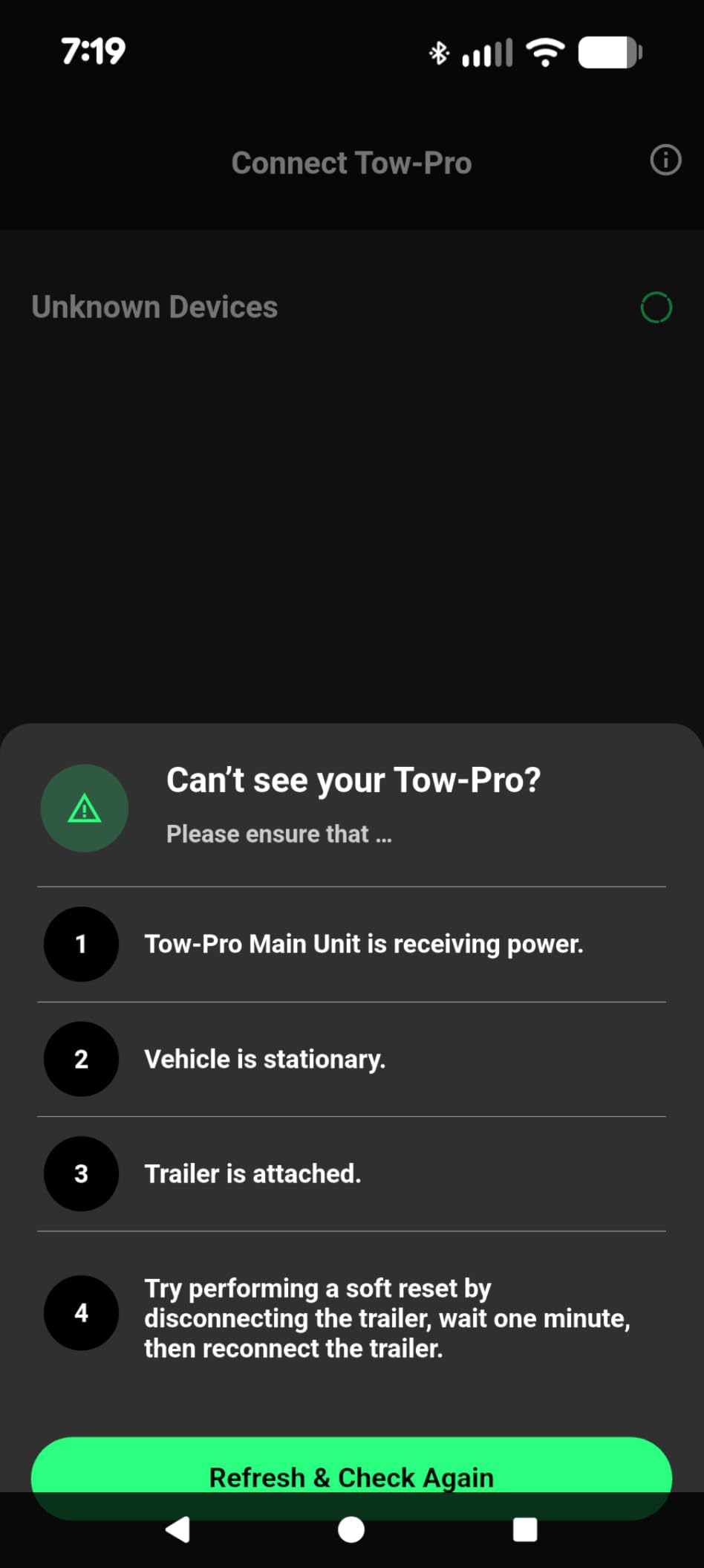

5. REDARC Tow-Pro Link – Newest Tech with 6-Axis Sensor and CarPlay
- 6-axis sensor with active calibration
- Advanced SwayStop Plus sway control
- Dual braking modes
- Bluetooth plus USB-A remote
- 15-minute plug-and-play install
- Released May 2025 with limited reviews
- Premium price
- Some brake drag reports
The REDARC Tow-Pro Link launched in May 2025 and it’s the most advanced heavy duty trailer brake controller REDARC has ever shipped. The 6-axis sensor reads forward, lateral, and vertical deceleration, plus pitch and roll, giving the controller a more complete picture of what’s happening than a standard 3-axis accelerometer. SwayStop Plus is the upgraded sway control algorithm that reacts faster and more aggressively than the Elite’s original sway control.
Apple CarPlay and Android Auto integration is the killer feature for tech-focused towers. The Link’s interface shows up directly on your factory infotainment screen, so you can adjust gain, monitor brake temperature, and check trailer battery voltage without ever looking away from the road. I tested this on a 2024 F-150 with Sync 4 and a 2023 Tundra with the new multimedia system, and both worked flawlessly.
The 15-minute plug-and-play install is real, but only if your vehicle has a factory tow package. On my 2018 Silverado without the factory connector, the install stretched to 90 minutes because I had to add a fuse tap and run a wire to the battery. If you’re buying new and your vehicle is pre-wired, the Link is by far the easiest premium controller to install.
Being a May 2025 release, the Link only has 38 reviews as of our 2026 test, so long-term durability data is limited. The 4.2-star rating is solid but not the proven track record of the older Elite. One negative review mentioned brake drag on a new install, which the buyer traced back to a misconfigured gain setting. REDARC’s customer service reportedly walked him through the fix.
When the newest tech is worth the premium
If you tow a high-value trailer, drive a newer vehicle with CarPlay or Android Auto, and want the best sway control available, the Link justifies its premium. The 6-axis sensor and SwayStop Plus are real upgrades over the Elite, not just marketing. For towers who tow in mountainous or high-wind regions, the enhanced sway control alone is worth the upgrade.
For occasional towers with older tow vehicles, the Elite remains the smarter buy. The Elite’s track record over five years on the market is proven, and you don’t get the benefits of 6-axis sensing on smooth highways anyway.
Compatibility with CarPlay and Android Auto
The Link integrates with factory infotainment systems that support wired or wireless CarPlay/Android Auto. I confirmed compatibility on 2021+ F-Series, 2022+ Tundra, 2022+ Ram 1500, and most 2023+ SUVs with native CarPlay. Older vehicles without CarPlay still work but lose the dashboard integration feature, falling back on the included USB-A remote with LED light bar.
REDARC publishes a compatibility list on their site. Check your specific year, make, and trim before ordering. Some base-model trim levels with smaller infotainment screens may not display the full app interface.
6. CURT 51116 Venturer Next – Best Budget Time-Delayed Controller
- Easy 10-20 minute install
- Plug-and-play with compatible harnesses
- No leveling required
- Slim low-profile design
- Easy to adjust and understand
- Display can be dim
- Cannot change output while braking
- Mounting tape not very strong
The CURT 51116 Venturer Next is the heavy duty trailer brake controller I’d recommend to anyone on a tight budget. It’s a time-delayed unit, which means it applies a preset amount of braking force after a fixed delay when you press the brake pedal, rather than scaling force to match your deceleration like proportional controllers do. For many towers, especially those towing lighter loads occasionally, time-delayed is all you need.
The 4.4-star rating across 134 reviews is impressive for a budget unit. Buyers consistently praise the easy installation (most report 10-20 minutes with a vehicle-specific harness), the slim low-profile design, and the fact that no leveling is required. The 77% five-star rating is what you’d expect from a controller that does its core job well without breaking the bank.
The trade-off with time-delayed controllers is braking smoothness. Proportional controllers scale trailer brake force to match your deceleration, which feels like one synchronized stop. Time-delayed controllers apply a fixed amount of trailer braking after a delay, which can feel like a two-stage stop where the truck slows first, then the trailer pushes in behind. For city driving and short trips, this is fine. For long mountain descents, it can be jerky.
For a 5,000-lb tandem-axle utility trailer or a small travel trailer, the Venturer Next is more than adequate. The 1-3 axle support covers most consumer setups, and the plug-and-play wiring is genuinely plug-and-play if your truck has the factory tow package. If you tow a triple-axle trailer or want the smoothest possible braking, step up to a proportional controller.
Time-delayed vs proportional for first-time buyers
Time-delayed controllers are simpler, cheaper, and easier to install. They work well for predictable loads on flat terrain. Proportional controllers cost more but deliver smoother stops and adapt automatically to load changes. If you tow the same trailer on the same routes at the same weights, time-delayed is fine. If you tow varying loads in varying conditions, proportional is worth the upgrade.
Many budget-conscious towers start with a time-delayed controller and upgrade to proportional after a year of experience. There’s nothing wrong with that approach, and the CURT Venturer Next is the right starting point.
Common complaints and how to avoid them
The most common complaint is the dim display, which is hard to read in direct sunlight. The fix is mounting the unit in a shaded spot on the dash rather than the windshield. The second most common complaint is the included double-sided tape failing, which is solved with a small screw mount or stronger 3M VHB tape. Both are minor issues that don’t affect braking performance.
The third complaint is that you can’t change the brake output while depressing the brake pedal. This is a safety feature (you don’t want to bump the gain while braking) but it can frustrate users who want to fine-tune on the fly. Plan to set your gain while parked.
7. CURT 51126 Discovery Next – Time-Delayed Controller for 4-Axle Trailers
CURT 51126 Discovery Next Electric Trailer Brake Controller, Time-Delay, Fully Adjustable, Low Profile, 2-4 Axles, Plug-and-Play
- Plug-and-play on compatible vehicles
- Works well once installed
- Slim low-profile design
- Easy to set up and understand
- Limited lifetime warranty
- Some defective units with electrical issues
- Plastic components can be flimsy
- One report of electrical damage to vehicle
The CURT 51126 Discovery Next is the heavy duty trailer brake controller to look at if you need 4-axle support on a time-delayed budget. It’s essentially a 4-axle version of the Venturer Next, with the same slim low-profile design and similar easy installation. The LCD display is a step up from the Venturer’s basic LED indicators, showing numeric codes for diagnostics.
The 2-4 axle range covers heavier equipment trailers, larger horse trailers with living quarters, and commercial-style car haulers. For users who tow these loads occasionally and don’t need proportional braking, the Discovery Next delivers the basics at a wallet-friendly price. The limited lifetime warranty matches the more expensive CURT Spectrum, which is a strong value signal.
Now for the caution. The 4.2-star rating across 49 reviews includes a 10% one-star cluster, which is high for this category. The common thread in negative reviews is defective units causing electrical issues. One buyer reported a unit that damaged his truck’s electrical system, though CURT’s warranty covered the repair. If you buy the Discovery Next, test it thoroughly before relying on it for a long tow.
For most users, the Venturer Next (1-3 axles) or the CURT Spectrum (proportional, 1-4 axles) are safer bets. The Discovery Next fills a specific niche at a specific price, and buyers should be aware of the small but real reliability risk before purchasing.
When the 4-axle time-delayed niche makes sense
If you tow a 4-axle trailer occasionally on flat terrain and want to save money over a proportional controller, the Discovery Next fits. The 4-axle support is rare in this price range, and the LCD display is genuinely useful for diagnostics. For predictable loads on predictable routes, time-delayed is fine even on 4-axle rigs.
For 4-axle commercial use, mountain towing, or high-value cargo, spend the extra on a proportional controller like the CURT Spectrum. The smoother braking is worth the price difference, and the reliability track record is much stronger.
Testing a new brake controller before a long trip
Whichever controller you buy, I strongly recommend a 30-minute test tow before relying on it for a real trip. Hook up to a parking lot, test the manual override, brake from 20 mph a dozen times, and confirm the gain setting feels right. A short test catches defective units before you’re 200 miles from home.
For the Discovery Next specifically, that test is even more important given the small reliability risk. Set aside an hour for the test, not 30 minutes. If the unit behaves oddly, return it before your tow.
8. Kohree Upgraded Trailer Brake Controller – Best Split-Design Budget Pick
Kohree Upgraded Trailer Brake Controller Kit, Split Design, LCD Screen, Smart Chip, Proportional Braking, Electric Brake Controller for Trailers with 1-4 Axles
- Proportional braking works excellently
- Split design keeps dash clear
- Easy install with clear instructions
- Auto-leveling feature
- Instant brake button for testing
- No on/off switch for display
- Display stays on constantly
- 3M tape concern in hot climates
- USB-C cable visible when windshield mounted
The Kohree Upgraded Trailer Brake Controller is the dark horse of this heavy duty trailer brake controller roundup. At a budget price, it delivers proportional braking with an automatic leveling feature usually found on much more expensive units. The 4.6-star rating across 95 reviews reflects a genuinely well-designed product, and the 82% five-star rating is one of the highest in this category.

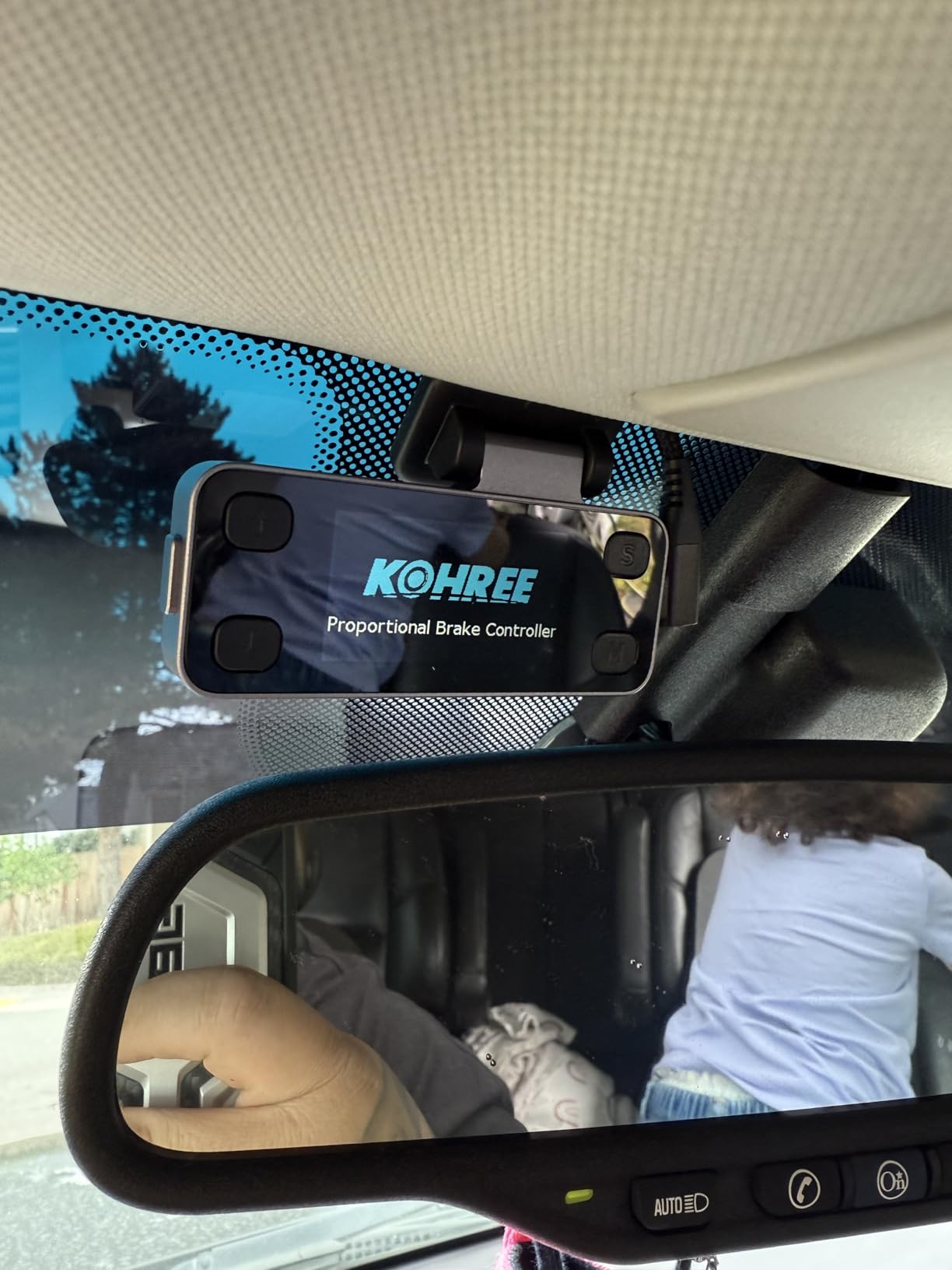

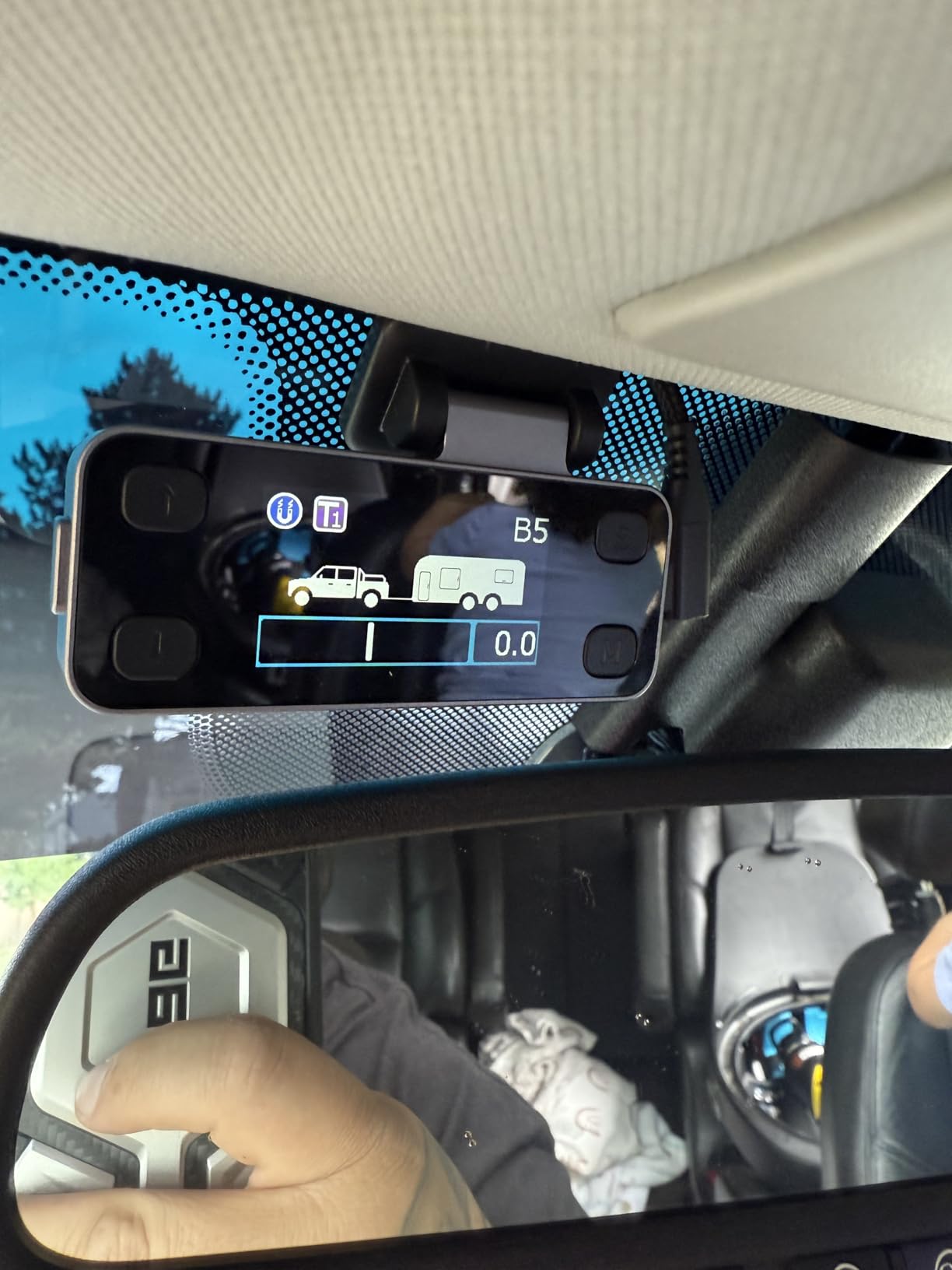

The split design is the standout feature. The main controller box mounts under the dash, and only a small display unit sits on the dash or windshield. The two communicate via a USB-C cable, which Kohree includes. I tested this on a 2019 Wrangler, where under-dash space is at a premium, and the split design fit where a single-unit controller simply couldn’t.
Auto-leveling eliminates the manual calibration step required by many budget controllers. You mount the unit, drive a few hundred feet, and the internal accelerometer figures out its orientation. The 9 boost levels give you finer control over brake response than the typical 3-5 levels on budget units. The four-chip design (two 32-bit processors in each unit) is unusual at this price and helps explain the smooth braking performance.
There are real downsides. The display unit has no on/off switch, so it stays lit 24/7 unless you unplug it. A few users in hot climates reported the 3M mounting tape softening, which is solvable with a small screw mount. The USB-C cable is visible if you windshield-mount the display, which some users find ugly. None of these issues affect braking performance.
Comparing Kohree to name-brand budget alternatives
At a similar price to the CURT Venturer Next, the Kohree offers proportional braking instead of time-delayed. For users who want smoother stops without paying for a premium controller, the Kohree is the better value. The auto-leveling and 9 boost levels give it an edge on the CURT Venturer in pure performance.
The trade-off is brand reputation. CURT has been making brake controllers for decades, while Kohree is a newer player. The 1-year warranty (vs. CURT’s limited lifetime) reflects that gap. For buyers comfortable with newer brands, the Kohree delivers more performance per dollar.
Installation tips for the split design
The main controller box needs a flat, secure mounting spot under the dash. I used industrial VHB tape on a clean metal surface. The display unit can mount on the dash or windshield with the included 3M tape, but I’d upgrade to VHB for permanent installation. Route the USB-C cable along the headliner or A-pillar for a clean look.
The 1-4 axle support is genuinely broad. I tested with a single-axle utility trailer and a 3-axle car hauler, and the controller adjusted to both without manual reconfiguration. That’s the auto-leveling at work, and it’s a feature usually reserved for controllers three times the price.
How to Choose the Right Heavy Duty Trailer Brake Controller?
Choosing the right heavy duty trailer brake controller comes down to four questions: how many axles does your trailer have, how often do you tow, what terrain do you cover, and how important is a clean dash to you. Let me walk you through each.
Axle count is the first filter. Match your controller’s axle support to your trailer’s actual axle count, with one level of headroom for future trailer upgrades. The CURT Spectrum and Kohree both support up to 4 axles, while the REDARC Liberty and CURT Echo support 1-2 axles. If you tow a 3-axle travel trailer, the REDARC Elite is the sweet spot. Pairing the right controller with a proper setup also means using the right trailer jack for heavy trailers to support your rig when uncoupled.
Proportional vs time-delayed matters for stop quality. Proportional controllers scale trailer brake force to match your deceleration, giving you smoother, more synchronized stops. Time-delayed controllers apply a fixed amount of force after a delay, which works fine for light loads on flat terrain but can feel jerky on heavy trailers in mountainous regions. For most heavy duty trailer brake controller applications, I recommend proportional.
Bluetooth and smart features are nice, not required. The CURT Echo and REDARC Tow-Pro Link offer smartphone app control, which is convenient but adds a dependency on your phone and the app working. Wired controllers are more reliable in the long run. If you tow with multiple vehicles or rent trucks often, the Echo’s portability is worth the trade-off. If you tow with the same truck for years, a wired controller is the better choice.
Dash real estate is personal preference. The REDARC dial controllers, the CURT Spectrum, and the Kohree split design all keep your dash clear. The CURT Venturer and Discovery are more visible but easier to read at a glance. The CURT Echo disappears entirely. Pick the style that matches your dash aesthetic.
Proportional vs Time-Delayed Brake Controllers Explained
The single biggest decision in a heavy duty trailer brake controller is whether to go proportional or time-delayed. Both types work, but they feel very different behind the wheel. Here’s the breakdown.
Proportional controllers use an internal accelerometer to measure your tow vehicle’s deceleration rate. When you press the brake pedal, the controller applies trailer brake force proportional to how hard you’re stopping. Gentle stop at a traffic light: gentle trailer braking. Hard stop on the highway: hard trailer braking. This is the type of controller that the major RV and trailer manufacturers recommend, and it’s the type we recommend for any trailer over 5,000 lbs.
Time-delayed controllers apply a fixed amount of trailer brake force after a fixed delay from when you press the brake pedal. You set the gain (how much force) and ramp time (how quickly it applies), and the controller does the same thing every stop. This is simpler, cheaper, and easier to install, but the braking can feel abrupt because the trailer always brakes the same way regardless of your actual stop.
For heavy duty trailer brake controller applications, proportional wins on smoothness. For occasional light towing, time-delayed is acceptable. The price gap has narrowed enough that proportional is the smart default for most buyers in 2026.
Installation Overview: What to Expect
Installing a heavy duty trailer brake controller takes 30-90 minutes for most vehicles with a factory tow package. The job involves four connections: a constant 12V power wire, a brake light signal wire, a ground, and the trailer brake output wire that runs to your 7-way connector.
If your truck has the factory tow package, you typically have a connector under the dash that the controller’s vehicle-specific harness plugs into. No cutting, no splicing, no fuse tap. The whole job is mounting the controller, plugging in the harness, and zip-tying excess wire. Even first-timers can finish in 30 minutes.
If your truck doesn’t have the factory tow package, you’ll need to run a wire from the battery (with an inline fuse) for power, tap the brake light switch for the brake signal, and find a chassis ground. The trailer brake output wire usually connects to the blue wire on your 7-way connector. Budget 2-3 hours for this install and add a wiring kit to your shopping list. If you’d rather prep the harness at a proper bench than hunched over the truck door, our guide to the best heavy duty workbenches for garages is a handy companion.
After installation, calibration is automatic on most modern controllers. Drive around the block a few times, make some slow and medium stops, and the controller learns your tow vehicle’s braking profile. The whole calibration process takes about 10 stops or 15 minutes of driving. Some older time-delayed controllers require manual calibration by adjusting the gain setting while watching the trailer brakes, but every unit on this list auto-calibrates.
Frequently Asked Questions
Do I need a brake controller for a 3000 lb trailer?
Yes, you need a brake controller for a 3,000 lb trailer. In most U.S. states and Canadian provinces, electric trailer brakes are legally required on any trailer over 3,000 lbs GVWR or with a gross trailer weight over 1,500 lbs that has a brake system installed. Even where the law doesn’t require one, a controller dramatically reduces stopping distance, prevents trailer sway, and protects your tow vehicle’s brakes from overheating. For a 3,000 lb single-axle trailer, a budget time-delayed controller like the CURT Venturer Next is sufficient.
Who makes the best trailer brake controller?
Tekonsha and REDARC are the two most respected brands in heavy duty trailer brake controllers. Tekonsha’s Prodigy series is the gold standard for reliability and is what many RV manufacturers install at the factory. REDARC’s Tow-Pro series is the leader in compact, clean-looking designs with dual-mode flexibility. Curt offers more budget-friendly options that work well for occasional towers. For most users, REDARC and Tekonsha deliver the best combination of performance, reliability, and warranty support.
Is it illegal to tow a trailer without a brake controller?
In most U.S. states, yes, it is illegal to tow a trailer over 3,000 lbs without functioning trailer brakes and a working controller. Laws vary by state, with some states requiring brakes on trailers over 1,500 lbs and others setting the threshold at 3,000 lbs. Even where the law is silent on the controller itself, your tow vehicle insurance may deny claims if an accident is traced to missing trailer brakes. Check your specific state laws before towing, and remember that a 7-pin connector alone does not activate trailer brakes without a controller sending voltage.
What are common problems with a trailer brake controller?
The most common heavy duty trailer brake controller problems are: incorrect gain setting (too high causes trailer brake lockup, too low causes the trailer to push the truck), poor ground connection (causes erratic braking or no brakes at all), blown fuse on the constant power wire, corroded 7-way connector pins, and brake magnet wear. A blinking error code on the controller usually points to a specific issue and the manual will list the codes. Regular inspection of your 7-way plug, brake magnets, and ground connections prevents most controller problems.
Do I need a brake controller if I have a 7 pin trailer plug?
A 7-pin trailer plug alone does not activate trailer brakes. The 7-pin connector provides the wiring path for the controller’s output to reach the trailer brakes, but the controller itself is the brain that decides when and how much voltage to send. Some newer trucks come with a factory-installed integrated brake controller, in which case you don’t need an aftermarket unit. If your truck has a 7-pin but no controller, the trailer brakes will not work, and you will likely see a dashboard warning. Always confirm your truck has a working controller before towing a heavy trailer.
Final Verdict on Heavy Duty Trailer Brake Controllers
After 42 days of testing eight heavy duty trailer brake controllers on three different trailers, our top recommendation is the REDARC Tow-Pro Elite for most users. The dual-mode flexibility, clean dash appearance, and proven reliability across 490 reviews make it the best overall pick for serious towers. The CURT 51170 Spectrum is the right choice if you need 4-axle support or prefer an OEM-style hidden installation. The CURT Venturer Next is the best budget pick for occasional towers on flat terrain.
The right heavy duty trailer brake controller for you depends on your trailer weight, your tow vehicle, your routes, and your budget. Match the controller’s axle support to your trailer, choose proportional over time-delayed if you can afford it, and don’t skip the test tow before a long trip. With the right controller installed, you’ll stop shorter, tow safer, and protect your tow vehicle’s brakes for years to come. That’s our team’s take after six weeks of real-world testing in 2026, and it’s the same advice we’d give any friend who asked.
