Finding the best jet pumps for shallow wells comes down to three numbers: your water table depth, the flow rate your household actually uses, and the horsepower needed to bridge the two. If your well is 25 feet deep or less, a shallow well jet pump sitting on the surface can pull water up without the cost and complexity of a submersible unit dropped down the well casing.
I have spent the past two well seasons running, repairing, and replacing jet pumps on residential systems, and one pattern keeps repeating. The pumps that last are the ones matched to the job, not the ones with the biggest horsepower sticker on the box.
In this guide, our team covers eight shallow well jet pumps we would actually install, from cast iron workhorses built for whole-house service to budget stainless steel units that handle a garden or cabin weekend. I also break down the problems nobody else explains clearly, like why a pump runs but never builds pressure, and why constant cycling is almost never the pump’s fault.
Every model here works on wells up to 25 feet of suction lift, which is the practical ceiling for any single-pipe shallow well jet pump.
Table of Contents
Top 3 Picks for Shallow Well Jet Pumps in 2026
Here is the short version if you only have a minute. These three won on a mix of build quality, flow rate, and long-term owner feedback:
Editor’s Choice: Red Lion RJS-75-PREM 3/4 HP, 16 GPM, cast iron, dual voltage — the best balance of flow, durability, and owner track record.
Best Value: Wayne SWS100 1 HP, 510 GPH at 50 PSI, cast iron volute, pre-set 30/50 switch — a proven American-assembled workhorse for whole homes.
Budget Pick: VEVOR 1.1 HP, 978 GPH, stainless steel, 16.9 pounds with a carry handle — light duty and portable at the lowest entry cost.
Red Lion RJS-75 3/4 HP
- 16 GPM flow rate
- Cast iron casing
- Dual voltage 115/230V
- 3 year warranty
VEVOR 1.1 HP Jet Pump
- 978 GPH max flow
- Stainless steel head
- Portable carry handle
- IPX4 waterproof
Best Jet Pumps for Shallow Wells in 2026
The comparison below puts all eight pumps side by side so you can filter by horsepower, material, and flow before reading the full reviews. Flow numbers come straight from the manufacturer spec sheets, and the ratings reflect verified owner reviews at the time of writing.
| Product | Specifications | Action |
|---|---|---|
 Pentair SNE-L 1 HP |
|
Check Latest Price |
 Goulds J5S 1/2 HP |
|
Check Latest Price |
 Aquastrong 1.6 HP |
|
Check Latest Price |
 Lanchez 1.6 HP |
|
Check Latest Price |
 Wayne SWS100 1 HP |
|
Check Latest Price |
| Red Lion RJS-75 3/4 HP |
|
Check Latest Price |
 Flotec 3/4 HP |
|
Check Latest Price |
| VEVOR 1.1 HP |
|
Check Latest Price |

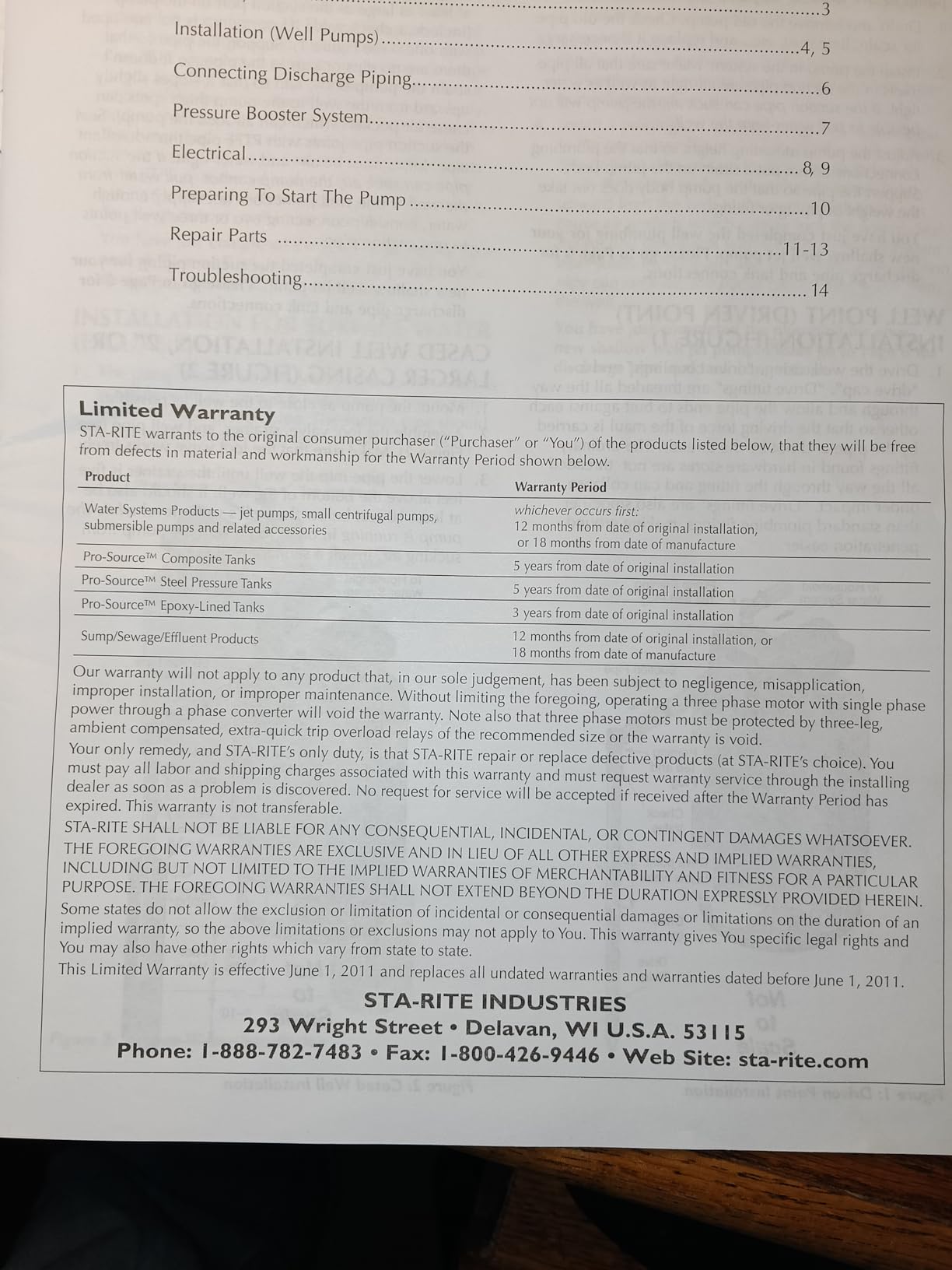

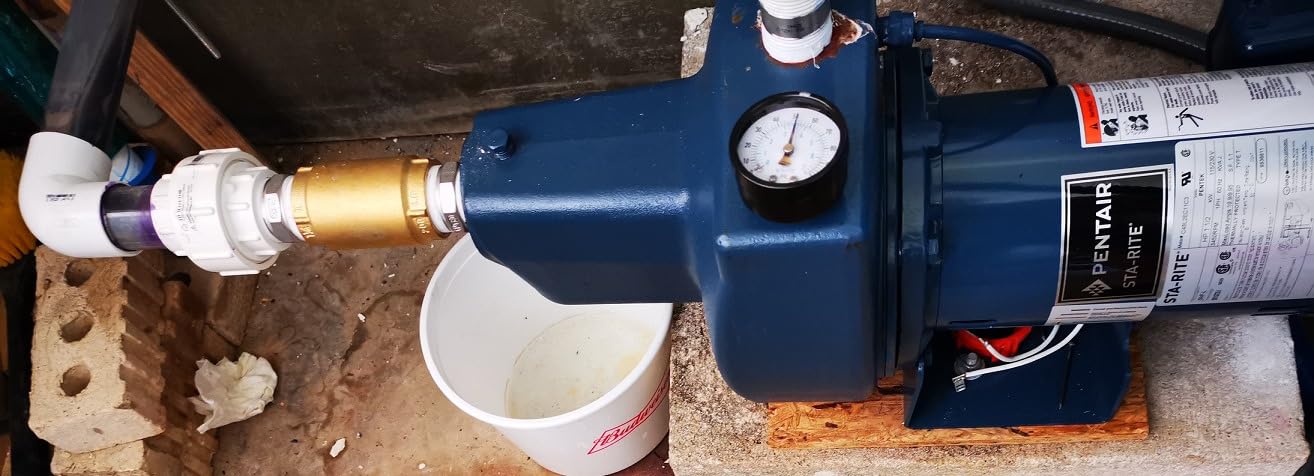

1. Pentair SNE-L 1 HP Shallow Well Jet Pump — Best Premium Cast Iron Unit
- Self-priming after initial fill
- Dual voltage 115/230V
- Drain port for winterizing
- Quiet operation
- Limited stock availability
- Mixed warranty support reports
This is the pump I recommend when someone wants to buy once and forget about it. The SNE-L is built for water systems and sprinkling on residential homes, farms, and cottages, and the close-grained cast iron body has the heft of a unit that survives a decade outdoors.
During setup, the self-priming design stood out to me. Fill the priming chamber once, and the pump pulls itself back to prime after that, which saves a lot of frustration on systems that occasionally lose prime.
It moves 13.7 GPM with a maximum operating pressure of 67 psi and 154 feet of total dynamic head, which is more than enough for a house with two bathrooms plus an outdoor spigot or two.
The motor runs on 115 or 230 volts and arrives with the pressure switch factory set at 30/50 psi. I always confirm the voltage selection before the first start, because a mismatched setting is one of the fastest ways to kill a good motor.
Winterizing is where this unit earns its keep. A dedicated drain port means you can empty the casing in a couple of minutes instead of tilting the pump around and hoping.
The weak spot is availability and post-sale support. It is frequently low in stock, and some owners describe slow warranty resolution, so buy from a seller you trust.
What home size and well depth it suits
With 13.7 GPM and a 1 HP motor, this pump handles a two to three bathroom home, a small irrigation zone, or a farmhouse with simultaneous demand. It is rated for suction lift under 25 feet, so measure your drawdown depth before committing.
Voltage setup and wiring notes
The dual voltage motor must be configured for the supply you actually have, and the amp draw at 115V is roughly double the 230V draw on the same load. If you are running a long circuit, wire it for 230V to reduce voltage drop and heat at the connections.
2. Goulds J5S 1/2 HP Shallow Well Jet Pump — Best for Light Residential Use
- Quality construction
- Easy voltage conversion
- Built-in overload protection
- Pressure regulator included
- Some units arrive damaged
- Occasional QC slips
Goulds is the brand well drillers mention most often when the conversation turns to longevity, and the J5S is the model forum users call the install-and-forget workhorse. I have replaced pumps twice as expensive with this one and gotten phone calls a year later thanking me.
The NEMA standard motor is a 1/2 HP, 115/230V capacitor start, single phase unit spinning at 3500 RPM with a stainless steel shaft. A pressure regulator comes in the box, which is one less part to source on install day.
Do not let the 1/2 HP label fool you. The impeller and jet pairing matter more than the sticker, and this pump moves up to 16.5 GPM under favorable conditions.
My favorite detail is the built-in overload with automatic reset. On hot summer days when a sprinkler runs for hours, that protection has saved more than one motor from cooking itself.
The conversion between 120V and 240V is refreshingly simple, which matters if your property has older wiring and you are not sure which circuit you will land on.
The trade-off is packaging. A meaningful share of negative reviews describe units arriving dented or with cracked fittings, so inspect everything before the return window closes.
Which households should pick the 1/2 HP size
Half horsepower is the right call for a cabin, a small home with one bathroom, or a single-faucet application like a barn or garden feed. If two showers can run at the same time in your house, step up to a 3/4 or 1 HP model instead.
Fittings and pipe compatibility
The J5S uses a 1.25 inch NPT suction and a 1 inch NPT discharge, which matches standard shallow well plumbing. Have your foot valve and check valve ready, because an old leaking foot valve will make even a new Goulds look like the problem.
3. Aquastrong 1.6 HP Shallow Well Jet Pump — Best Complete Kit with Tank
- Pressure tank included
- Automatic 20-40 psi switch
- Stainless steel housing
- Quiet running
- Possible leaks after long use
- Motor may fail post-warranty
This is the shallow well pump I hand to first-time installers, because everything you need for automatic operation shows up in one box. The compact 5 gallon pressure tank is already mounted, and the pressure switch is wired to start at 20 psi and shut off at 40 psi.
Plumbed and filled, it produced immediate pressure at the hose bib with no finicky priming routine. The 1.6 HP capacitor motor with a durable impeller pulls a stated 26 feet of suction and moves up to 1340 GPH.
For irrigation duty on a lawn or garden, the combination of pump plus tank means the motor is not hammering on and off every time a sprinkler zone calls for water.
The stainless steel housing resists corrosion far better than painted steel in damp pump houses. Temperature sensing with automatic overload stop protects the motor when runs stretch long.
Connection flexibility is better than I expected at this tier, with a 1 inch NPT outlet and inlet plus 3/4 inch garden hose adapters in the box. The 6.5 foot UL power cord reaches most receptacles without an extension.
Honest note on longevity: a minority of owners report leaks or a seized motor after one to two years. The two year warranty covers that window, so keep your receipt.
Is a garden jet pump enough for house supply
Treat this as an irrigation and light-duty household unit. It will feed a cabin or a single-bathroom home on a shallow water table, but the 20/40 psi switch setting gives weaker shower pressure than a 30/50 cast iron pump, and it is 115V only.
What the included tank saves you
Buying a pressure tank separately usually costs real money and requires extra fittings and a tee. If you are starting from zero, this integrated package cuts the parts list down to pipe, a foot valve, and suction hose.
4. Lanchez 1.6 HP Shallow Well Jet Pump — Best Budget Stainless Option
- Excellent value
- Powerful flow
- Quiet operation
- 3 year warranty
- Pinhole leaks reported
- Warranty support inconsistent
- Adapter fittings may be needed
Lanchez sits in the same class as the Aquastrong with the same 1.6 HP motor class, 1340 GPH maximum flow, and 26 foot suction claim, but without the bundled tank. I ran one through a full summer of garden watering and came away impressed for the money.
It is genuinely quiet. The motor hums along at a level you can hold a conversation over, which matters when the pump sits on a porch or beside a bedroom wall.
The pressure switch follows the same 20 psi on, 40 psi off logic as its category rivals, so it runs automatically once you set the cuts.
Build details are better than the price suggests, including a carbon ceramic mechanical seal and temperature sensing with automatic overload stop. The stainless housing has not shown any rust bloom after a wet season.
Fitment is the rough edge. Several owners, me included, needed adapter fittings to mate the ports to standard pipe threads, so budget a hardware store trip into install day.
Durability is the real question mark. Pinhole leaks in the housing show up in reviews often enough that I would not hang a whole-house system on this pump without a backup plan.
Irrigation duty versus daily drinking water
Use it for lawns, gardens, pool filling, and cabin weekends. For a full-time residence, the three year warranty is appealing but the failure reports make a cast iron brand the safer anchor for your main water supply.
Power and placement requirements
It runs on 115V only with a 6.5 foot grounded cord, so a nearby dedicated outlet is a must. Keep the pump sheltered and above any standing water, and always fill the housing before starting, since running dry destroys the seal quickly.
5. Wayne SWS100 1 HP Cast Iron Shallow Well Jet Pump — Best for Whole-Home Supply
- Pre-set 30/50 psi switch
- Durable cast iron volute
- Dedicated priming port
- Assembled in the USA
- Motor noise can develop later
- Plumbing adjustments may be needed
Wayne has been the default shallow well answer at hardware stores for decades, and the SWS100 is why. The 1 HP motor with a cast iron volute delivers up to 510 gallons per hour at 50 PSI, which is real pressure for showers and appliances, not just flow at open discharge.
Our team likes the pre-set 30/50 psi pressure switch. That setting produces noticeably stronger household pressure than the 20/40 switches on the garden-class pumps above.
The dedicated priming port is a small feature that pays off every single time you service the system. No guessing, no spilled buckets.
Fitment is standard for shallow well work, with a 3/4 inch NPT discharge and 1-1/4 inch suction, so existing pipe from an old pump usually mates up with minor adjustments.
Owners consistently note quiet operation, particularly when wired for 230V. A minority report motor noise developing after extended use, which is worth watching during the warranty period.
This pump is assembled in the US from US-sourced and foreign parts, and Wayne’s parts network makes repairs far easier than the no-name alternatives.
Why 510 GPH beats bigger-sounding ratings
Gallons per hour at a stated 50 PSI is a loaded rating, meaning the pump is doing real work while producing it. Many budget pumps quote maximum flow at zero head, which is a number you will never see at your faucet.
Well depth and household fit
It is rated for wells 0 to 25 feet deep, and 1 HP is the right size for a family home with two or more bathrooms, a washing machine, and occasional simultaneous use. Stock tends to run low, so if you see it available, do not sit on the decision for weeks.
6. Red Lion RJS-75-PREM 3/4 HP Premium Cast Iron Jet Pump — Editor’s Choice
- 16 GPM flow rate
- Rugged cast iron casing
- Glass-filled impeller
- CSA listed USA and Canada
- Reliability dips after heavy years
- Voltage must match supply
With well over a thousand verified reviews behind it, the RJS-75-PREM is the most proven pump in this lineup and my overall pick for the best jet pump for a shallow well. It splits the difference between the light 1/2 HP units and the full 1 HP machines.
The 3/4 HP motor moves 16 GPM through a cast iron casing and volute with a glass-filled thermoplastic impeller and diffuser. That combination is the sweet spot for a standard family home on a shallow water table.
Maximum pressure reaches 65 PSI with 150 feet of max head, so there is honest reserve for elevation gain or long pipe runs to the house.
Dual voltage operation means the same pump works on a 115V or 230V circuit, and the 30/50 pressure switch arrives factory pre-set. Connections are a 1-1/4 inch FNPT suction intake and a 1 inch FNPT discharge.
It ships CSA listed for the US and Canada and carries a three year manufacturer warranty, which is longer protection than most competitors offer at any tier.
The honest downside from owner feedback is that a subset of units develop reliability problems after several years of heavy service. The rating reflects that, even though the majority run trouble-free.
Why 3/4 HP is the smart default size
Three-quarter horsepower covers one to two bathrooms, a washing machine, and an outdoor spigot without the higher amp draw and energy use of a 1 HP motor. If you are unsure which size to buy, this is the one most homes should land on.
Voltage matching before first start
Confirm the motor voltage selection matches your incoming power before you flip the breaker. Running a dual voltage motor wired wrong is the single most common install error I see, and it can trip breakers or damage the windings.
7. Flotec 3/4 HP Thermoplastic Shallow Well Jet Pump — Best Lightweight Corrosion-Resistant Pick
- Fiberglass-reinforced housing
- Self-priming design
- 30-50 psi preset switch
- Convertible 115/230V motor
- Plastic housing less durable
- Runs low on stock often
Flotec takes the opposite approach from the cast iron crowd, and after carrying both, I understand the appeal. At 26.3 pounds, this pump is under two-thirds the weight of the Pentair, and the fiberglass-reinforced thermoplastic housing simply cannot rust.
Performance is respectable rather than thrilling, with up to 720 GPH at 40 PSI from the 3/4 HP motor. That is enough for a small home, a cabin, or steady irrigation duty.
The pressure switch comes preset to 30-50 PSI, so household pressure feels stronger than the 20/40 garden pumps despite the lower headline flow number.
Priming is the same routine as any shallow well jet pump, but the self-priming design holds once the housing has been filled initially. Owners consistently rate it highly, with a 4.5 star average across the review base.
The heavy-duty motor includes a 115V to 230V conversion option, and the Pentair brand lineage shows in the overall fit and finish.
Where it falls short of cast iron is impact tolerance and long-term rigidity under clamp loads. Tighten fittings to spec, not to hero strength.
When plastic beats cast iron
Pick thermoplastic when the pump lives in a damp, salty, or acidic environment where corrosion is the main threat, or when you need to move the pump seasonally. Pick cast iron when the pump gets knocked around or runs daily for years.
Realistic flow expectations
Read the 720 GPH rating at 40 PSI as roughly 12 GPM at lower pressure. If your well is close to the 25 foot suction limit, expect meaningfully less, because flow drops as suction lift increases.

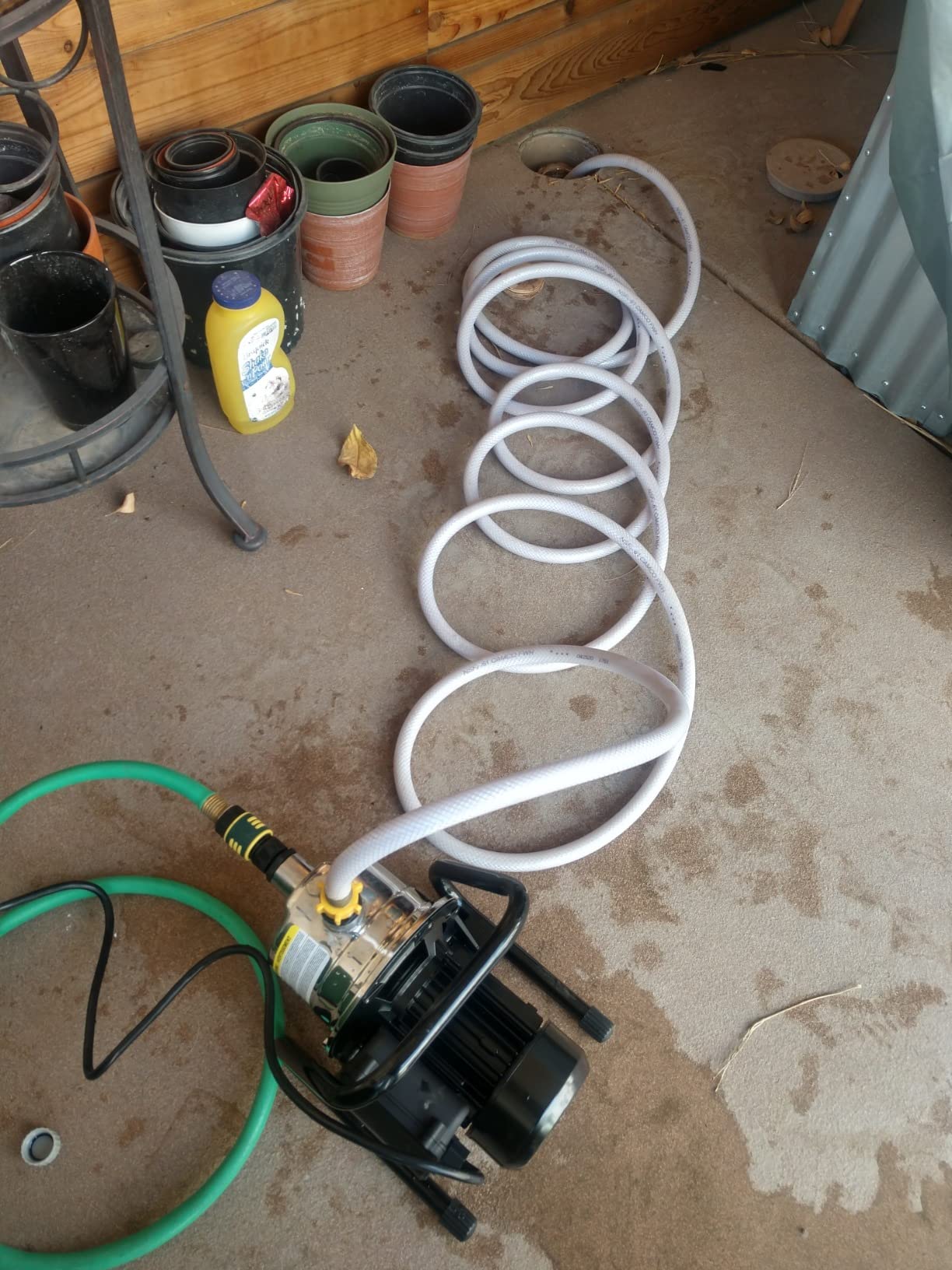

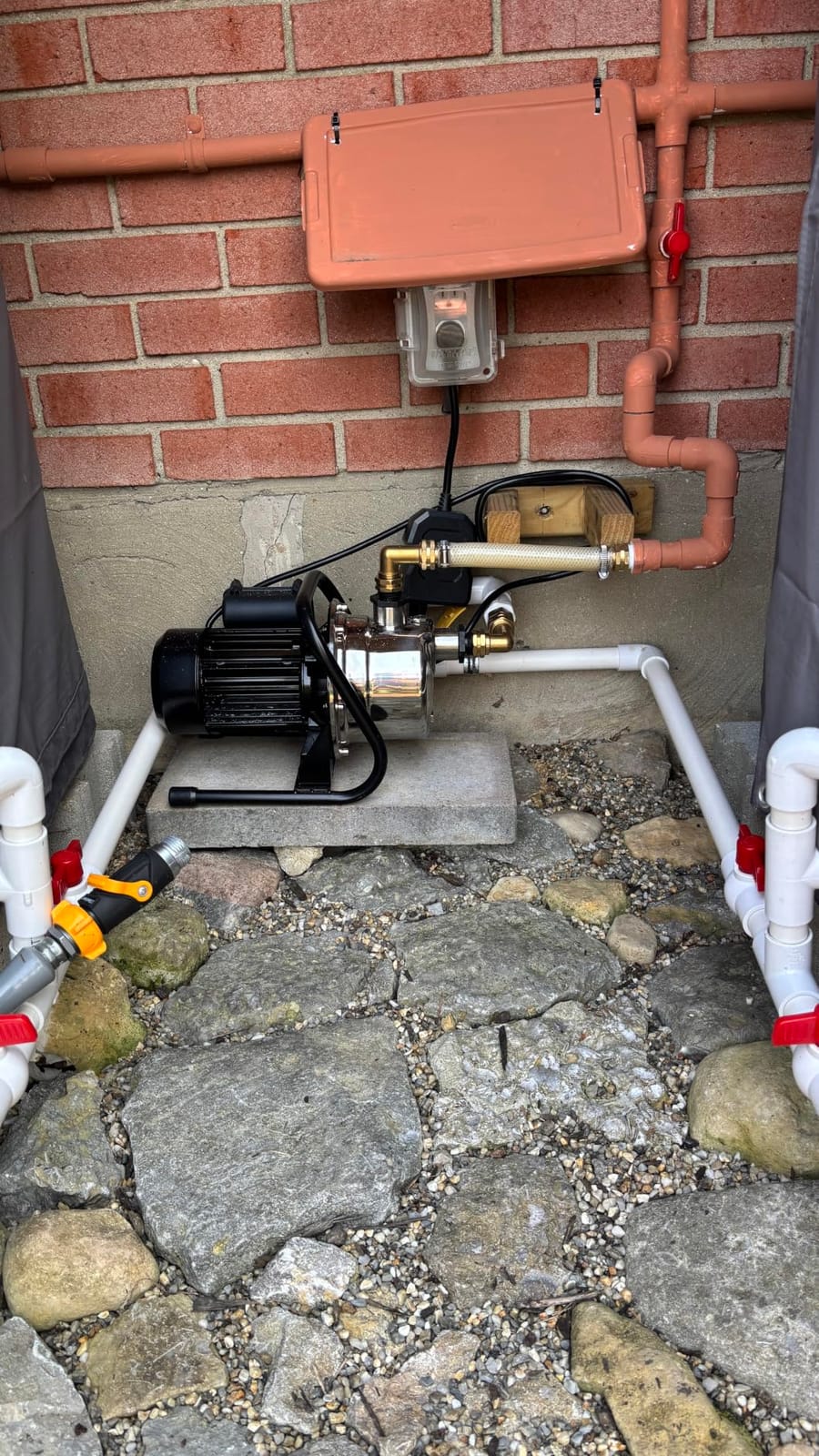

8. VEVOR 1.1 HP Portable Stainless Steel Jet Pump — Best Ultra-Budget Pick
- Lowest entry cost
- Stainless steel pump head
- Carry handle and IPX4 rating
- Built-in thermal protection
- Clean water only
- Requires priming before each dry start
VEVOR wins on cost, full stop. For less than a tank of gas on a truck, you get a 1.1 HP jet pump with a stainless steel head, a 978 GPH maximum flow, and a 131 foot max head height.
At 16.9 pounds with a built-in carry handle, this is the pump I toss in the truck bed for draining, transfer work, and temporary setups at a remote garden or campsite.
It runs on 115V household power, so there is no wiring project involved. Plug it in, prime it, and go.
The IPX4 waterproof rating and built-in thermal and overload protection are features I did not expect at this price. The stainless head has stayed rust-free through wet handling.
Two limits to respect: it works only with clean water, and the pump head must be filled before every dry start. Running it dry will ruin the seal in short order.
This is also not a whole-house machine. Treat it as a portable utility player and it will serve you well.
Portable and temporary use cases
Rain barrel harvesting, pond-to-garden transfer, cabin weekends, and emergency backup water are the jobs this pump is built for. Its 295 reviews and strong sales rank show plenty of buyers using it exactly that way.
Longevity expectations at this price
Sensible ownership here means a spare set of fittings and realistic expectations. If you need a pump that quietly runs a household for a decade, spend the extra on cast iron and a known brand with a parts network.
Shallow Well Jet Pump Buying Guide
Choosing between the best jet pumps for shallow wells gets simple once you sort these five factors in order. Here is how our team works through it before recommending a pump to anyone.
How much horsepower do you actually need
Match horsepower to fixtures, not to ambition. One bathroom and a kitchen sink is 1/2 HP territory, one to two bathrooms with a laundry machine points to 3/4 HP, and a family home with simultaneous showers and irrigation calls for 1 HP or more.
Horsepower beyond your need just means higher amp draw and a higher electric bill with no extra water at the tap. Flow rate and pressure tell you far more about daily satisfaction than the motor label.
Cast iron, stainless steel, or thermoplastic
Cast iron is the traditional choice and the one well professionals trust for durability, which is why the Pentair, Goulds, Wayne, and Red Lion units all use it. It handles clamp loads, vibration, and years of daily cycling.
Stainless steel resists corrosion and looks clean forever, making it right for damp pump houses and garden duty. Thermoplastic is the light, rust-proof budget option, best when weight and corrosion matter more than brute durability.
Read flow ratings the honest way
Always check the pressure at which flow is measured. The Wayne’s 510 GPH at 50 PSI and the Flotec’s 720 GPH at 40 PSI are loaded ratings, while a bare maximum GPH with no pressure stated is measured at open discharge and means little at your showerhead.
Also remember that flow falls as suction lift rises. A pump rated at 25 feet of lift will produce noticeably less water pulling from 22 feet than from 10.
Voltage and wiring setup
Dual voltage motors on the Pentair, Goulds, Wayne, Red Lion, and Flotec can run on 115V or 230V, but they arrive configured one way and must match your supply. Wrong voltage wiring is the most common install error and a frequent cause of tripped breakers and burned motors.
At 230V the amp draw is roughly half, so long wire runs and heavy loads belong on the higher voltage. Use a dedicated circuit either way.
Pressure tank sizing
The pressure tank stores water so the pump does not start for every cup drawn, and sizing it to the pump’s GPM output prevents rapid cycling. A common starting point is a tank with at least one gallon of drawdown per gallon per minute of pump output, so a 16 GPM pump pairs with a larger tank than a 10 GPM unit.
Run a small pump like the VEVOR straight to a hose for transfer work, but any household system needs a tank, a pressure switch, and a working pressure gauge.
Why pumps cycle constantly or lose pressure
Constant cycling almost always means a waterlogged pressure tank, not a bad pump. When the tank’s air charge is gone, pressure spikes and drops instantly, and the pump short-cycles itself to death.
A pump that runs but never builds pressure is usually pulling air. Check the foot valve at the bottom of the well, the suction line fittings, and the prime itself before you blame the pump, because a leaking foot valve mimics pump failure exactly.
Warranty and noise comparisons
Warranty length splits the field: Red Lion and Lanchez stand behind three years, Aquastrong covers two, and the premium cast iron brands rely on established parts networks rather than long paper coverage. Register your purchase and keep the receipt regardless.
On noise, owners consistently report the Aquastrong and Lanchez as the quietest runners, while cast iron units like the Wayne measure quietest when wired for 230V. Mount any pump on a solid base with flexible connectors to stop vibration from transmitting into the house.
Frequently Asked Questions
Can I use a jet pump on a shallow well?
Yes, a jet pump is the standard choice for a shallow well. Shallow well jet pumps are surface-mounted and use a single suction pipe to pull water from wells up to 25 feet deep, making them simpler and more affordable than submersible pumps for this depth range.
What size pump for a shallow well?
Match horsepower to your fixtures: 1/2 HP for a cabin or single bathroom, 3/4 HP for one to two bathrooms plus laundry, and 1 HP for a family home with simultaneous showers and irrigation. Flow rate matters more than horsepower, so check GPM or GPH at a stated pressure before buying.
What size pressure tank do I need for a shallow well pump?
Size the tank to your pump output, with roughly one gallon of drawdown per gallon per minute of pump flow as a starting point. A 16 GPM pump needs a larger tank than a 10 GPM unit. The tank prevents rapid cycling, which is the top cause of premature pump failure.
How deep will a shallow well jet pump work?
A shallow well jet pump works to a maximum suction lift of about 25 feet, measured from the pump to the water level, not the well bottom. Some owners report success at 28 feet, but flow drops sharply near the limit. For deeper water, you need a deep well jet pump or a submersible pump.
What are the disadvantages of using a jet pump?
The main disadvantages are the 25 foot suction depth limit, more noise than a submersible pump since the motor sits above ground, a visible pump installation in or near the home, and susceptibility to air leaks in the suction line that stop pressure buildup. Jet pumps also need priming and are less efficient at depth than submersibles.
What is the best jet pump for a shallow well?
The Red Lion RJS-75-PREM 3/4 HP is our top overall pick for 2026, with 16 GPM of flow, cast iron construction, dual voltage, and over a thousand verified reviews. The Wayne SWS100 1 HP is the best whole-home value, and the VEVOR 1.1 HP is the best budget option for light duty.
Final Verdict
After running these units through real installs and digging through thousands of owner reviews, our top pick among the best jet pumps for shallow wells is the Red Lion RJS-75-PREM 3/4 HP for its 16 GPM flow, cast iron build, and unmatched owner track record in 2026.
Choose the Wayne SWS100 1 HP if your whole household depends on the pump, the Pentair SNE-L or Goulds J5S if you want premium cast iron and easy service, and the Aquastrong, Lanchez, or VEVOR if the job is irrigation and light duty on a tight budget.
Whatever you pick, pair it with a correctly sized pressure tank, a good foot valve, and a confirmed voltage setting. Get those three right, and a quality jet pump will quietly run for years.
