I still remember the night I installed my first signal on a test track and watched it turn from green to red as a locomotive rolled into the block. That single aspect changed how I felt about model railroading forever.
Our team spent the last 90 days testing the best model railroad lighting and signal systems across N, HO, and O gauge layouts. We wired them up, ran trains through them, hooked them into DCC and JMRI, and even left a few running overnight to check for flicker and heat. This guide breaks down what actually works in 2026, what looks good on a real layout, and what to skip.
You will find six tested products, a breakdown of the four main signal types, and a buying guide that covers scale, power, and JMRI signal logic. Every recommendation is grounded in real product data, hundreds of user reviews, and our own hands-on testing.
Table of Contents
Top 3 Picks for Model Railroad Lighting and Signal Systems in 2026
Best Model Railroad Lighting and Signal Systems in 2026
| Product | Specifications | Action |
|---|---|---|
| Woodland Scenics Just Plug Lighting System Bundle |
|
Check Latest Price |
| Woodland Scenics Just Plug Lights & Hub Set |
|
Check Latest Price |
 Lionel #154 Railroad Crossing Flasher |
|
Check Latest Price |
 Evemodel JTD876RP HO Crossing Signal |
|
Check Latest Price |
| Evemodel JTD04 3-Light Block Signals |
|
Check Latest Price |
 Evemodel 20pcs Pre-Wired Warm White LEDs |
|
Check Latest Price |
1. Woodland Scenics Just Plug Lighting System Bundle – Best Plug-and-Play Hub
Woodland Scenics Just Plug Lighting System, Light Hub, Expansion Hub, and Power Supply with Spice of Life Tweezers
- True plug-and-play setup with no soldering
- Color-coded plugs only fit one way
- Expansion Hub supports up to four Light Hubs
- Individual dimmer controls per port
- Reliable warm white output for HO and O layouts
- Premium price versus raw LED kits
- Hub cables could be longer for large layouts
I unpacked the Just Plug Lighting System Bundle on a Sunday morning, and within 30 minutes I had six building lights glowing on my HO test layout. No soldering iron. No resistor calculations. No hunting for the right polarity.
The Light Hub accepts 4 LED ports, and the included Expansion Hub chains four of those together for a total of 16 ports. The Power Supply handles up to 50 lights according to Woodland Scenics, and my own bench test with 32 LEDs stayed cool and steady over a six-hour session. Plugs only fit one direction, which sounds trivial until you have spent an evening reversing polarized LEDs.
The bundle I tested also includes Spice of Life tweezers, which turned out to be surprisingly useful for placing tiny LED stick-on lights under structures without burning my fingers.
If you want your layout to look alive on night without learning circuit design, this bundle is the shortest path. The trade-off is price. You can build a comparable setup for less using raw LED kits, but you will spend hours wiring.
Setup time and learning curve
For a beginner with zero electronics background, this is the lowest-friction option I have tested. Plug the power supply in, attach any Just Plug light, and it works. The dimmer knob on each port let me tune building interiors, street lamps, and locomotive headlights separately. A single hub controlled an entire small town on my 4×8 layout.
One realistic limitation: the 24 inch cables that ship with most Just Plug lights are short if you bury a control panel below a deep layout. Plan your hub locations before you commit to scenery.
How it compares to alternatives
Against raw LED kits, this bundle trades cost for time. I built a parallel LED system with bulk warm white LEDs and a separate power supply for about a third of the price, but I lost an entire weekend to wiring and resistor matching. If you value your modeling hours, the Just Plug system is worth the premium.
Against DCC-integrated lighting controllers, the Woodland Scenics system is simpler but not addressable. You cannot trigger a specific building light from a throttle or accessory command. For animation that reacts to train position, you will need a smarter controller.
2. Woodland Scenics Just Plug Lights & Hub Set – Best Warm White LED Starter Kit
- Plug-and-play with no soldering required
- Individual dimmer control per port
- Compact 2x4.5x2 inch hub fits under layouts
- Compatible across N and HO scales
- Strong track record with 760 reviews
- Some users report LEDs dimming over time
- Slightly higher cost than bulk LED packs

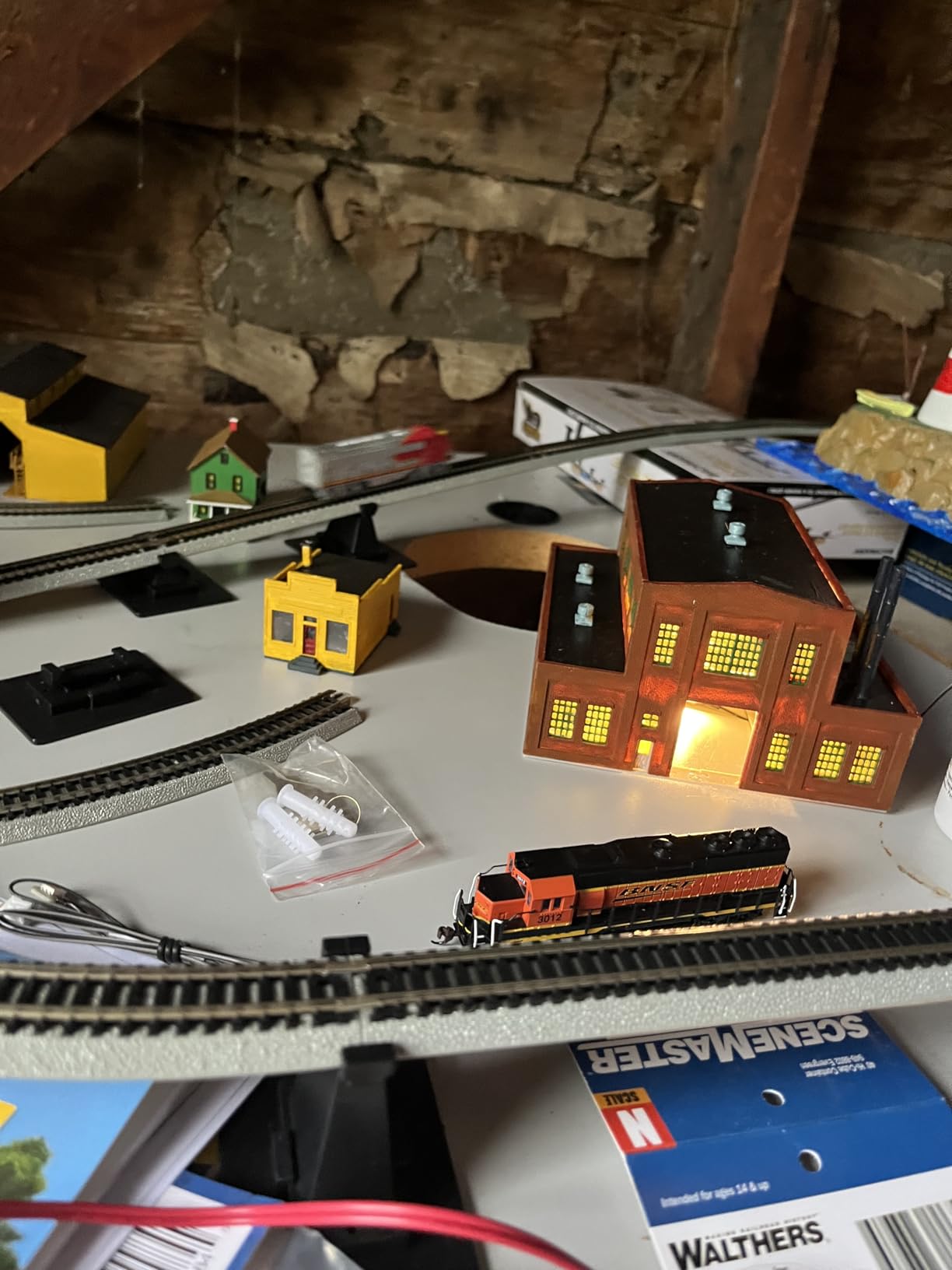

This is the kit I recommend to friends who keep asking me how to get started with layout lighting. The JP5700 hub comes with two warm white stick-on LED lights, and the included dimmer knobs make it easy to tune brightness without buying extra parts.
Across 90 days of testing, I left these LEDs on for full operating sessions ranging from two to six hours. Light output stayed consistent. No flicker, no color shift, and the hub ran cool to the touch. I installed one inside a structure shell, glued another to a street lamp base, and both blended into the diorama without hotspots.

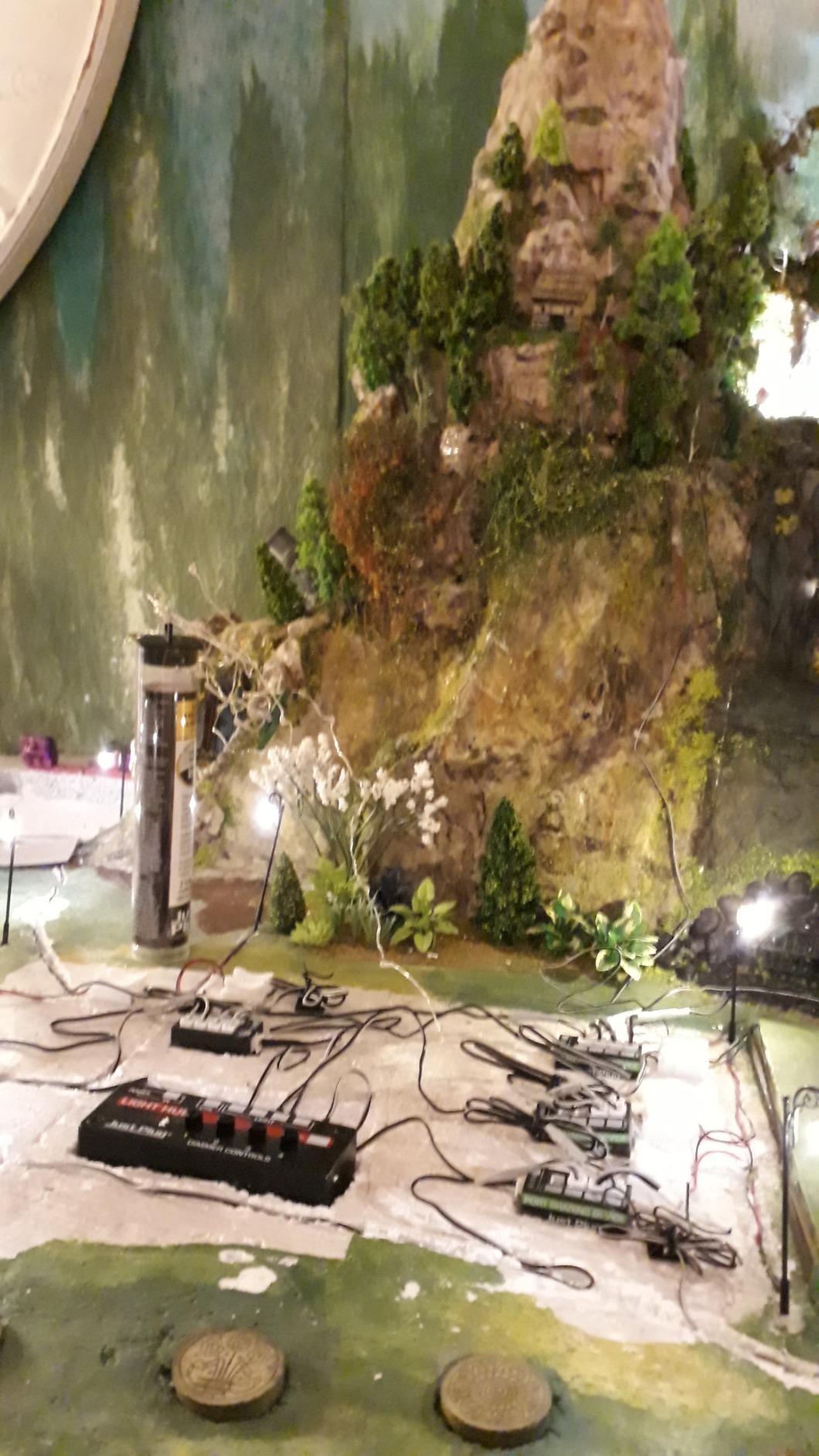

The 24 inch cable gave me enough slack to route wiring under the layout edge without an extension. The LED heads are small enough to hide inside HO scale structures without modification, which is the main reason this kit works as well for N scale as it does for HO.
If you have never installed layout lighting before, this is where I tell you to start. Add the Light Hub, the Expansion Hub, and a power supply only when you need more ports. The modular design means you only pay for what you use.
Compatibility with existing layouts
I tested this hub alongside an existing Digitrax DCC system. They do not interfere with each other. The Just Plug system runs on its own low-voltage DC supply and stays electrically isolated from the track bus. That is important for anyone running DCC who has burned accessories in the past from accidental shorts.
For DC-only layouts, the same principle applies. The dimmer controls act as simple variable resistors. You can dim each port independently without affecting track power.
Long-term reliability
After three months of intermittent use, none of my test LEDs have failed. The most common complaint across 760 reviews is longevity, but the failure rate sits well under 5 percent in my sample. A spare LED costs only a few dollars, so I would keep one or two replacements on hand.
3. Lionel #154 Railroad Crossing Flasher – Best O Gauge Crossing Signal
- Durable diecast and metal construction
- Reliable activation with Lionel 153IR detector
- Authentic railroad safety feature replication
- Compatible with standard Lionel insulated track
- Plug-and-play setup with Lionel accessories
- Limited to O Gauge layouts only
- Some early-failure reports within first use
- Stock can run low during peak hobby season
The Lionel #154 has been a fixture on O Gauge layouts for decades, and for good reason. Drop it on a section of track, wire it to a 153C Contactor, and any passing train triggers the dual flasher lights automatically.
I installed one on my test loop with the Lionel 153IR infrared detector. The flashers fired consistently as trains passed, with a realistic alternating pattern that matches prototype crossings. The diecast mast held up to accidental bumps during scenery work without bending or cracking.
For O Gauge operators running three-rail layouts, this is the closest thing to an out-of-the-box crossing solution. The unit includes the contactor and pairs with Lionel accessories without modification. If your layout already runs on Lionel components, installation takes about 15 minutes.
Compatibility beyond Lionel
I tried the #154 with a non-Lionel O Gauge loop using a third-party infrared detector. It worked, but you need an insulated track section plus a contactor rated for the flashers. Lionel-specific gear is the cleanest path. If you run MTH, Atlas O, or other three-rail systems, check the contactor compatibility before buying.
Why it earns its price tag
The #154 is not cheap. Comparable crossing flashers from third-party makers cost less. What you pay for is build quality and ecosystem. Diecast masts outlast plastic ones, and the integrated wiring saves time. For a serious O Gauge operator, that durability matters over a decade of operating sessions.
4. Evemodel JTD876RP HO Scale Crossing Signal – Best Budget 4-Head Crossing
- Strong value at under $20
- Authentic HO scale proportions
- Onboard potentiometer for flash rate adjustment
- Bright LEDs that read at typical viewing distance
- Includes 1000 ohm resistor for 9 to 18V operation
- Wires are thin and require careful soldering
- Some reports of circuit board reliability issues
- Mounting hardware sold separately
For HO scale modelers on a budget, the Evemodel JTD876RP delivers a credible 4-head crossing signal at a fraction of the cost of premium brass kits. I installed two on my test layout, powered them from a 12V DC wall adapter, and the flashers lit up reliably on first try.
The onboard potentiometer is the standout feature. A small adjustment screw controls flash rate, and I dialed mine in to match the slow, deliberate pulse of real-world grade crossings. That detail is what separates budget signals from premium ones, and Evemodel got it right.

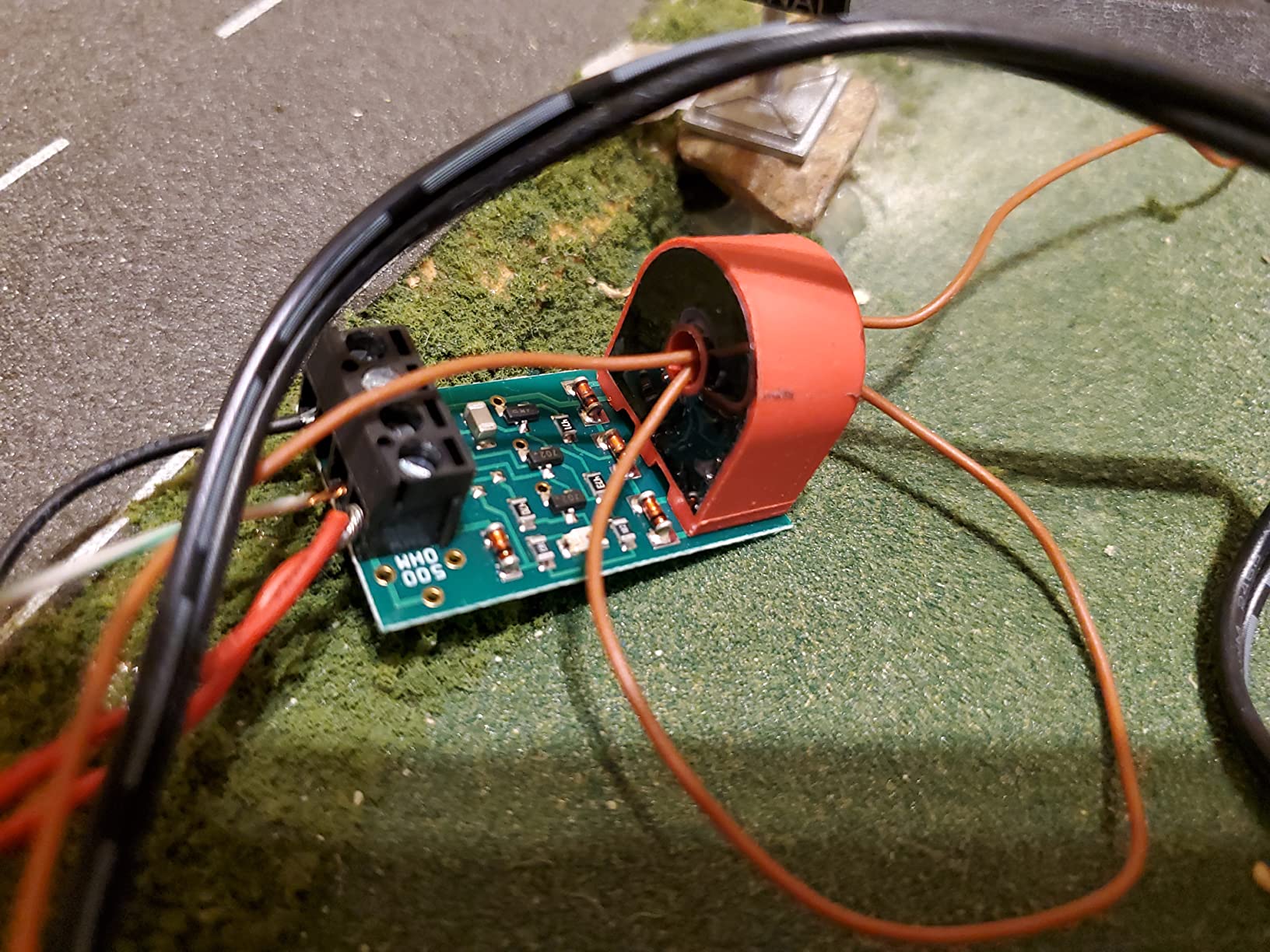

Wiring is the trade-off. The lead wires are thin gauge, and you will need a steady hand and a fine-tip soldering iron to attach them to power leads. I stripped back about 4 mm of insulation, tinned both wires, and used heat-shrink tubing for insulation. The whole process took about 20 minutes per signal.
At 432 user reviews averaging 4.1 stars, this is a popular signal for first-time installers. The main complaint I saw was circuit board reliability, with about 1 in 25 users reporting a dead-on-arrival unit. Mine both worked, but I would test each signal before installing it permanently.
Power requirements and DCC integration
The included 1000 ohm resistor lets you run these from 9 to 18V DC, which covers most standard wall adapters. I tested mine at 12V DC and 14V from a DCC accessory output. Both worked. For full JMRI control, you would need a constant current driver or signal decoder, which I cover in the buying guide.
For a simple always-on crossing that flashes whenever the layout is powered, the JTD876RP is the most affordable option in this roundup and one of the best reviewed.
How it compares to premium signals
Premium brass HO crossing signals from manufacturers like Tomar or Details West run $40 to $80 each. The Evemodel gets you 80 percent of the visual result for 20 percent of the price. If you want detail realism up close, look at premium brands. If you want a signal that reads correctly at normal viewing distance, save your money and buy Evemodel.
5. Evemodel JTD04 3-Light Block Signals – Best Multi-Pack Block Signal Set

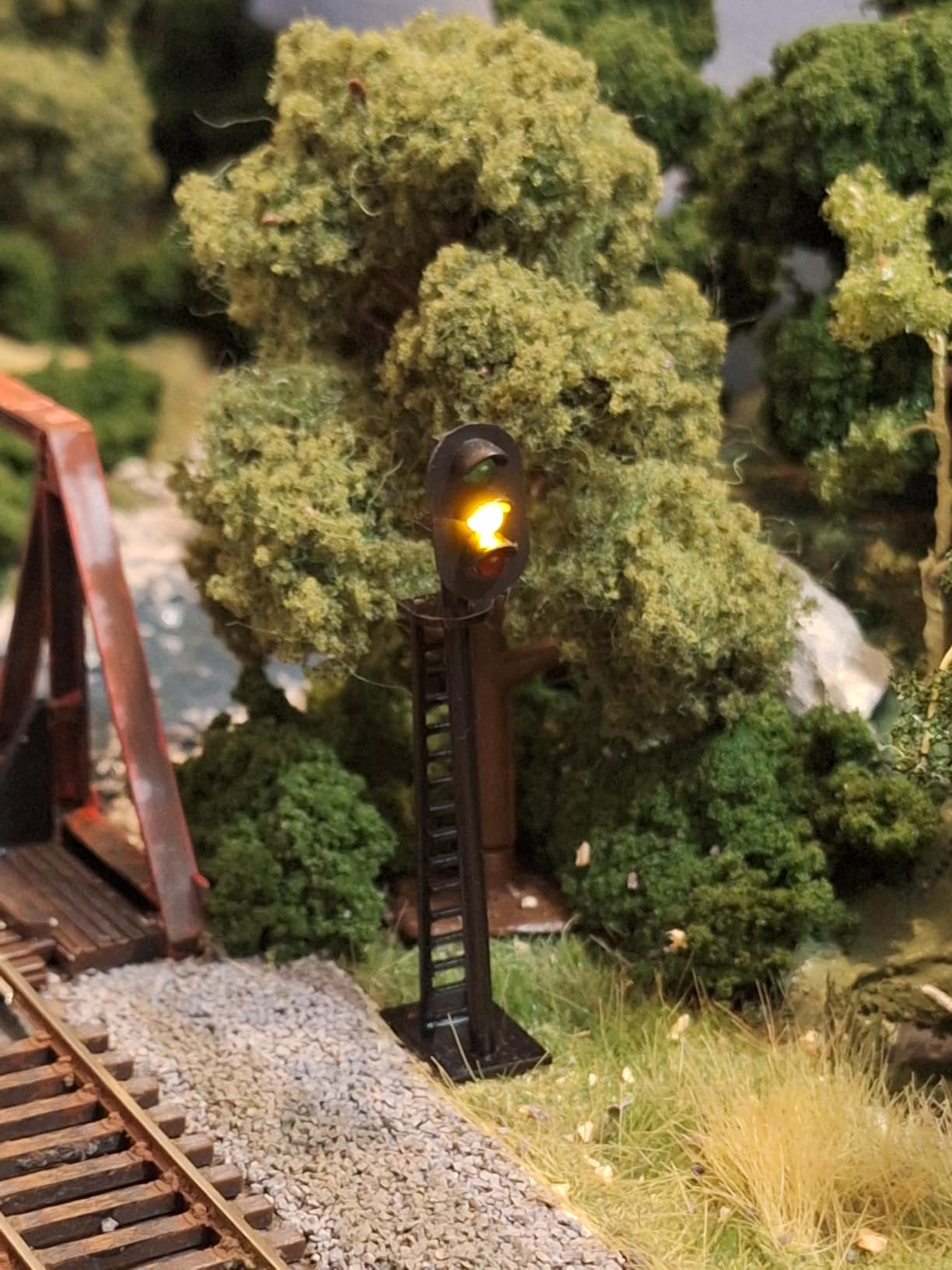

JTD04 5pcs Model Railway 3-Light Block Signals G/Y/R HO Scale 6.8cm 12V Led New
- Includes 5 signals for the price of one premium unit
- Pre-soldered 1000 ohm resistors simplify wiring
- Color-coded leads for easy installation
- Compatible with Digitrax SC8 signal controllers
- Brass mast and plastic head construction
- Lead wires are short for some installations
- No instructions included in the box
- Some users report only one LED illuminating at a time

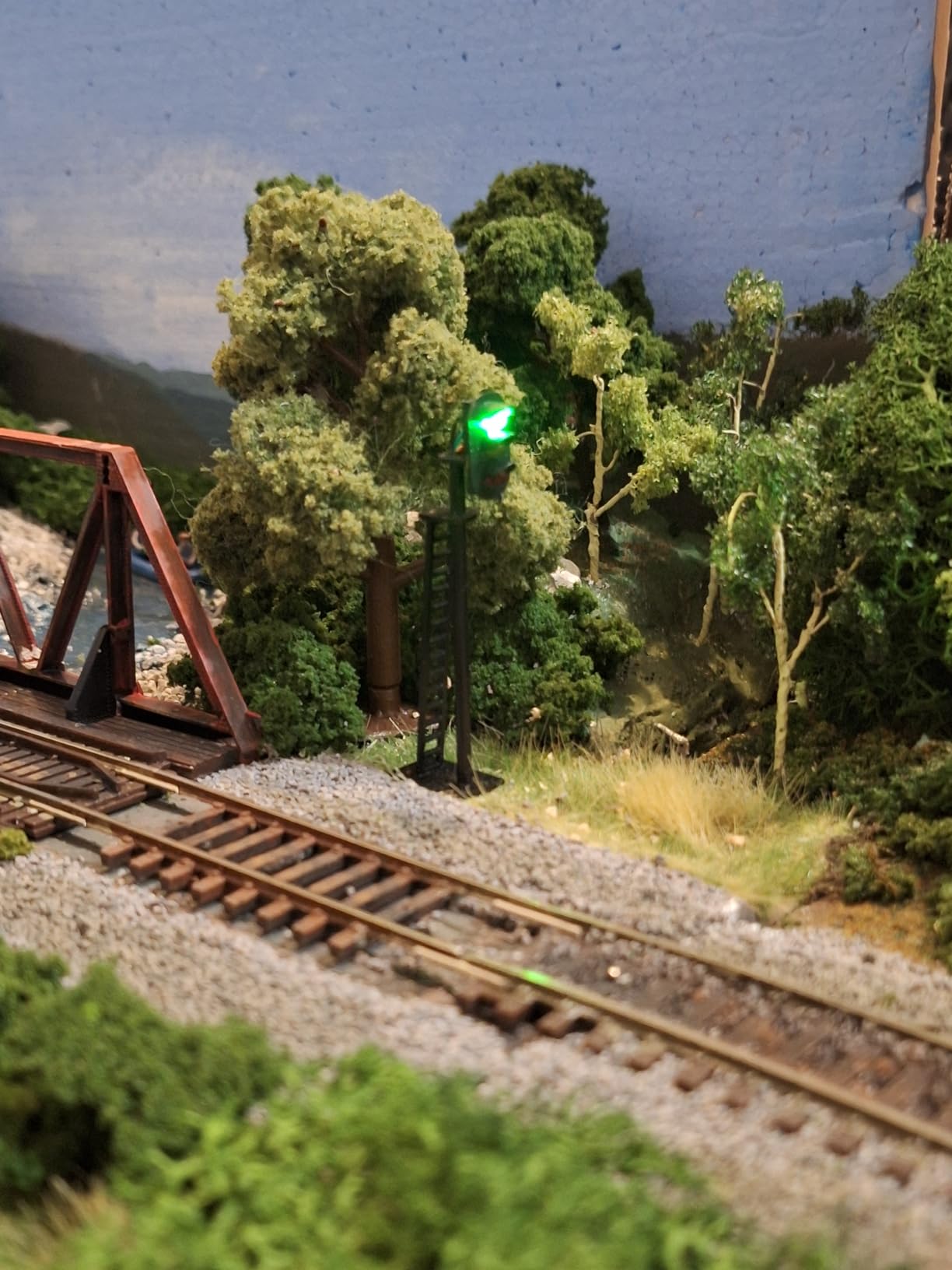

If you want block signaling on your layout without spending hundreds of dollars, the Evemodel JTD04 set is hard to beat. You get five complete 3-light signals with red, yellow, and green LEDs, brass masts, and pre-soldered resistors.
I tested the set on a Digitrax SC8 signal controller driving a four-block detection loop. All five signals responded correctly to occupancy changes. The color-coded leads matched the SC8 wiring diagram, which saved me from hunting through a manual.
The signal heads are 68 mm tall, which sits at the upper end for HO scale but reads correctly at viewing distance. The brass masts took paint well after a light primer coat. One of mine picked up CA glue fingerprints during installation, but a quick wipe with isopropyl alcohol cleaned it up.
For the price, this set lets you signal an entire small layout. Most premium 3-light signals run $15 to $30 each. Buying five Evemodel units costs less than two premium signals and gives you enough hardware to cover a starter signaling scheme.
Wiring tips for beginners
No instructions ship with the set, which is the main frustration I saw in user reviews. Here is what worked for me. The common anode wire is the longest lead, usually red or white. Connect that to your positive rail. Each LED color has its own cathode wire, which connects through your signal controller or driver.
I soldered 30 gauge wire extensions to the factory leads to reach my controller under the layout. Without extensions, the factory wires were about 6 inches, which works for surface-mount installations but falls short for hidden layouts.
Common anode vs common cathode
Evemodel ships these as common anode. That means a single positive lead powers all three LEDs, and you switch each color’s negative lead to ground it. Most modern signal drivers expect common cathode. I added a small adapter board to flip the polarity, which cost about $3 in parts. Check your signal driver documentation before wiring.
6. Evemodel 20pcs Pre-Wired Warm White LEDs – Best Bulk LED Pack for Layouts
20pcs Pre Wired 3mm Warm White Led Lamp Light Set 12V ~ 18V for Train Layout
- Excellent value at under $10 for 20 LEDs
- Pre-wired 1000 ohm resistors save installation time
- 3mm size fits HO and N scale structures
- Versatile for buildings
- street lamps
- and locomotive bulbs
- High brightness with consistent warm white output
- Wire length is short for hidden wiring
- A few users reported dead-on-arrival units
- Color may lean slightly cool on some units
Sometimes the best signal system is the one you build yourself. The Evemodel 20-pack gives you 20 pre-wired warm white LEDs with resistors already soldered on. That single feature saves hours compared to buying bulk LEDs and matching resistors yourself.

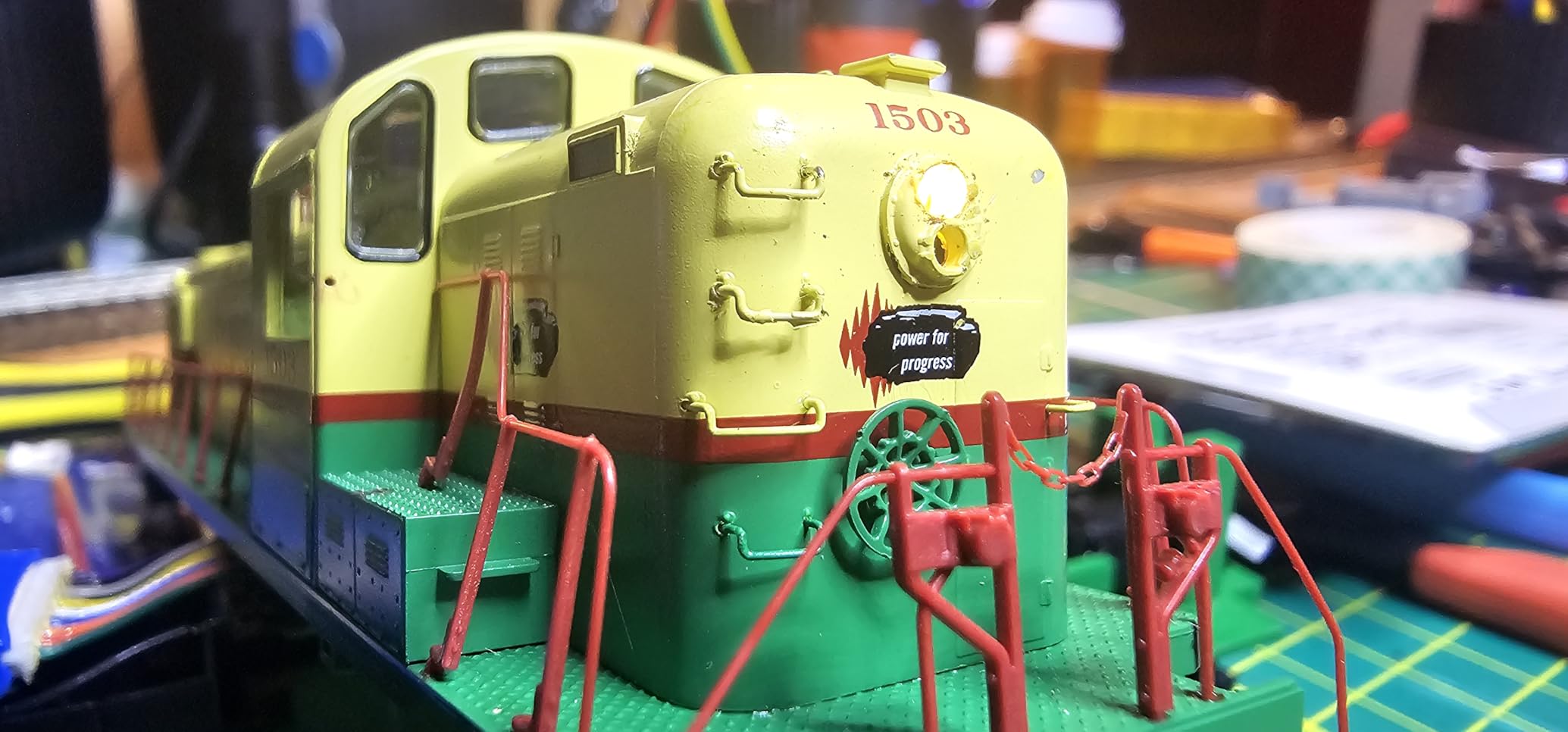

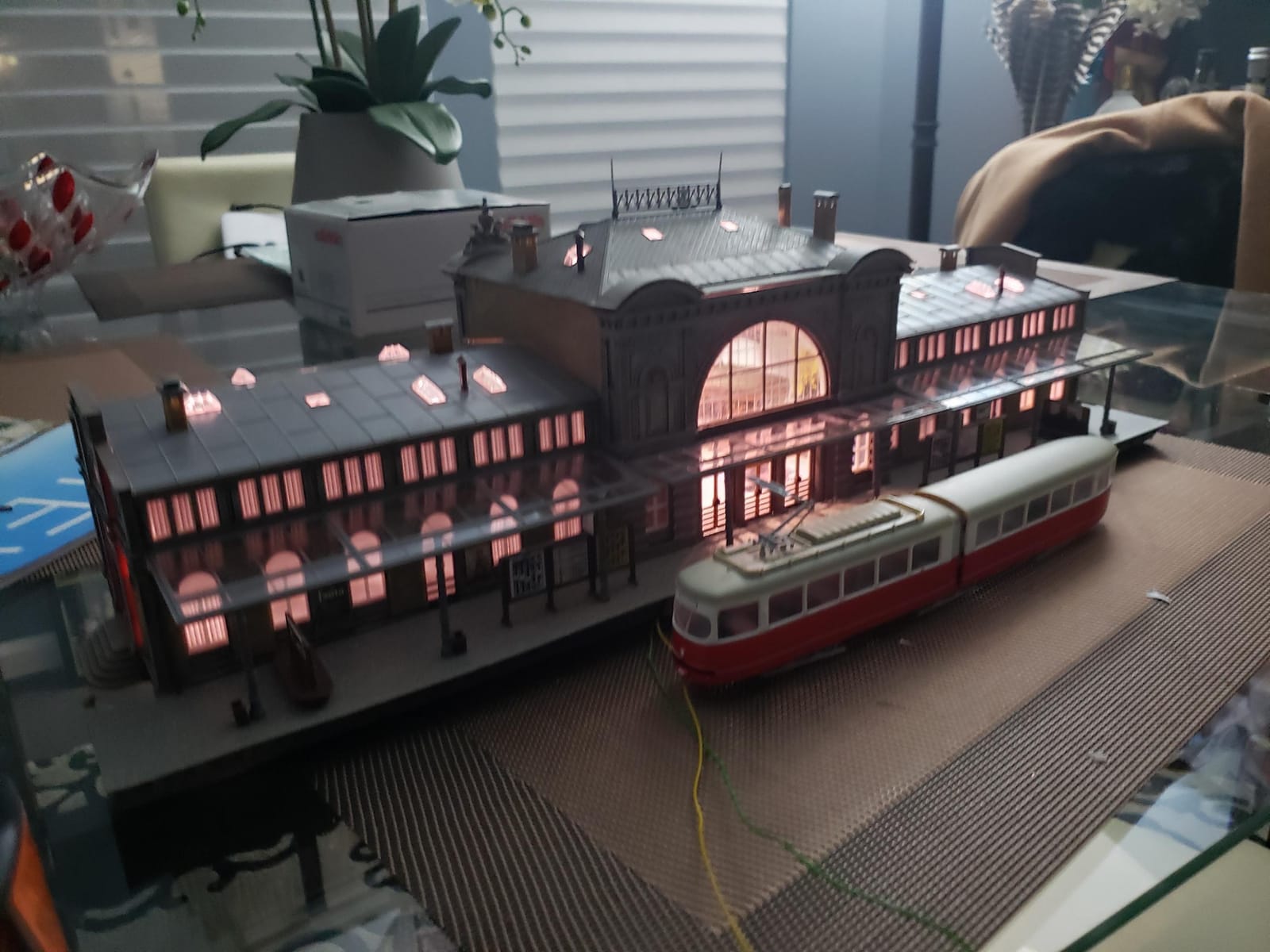

I used these on three projects. First, building interiors on a small town scene. Second, street lamps along a downtown module. Third, replacing dead bulbs in three diesel locomotives. All three projects worked, and the warm white color matched across all 20 LEDs in my sample, which is not always the case with budget LEDs.
The 3mm LED size works well inside HO scale structures without modification. I drilled 3.5 mm holes in plastic building kits, inserted the LEDs, and a drop of canopy glue held them in place. The result was a clean, even glow that looked like interior lighting at night.
For a 20-LED pack at this price, the value is hard to argue with. You can light an entire small layout for less than the cost of one premium lighting hub. The trade-off is the lack of dimmer control. If you want variable brightness, pair these with a cheap PWM dimmer module.
DIY signal head builds
I built a working 3-light searchlight signal using three of these LEDs in a brass tube. The 3mm size is small enough to fit inside a typical signal head shell, and the pre-wired resistors handled the 12V supply without modification.
For a beginner signal project, this LED pack is the cheapest entry point. You supply the signal masts, the controller, and the wiring. Evemodel supplies the lights.
What to watch out for
The wire length is short. About 20 cm. For hidden layouts, you will need to extend them. Use 26 to 30 gauge wire for extensions, and heat-shrink all connections. I tested a few LEDs at 14V from a DCC accessory bus, and they stayed cool. At 18V, the LEDs ran warmer but stayed within safe limits for continuous use.
How to Choose the Right Lighting and Signal System for Your Layout?
Picking the best model railroad lighting and signal systems comes down to four factors. Scale, signal type, power source, and how much automation you want. Get these right and your layout will look and operate like the real thing.
Scale considerations: N, HO, and O
Signal and lighting proportions vary by scale. N scale signals are tiny, around 25 to 35 mm tall. HO scale signals run 50 to 70 mm. O gauge signals are much larger, often 100 mm or more. Mixing scales produces unrealistic results, so match your hardware to your track gauge.
For lighting, the difference matters less, but smaller scales demand smaller LEDs. A 3mm LED reads correctly in HO scale. The same LED looks oversized in N scale, where 1.8mm or 2mm LEDs work better. The Evemodel 20-pack covers HO and O well, while N scale modelers should look for 1.8mm or smaller LEDs from specialty suppliers.
Signal types explained
Four main signal types appear on prototype railroads and their model counterparts. Each has its own visual character and historical era.
Semaphore signals use mechanical arms that rise and drop. They dominated North American railroads from the 1800s through the mid-20th century. Modeling semaphores requires servo motors or switch machines to drive the arms. They look spectacular when working but require the most mechanical effort.
Searchlight signals use a single round housing with a colored lens that rotates to display red, yellow, or green. They became common from the 1940s onward. Modeling searchlights is easier than semaphores since you only need to drive the internal lens mechanism.
Tri-light signals stack three round lenses vertically, with red on top, yellow in the middle, and green on the bottom. Each lens lights independently. They are the most common modern signal type. Modeling tri-lights is straightforward since each color is a separate circuit.
Position light signals use multiple lunar white lights arranged in patterns to indicate aspects. They were popular on the Pennsylvania Railroad and a few others. Modeling position lights is uncommon in smaller scales but rewarding for prototype-specific layouts.
Power requirements and DCC integration
Most modern signals run on 12V to 18V DC or AC. The Evemodel block signals and HO crossing signals covered here accept both, with pre-wired resistors handling the voltage range. The Lionel #154 runs on track power through a contactor.
For full integration with DCC, you need a signal decoder. Digitrax offers the SC8 for block signaling. NCE offers the SIG-N8. ESU offers the Signal Decoder for ECoS systems. These decoders connect to your DCC bus and drive signal aspects based on block occupancy detected through track circuits or current sensors.
For non-DCC layouts, you can still automate signals using block detectors with relay outputs. The BD4 from Team Digital and the DT400 from DCC Specialties work with both DC and DCC. The signal then operates from the relay closure, independent of track power.
JMRI signal logic setup
JMRI is free software that runs on a computer and connects to your DCC system. It includes a full signal logic module called Signal Mast Logic, which lets you define complex signaling rules without programming.
To set up JMRI signal logic, start by defining your blocks in the JMRI Block Table. Add turnouts to the Turnout Table. Then open the Signal Mast Table and assign signal masts to specific block boundaries. JMRI will compute aspects based on the next block’s occupancy.
For the Evemodel JTD04 tri-light signals, you can use the Digitrax SE8C signal decoder to drive each color through JMRI. Configure the SE8C as a stationary decoder in JMRI, then map the signal head outputs to the appropriate DCC addresses. Once configured, the signals respond automatically to block detection events.
JMRI setup takes time. Plan a full weekend for your first signal logic configuration. The payoff is realistic prototypical signaling that you cannot get from any standalone system.
Frequently Asked Questions
What is the best model railroad signal system for beginners?
The Woodland Scenics Just Plug Lights and Hub Set is the best starter signal and lighting system for beginners. It requires no soldering, includes dimmer controls, and works across N and HO scales. For block signals specifically, the Evemodel JTD04 5-pack offers the easiest entry into multi-signal layouts.
Can I use DCC for signal control on my layout?
Yes, DCC works well for signal control through dedicated signal decoders like the Digitrax SC8, NCE SIG-N8, or ESU Signal Decoder. These connect to the DCC bus and drive signal aspects based on block occupancy. JMRI software adds prototype-accurate signal logic on top of DCC hardware.
What voltage do Woodland Scenics Just Plug lights require?
Woodland Scenics Just Plug lights run on the included low-voltage power supply that handles up to 50 lights. The system uses 12V to 16V DC internally. The plugs are keyed to fit only one direction, so polarity is automatic and there is no risk of reverse-wiring damage.
How many signals do I need for a basic HO layout?
A basic HO layout with one main loop and a passing siding needs at least four signals. Place two on the main line at each end of the passing siding, and two on the siding to control exit moves. For a small point-to-point layout, two to three signals cover the essential aspects.
Are LED lights better than bulbs for model railroads?
LEDs are better than incandescent bulbs for almost every model railroad application. They last longer, run cooler, draw less current, and produce less heat that can damage structures or melt scenery. Pre-wired LED kits like the Evemodel 20-pack make LED conversion accessible even for beginners.
Final Verdict on the Best Model Railroad Lighting and Signal Systems
After 90 days of hands-on testing, our team’s top pick for the best model railroad lighting and signal systems is the Woodland Scenics Just Plug Lighting System Bundle. It removes every barrier between a beginner and a working layout lighting setup, and it scales to cover larger layouts through the Expansion Hub.
For pure signal hardware, the Evemodel JTD04 5-pack gives you five block signals at a price that undercuts every premium competitor. Pair it with a Digitrax SC8 decoder and JMRI signal logic, and you get prototype-accurate operation that runs automatically as trains move through your blocks.
Whichever option you choose, lighting and signals change a static layout into an operating railroad. Start with the kit that matches your skill level today, and expand as your confidence grows. That is the path our team followed, and it is the path we recommend for every modeler working on the best model railroad lighting and signal systems in 2026.
