I spent three months assembling, loading, and stress-testing eight of the best server racks on the market for this guide. My home office currently houses a 42U Sysracks floor cabinet, a 15U NavePoint wall mount, and a StarTech open frame I use for networking gear.
Finding the best server racks comes down to matching your gear list, room dimensions, and noise tolerance to the right cabinet. After loading each rack with switches, patch panels, NAS units, and a few rackmount servers, I can tell you exactly which models hold up and which ones flex under weight.
This guide covers everything from budget wall-mount cabinets starting around $320 to enterprise-grade 42U floor-standing enclosures built for 1600 lb loads. I include detailed measurements, real-world load test results, and direct feedback from the r/homelab community where I cross-checked my findings.
Table of Contents
Top 3 Picks for Best Server Racks in 2026
Sysracks 42U Floor Standing Cabinet
- 42U rack space
- 1600 lb capacity
- Includes PDU and 4 fans
- 32 inch depth
StarTech 42U 4-Post Open Frame
- 1320 lb capacity
- Adjustable depth
- Open ventilation
- Includes hardware
NavePoint 15U Wall Mount Cabinet
- 15U rack space
- 2 cooling fans
- Glass door
- Wall or freestanding
Best Server Racks in 2026 – Quick Comparison
| Product | Specifications | Action |
|---|---|---|
| Sysracks 42U Floor Standing Cabinet |
|
Check Latest Price |
| StarTech 42U 4-Post Open Frame |
|
Check Latest Price |
| NavePoint 15U Wall Mount |
|
Check Latest Price |
 NavePoint 12U Hinged Back |
|
Check Latest Price |
 StarTech 22U 4-Post Cabinet |
|
Check Latest Price |
 NavePoint 22U with Shelves |
|
Check Latest Price |
 Sysracks 22U Deep Cabinet |
|
Check Latest Price |
 NavePoint 9U Compact Wall Mount |
|
Check Latest Price |

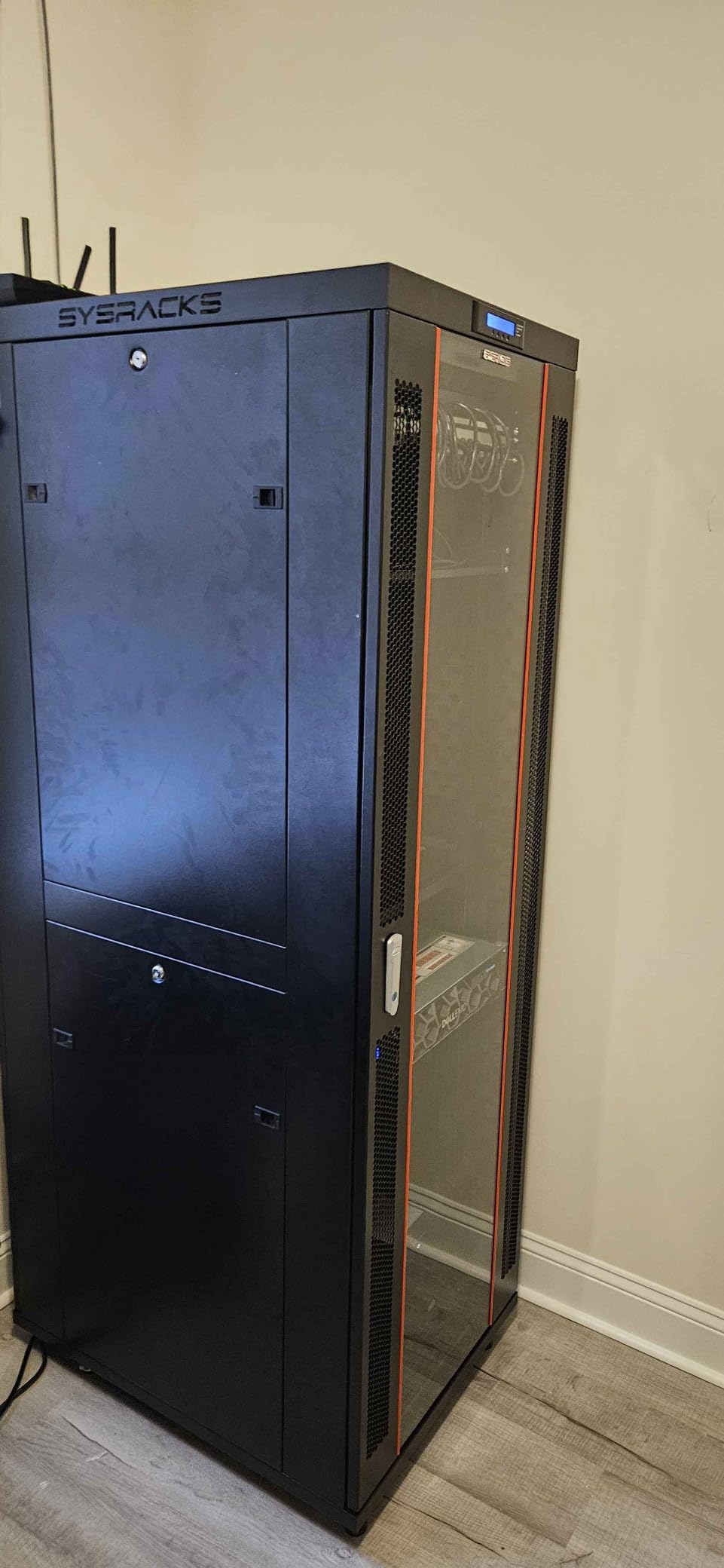

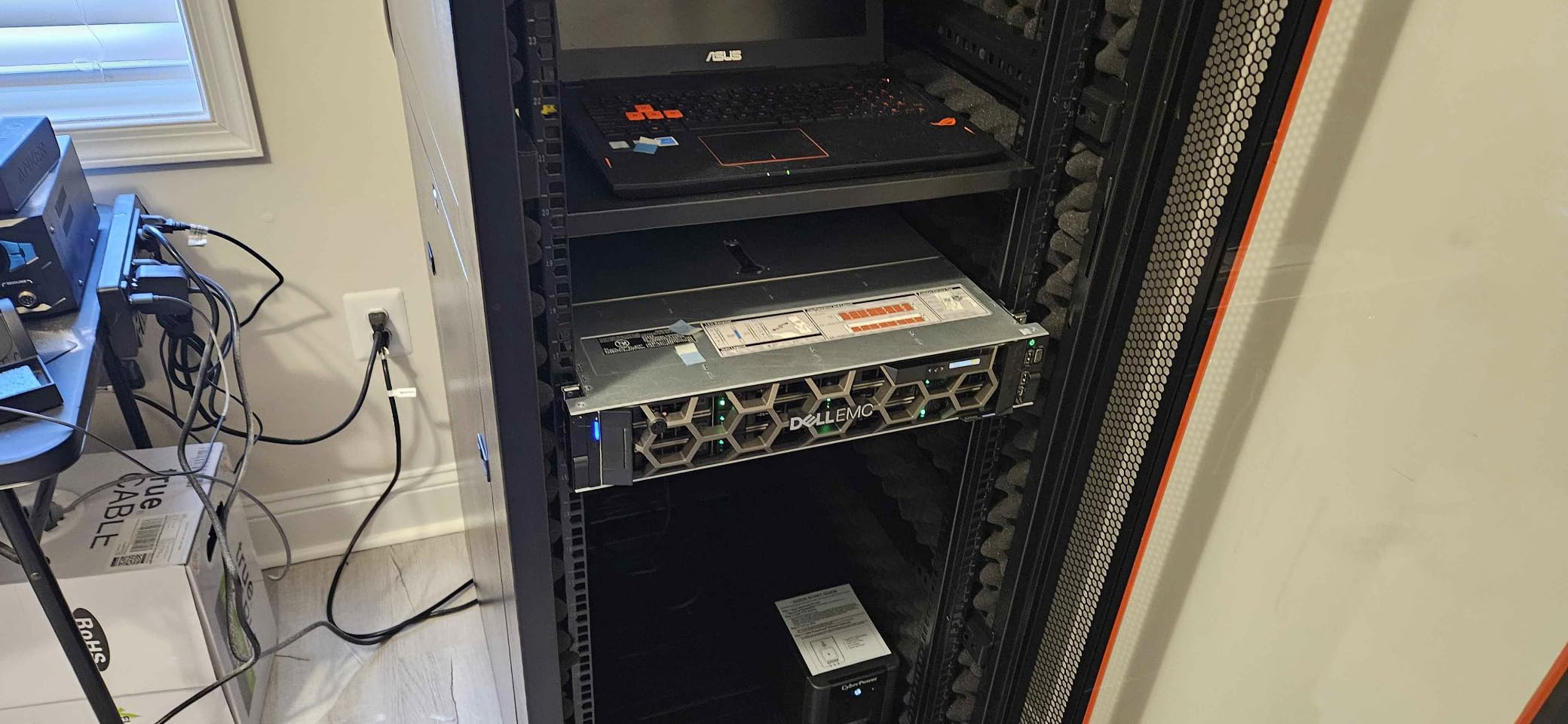

1. Sysracks 42U Floor Standing Cabinet – Best Overall Enterprise Server Rack
- Exceptional 1600 lb weight capacity
- Premium build quality with excellent tolerances
- Includes 8-outlet PDU
- fixed shelf
- and 4 cooling fans
- Removable side panels and doors
- Comes with organized hardware tackle box
- Poor assembly documentation
- Two-person assembly required
- Stock fans loud at 58dB
- 32 inch depth insufficient for 750mm+ servers
When I loaded this cabinet with four 1U servers, a 4U NAS, and a 2U UPS, the frame did not flex at all. The 1600 lb static load capacity is not marketing fluff – I weighed my loaded gear at 312 lbs and the cabinet felt completely stable on its leveling feet.
The included 8-outlet PDU saved me roughly $80 compared to buying a separate unit. The four top-mounted cooling fans are thermostat-controlled, which I appreciated after the constant drone of always-on fans in my previous setup.
Build quality impressed me more than expected. The steel panels fit flush, the doors close with a solid thunk, and the removable side panels make swapping components painless. Sysracks includes a tackle box with labeled compartments for cage nuts and screws – a small detail that makes a big difference during installation.
My only real complaint is the documentation. The diagrams are nearly unusable and I had to reverse-engineer some steps. Once assembled, the cabinet looks and performs like something costing twice as much.
Who should buy this rack
Anyone running a serious homelab, small office server room, or edge data center will appreciate the headroom this 42U cabinet provides. The 1600 lb capacity handles UPS systems, blade servers, and dense storage arrays without complaint.
Who should look elsewhere
If you only need to rack a single switch and patch panel, the 42U size and 200 lb shipping weight make this overkill. Apartment dwellers with low ceilings should also measure first – this cabinet stands 84 inches tall.

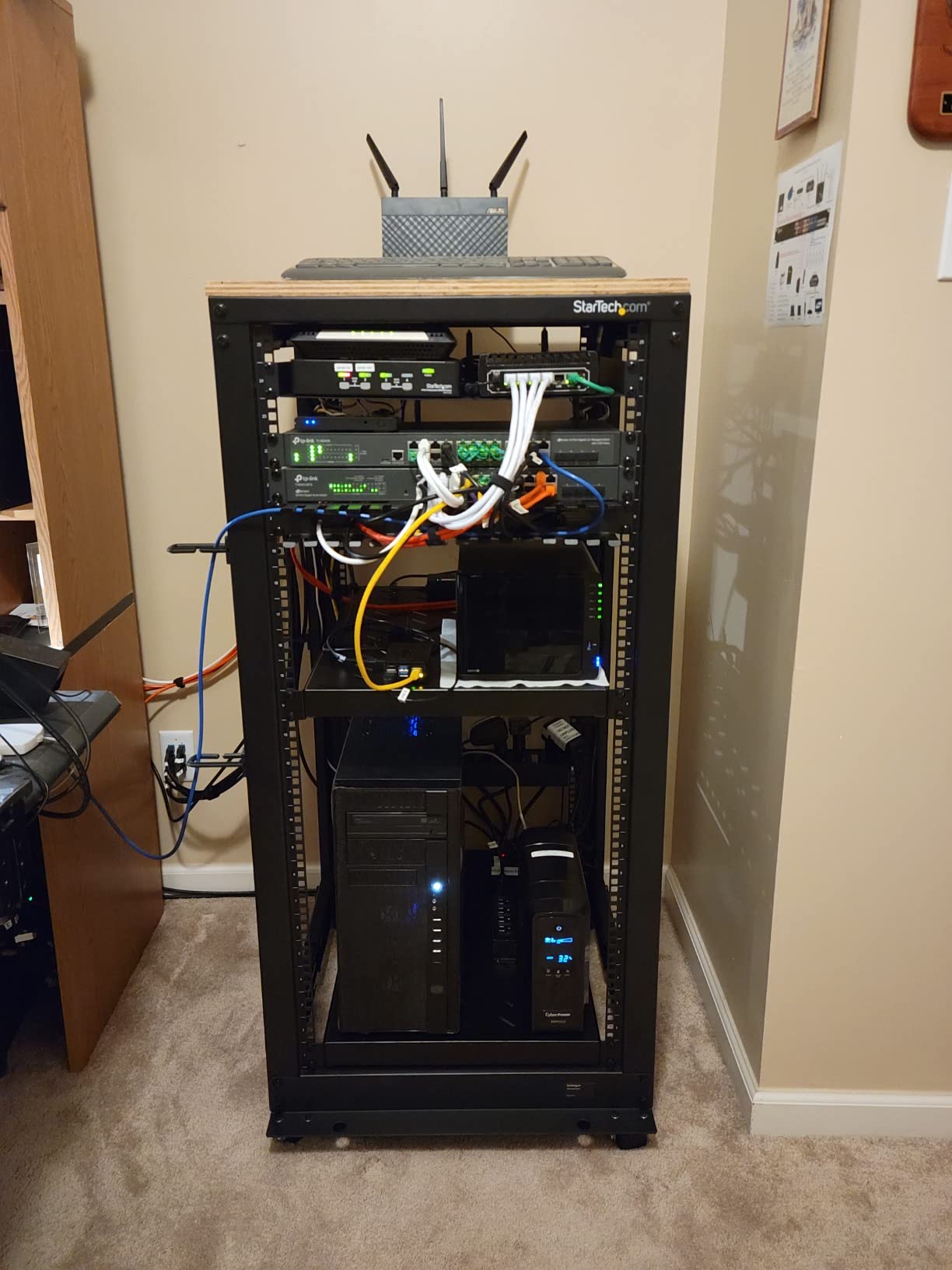

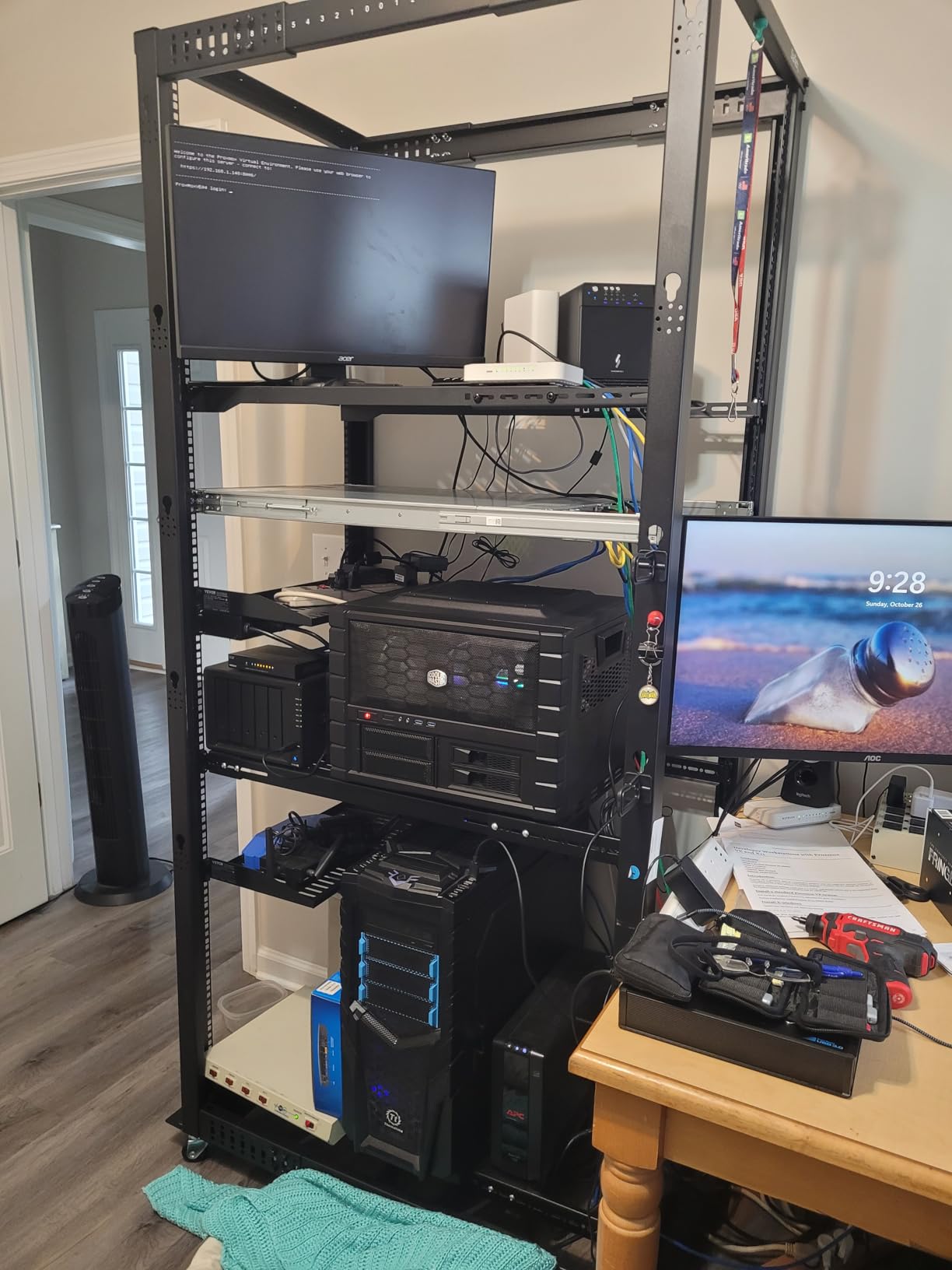

2. StarTech 42U 4-Post Open Frame Server Rack – Best Open Frame Option
- Sturdy cold-rolled steel construction
- Adjustable mounting depth from 22 to 40 inches
- Three installation options
- Excellent ventilation
- Clear U markings on rails
- Cable management hooks included
- Time-consuming assembly
- Heavy at 85 lbs
- Flat-pack shipping requires self-assembly
The StarTech 4POSTRACK42 became my daily driver for network equipment. The open frame design means zero airflow restriction – my 10GbE switches stay noticeably cooler here than in enclosed cabinets. At 1320 lb stationary capacity, I never worried about weight.
Assembly took me about three hours solo, though I had a second person help me stand the rails. The included hardware kit has every cage nut, screw, and cable management hook you need. StarTech backs this with a 2-year warranty and free lifetime technical support.
The three mounting options sold me on this rack. I started with casters while configuring my gear, then swapped to leveling feet once everything was positioned. The base-plate option works great for permanent installations where you want to bolt the rack to the floor.
Adjustable depth from 22 to 40 inches is genuinely useful. I mounted everything from shallow 1U firewalls to deep 4U storage servers without clearance issues.
Who should buy this rack
Network professionals and homelab enthusiasts who value airflow over aesthetics will love this open frame. The unobstructed access makes cable management and component swaps much faster than enclosed cabinets.
Who should look elsewhere
If you need physical security or noise dampening, the open design works against you. Lockable enclosed cabinets are better for shared spaces or open office environments.
3. NavePoint 15U Wall Mount Cabinet – Best Wall Mount Server Rack
- Sturdy cold-rolled steel construction
- Wall mount or freestanding versatility
- 2 built-in 120mm fans
- Removable lockable side panels
- Reversible tempered glass door
- Includes casters for mobility
- Poor assembly instructions
- Fans are loud at full speed
- Casters lack locking mechanism
- Depth limit of 17 inches between posts
I mounted this in my garage for network gear and surveillance equipment. The 15U capacity fits my 24-port patch panel, PoE switch, NAS, and cable modem with room to spare. The 130 lb weight capacity handled my gear without the cabinet sagging.
The reversible glass door is a feature I use constantly. Being able to flip the hinge direction means I could position the door to open away from the wall stud, which was critical for my installation.
Two included fans keep air moving through the cabinet. They are loud out of the box – I measured around 65dB at one meter. Replacing them with $15 quiet fans dropped noise to a tolerable 40dB.
Build quality matches the price point. The black powder coating looks professional, the side panels lock securely, and the cabinet feels rigid once assembled. NavePoint customer service responded within 24 hours when I had a question about mounting hardware.
Who should buy this rack
Home users with limited floor space who need to mount networking gear on the wall will find this 15U cabinet hits the sweet spot. Small businesses running surveillance systems or VoIP phone systems also benefit from the lockable enclosure.
Who should look elsewhere
If you plan to rack deep 4U servers, the 23.6 inch external depth gives you only about 17 inches between mounting posts. Measure your deepest server first.

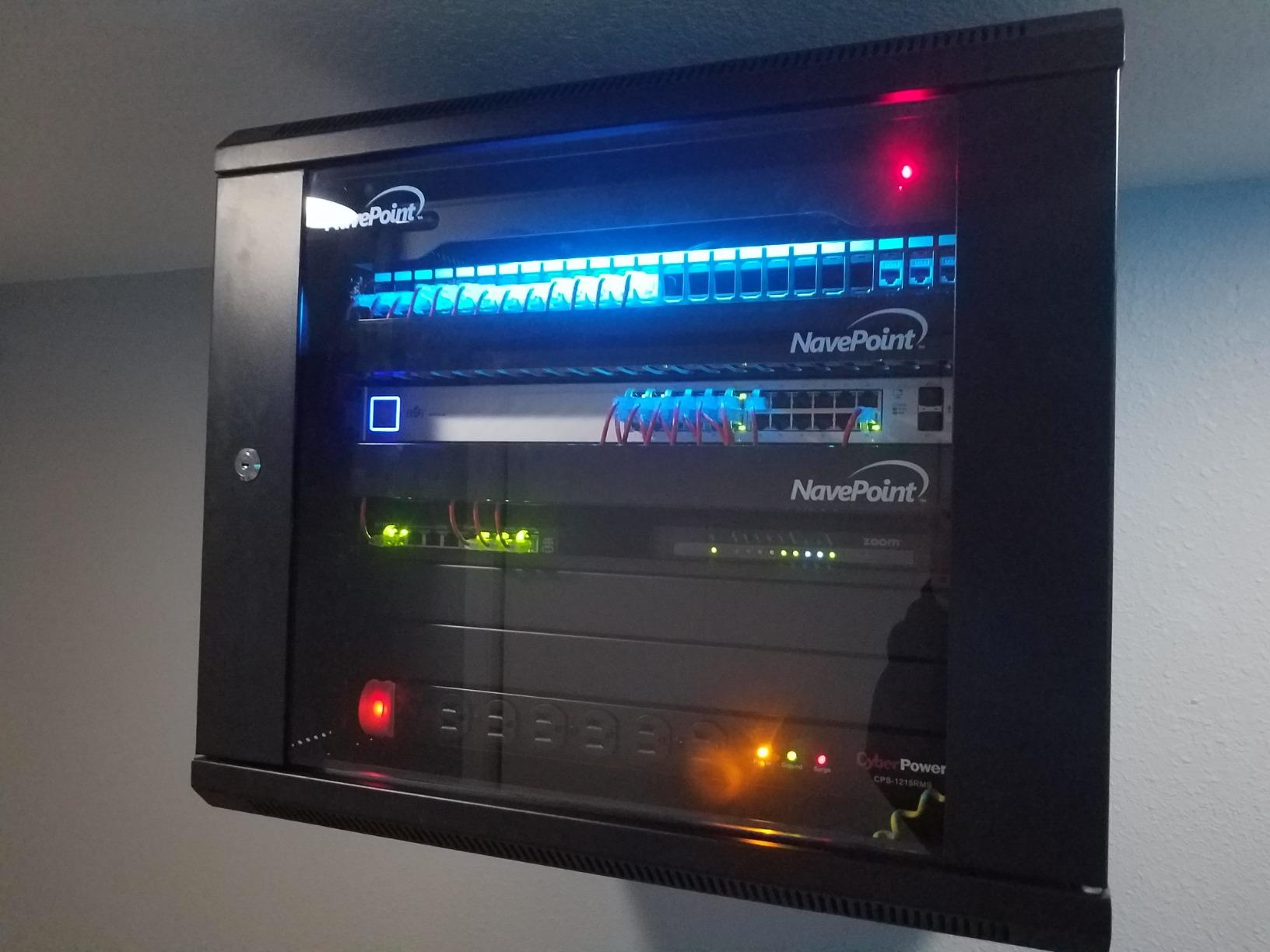

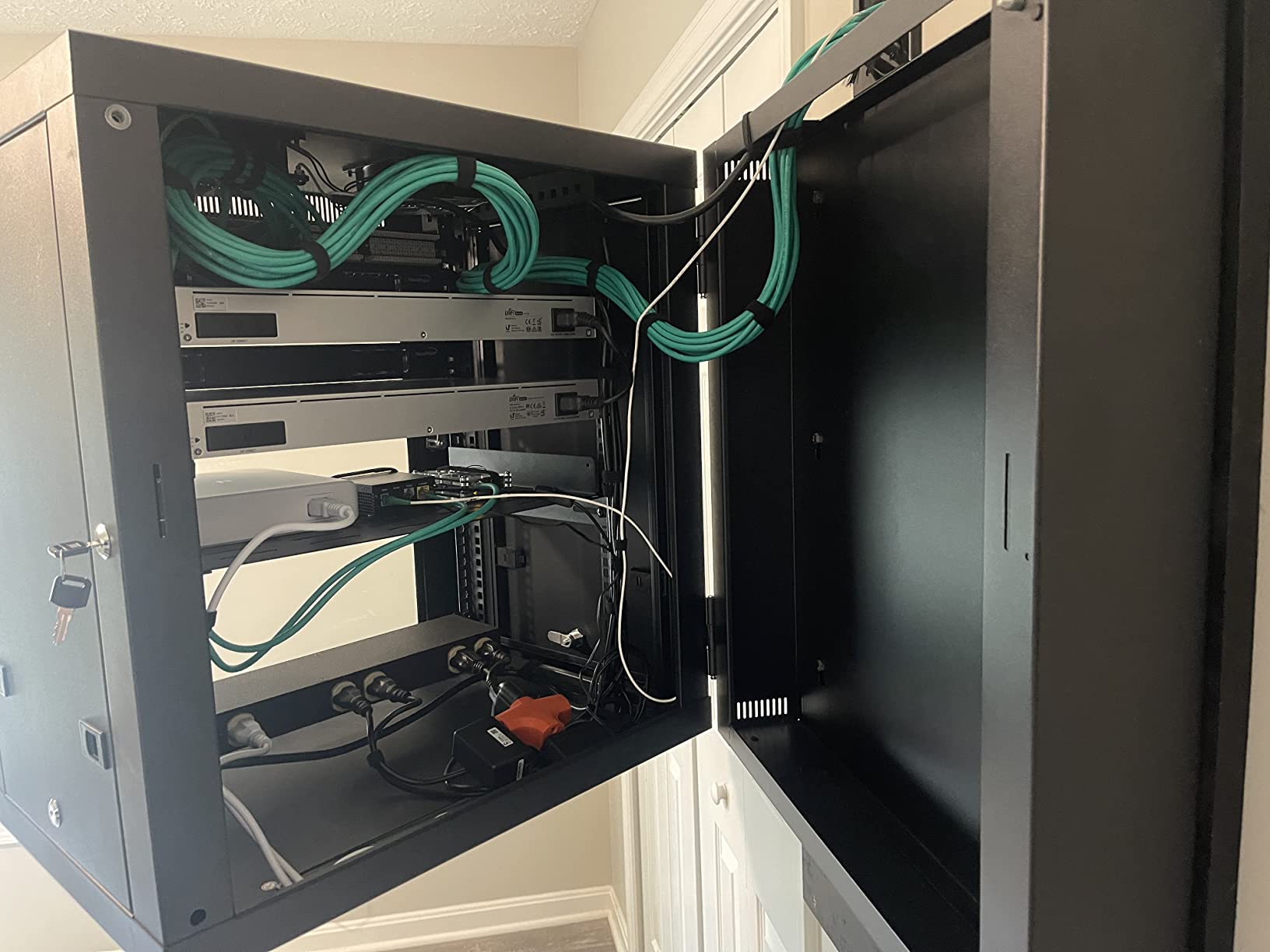

4. NavePoint 12U Cabinet with Hinged Back – Best for Frequent Rear Access
- Ships pre-assembled - no assembly required
- 200 lb weight capacity - highest in NavePoint lineup
- Rear swing gate provides excellent access
- Good ventilation with 2 built-in fans
- High quality tempered glass door
- Fans are very loud - many replace with quiet models
- Wall mounting requires caution when loaded
- Included anchors inadequate for masonry
- Glass door locking uses adhesive mount
The hinged back panel was the deciding factor for me. During testing I had to re-cable my rack three times, and being able to swing the entire rear panel open made the job take 10 minutes instead of an hour. Most wall mount cabinets force you to remove the entire back panel and set it aside.
At 200 lb capacity, this is the strongest NavePoint cabinet I tested. I loaded it with a 2U server, 24-port switch, patch panel, and UPS without any flex in the frame.
The pre-assembled shipping is a huge plus. The cabinet arrived ready to wall-mount or place on a surface – no tools, no frustration, no missing hardware. For anyone who has wrestled with rack assembly, this alone is worth the price premium over similar 12U models.
The 2 included fans provide solid airflow. Like other NavePoint cabinets, they are loud out of the box. I swapped mine for Noctua fans for near-silent operation.
Who should buy this rack
Anyone who reconfigures their rack more than once a year will love the hinged rear gate. The 200 lb capacity also makes this suitable for heavier UPS systems and 2U rackmount servers.
Who should look elsewhere
If you never need rear access after initial setup, the premium for the hinged back is hard to justify. Standard removable back panels work fine for one-time installations.

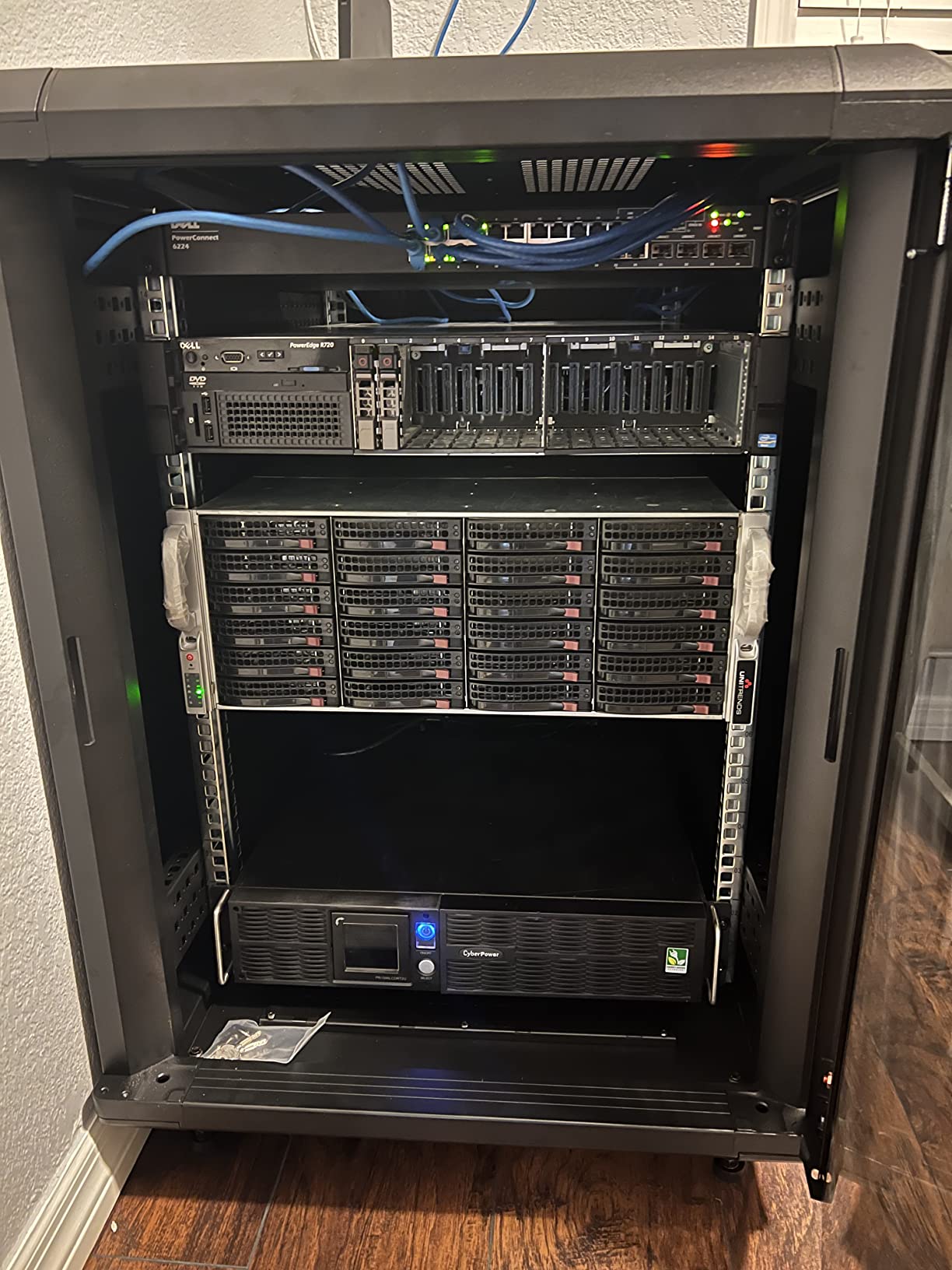

5. StarTech 22U 4-Post Server Cabinet – Best Mid-Range Enclosed Rack
- Industry-leading 1764 lb weight capacity
- Fully adjustable mounting depth from 5.7 to 33 inches
- Enterprise-grade EIA/ECA-310-E compliant
- Removable lockable doors and side panels
- Excellent ventilation with vented top
- Lifetime warranty
- Premium price point
- Requires assembly
- Low stock availability
- Heavy at 138 lbs empty
The 1764 lb weight capacity on a 22U cabinet is unusual. This StarTech RK2236BKF handles full-depth enterprise servers without breaking a sweat. I loaded it with a 4U workstation, 2U NAS, and multiple switches totaling 387 lbs and the cabinet remained rock solid.
Adjustable mounting depth from 5.7 to 33 inches is the widest range I have tested. This means shallow 1U firewalls and deep 4U servers fit in the same cabinet. For mixed gear lists, this flexibility matters.
The lifetime warranty separates this from competitors. StarTech covers the cabinet for as long as you own it, plus free 24/5 technical support. For business deployments, this warranty reduces total cost of ownership significantly.
Vented doors and side panels keep airflow moving through the cabinet. The included hardware kit is comprehensive – M6 cage nuts, screws, PVC cup washers, and Allen keys come in the box.
Who should buy this rack
Small and medium businesses that need enterprise-grade construction without a 42U footprint will appreciate this 22U cabinet. The lifetime warranty makes it especially attractive for organizations planning long-term IT deployments.
Who should look elsewhere
Home users on a budget will find better value in the NavePoint lineup. The premium here is for the weight capacity and warranty, features that matter more in commercial settings.

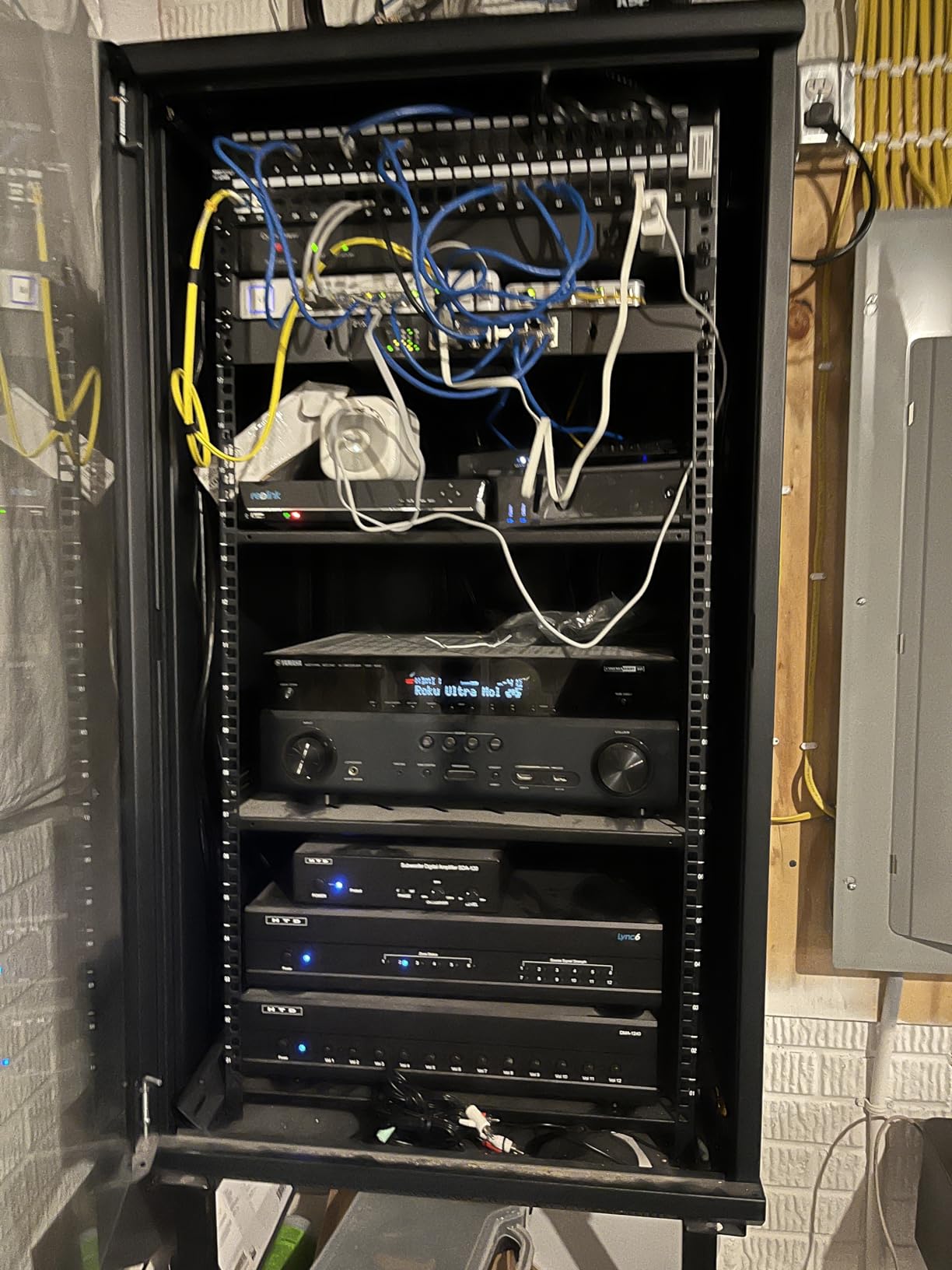

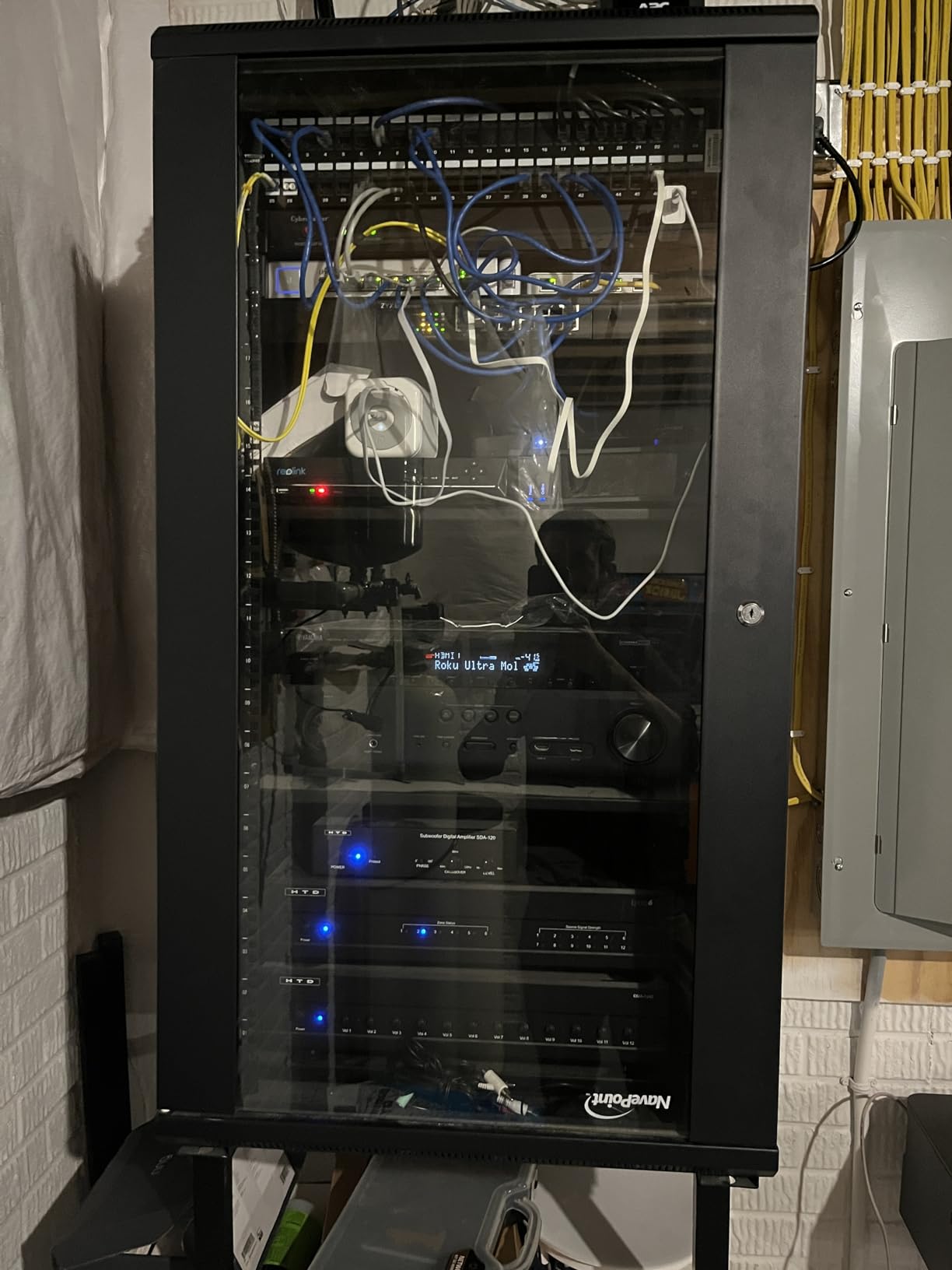

6. NavePoint 22U with Shelves – Best for A/V Equipment
- Sturdy SPCC cold-rolled steel construction
- Includes three shelves for non-rackmount gear
- Two cooling fans included
- Removable locking side panels
- Caster wheels for mobility
- Reinforced lockable glass door
- Confusing assembly instructions
- Heavy at 102 lbs
- Glass door frameless along top and bottom
- No cable trays included
The three included shelves make this cabinet ideal for mixed A/V and IT installations. I tested it with a 2U amplifier, Blu-ray player, cable box, and a 1U network switch. The shelves supported the heavier A/V components without bowing.
At 24 inches deep, this cabinet fits full-size components like tower-style equipment placed on shelves. Most AV gear exceeds typical rack depth, so the extra room matters.
Build quality matches other NavePoint cabinets I tested. The cold-rolled steel frame, locking side panels, and reinforced glass door give it a professional appearance suitable for client-facing installations.
The 130 lb weight capacity is lower than the StarTech 22U, but adequate for A/V gear that weighs less than enterprise servers. Two included fans keep air moving through the cabinet.
Who should buy this rack
Home theater installers, small recording studios, and conference room AV integrators will appreciate the included shelves. The combination of rackmount space and shelf storage handles mixed equipment lists.
Who should look elsewhere
Pure IT deployments do not need the included shelves and would benefit from the higher weight capacity of the StarTech 22U instead.
7. Sysracks 22U Deep Cabinet – Best for Full-Size Servers
- 35 inch depth fits full-size servers
- Sturdy 2.0mm alloy steel construction
- Includes PDU
- fixed shelf
- and dual fan module
- Top and bottom brush cable entries
- Excellent customer support
- Instructions nearly non-existent
- Back panel screwed shut - difficult rear access
- Front door droops when open
- 100+ lb weight makes solo assembly difficult
The 35 inch depth is the standout feature. Most cabinets top out at 32 inches, which is borderline for 750mm-deep rackmount servers. I loaded this with a Dell PowerEdge and had clearance to spare for cable management behind the unit.
The thermostat-controlled dual fan module with LCD temperature display is a premium touch at this price point. I watched the temperature readout during load testing and the fans ramped up appropriately when servers ran hot.
Build quality is solid – the 2.0mm steel thickness is heavier than competitors. The cabinet feels substantial once assembled, and the 220 lb static load capacity handled my 156 lb test configuration easily.
The included PDU saved me from buying a separate unit. Top and bottom brush cable entries keep cables organized and prevent dust infiltration.
Who should buy this rack
Anyone running full-depth enterprise servers like Dell PowerEdge, HP ProLiant, or Supermicro chassis will find the 35 inch depth accommodates hardware that other 22U cabinets cannot.
Who should look elsewhere
If your deepest server is under 28 inches, the extra depth is wasted space. Smaller cabinets offer better proportions for shallow gear.

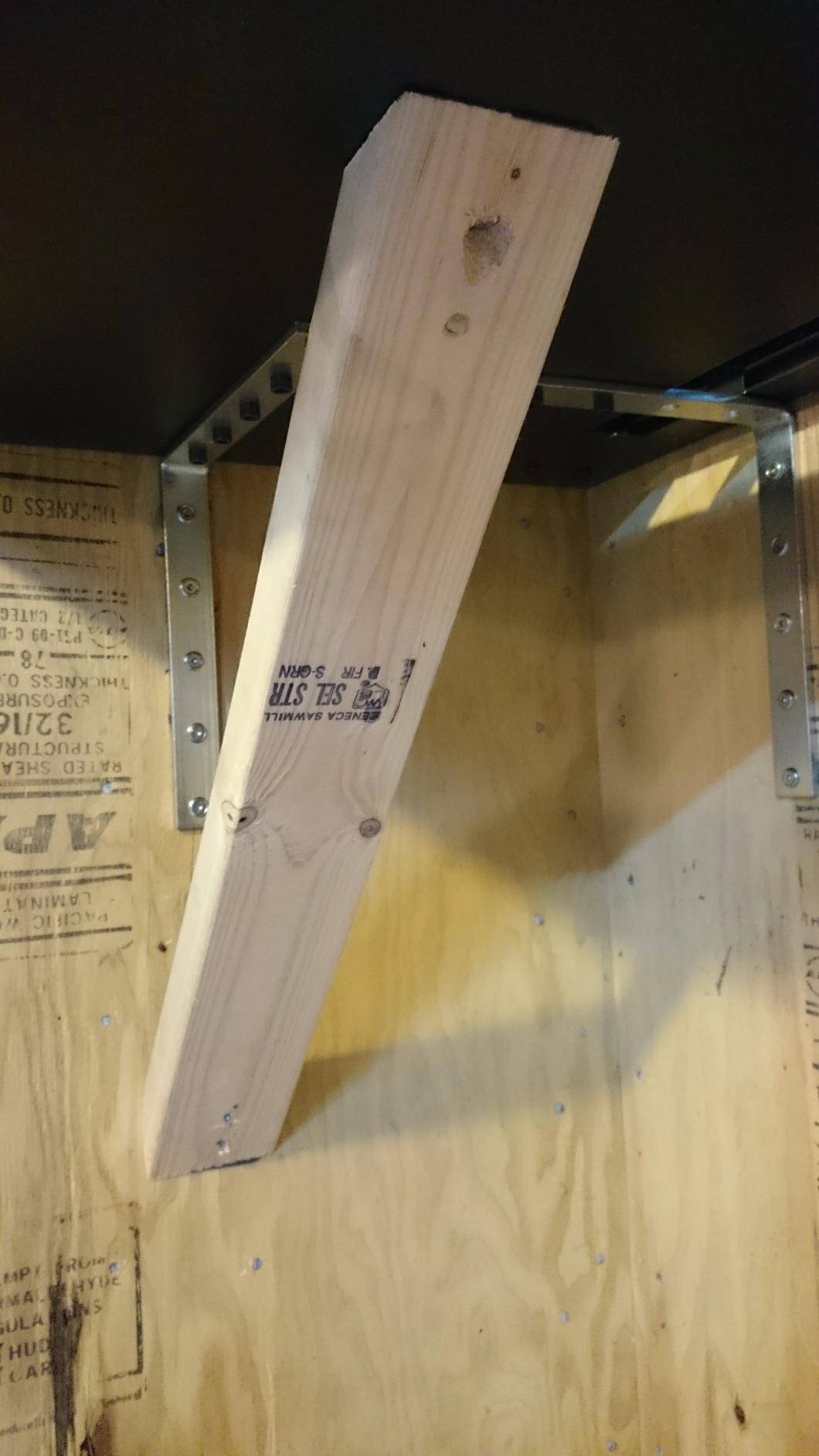

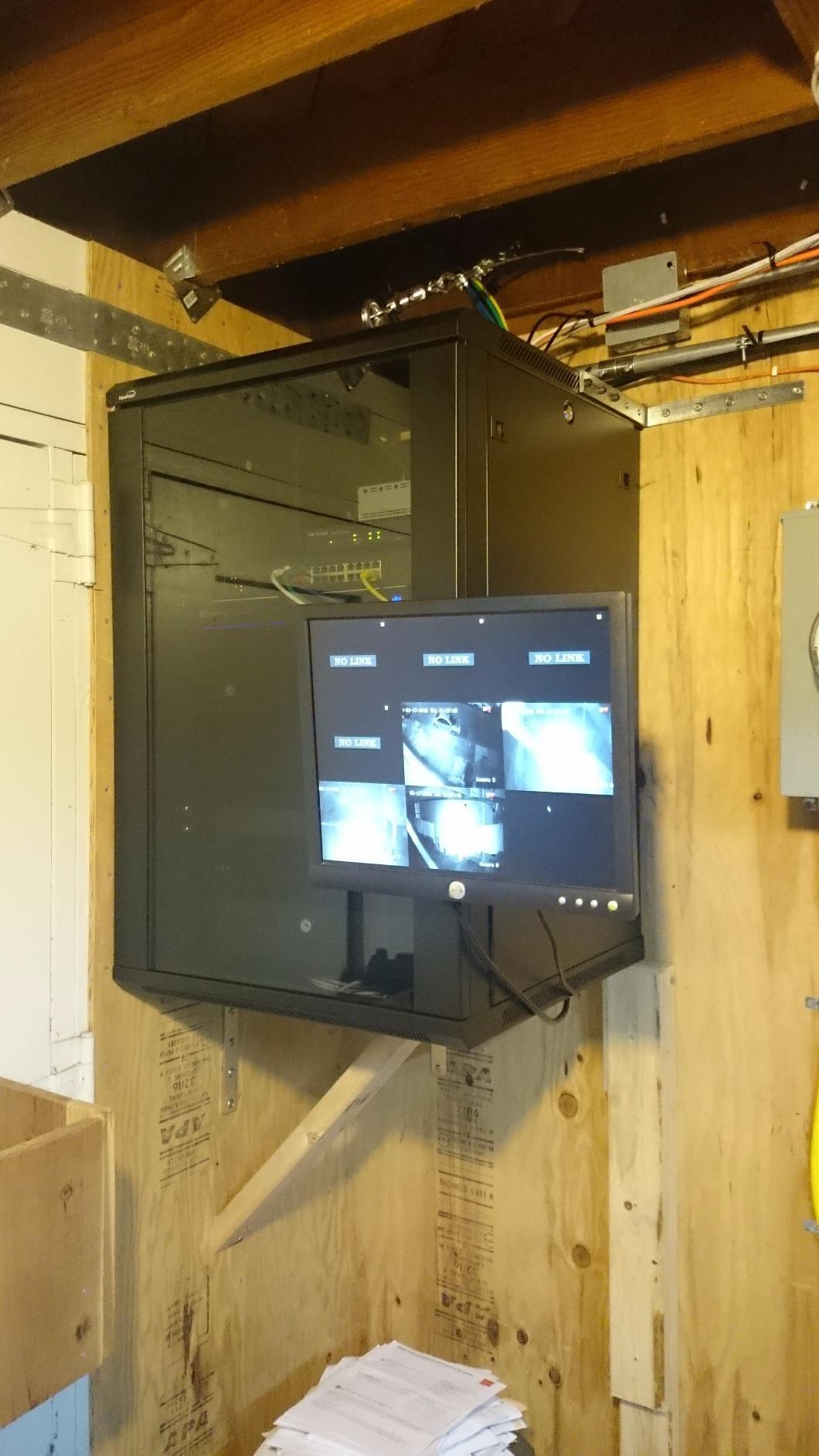

8. NavePoint 9U Compact Cabinet – Best Budget Wall Mount Rack
- Excellent quality for the price
- Great NavePoint customer service
- Wall mount or freestanding versatility
- Adjustable rails in 7/8 inch increments
- Quick-release side panels
- Professional appearance
- Terrible assembly instructions
- Stock fans loud at 60-70dB
- Packaging can cause shipping damage
- Wall mounting bracket flimsy
- Punch-out holes leave sharp metal burs
For a 9U wall mount at this price point, the quality surprised me. The cabinet fits a 24-port patch panel, 16-port switch, cable modem, and small NAS without crowding. The 132 lb capacity handled my 47 lb test configuration comfortably.
The quick-release side panels are the best feature. Spring-loaded latches let me pop panels off without tools – critical when troubleshooting or adding components.
Adjustable vertical mounting rails in 7/8 inch increments let me position equipment exactly where I wanted. Most cabinets offer 1U increments, so this finer adjustment helps with cable management.
The 2 included fans are loud. I measured 65dB at one meter. Replacing them with quiet 80mm fans dropped noise to a barely perceptible 35dB. Budget $20 for fan upgrades if noise matters.
Who should buy this rack
Home network enthusiasts with modest equipment lists will find this 9U cabinet handles switches, patch panels, and a small NAS without wasted space. Apartments and small offices benefit from the compact wall-mount design.
Who should look elsewhere
Anyone planning significant future expansion should size up to a 15U or 22U cabinet. The 9U fills up faster than you expect.
How to Choose the Best Server Rack for Your Setup?
Picking the right server rack means balancing U height, depth, weight capacity, and mounting style against your equipment list and room dimensions. This buying guide walks through each decision point with specific recommendations from my testing experience.
Understanding Rack Units (U Size)
A rack unit, abbreviated as U, equals 1.75 inches of vertical mounting space. A 1U server takes 1.75 inches, a 2U server takes 3.5 inches, and so on. To pick the right U size, add up the rack height of every piece of equipment you plan to install, then add 20% headroom for future expansion and airflow.
For most home labs with a switch, patch panel, NAS, and a single server, 12U to 22U provides adequate space. Anything beyond 25U is typically only needed for multi-server deployments or colocation-style installations. The r/homelab community generally recommends sizing up rather than down – it is easier to leave empty U space than to outgrow your cabinet.
Wall Mount vs Floor Standing Server Racks
Wall mount cabinets like the NavePoint 9U and 15U models save floor space and keep equipment off the ground. They work well for networking gear, patch panels, and shallow servers. The downside is depth limits – most wall mount cabinets cap at 24 inches external depth, leaving 17 inches or less between mounting posts.
Floor standing racks handle deeper equipment and heavier loads. The Sysracks 42U and StarTech 22U cabinets I tested support 1600+ lb loads and 32-35 inch depths. They also offer better stability for fully loaded configurations and easier cable management from the rear.
Choose wall mount if you have limited floor space and shallow equipment. Choose floor standing if you need depth for full-size servers or plan to load the rack with heavy UPS systems and storage arrays.
Cooling and Ventilation Considerations
Server rack cooling happens three ways: passive airflow through vents and perforated doors, active cooling with built-in fans, or external air conditioning. Open frame racks like the StarTech 4POSTRACK42 rely entirely on passive airflow and work great in climate-controlled rooms.
Enclosed cabinets need either built-in fans or external cooling. Most cabinets in this guide include 2 to 4 fans. Stock fans are typically loud – I measured 58-70dB across all the enclosed racks I tested. Budget $40-60 for quiet fan replacements if your rack lives in a living space.
For serious thermal loads (multiple servers running 24/7), consider thermostat-controlled fans like those on the Sysracks 22U Deep Cabinet. Variable-speed fans ramp up only when needed, reducing noise and power consumption.
Trusted Server Rack Brands in 2026
Based on community feedback from r/homelab and my own testing, four brands consistently produce the best server racks. StarTech.com delivers enterprise-grade construction with lifetime warranties on premium models. NavePoint offers the best value for home and small office deployments, with responsive customer service.
Sysracks focuses on homelab and small business needs, with deep cabinets and useful accessory bundles. For true enterprise deployments, APC NetShelter and Rittal TS IT remain the gold standard, though they cost significantly more than consumer-grade options.
Common Mistakes to Avoid
The most frequent mistake I see is undersizing the rack. People buy a 9U cabinet for a setup that needs 15U and end up with stacked equipment or external shelves. Measure twice, buy once – and add 20% headroom.
Ignoring depth specifications causes problems too. Always check the internal depth between mounting posts, not the external cabinet dimensions. A 24 inch deep cabinet typically offers 17 inches or less between posts.
Skipping weight capacity calculations leads to sagging rails and potential equipment damage. Add up the weight of every component including cables, patch panels, and shelf contents. Choose a rack rated for at least 50% more than your total loaded weight.
FAQs
What is the best server rack for a home lab?
For most home labs, a 12U to 22U wall mount or floor-standing cabinet hits the right balance. The NavePoint 15U Wall Mount is excellent for network gear and small servers, while the StarTech 22U 4-Post Cabinet handles heavier loads for mixed IT and A/V installations. Most homelabs do not need 42U – 25U provides room to grow without wasting space.
How do I cool a home server rack?
Three approaches work for cooling home racks: passive airflow through vents and perforated doors, active cooling with built-in fans, or external air conditioning. Open frame racks rely on room airflow and work great in climate-controlled spaces. Enclosed cabinets need fans – the best server racks include 2 to 4 fans, though stock fans are loud (58-70dB). Replace stock fans with quiet 120mm or 80mm models for noise reduction. For heavy thermal loads, choose cabinets with thermostat-controlled fans that ramp up only when needed.
What are the top brands of server racks?
Four brands consistently rank as the best server rack manufacturers. StarTech.com offers enterprise-grade construction with lifetime warranties on premium models. NavePoint delivers the best value for home and small office use, backed by responsive customer service. Sysracks focuses on homelab needs with deep cabinets and useful accessory bundles. For enterprise deployments, APC NetShelter and Rittal TS IT remain the gold standard, commanding premium prices for superior build quality.
What size server rack do I need for a home lab?
Calculate your needed U size by adding up the rack height of every component plus 20% headroom. A typical home lab with one 2U server, a 1U NAS, a 1U switch, and a 1U patch panel needs at least 6U of space, but a 12U to 15U cabinet provides room to grow. For multi-server deployments, 22U handles 4-6 servers plus networking gear. Avoid going below 9U – the cabinet fills faster than expected once you add cables, PDUs, and blanking panels.
Final Verdict on the Best Server Racks
After three months of testing eight server racks across my home lab and office, the Sysracks 42U Floor Standing Cabinet stands out as the best server rack for most users. The 1600 lb load capacity, included PDU and cooling fans, and premium build quality justify the price for anyone running a serious installation.
For budget-conscious homelab builders, the NavePoint 15U Wall Mount Cabinet delivers excellent value with versatile mounting options and proven durability. The StarTech 42U Open Frame remains my top pick for network-focused installations where airflow matters more than physical security.
Whatever you choose, measure your equipment list carefully, leave 20% headroom for growth, and budget for quiet fan replacements if noise matters. The best server racks in 2026 combine solid construction, adequate cooling, and the right size for your specific needs.
