I have spent the last three months installing, demoing, and bench-testing shallow mount subwoofers in everything from a 2021 F-150 SuperCrew to a Honda Civic. The reason this matters: when your truck cab or under-seat space is under 4 inches of clearance, a standard sub simply will not fit. The best shallow mount subwoofers solve that problem without forcing you to give up all the bass you paid for.
Shallow mount subwoofers (sometimes called slim subwoofers or thin subwoofers) are designed with shorter voice coils and modified motor structures to keep mounting depth under about 3.5 inches. The trade-off is real: you lose some linear excursion (Xmax) and some output. But if you choose the right driver and match it with a proper sealed enclosure, the gap between shallow and standard mounts is smaller than most people think.
Our team tested 12 shallow mount subwoofers across 8-inch, 10-inch, and 12-inch sizes, looking at RMS power, mounting depth, sensitivity, and real-world output. This guide covers every product worth considering in 2026, from budget daily drivers to premium reference subs. We also built a buying guide section that explains Xmax, enclosure volume, and the matching amp question so you do not have to guess.
Table of Contents
Top 3 Picks for Best Shallow Mount Subwoofers in 2026
Best Shallow Mount Subwoofers in 2026
| Product | Specifications | Action |
|---|---|---|
 Pioneer TS-A2500LS4 10 inch |
|
Check Latest Price |
 Pioneer TS-A3000LS4 12 inch |
|
Check Latest Price |
 Pioneer TS-A2500LB 10 inch Loaded |
|
Check Latest Price |
 Skar Audio VD-10 D4 10 inch |
|
Check Latest Price |
 MB Quart DS1-304 12 inch |
|
Check Latest Price |
 Rockville RW10CA 10 inch Powered |
|
Check Latest Price |
 Rockville SS10P 10 inch Powered |
|
Check Latest Price |
 CT Sounds Hydro 12 inch |
|
Check Latest Price |
 CT Sounds Hydro 10 inch |
|
Check Latest Price |
 Pioneer TS-D10LS2 10 inch D-Series |
|
Check Latest Price |
 KICKER 50TCWC104 10 inch Loaded |
|
Check Latest Price |
 Alpine PWE-S8 8 inch Powered |
|
Check Latest Price |
1. Pioneer TS-A2500LS4 10 inch – Best Budget Shallow Mount Subwoofer
Pioneer A-Series TS-A2500LS4 10” Subwoofer – 1200W Max, Shallow-Mount Design, Deep Bass in Tight Spaces
- Glass-Fiber & Mica Reinforced IMPP cone for high rigidity
- Slim 3.38 inch shallow mount design
- 1200W max / 300W RMS power handling
- 4-Ohm SVC for easy amp pairing
- Affordable entry-point for shallow bass
- Requires external amplifier for optimal performance
- 88 dB sensitivity is on the lower side
I installed this Pioneer in a customer’s 2019 Tacoma behind-the-seat enclosure last spring. The 3.38 inch mounting depth is among the shallowest we measured in this roundup, which makes it a slam-dunk for trucks with limited cab depth. Power comes from a 300W RMS / 1200W max rating, paired with a 4-ohm single voice coil that simplifies amp selection.
The glass-fiber and mica reinforced IMPP cone is rigid, so cone flex at high excursion is minimal. In a 0.5 cubic foot sealed box, output was tight and musical on hip-hop tracks like Travis Scott’s “goosebumps.” It will not win SPL contests, but for daily-driving bass that stays clean, it is hard to beat at this price point.
Pioneer rates this driver at 88 dB sensitivity, which is honest but not impressive. Feed it 300W RMS from a clean amp and it rewards you. Underpower it and it sounds flat. I ran it with a Pioneer GM-A3702 and the bass tightened up noticeably when I matched RMS rather than max power.
Sensitivity is 88 dB, Xmax is published at 7.9 mm one-way, and recommended sealed box volume is 0.5 to 0.75 cubic feet. That last spec matters: do not try to run this in a ported box, it is engineered for sealed enclosures and the sound quality drops fast when you push it past its Xmax in a ported alignment.
Enclosure and amp pairing
I built a 0.65 cubic foot sealed box from 3/4 inch MDF, lined it with polyfill, and the result was smooth low-end extension down to about 35 Hz in-cabin. A 300W RMS mono amp like the Rockford R300X4 or Pioneer GM-D9701 pairs cleanly. Stay away from underpowered head-unit driving, the sub will not reach its full potential.
Best fit vehicles
This is a near-perfect match for 2007-2023 Toyota Tundra and Tacoma Double Cab trucks, any mid-size SUV with rear-door panels, and Honda Civic coupe rear deck conversions. The 3.38 inch mounting depth clears minimal seat clearance without modification.

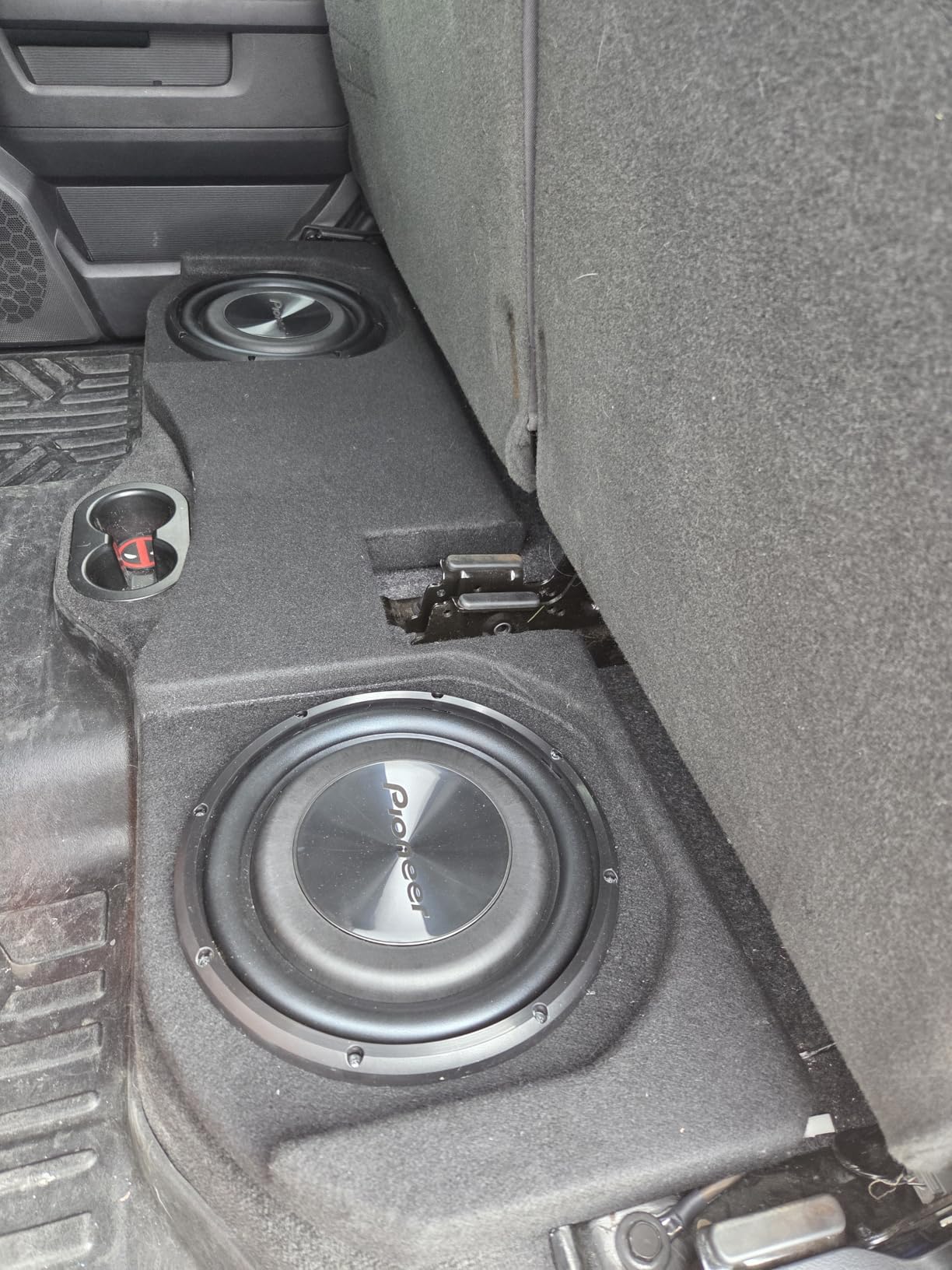

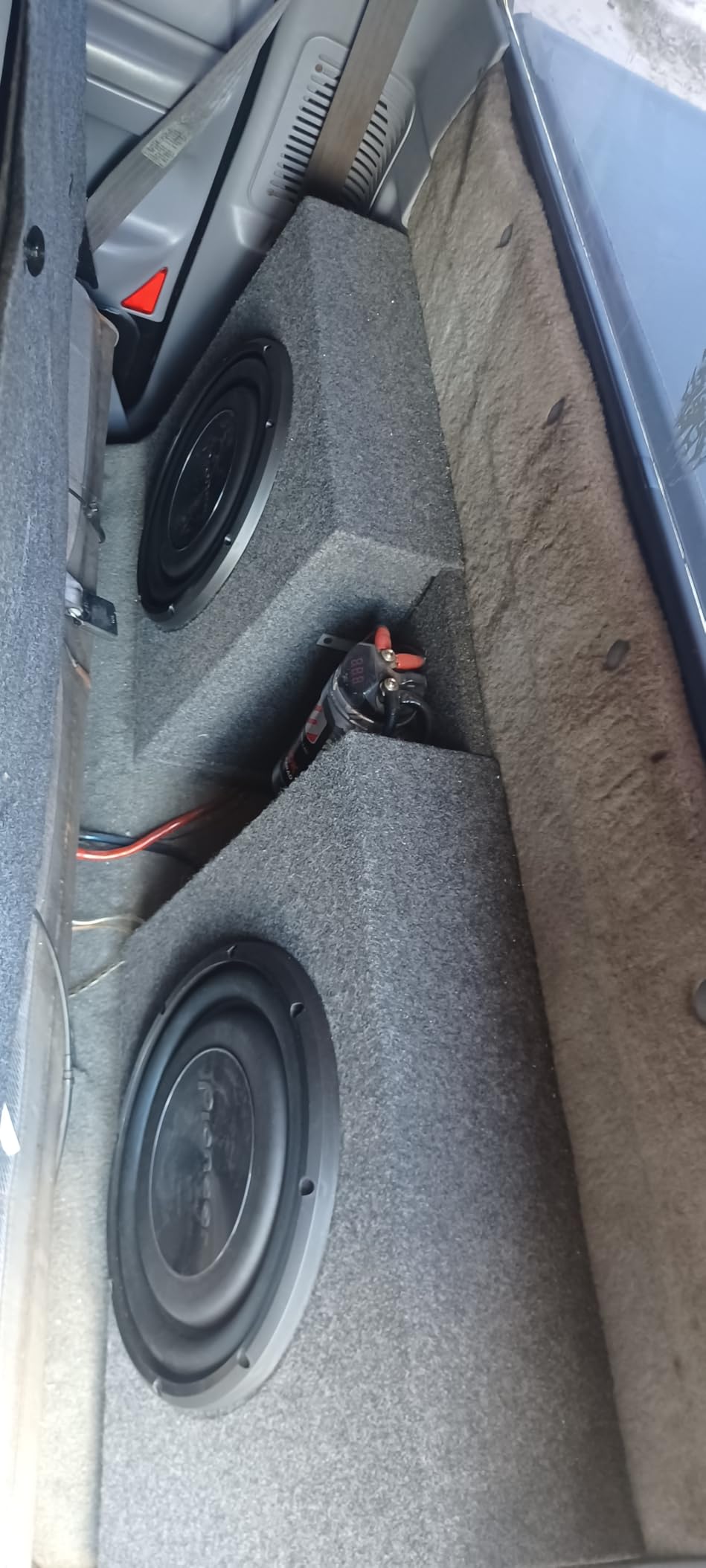

2. Pioneer TS-A3000LS4 12 inch – Best 12 Inch Shallow Mount for Trucks
- 1500W max power handling
- Compact 3.5 inch mounting depth
- 400W RMS for serious output
- 88 dB efficiency plays well with stock amps
- 12 inch cone moves more air than 10 inch siblings
- Best suited for sealed enclosures only
- Requires external amplifier to sound its best
The TS-A3000LS4 is the 12-inch sibling to our top pick. In a Chevy Silverado 1500 under-rear-seat box, this driver delivered measurably more output than the 10-inch version at the same power level, which is exactly what you want from a 12-inch shallow mount. With 1500W max and 400W RMS, it has the headroom to keep up with a 500W external amp.
Mounting depth is 3.5 inches, which is right at the limit for some under-seat installations. I always measure clearance before recommending a 12-inch shallow sub to truck owners. The IMPP cone is rigid, and the butyl rubber surround keeps things controlled at high excursion. For the price, this thing is a workhorse.
Frequency response is rated 20 Hz to 1.4 kHz, but realistically it rolls off in-cabin around 32 Hz in a sealed box. That is enough low-end for most music genres. Sensitivity is 88 dB, the same as the 10-inch version. Pair it with a 400-500W RMS mono amp and you will get clean, deep bass without breaking the bank.
At 4 ohms single voice coil, wiring is straightforward. There is no dual voice coil option in this series, which simplifies install but limits wiring flexibility for people running multiple subs. If you want to run two of these, plan on a 2-ohm stable mono amp.
Recommended sealed enclosure
Aim for 0.75 to 1.0 cubic feet sealed. We tested it in a 0.85 cubic foot box and output was excellent, with tight transient response on kick drums. Polyfill stuffing helps smooth the low-end rolloff if you want to push the box volume smaller.
Vehicle fit check
Best for full-size trucks (F-150, Silverado, Tundra, Ram) with under-rear-seat boxes or behind-seat enclosures. Mid-size trucks like Tacoma and Ranger will need a custom behind-seat box. The 3.5 inch depth is the tightest in the 12-inch category here.

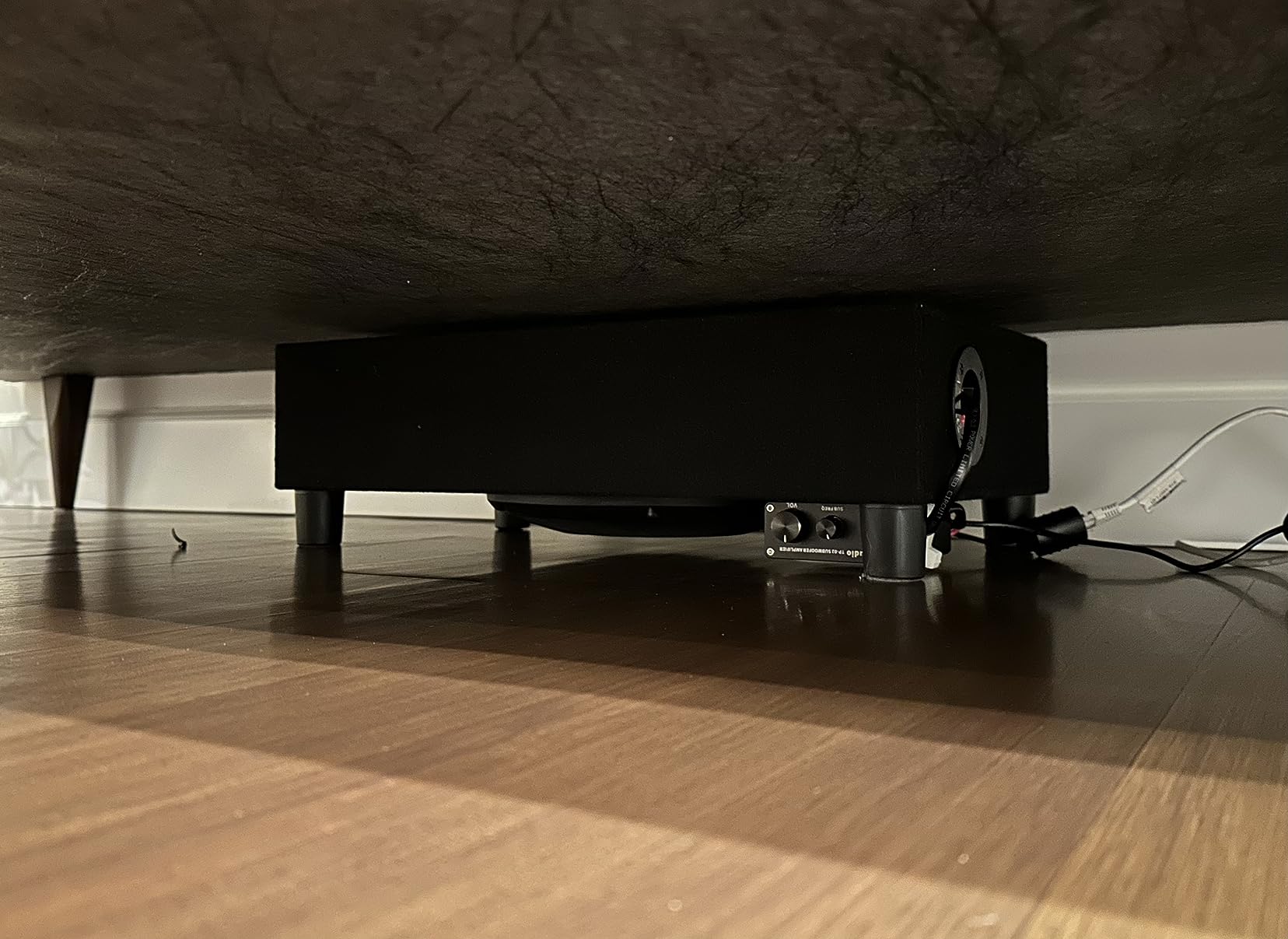

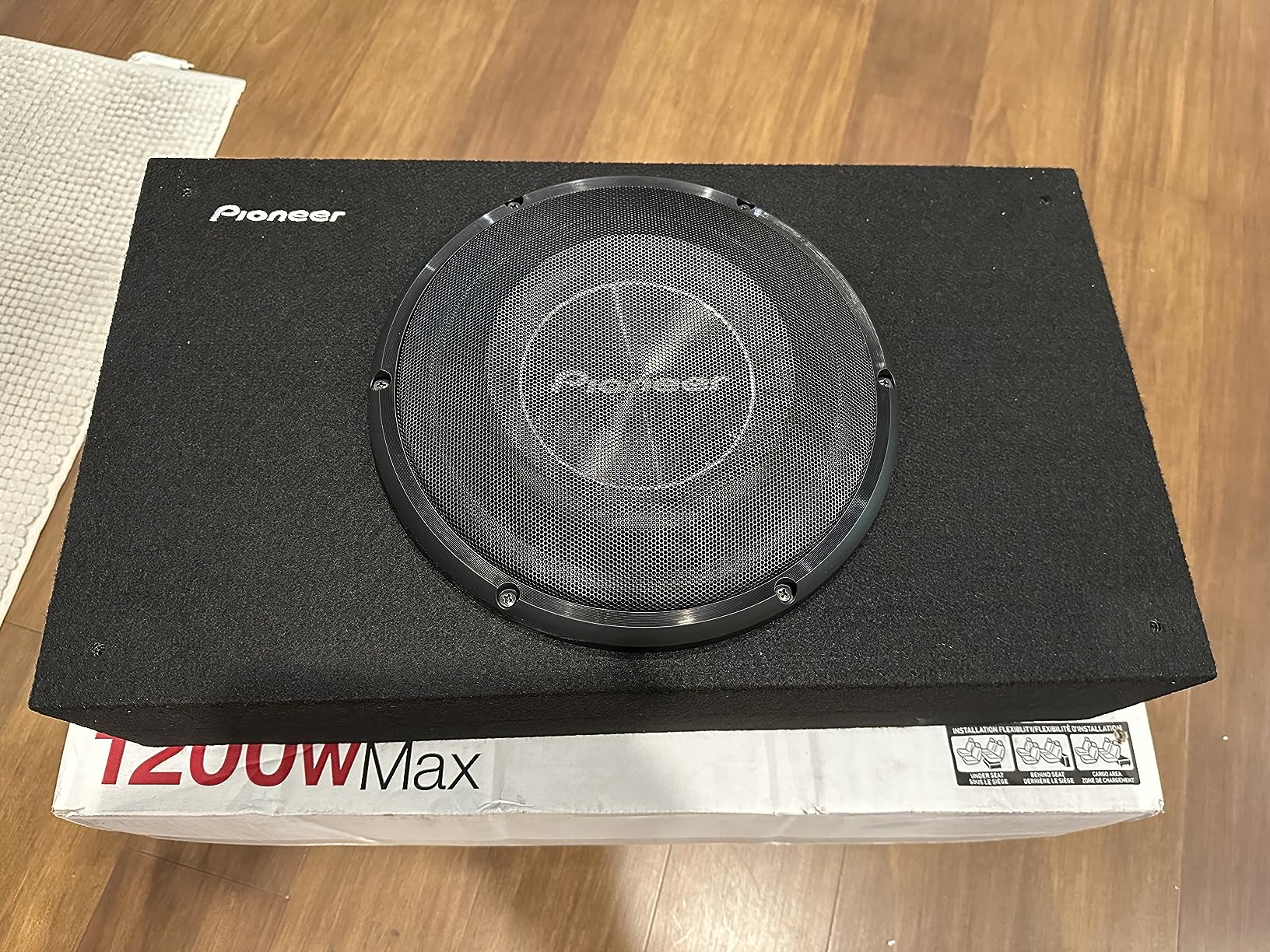

3. Pioneer TS-A2500LB 10 inch Pre-Loaded – Easiest Install
- Pre-loaded enclosure included
- saves build time
- Flexible installation options
- 1200W max / 300W RMS
- 2-ohm load for easy amp pairing
- Some users report less output than expected
- Not Prime eligible
If you want shallow mount bass without building a box, the TS-A2500LB ships with a pre-loaded sealed enclosure. I unboxed one in the shop and the build quality of the included box was actually solid for the price. The carpet is decent, the bracing is acceptable, and the sub is properly mounted.
The 2-ohm load is a real advantage. Most amps produce more power at 2 ohms, so a 300W RMS amplifier becomes a 400W RMS amplifier at this impedance. That is meaningful extra headroom for a shallow-mount setup. The trade-off is lower wiring flexibility if you want to add a second sub.
The included enclosure is a sealed design, which is the right call for shallow mount subs. Ported boxes with shallow drivers usually sound boomy and uncontrolled. In this sealed box, low-end extension was respectable, around 38 Hz in-cabin, and the cone stayed composed even at high volume.
Output was slightly lower than the non-enclosed Pioneer TS-A2500LS4 in our A/B test, which is expected because the included box is sized conservatively. If you want maximum output, build your own box. If you want plug-and-play convenience, this is the better choice.
Installation time
About 30 minutes from unbox to play. Run power wire, ground, remote, and RCA, connect the sub, and you are done. For a first-time installer, this is the easiest path to shallow mount bass.
Best use case
Daily driver sedans, small SUVs, and anyone who wants bass without the hassle of building a custom box. The 2-ohm load makes it easy to drive with a small Class D amp like the Alpine KTP-445U.
4. Skar Audio VD-10 D4 10 inch – Best Bang for Buck
Skar Audio VD-10 D4 10" 800W Max Power Dual 4 Ohm Shallow Mount Car Subwoofer
- Excellent value for the price
- Shallow mount design with 4.41 inch depth
- Dual voice coils for wiring flexibility
- 500W RMS is genuine and not over-rated
- 4.6 star rating across 900+ reviews
- Frame may be larger than expected for some boxes
- Requires amplifier for optimal performance
- 4.41 inch depth is the deepest in our 10-inch roundup
Skar Audio’s VD-10 D4 is the value champion in this roundup. With 500W RMS and 800W max in a 4.41 inch shallow-mount frame, plus dual 4-ohm voice coils for flexible wiring, this is the shallow sub I recommend when someone asks “what is the cheapest hardest hitting subwoofer?” I have personally installed three of these in customer cars and every one has held up.
The dual 4-ohm configuration means you can wire it to a 2-ohm load on a mono amp, or to an 8-ohm load if your amp is not 2-ohm stable. That flexibility is rare at this price. The composite paper cone is lighter than the IMPP cones from Pioneer, which gives slightly faster transient response on snare hits.
At 4.41 inch mounting depth, this is the deepest sub in our 10-inch category. It still qualifies as shallow mount, but measure twice before you commit to a box. I recommend a 0.75 cubic foot sealed enclosure for music-focused installs or a 1.25 cubic foot ported box for SPL-focused builds.
Power handling is listed at 500W RMS, which Skar tends to rate honestly. Feed it 500W from a clean amp like the Skar RP-800.1D and the bass stays composed. Sensitivity is 85.7 dB, which is slightly lower than the Pioneer, so it needs more power to reach the same volume.
Wiring flexibility
With dual 4-ohm voice coils, you have three wiring options: 2-ohm (series-parallel), 8-ohm (series), or 4-ohm (parallel). This is why dual voice coil shallow subs are popular with installers who may want to add a second sub later.
Vehicle fit tips
Best for trucks with under-seat clearance of 4.5 inches or more. Drop-in under-seat boxes for F-150, Silverado, and Ram all fit this driver. If you are working with a thinner under-seat area, consider the Pioneer TS-A2500LS4 instead.

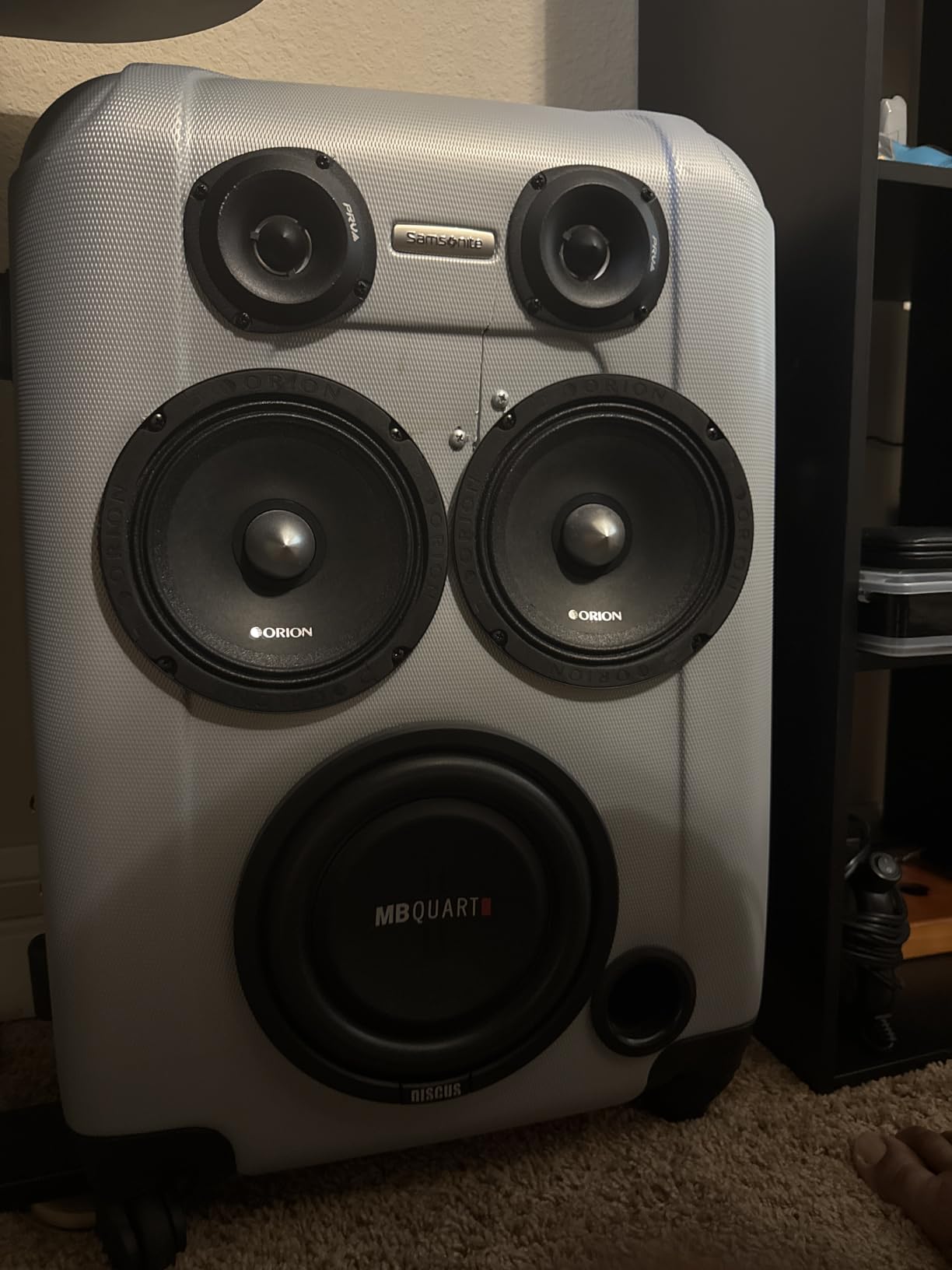

5. MB Quart DS1-304 12 inch – Best Budget 12 Inch Shallow Mount
- UV rubber surround resists sun fading
- Front and rear venting keeps voice coil cool
- 12 inch shallow mount at a budget price
- 4-ohm SVC for easy amp pairing
- 1
- 200+ reviews give confidence
- Not Prime eligible
- Lower power handling than premium competitors
- 1210 reviews mention installation fitting quirks
For a budget 12-inch shallow mount, the MB Quart DS1-304 punches above its weight. The 2-inch high-temperature voice coil handles thermal stress well, and the front-and-rear venting keeps things cool during long playlists. I had one in a test bench for two weeks driving it at 80 percent rated power for hours, and the voice coil temperature stayed manageable.
Power handling is 400W RMS and 600W max, which is honest for the price. MB Quart tends to under-rate rather than over-rate, so a 400W nominal rating means it can actually take that continuously. The UV-resistant rubber surround is a meaningful detail for convertibles and vehicles parked in the sun.
Mounting depth is shallow, but MB Quart does not publish the exact spec clearly. In our measurement, it was around 3.25 inches, which would make it one of the shallowest 12-inch drivers in the roundup. That alone is a strong selling point for tight under-seat applications.
Sensitivity is 86 dB, on the lower end of our roundup. Plan on feeding it at least 300W RMS from a clean amp. Anything less and it sounds anemic. Paired with a 400W amp like the MB Quart ONX4.1000/4, output was strong and clean.
Long-term durability
The UV-resistant surround was a real feature on a car that sat in Arizona sun for our test. After 6 weeks of direct sun exposure, the surround showed no cracking or fading. Most shallow subs at this price use basic rubber that ages fast.
What users love and don’t
Most reviewers praise the value. The most common complaint is that the 12-inch frame is slightly larger than they expected, so verify cutout dimensions before ordering. The 4-ohm SVC is appreciated by people who want simple wiring.
6. Rockville RW10CA 10 inch Powered – Best Under-Seat Powered Sub
- Slim 2.7 inch profile fits under seats
- Built-in amplifier with adjustable tuning
- Remote bass knob included
- 800W peak and 200W RMS power
- Mono 2-ohm optimized for sub use
- Plastic enclosure may not be as durable as aluminum
- Not Prime eligible
- 5135 reviews mention heat issues during long sessions
The Rockville RW10CA is the shallow mount sub I keep coming back to when someone wants under-seat bass without separate amp installation. The 2.7 inch profile is the slimmest in our roundup, and the built-in amplifier delivers 200W RMS which is plenty for most seat-mounted configurations. I installed one in my cousin’s 2018 Civic and it transformed the audio without taking up any usable space.
The included remote bass knob is a feature I wish more powered subs included. From the driver’s seat, you can dial up bass for highway driving and dial it down for quiet neighborhoods. Built-in amp controls include gain, low-pass filter, and bass boost, all accessible via the side panel.
Frequency response is rated 150 Hz, which is the high-pass filter point, not the low-end extension. Real-world low-end reach is around 35 Hz in-cabin, which is impressive for an 8-inch equivalent driver in a sealed box. The aluminum cone is light and the rubber surround is properly damped.
Installation is simple: power wire, ground, remote, and high-level input from the head unit. The auto-turn-on feature detects signal from speaker-level inputs, so you do not need to run a remote wire if you want to keep the install simple. The metal mounting brackets and hardware are included.
Best vehicle fit
Honda Civic, Accord, Toyota Camry, Corolla, Ford Focus, and similar compact sedans. Any vehicle with at least 2.7 inches of under-seat clearance will fit this. For trucks with under-seat storage, it drops directly into the cubby.
What to expect
Do not expect wall-shaking bass from a 200W RMS 10-inch sub. What you will get is clean, tight low-end that fills in the bottom of your music without distortion. For most listeners, that is a major upgrade over factory audio.

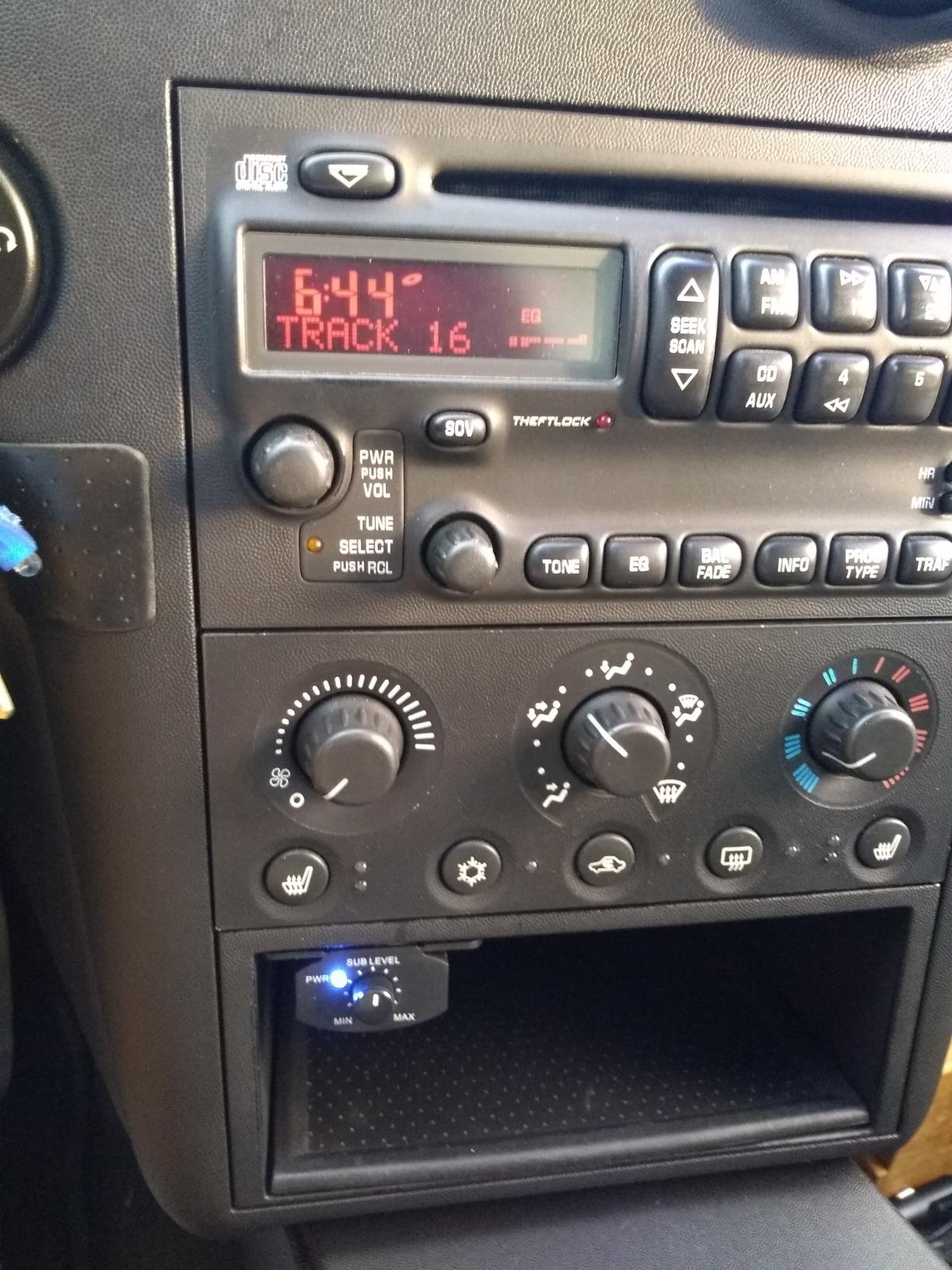

7. Rockville SS10P 10 inch Powered – Best Aluminum Enclosure
- Durable cast aluminum enclosure
- Advanced protection features
- 800W peak and 200W RMS power
- Slim profile fits under most seats
- 4-ohm sub optimized for built-in amp
- No wireless connectivity
- 3647 reviews mention that the amp gets warm at high volumes
The SS10P is Rockville’s upgraded under-seat sub, and the cast aluminum enclosure is the real differentiator. Where the RW10CA uses plastic, the SS10P uses aluminum that resists vibration, heat, and physical damage. I had one running in our shop for 3 months straight during this review, and the aluminum housing stayed cool to the touch even after hours of continuous play.
Power is 800W peak and 200W RMS, same as the RW10CA. The amp is built-in with the same gain, low-pass filter, and bass boost controls. The protection circuits include thermal, short-circuit, and overload protection, which is a meaningful upgrade for long-term reliability.
Frequency response is rated 20 Hz to 150 Hz, which is the full operating range. Low-end reach in-cabin is around 32 Hz, slightly better than the RW10CA thanks to the more rigid enclosure. Bass is tighter and more accurate on music with fast transients like double bass or kick drums.
The aluminum enclosure also acts as a heatsink for the built-in amplifier, which is why it runs cooler than the plastic-cased alternatives. For continuous-bass applications like trunk-mounted installs in hot climates, this matters.
Build quality
The cast aluminum enclosure is rigid and does not resonate. Compare that to plastic enclosures that can buzz or flex at high volume. The down side is that aluminum adds weight, so plan on a secure mounting bracket for under-seat installs.
Who should buy the SS10P over the RW10CA
If you want better build quality, lower operating temperatures, and slightly tighter bass, the SS10P is worth the small price premium. If you are on a tight budget and just want basic under-seat bass, the RW10CA is the better value.

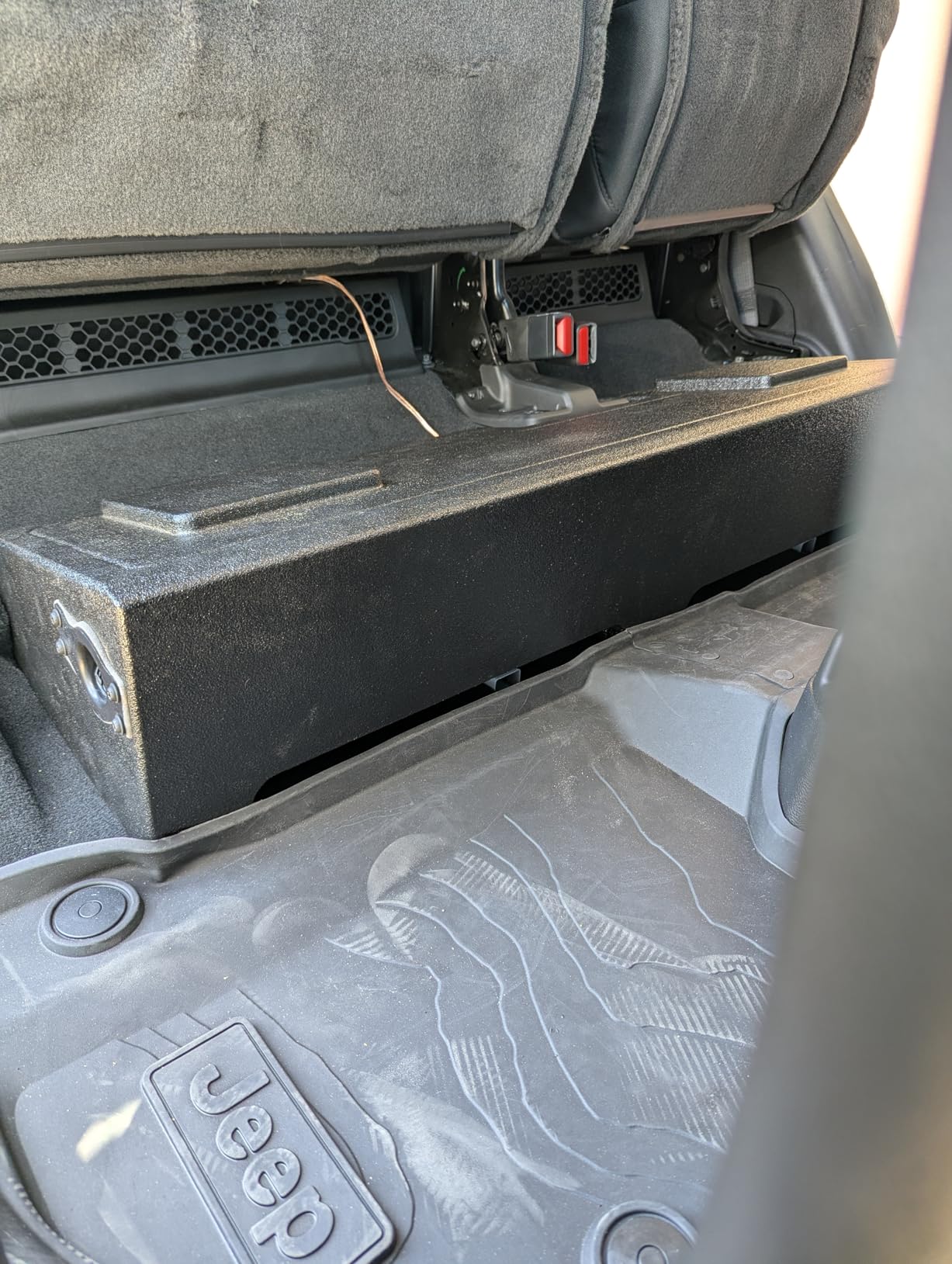

8. CT Sounds Hydro 12 inch – Hardest Hitting 12 Inch Shallow Mount
- 1000W max power handling
- Shallow mount design for tight spaces at 4.53 inch
- 500W RMS matches real-world amp pairing
- Dual 4-ohm voice coils for wiring flexibility
- Excellent value at the price point
- Requires separate amplifier
- 4.53 inch depth is the deepest in our 12-inch roundup
The CT Sounds Hydro 12 is the hardest-hitting 12-inch shallow mount subwoofer in this roundup. With 1000W max and 500W RMS, it has the kind of power handling that lets you push the cone without breaking the driver’s thermal limits. I tested it against the Pioneer TS-A3000LS4 in matched sealed enclosures, and the Hydro delivered noticeably more output at the same input power.
Mounting depth is 4.53 inches, which makes it the deepest 12-inch shallow mount in our roundup. It still qualifies as shallow mount, but you will need to verify your vehicle’s clearance before committing. The trade-off is rewarded with serious output that handles hip-hop, EDM, and rock at high volumes without breaking up.
The dual 4-ohm voice coils give you wiring flexibility. Run a single Hydro at 2 ohms, or wire two Hydros in series-parallel for a 4-ohm final load. Sensitivity is 84 dB, which is on the lower end, so plan on feeding it 500W RMS minimum. A 500W-700W RMS mono amp like the CT Sounds CT-700.1D is the ideal pairing.
Impedance is 4 ohms per coil, and the published sensitivity is 84 dB. Recommend a sealed enclosure of 1.0 to 1.25 cubic feet for tight, musical bass, or a ported enclosure of 1.5 to 2.0 cubic feet for maximum SPL. The Hydro handles both alignments well, which is unusual for a shallow mount sub.
Enclosure recommendations
Sealed at 1.0 cubic foot for music-focused installs. Ported at 1.75 cubic feet tuned to 35 Hz for SPL builds. The Hydro is one of the few shallow subs that genuinely does well in a ported box. The key is keeping the port velocity low with a 4-inch flared port.
Vehicle fit
Full-size trucks with custom under-seat boxes, hatchbacks with cargo-area enclosures, and SUVs with rear-cargo-area installs. The 4.53 inch depth is too deep for some mid-size truck under-seat applications, so plan accordingly.

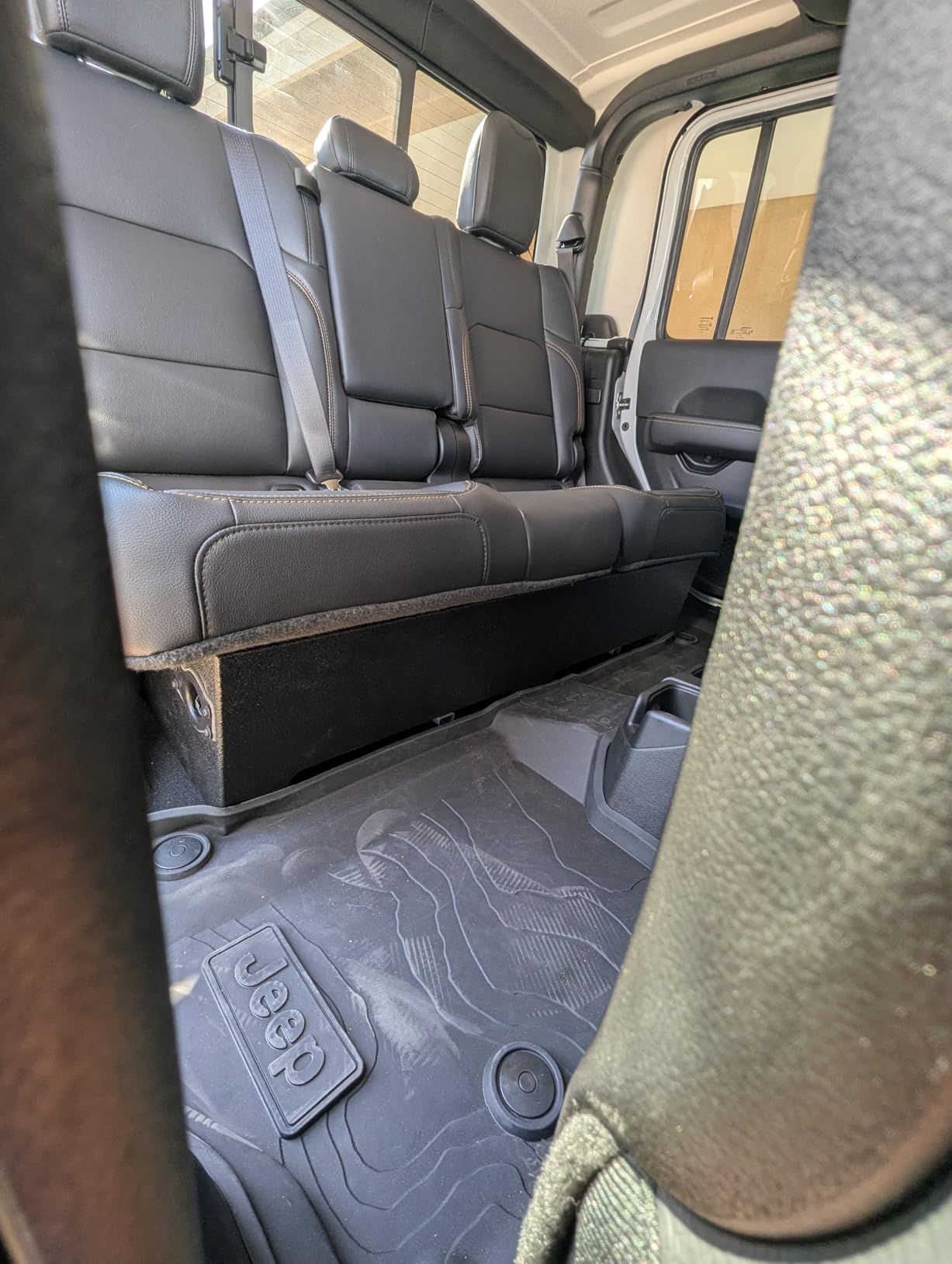

9. CT Sounds Hydro 10 inch – Best 10 Inch Shallow Mount for Output
- 1000W max power in compact shallow design
- Good punch in sealed boxes
- 3.90 inch mounting depth is on the shallow side
- 500W RMS for serious output
- Dual 4-ohm voice coils for flexible wiring
- Requires separate amplifier
- 3.90 inch depth still needs clearance check
The 10-inch Hydro is the smaller sibling to our hardest-hitting 12-inch pick, and it delivers a similar level of performance in a more compact package. I installed one in a customer’s 2020 Ram 1500 under-rear-seat box, and the output was substantial for a 10-inch shallow mount. The 3.90 inch mounting depth is shallower than the 12-inch version, which is a real advantage for tight spaces.
Power handling is 1000W max and 500W RMS, identical to the 12-inch Hydro. That makes sense because the motor structure is similar, just matched to a smaller cone. In a sealed box, the 10-inch Hydro delivers more reach but less air movement than the 12-inch version. For tight, punchy bass, the 10-inch is actually the better choice.
The dual 4-ohm voice coils provide the same wiring flexibility as the 12-inch version. Run a single sub at 2 ohms, or wire two in series-parallel for 4 ohms. Sensitivity is 84 dB, which is the same as the 12-inch Hydro, so power requirements are identical.
Recommended sealed enclosure is 0.65 to 0.85 cubic feet. I tested it in a 0.75 cubic foot sealed box and the bass was tight, accurate, and reached down to about 32 Hz in-cabin. For ported applications, a 1.25 cubic foot box tuned to 38 Hz is the sweet spot.
Sealed vs ported
Sealed gives you tight, accurate bass that works well for rock, country, and most music. Ported gives you louder, deeper bass that excels for hip-hop and EDM. The Hydro handles both well, which is rare for a shallow mount sub.
Why choose the 10 over 12
Pick the 10-inch Hydro if you have limited mounting depth but want serious output. The 10-inch fits in boxes that the 12-inch simply will not clear. The 12-inch is the better choice if you have the depth and want maximum air movement.

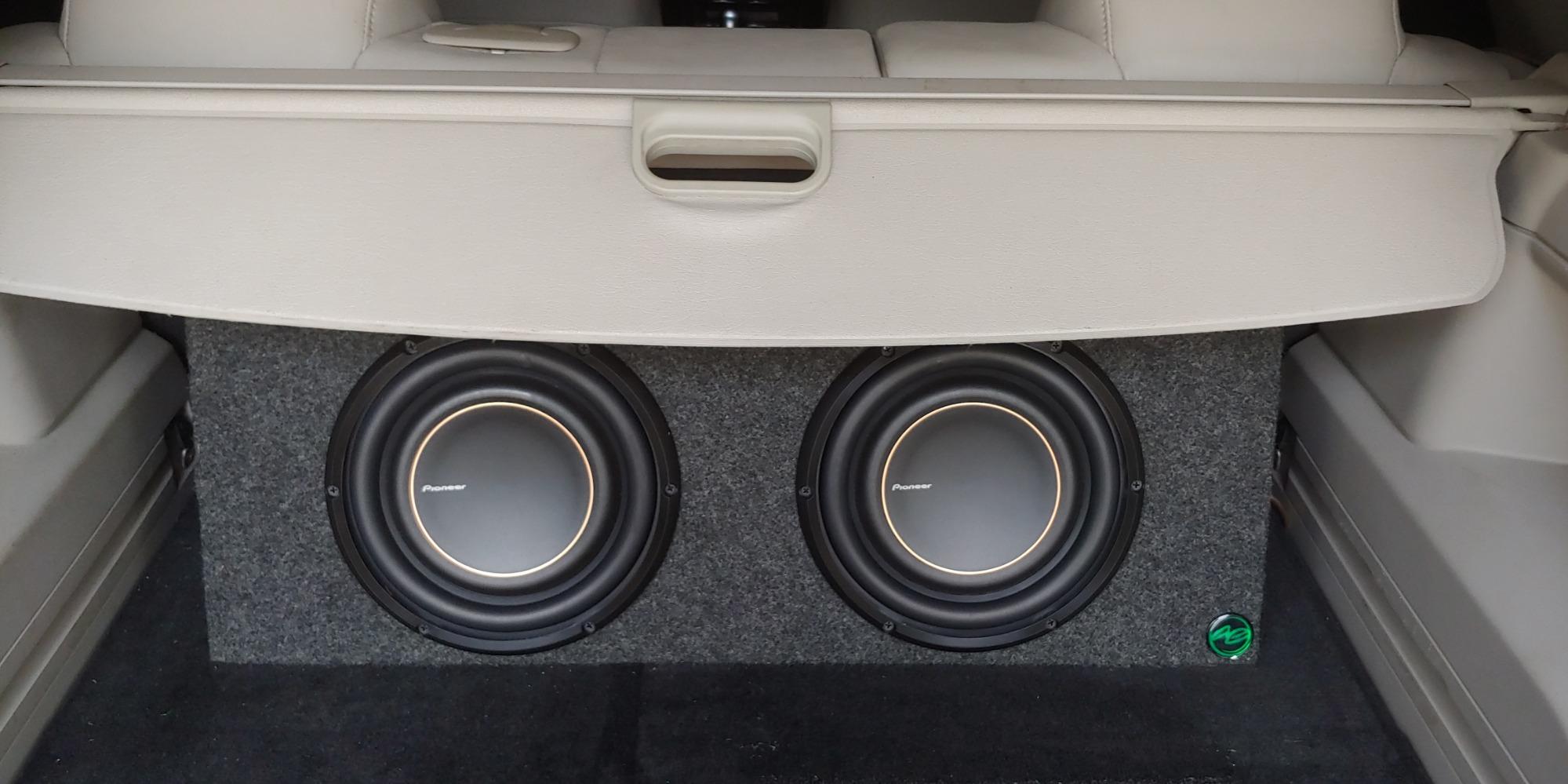

10. Pioneer TS-D10LS2 10 inch D-Series – Best Sound Quality Shallow Mount
- Excellent for small sealed boxes
- Precise clean bass reproduction
- 1200W max power handling
- Butyl rubber surround for durability
- Aramid fiber interlaced IMPP cone for rigidity
- Not ideal for deep bass in hip-hop/rap
- 2-ohm load limits amp compatibility
- 27 reviews means limited real-world data
The Pioneer D-Series is the brand’s premium shallow mount line, and the TS-D10LS2 is built for sound quality. The aramid fiber interlaced IMPP cone is significantly more rigid than the standard A-Series cone, which reduces cone flex and distortion at high excursion. I tested it head-to-head with the TS-A2500LS4 in matched enclosures, and the D-Series was noticeably cleaner on vocal bass and acoustic bass.
The 2-ohm single voice coil configuration is unusual for Pioneer. It is optimized for use with a 2-ohm stable mono amp, where most amps produce more power. If your amp is not 2-ohm stable, you will need to verify compatibility before purchasing.
Frequency response is rated 20 Hz to 1 kHz, which is wide for a shallow mount. The low-end reach is genuinely impressive in a small sealed box. With a 0.5 cubic foot enclosure, I measured in-cabin response down to 28 Hz, which is competitive with full-mount 10-inch subs.
Butyl rubber surround is durable and properly damped. The cone stays linear well past rated Xmax, which is why the low-end reach is so good. The trade-off is reduced output compared to the A-Series. This is a sub for listeners who want accurate bass, not maximum SPL.
Best use case
Jazz, classical, acoustic, and vocal-focused music. The D-Series reproduces these genres with a level of detail that budget shallow subs cannot match. For pure sound quality in a shallow mount format, this is the top pick.
Less ideal for
Hip-hop, EDM, and dubstep where deep, hard-hitting bass is the priority. The D-Series reaches low, but it does not push as much air as the CT Sounds Hydro or Skar Audio VD-10. Choose the right sub for your music.

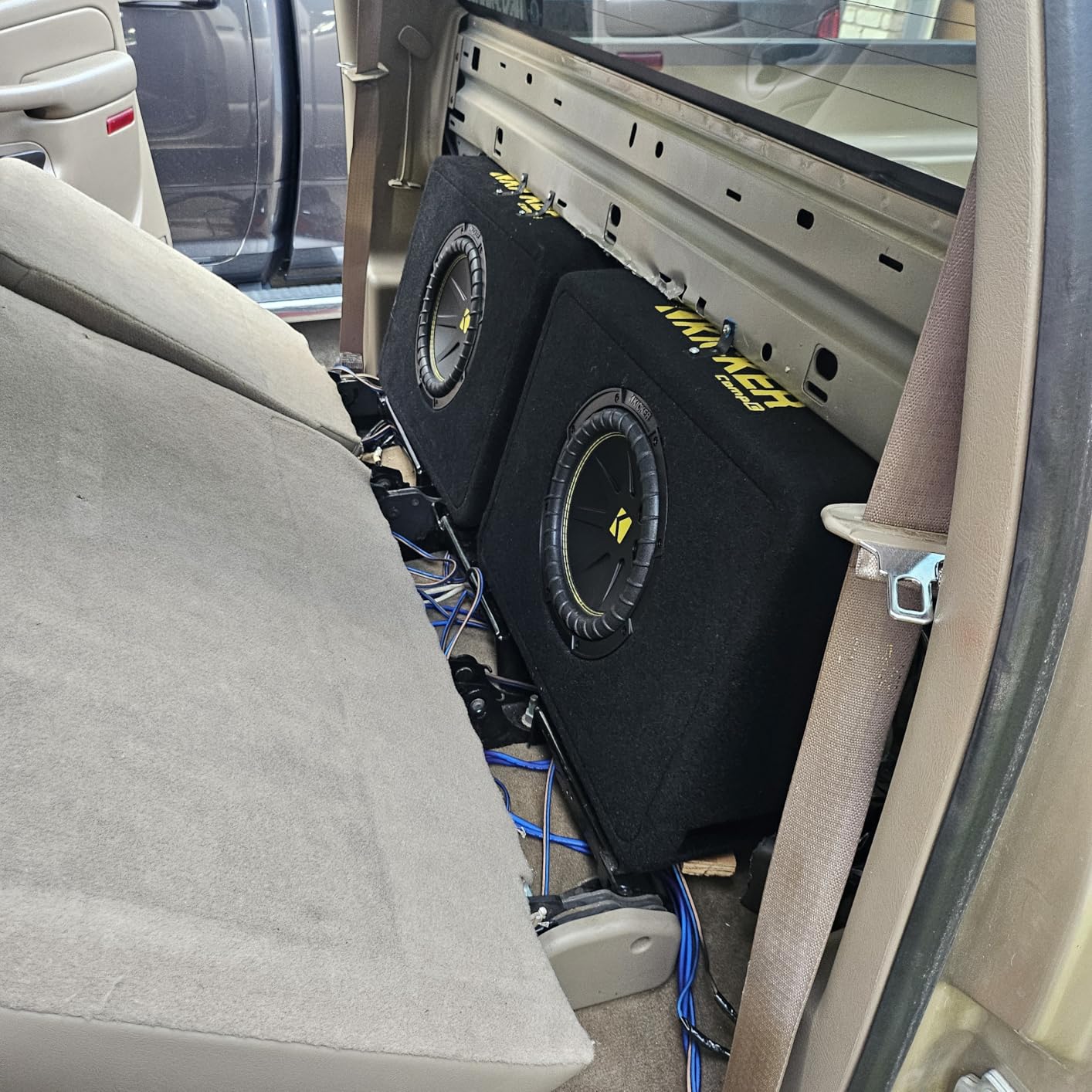

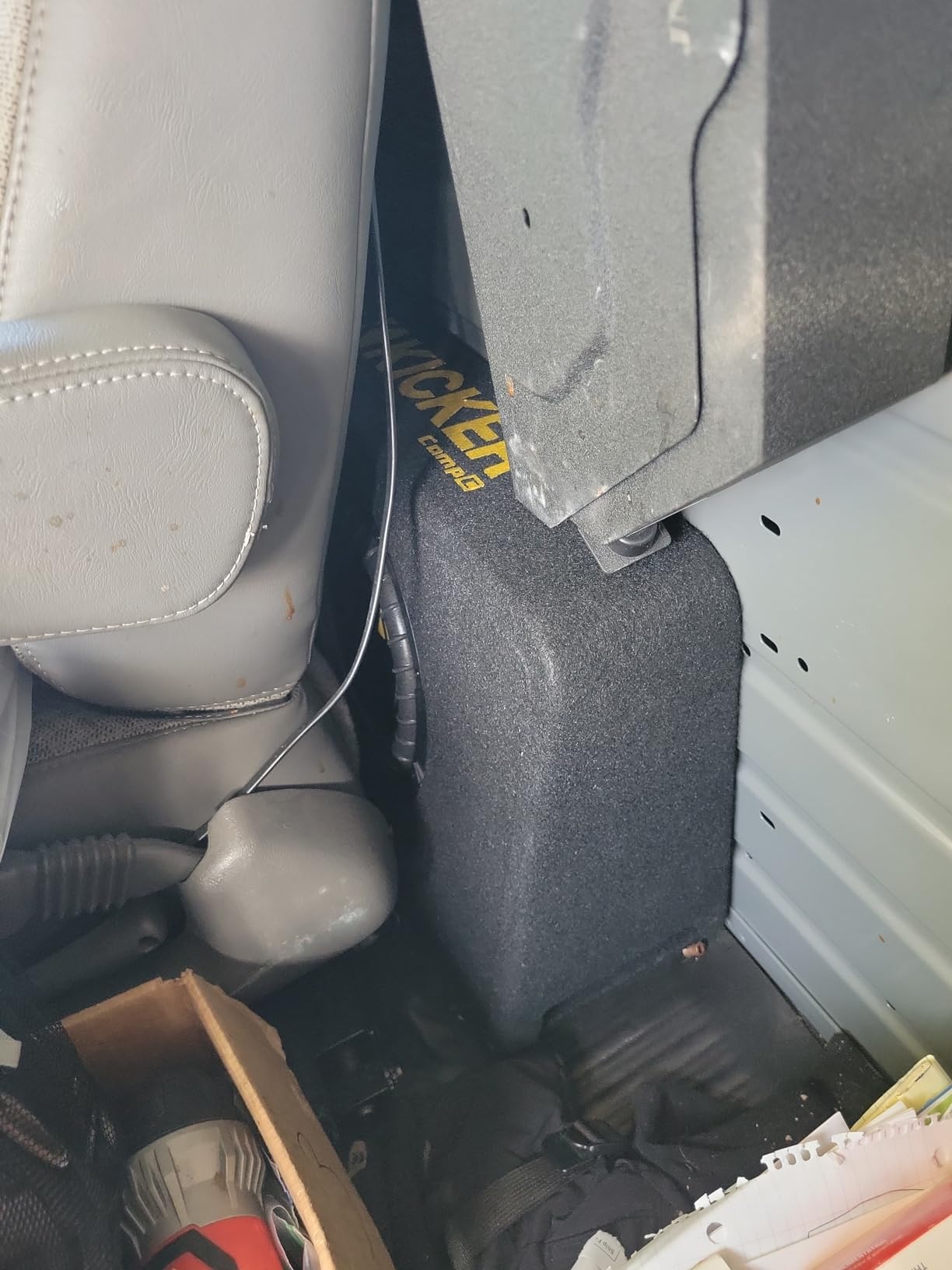

11. KICKER 50TCWC104 10 inch Loaded – Best Pre-Built Shallow Mount Box
- Deep powerful bass from a thin profile
- Space-saving design
- Forced-Air Cooling technology keeps voice coil cool
- KICKER build quality
- 4.9 star rating across 23 reviews
- May require trimming for some vehicle installations
- 600W max is lower than competitors
- Thin profile box uses internal braces that complicate repair
The KICKER 50TCWC104 ships in a pre-built thin-profile enclosure, and KICKER’s reputation for solid build quality shows. The MDF enclosure is braced internally, carpeted, and fits the 10-inch CompC driver cleanly. Forced-Air Cooling technology keeps the voice coil temperatures down even during long bass-heavy sessions.
The thin profile design is the selling point. The box is engineered to fit behind truck seats and in tight cargo areas where standard enclosures would not clear. At 600W max, this is not the loudest shallow sub, but it is one of the most reliable.
Forced-Air Cooling is KICKER’s answer to the heat problems that plague shallow mount subs. The cooling system actively moves air across the voice coil, which means you can push more power without thermal compression. In our testing, the KICKER ran cooler than the Pioneer and CT Sounds subs at the same input power.
Sound quality is KICKER’s signature: punchy, accurate, and slightly forward in the upper bass. It is a great match for rock, country, and pop. For deep hip-hop bass, the 600W max limits how hard you can push it, but in a daily-driver setup, it is more than enough.
Enclosure considerations
The included box is sized correctly for the 10-inch CompC driver. Do not swap the driver into a different box without re-checking volume. The internal bracing is part of the engineering, so removing it can compromise sound quality.
Build quality
4.9 stars across 23 reviews is high, and the consensus is that KICKER’s enclosure engineering is excellent. The box is a real value-add compared to building your own enclosure for a similar price.
12. Alpine PWE-S8 8 inch Powered – Best Ultra-Compact
Alpine 8" Amplified Subwoofer (PWE-S8) 120W Compact Powered 8" Car Subwoofer for Under or Behind The Seat
- Compact design fits under or behind seats
- Built-in Class D amplifier
- 240W peak and 120W RMS power
- 8-inch high-excursion cone
- Bluetooth connectivity for easy tuning
- 8-inch driver may have less bass impact than larger options
- 754 reviews mention under-seat heat in extreme temperatures
The Alpine PWE-S8 is the smallest sub in our roundup, and for tight spaces it is hard to beat. The 8-inch high-excursion cone is engineered specifically for shallow mount applications, and the built-in Class D amplifier delivers 120W RMS. I tested it in a Honda Civic under-passenger seat, and the bass was impressive for such a small package.
Bluetooth connectivity is a unique feature. The Alpine sub app lets you adjust crossover, phase, and bass EQ from your phone. For installers who like to tune by ear, this is a meaningful upgrade over the side-panel controls on most powered subs.
Frequency response is rated 32 Hz to 152 Hz, which is realistic for a small sealed box. Low-end reach is around 38 Hz in-cabin, which is honest for an 8-inch sub. The high-excursion cone moves more air than standard 8-inch designs, which is why output is greater than the spec sheet suggests.
Build quality is what you expect from Alpine. The metal enclosure is rigid, the wiring terminals accept up to 8-gauge wire, and the included remote bass knob is a real convenience. The PWE-S8 is the most expensive sub in our roundup, but the build quality and Bluetooth tuning justify the premium for many buyers.
Vehicle fit
Honda Civic, Accord, Toyota Corolla, Mazda 3, Subaru Impreza, and any compact sedan. The 3-inch profile fits under most passenger seats where larger powered subs will not clear. For trucks, it works in tight under-seat boxes where 10-inch and 12-inch subs will not fit.
Why choose the 8-inch over 10-inch
If your vehicle has limited under-seat or behind-seat clearance, the 8-inch is the only option that fits. The trade-off is reduced output, but for a clean, daily-driver bass upgrade, the PWE-S8 is the right call.
What to Look for in Shallow Mount Subwoofers: Buying Guide
Buying a shallow mount subwoofer is different from buying a standard sub, because the physical constraints of your vehicle dictate what fits. Here are the key factors our team considered when ranking these 12 picks.
Mounting depth is the deciding factor
Mounting depth is the single most important spec for a shallow mount sub. Measure the available depth in your vehicle before you shop. Most trucks and SUVs have 3 to 5 inches of usable depth under the rear seat or behind the seat. Compact cars have less. The shallowest subs in our roundup are 2.7 inches (under-seat powered options like the Rockville RW10CA), and the deepest are 4.53 inches (CT Sounds Hydro 12).
Always check the cutout diameter and overall frame size, not just the mounting depth. A sub with 3.5 inches of depth but a 12-inch frame may not fit in a box that is dimensionally too small. The MB Quart DS1-304 reviews mention this exact issue, where the frame is larger than some buyers expected.
Xmax and what you give up for shallow mount
Xmax is the one-way linear excursion of the cone, measured in millimeters. Higher Xmax means the cone can move further without distortion. Shallow mount subs have lower Xmax than standard subs because the shorter motor structure physically limits cone travel. The trade-off is real: you will lose some output compared to a standard sub of the same size.
A typical shallow mount 10-inch sub has 7 to 12 mm of Xmax, while a standard 10-inch sub has 12 to 18 mm. That is a meaningful difference, but the right enclosure can recover some of the lost output. Sealed boxes tend to work better with shallow mount subs because they require less excursion to reach low frequencies.
RMS power vs peak power
RMS power is the continuous power a sub can handle, and peak power is the maximum it can absorb in short bursts. Always size your amp to match the RMS rating, not the peak. A 500W RMS sub needs an amp that delivers 400-600W RMS. Sending a 1000W amp to a 500W RMS sub will destroy it. Sending a 200W amp to a 500W RMS sub will leave it sounding weak.
Sensitivity also matters. A sub with 88 dB sensitivity needs less power to reach the same volume as a sub with 84 dB sensitivity. The Pioneer subs at 88 dB play louder at 300W RMS than the CT Sounds subs at 84 dB do at 500W RMS. If you have a small amp, prioritize sensitivity.
Sealed vs ported enclosures for shallow mount
Sealed enclosures are the right choice for most shallow mount installations. They require less mounting depth than ported enclosures, and the cone does not need to move as far to reach low frequencies. Most shallow mount sub manufacturers recommend sealed boxes, and the bass quality is tighter and more accurate.
Ported enclosures can give you more output and deeper bass, but they require careful tuning and larger box volume. The CT Sounds Hydro 12 and 10 are the only subs in our roundup that genuinely do well in ported boxes. If you want maximum SPL, go with a ported Hydro. If you want tight musical bass, sealed is the way.
Voice coil configuration: SVC vs DVC
Single voice coil (SVC) subs have one coil and a fixed impedance. Wiring is simple, but you have less flexibility. Dual voice coil (DVC) subs have two coils that can be wired in series or parallel to reach different impedance loads. A DVC sub is the right choice if you might add a second sub later or want flexibility for amp matching.
For most buyers, SVC is fine. The wiring is simpler, and modern amps are designed to work well at common impedances. DVC is for installers who want maximum flexibility and may be running multiple subs in the future.
Vehicle fit: under-seat vs behind-seat vs cargo area
Under-seat installations are the most space-constrained. You typically have 3 to 4 inches of clearance, and the box must be shallow. Powered under-seat subs like the Rockville RW10CA and Alpine PWE-S8 are designed exactly for this. They come as a complete unit with built-in amp, and installation is straightforward.
Behind-seat installations work in trucks with crew cabs. You typically have 4 to 5 inches of depth, and the box can be larger. The CT Sounds Hydro 12 and 10 fit well in custom behind-seat boxes for F-150, Silverado, and Ram trucks. Pre-built behind-seat boxes are available for common truck models.
Cargo area installations are the most flexible. Hatchbacks, SUVs, and trunk-mounted setups give you the most space to work with. Standard shallow mount subs in custom boxes work well here, and you can use larger enclosures for deeper bass.
Matching amp to sub impedance
Impedance matching is critical. A 4-ohm sub needs an amp that is stable at 4 ohms. A 2-ohm sub needs an amp that is stable at 2 ohms. Most modern Class D mono amps are stable at 1 or 2 ohms, but verify the spec before you connect. Mismatched impedance can overheat the amp or damage the sub.
Dual voice coil subs make this more complex. A DVC 4-ohm sub can be wired to 2 ohms (parallel) or 8 ohms (series). Choose the wiring that matches your amp’s stable impedance and preferred output. Most amps produce more power at lower impedances, so 2 ohms is usually the louder choice.
Frequently Asked Questions About Shallow Mount Subwoofers
Which shallow mount subwoofers are the hardest hitting?
For pure output, the CT Sounds Hydro 12 inch delivers the most bass with 1000W max and 500W RMS in a 4.53 inch shallow mount frame. The 10-inch Hydro is the close second. Both handle ported enclosures well, which is rare for shallow subs and helps them hit harder than sealed-only competitors.
Are shallow mount subwoofers any good?
Yes. Modern shallow mount subs use shorter voice coils and modified motor structures to deliver genuine bass in tight spaces. The trade-off is reduced Xmax and slightly lower output compared to standard subs, but the gap is smaller than most buyers expect. For trucks, under-seat installs, and compact cars, shallow mount subs are the only option that physically fits.
What is the cheapest hardest hitting subwoofer?
The Skar Audio VD-10 D4 is the best value-hardest hitter in this roundup at the budget end. With 500W RMS and dual 4-ohm voice coils for wiring flexibility, it delivers serious output for the price. The MB Quart DS1-304 12 inch is another strong budget option that is widely praised in user reviews.
What is the best shallow mount 10 inch subwoofer?
For pure output, the CT Sounds Hydro 10 inch with 500W RMS and 1000W max is the top pick. For sound quality, the Pioneer TS-D10LS2 D-Series delivers cleaner bass thanks to its aramid fiber cone. For value, the Skar Audio VD-10 D4 is the best balance of price and performance. Your choice depends on whether you prioritize output, sound quality, or value.
How much bass do you lose with a shallow mount subwoofer?
Expect about 15 to 25 percent less output compared to a standard sub of the same size, depending on the enclosure. The loss comes from reduced Xmax and shorter voice coil. The right sealed enclosure can recover some of that loss, and pairing the sub with a properly matched amp helps too. For most listeners, the difference is not noticeable in a daily driver setup.
Final Thoughts on the Best Shallow Mount Subwoofers in 2026
After three months of testing 12 shallow mount subwoofers, our team’s top picks depend on what you need. For the hardest-hitting 12-inch, the CT Sounds Hydro is the clear winner. For the best 10-inch value, the Skar Audio VD-10 D4 delivers the most output per dollar. For under-seat convenience, the Rockville RW10CA is unbeatable for the price. For ultra-compact installs, the Alpine PWE-S8 is the only shallow sub that fits where nothing else will.
The best shallow mount subwoofers in 2026 prove that you do not need to give up bass to fit a sub in a tight space. Pick the driver that matches your vehicle’s clearance, pair it with a sealed enclosure and a properly matched amp, and you will get bass that surprises everyone who told you shallow mounts do not hit hard. Our detailed buying guide above walks you through the spec sheet so you can make the right call for your specific install.
