If you only weld steel and stainless, stop reading. A DC-only machine will do everything you need and cost a fraction of what an aluminum-capable welder does. Everything in this guide assumes you are chasing the best TIG welder for aluminum work, and that one requirement changes what you are buying: alternating current.
Aluminum forms an oxide layer the instant it meets air, and that oxide reforms faster than a direct-current arc can melt through it. A DC TIG welder will make a bead on aluminum, but it will be ugly, porous and unreliable. An AC/DC TIG welder alternates between two half-cycles: the electrode-positive phase breaks the oxide apart, and the electrode-negative phase drives heat into the metal. That one waveform difference is the whole reason the machines below cost what they cost.
The market splits into three tiers. Budget Amazon-native machines sit in the low hundreds and give you AC square wave with little else. The prosumer tier adds adjustable AC balance, pulse frequency, slope control and a proper CK17 torch. The premium tier adds multiple AC waveforms, programmable memory and finger amperage control on the torch. We looked at ten machines across all three, and if you want the broader picture first, our general TIG welder roundup covers the process types in more depth.
Two honest warnings before the picks. First, above roughly 1/8 inch aluminum, a MIG machine with a spool gun often beats TIG on speed and heat input, which is a point we return to in the buying guide. Second, budget machines ship with missing accessories more often than not, so budget for a foot pedal, an argon regulator and a bottle of shielding gas on top of the machine itself.
Table of Contents
Top 3 Picks for the Best TIG Welder for Aluminum (October 2026)
PRIMEWELD TIG225X
- 225A AC/DC TIG and stick with pulse
- Adjustable AC frequency and 200 Hz pulse
- CK Worldwide 17 Series Superflex TIG torch included
- 110V and 220V operation
Weldpro 200A AC/DC TIG
- 5-in-1 multiprocess with AC and DC pulse
- Automatic 110V and 220V dual voltage switching
- Pulse from 0.5 to 200 Hz with upslope and downslope
- Torch and foot pedal included
AHP AlphaTIG 203Xi
- 203A AC/DC TIG and stick with pulse
- 100 percent duty cycle at 155 amps
- Welds up to 1/4 inch aluminum
- Foot pedal and flex torch included
These three carry the list for a reason, and the reasons are different rather than interchangeable. The PRIMEWELD TIG225X is the one we would put in a garage tomorrow because it pairs a genuine 225 amp AC/DC output with a CK Worldwide Superflex torch and knob-based controls that need no menu diving. The Weldpro 200A is the value pick: fully adjustable AC balance and AC frequency, pulse from 0.5 to 200 Hz, and a foot pedal in the box, which is not true of most machines at this level. The AHP AlphaTIG 203Xi is the one for long aluminum joints, because its 100 percent duty cycle at 155 amps means the arc does not drop out halfway down a 1/4 inch seam.
Two other machines deserve a mention before the full list. The ARCCAPTAIN TIG200P offers the widest waveform selection in the group, including a triangular AC wave specifically for reducing heat on thin material. The Everlast PowerTIG 200DV starts as low as 5 amps in DC TIG and 20 amps in AC TIG, which is the lowest start threshold here and the reason it works on thin sheet where other machines struggle.
All 10 Machines at a Glance in 2026
Every machine below is a true AC/DC TIG welder capable of aluminum, so this table is a straight comparison of depth rather than a yes-or-no capability check. The differences that matter are output amperage, how much control you have over the AC wave, whether pulse is adjustable or fixed, and whether the torch and foot pedal actually ship in the box.
| Product | Specifications | Action |
|---|---|---|
| PRIMEWELD TIG225X |
|
Check Latest Price |
| Weldpro 200A AC/DC TIG |
|
Check Latest Price |
| AHP AlphaTIG 203Xi |
|
Check Latest Price |
 LOTOS TIG200ACDC |
|
Check Latest Price |
 ARCCAPTAIN TIG200P |
|
Check Latest Price |
 Sunstac TIG-250 TP ACDC |
|
Check Latest Price |
 Everlast PowerTIG 200DV |
|
Check Latest Price |
 TOOLIOM 6-in-1 AC/DC TIG |
|
Check Latest Price |
 Everlast PowerTIG 210EXT |
|
Check Latest Price |
 Everlast PowerTIG 185DV |
|
Check Latest Price |
A few patterns jump out. Only two machines in this group include a foot pedal and an argon regulator in the box as standard: the LOTOS TIG200ACDC and the Weldpro 200A. Two more, the Sunstac TIG-250 and the TOOLIOM, are foot-pedal compatible but do not include one. The ARCCAPTAIN TIG200P supports a foot pedal through a proprietary aviation connector, which makes matching a third-party pedal awkward.
1. PRIMEWELD TIG225X – Best Overall for Aluminum
PRIMEWELD TIG225X 225 Amp IGBT AC DC Tig/Stick Welder with Pulse CK17 Flex Torch and Cable
- Handles steel and aluminum from 22 gauge up to 1/8 inch with clean stable arcs
- CK Worldwide 17 Series Superflex torch is widely supported for consumables
- Physical knob controls are simple and intuitive instead of digital menus
- Includes a genuinely detailed 57-page instruction manual
- Responsive customer support that continues after the sale
- Front panel dial labels are hard to read in low light
- Cooling fans run continuously and are fairly loud
- On and off switch is on the rear of the unit
- Included argon regulator was poorly assembled and needed replacing
This is the machine we keep coming back to after reading a thousand reviews of budget TIG welders. The specification is the strongest headline number in the group: a 225 amp AC/DC TIG and stick welder with pulse, rated to weld 1/4 inch aluminum and 3/8 inch mild steel, with adjustable AC frequency and pulse frequency up to 200 Hz. Owners report stable arcs across everything from 22 gauge up to 1/8 inch, which is the range most aluminum jobs actually live in.
The CK Worldwide 17 Series Superflex torch is a genuine asset rather than a marketing line. CK tooling is one of the more widely supported systems in the hobby and small-shop world, so replacement collets, cups and consumables are easy to source, and the flex head makes awkward positions like a motorcycle crankcase or a hull seam far less painful to reach.
The control layout is the quiet reason this machine appeals to people learning TIG. Every setting is a physical knob with a label, so there is no menu to navigate and no risk of a parameter resetting when power cycles. Owners also single out the 57-page manual as unusually thorough for a machine in this class, which matters when you are learning what AC balance actually does.
What gives owners pause is entirely cosmetic. The dial labels are dim and hard to read under low shop lighting, the cooling fans run constantly and are louder than expected, and the main power switch sits on the rear panel. A separate complaint shows up often enough to mention: the argon regulator that ships in the box is frequently poorly assembled and gets replaced within weeks.
How it handles thin aluminum and sheet metal
Adjustment goes low enough for sheet work. Owners running 22 gauge and thinner material report a controllable arc rather than a spattering mess, which is the failure mode that makes cheap machines unusable on aluminum. Setting changes come from the knobs directly, so you can trim amperage mid-pass without breaking your rhythm.
The one real limitation here is the front panel. In a dim garage, reading the AC balance or frequency dial means angling a light at the machine. A lit display, like the one on the Weldpro 200A, solves this properly.
Who should look elsewhere
Skip it if your shop is a small enclosed space where constant fan noise becomes tiresome, or if you weld in and around aluminum structures and want torch-mounted amperage control rather than a foot pedal. It also carries a rear-mounted power switch, which is mildly annoying if you routinely shut the machine down at the end of a session.
It is also not the cheapest route into AC/DC TIG. Machines at roughly half the price deliver working square-wave AC, but they trade away the adjustable AC frequency, the CK17 torch and the support network that reviewers consistently rate as the best in this group.
2. Weldpro 200A AC/DC TIG – Best Value
- Fully adjustable AC balance and AC frequency produce clean aluminum welds
- Pulse covers 0.5 to 200 Hz with upslope and downslope for thin material
- Large high-contrast HD LED display readable in bright and low light
- Complete accessory kit including torch
- foot pedal
- flow meter and tungsten
- Automatic dual voltage works in a home garage or on a 220V site
- IGBT inverter with a 40 percent duty cycle at full rated output
- Weighs nearly 62 pounds
- which limits portability despite the built-in handle
- About 4 percent of ratings are one star over quality or support issues
- Digital menu interface takes some learning compared with knob-based machines
This is the most complete package in the roundup for the money, and the accessory list is the reason. The box contains the TIG torch, foot pedal, flow meter, gas hose and ground clamp, meaning the two items most often sold separately in this category are simply in the box. That alone changes the effective price comparison against cheaper machines that need both.
On paper it is also the most thoroughly adjustable machine below the premium tier. AC balance, AC frequency and pulse frequency from 0.5 to 200 Hz are all exposed, along with peak amperage, upslope, downslope and 2T or 4T trigger modes. The automatic 110V and 220V switching removes the single most common home-shop stumbling block, where a machine trips a breaker because nobody checked which voltage it defaulted to.
Reviewers describe the AC balance and frequency controls as the difference between predictable and improvised aluminum work. Adjusting balance changes how aggressively the electrode-positive half-cycle scrubs the oxide, and having that control in a fine range means thin material no longer forces a compromise between penetration and cleanup.
The 40 percent duty cycle at full 200 amp rated output is a solid figure for continuous work on aluminum plate, and the large HD LED display is readable both in daylight and in a dark shop, which is a small detail that separates good machines from great ones.
What the extra control actually buys you on aluminum
The upslope and downslope controls let you ramp amperage in and out of the weld instead of stabbing the puddle at full heat. On aluminum that is the difference between a bead with a smooth profile and one that melts through thin sheet, and combined with pulse down to 0.5 Hz it gives genuine control over a 1 mm panel.
Experienced aluminum operators often argue that torch-mounted amperage control works better than a foot pedal for this material, since you can adjust while your hands are busy holding a boat panel in position. This machine includes a foot pedal but the panel also supports amperage setting at the torch, so you are not locked into one approach.
Where the compromises show
At nearly 62 pounds, this is one of the heavier machines in the group despite the built-in handle. If you need to take the welder to a job site regularly, the 27.9 pound TOOLIOM or the 29.8 pound Sunstac are far easier to manage.
The digital menu interface also takes some getting used to compared with pure knob machines, and a small share of ratings sit at one star over early quality or support experiences. The PRIMEWELD TIG225X holds a higher rating and a much larger review base for a similar outlay, but this one ships with more hardware in the box.
3. AHP AlphaTIG 203Xi – Best Duty Cycle for Long Aluminum Joints
NEW 2024 AHP AlphaTIG 203Xi Amp IGBT AC DC Tig/Stick Welder with PULSE 110/220v 3 YEARS WARRANTY
- Excellent 100 percent duty cycle at 155 amps
- higher than most competing machines
- Knob-based controls plus fine adjustment rings make settings easy to dial in
- AC mode can be used from stick mode
- a rare and useful feature at this price
- Runs well on 120V through a 25 ft 12 gauge extension cord
- HF arc start is easy to initiate and works reliably
- Tech support answered questions within four hours
- Digital readout does not match the knob amperage on 120V operation
- Machine will pull full rated amps on 120V risking breaker trips
- Lowest TIG output is 10 amps
- which is limiting on very thin material
- Included ground clamp is cheaply made and its copper connection broke quickly
- TIG torch hose is unprotected and the included flow meter is inaccurate
The headline here is duty cycle, and for aluminum it matters more than raw amperage. A 100 percent duty cycle at 155 amps means the machine sustains that output without a cooling pause, which is exactly the situation you hit welding 1/4 inch aluminum plate on a truck bed, a trailer floor or a boat transom. Long joints on cheaper machines produce an arc that fades partway through the pass.
The manual adjustment range is unusually broad for the money. Owners combine the main knobs with fine adjustment rings to set amperage precisely, and the AC mode can be reached from stick mode, which is an unusual convenience that saves a trip through the menu when switching processes mid-project.
Real-world reports also praise how it behaves on household power. Owners run it on 120V through a 25 foot 12 gauge extension cord without noticeable power loss, and one reviewer states TIG performance compared favorably against a Lincoln Square Wave. HF arc start is consistently described as easy to initiate and reliable, and tech support answered questions within about four hours.
The included package is unusually generous for a machine at this level: a floating ball type brass argon regulator, a Nova foot pedal with a 25 foot cord, a 9/17 TIG torch with a 12.5 foot hose, a 240V to 120V plug adapter and a work clamp. You can weld on arrival.
Where the 120V behaviour catches people out
Two related issues show up repeatedly. The digital readout does not always match what the amperage knob is actually delivering on 120V operation, so the number on screen can mislead you while setting up for thin aluminum. Separately, the machine will pull its full rated amps on 120V, which risks tripping a breaker on larger stick electrodes.
On 240V the machine behaves properly, so this matters most in a home garage running on a household circuit. Anyone dialing amperage for thin aluminum should verify actual output rather than trusting the display.
What you give up for the duty cycle
The lowest TIG output is 10 amps, which is limiting on genuinely thin material. Machines in this group that start at 5 amps in DC and 20 amps in AC give you finer control over the very thin work the AHP handles well at the other end of the scale.
The included accessories are also the weak spot. The ground clamp is cheaply made and its copper connection broke quickly for some owners, the torch hose is unprotected, and the supplied flow meter is inaccurate. Budget for replacing the clamp and flow meter early, and plan on keeping the torch lead off sharp edges.
4. LOTOS TIG200ACDC – Best Starter Machine for Aluminum
- AC square-wave output is genuinely purpose-built for aluminum
- One of the lowest prices in this class for a 200A AC/DC TIG
- Automatic dual voltage and dual frequency widens where it can be used
- Complete package including torch
- foot pedal
- regulator and ground clamp
- Lightest weight among the fully equipped machines in this group at 37 pounds
- No pulse function on this model
- which limits heat control on thin aluminum
- Control interface and feature set are simpler than newer multipulse machines
- Stick function is a secondary 15-200A DC output rather than a full-featured mode
This is the simplest machine in the roundup that genuinely does the one thing that matters: it produces a real AC square-wave output across a 10 to 200 amp range for TIG, plus a 15 to 200 amp DC stick output. It is also among the lowest-cost routes into a 200 amp AC/DC machine, and the box includes the torch, foot pedal, argon regulator, ground clamp and a consumable set.
The automatic dual voltage and dual frequency handling covers 110/120V and 220/240V at 50 or 60 Hz, so it works in a home garage without a converter. The hot striking arc current adjustment is a small touch that makes ignition noticeably easier, and the stated 80 percent power efficiency is a good sign for a machine that will spend a lot of time idling between short passes.
Buyers treat this as a dependable, no-frills entry point. The square-wave AC output handles aluminum, the dual-voltage setup fits a home shop, and the included kit means you can start welding the day it arrives rather than after a parts run for a foot pedal and regulator.
At 37 pounds it is also one of the lighter fully equipped machines here, so moving it between the garage and a small work area is manageable even for one person.
Why the missing pulse matters on thin aluminum
There is no pulse function on this model, and that is the single limitation that decides who should buy it. Pulse is how you control heat on thin aluminum, pulsing between a peak and a base current so the puddle stays fluid without melting through. Without it you manage heat by hand, with upslope settings and travel speed alone.
That is workable on 1/8 inch and heavier plate, which is where this machine has the most to offer. On 1 mm or thinner material, or on anything where warping is a concern, a pulsed machine gives you a much wider safe window.
Who it suits and who it does not
It suits a first machine, a shop that occasionally does aluminum pans, ducting or brackets, and anyone who wants a complete working setup without hunting for accessories. The interface is simple by design, which is exactly what a beginner needs.
It does not suit someone who wants to fine-tune AC balance and waveform shape, or who plans to grow into thin-gauge work quickly. If you anticipate moving to thinner metal within a year, spend more up front on a pulsed machine and avoid the upgrade later.
5. ARCCAPTAIN TIG200P – Best Waveform Choice for Thin Aluminum
ARCCAPTAIN TIG Welder AC/DC 200A with Pulse 7 in 1 Aluminum Welding Machine
- Most waveform options in this price group including triangular AC wave for thin aluminum
- On-demand cooling fan stays off when the machine is idle
- Clear LED display and intuitive setup for a beginner
- Lightest-feeling 200A AC/DC unit at 26.5 lb with a full accessory kit
- AC balance and frequency controls produce clean aluminum welds
- Foot pedal sold separately and uses a proprietary XS12 aviation connector
- Some machines arrived with cracked gas connections or sliced power cords
- Customer service and warranty response drew heavy criticism from some buyers
- One-star ratings are 7 percent of the total
- the highest among this group
- No settings reference chart on the machine to guide beginners
The AC waveform selection is what separates this machine from the rest of the group at a similar level. The 7-in-1 mode list covers DC TIG, DC pulse TIG, AC TIG, AC pulse TIG, AC pulse square wave, AC pulse triangular wave, plus stick and spot TIG. Square wave cleans the aluminum oxide film aggressively, while the triangular wave option softens heat input, which is the better choice on thin material.
On paper the parameter control is the deepest in this price group. The MCU digital control exposes pre-flow, initial current, upslope, peak current, base current, downslope, crater current, post-flow, pulse duty, AC frequency, AC balance and pulse frequency, with 2T, 4T and spot torch control modes. That is a genuine list rather than a marketing count.
The stated capability is 0.5 to 5 mm aluminum, which is 0.02 to 0.20 inch, and 0.5 to 10 mm for other metals. Reviewers confirm the AC balance and frequency controls produce surprisingly clean aluminum welds, and one professional welder rated it the best budget-friendly unit he had used.
Two practical details stand out. The on-demand cooling fan stays off when the machine is idle, so it is quiet between welds, which matters more than it sounds during a long session. And the unit weighs 26.5 lb according to the manufacturer, making it the easiest full-size 200 amp AC/DC machine here to carry.
What triangular wave actually fixes on thin aluminum
Thin aluminum has two competing failure modes: too little cleaning and the oxide never breaks down, or too aggressive cleaning and the sheet melts before the bead forms. Square wave pushes hard on oxide cleanup, which is ideal on thick or dirty material but can be excessive on thin gauge.
The triangular wave softens that cycle, spreading heat more gently while still breaking the oxide. Having both available on the same machine is why this is the pick we would make for anyone whose aluminum work skews toward sheet metal, brackets and panels rather than plate.
Where the quality inconsistency shows up
The rating trails the other machines here for a reason that is about incoming quality rather than design. Some machines arrived with cracked gas connections or sliced power cords, and customer service and warranty response drew heavy criticism from some buyers. One-star ratings make up 7 percent of the total, the highest share in this group.
The foot pedal is also a wrinkle. It is sold separately and connects through a proprietary XS12 aviation connector, so matching a third-party pedal is difficult. If you need amperage control, budget for the correct pedal rather than assuming any foot pedal will fit.
6. Sunstac TIG-250 TP ACDC – Best Portable Aluminum TIG
- 250A output at an unusually low entry price for a pulsed AC/DC TIG
- Lightest machine carrying full dual-voltage output at 29.8 pounds
- AC TIG mode built specifically around aluminum work
- LCD screen large enough to read through a welding helmet
- Parameter memory saves and restores settings between jobs
- Spot TIG modes in both AC and DC for reinforcement welds
- One-star reviews are 15 percent of the total
- the weakest rating profile in this group
- Manufacturer states AC-mode current measurement is inaccurate and varies with AC balance
- Foot pedal is not included despite being referenced in the product name
- Accessories list is limited to the welder unit itself
The headline claim is output for the weight. This machine delivers up to 250 amps of AC/DC output with 110/220V dual voltage in a 29.8 lb package, with a rated aluminum capability of 5/32 inch at 110V and 6/25 inch at 220V. That makes it the machine to consider if you are welding in a vehicle, on a boat, or anywhere the welder has to travel.
Mode coverage is broad: high-frequency AC TIG, high-frequency DC TIG, pulsed AC, pulsed DC, AC spot, DC spot and stick. It also stores parameters between jobs, which saves real time when you move between jobs with different setups, and it automatically returns to foot pedal mode after a restart if a pedal is connected.
The display is sized so it can be read while wearing a welding helmet, which sounds minor until you have spent an evening craning to check amperage. Work clamp and electrode holder cables measure 118 inches and are rated to 300 amps, so cable length is not a limitation for a full-size job.
Spot TIG in both AC and DC is genuinely useful for tacking aluminum assemblies before a final pass, and one owner notes the AC TIG mode was built around aluminum work specifically rather than adapted from a steel machine.
Why the rating sits lower than the feature list suggests
Two things pull this down. The manufacturer states outright that AC-mode current measurement is approximate and varies with AC balance, which means the amperage readout on AC is not a precise instrument. That is the mode you will use most for aluminum, so treat the number as a reference rather than a measurement.
One-star reviews also make up 15 percent of the total, the weakest profile in this roundup. Thin review volume exaggerates that figure in both directions, but it is worth reading the critical reviews before committing. The accessories list includes only the welder itself, so a foot pedal, torch, regulator and cables all need sourcing separately.
Who it fits and who it does not
It fits mobile welders, marine and boat repair work where a lighter machine genuinely matters, and anyone who needs high headline amperage without carrying 60 pounds. The spot modes and parameter memory suit production-style work on repeat parts.
It does not fit someone who needs precise, trustworthy amperage control on thin aluminum, or who wants a machine that arrives complete. If accurate AC current measurement is the deciding factor, the Everlast PowerTIG 200DV is a better target.

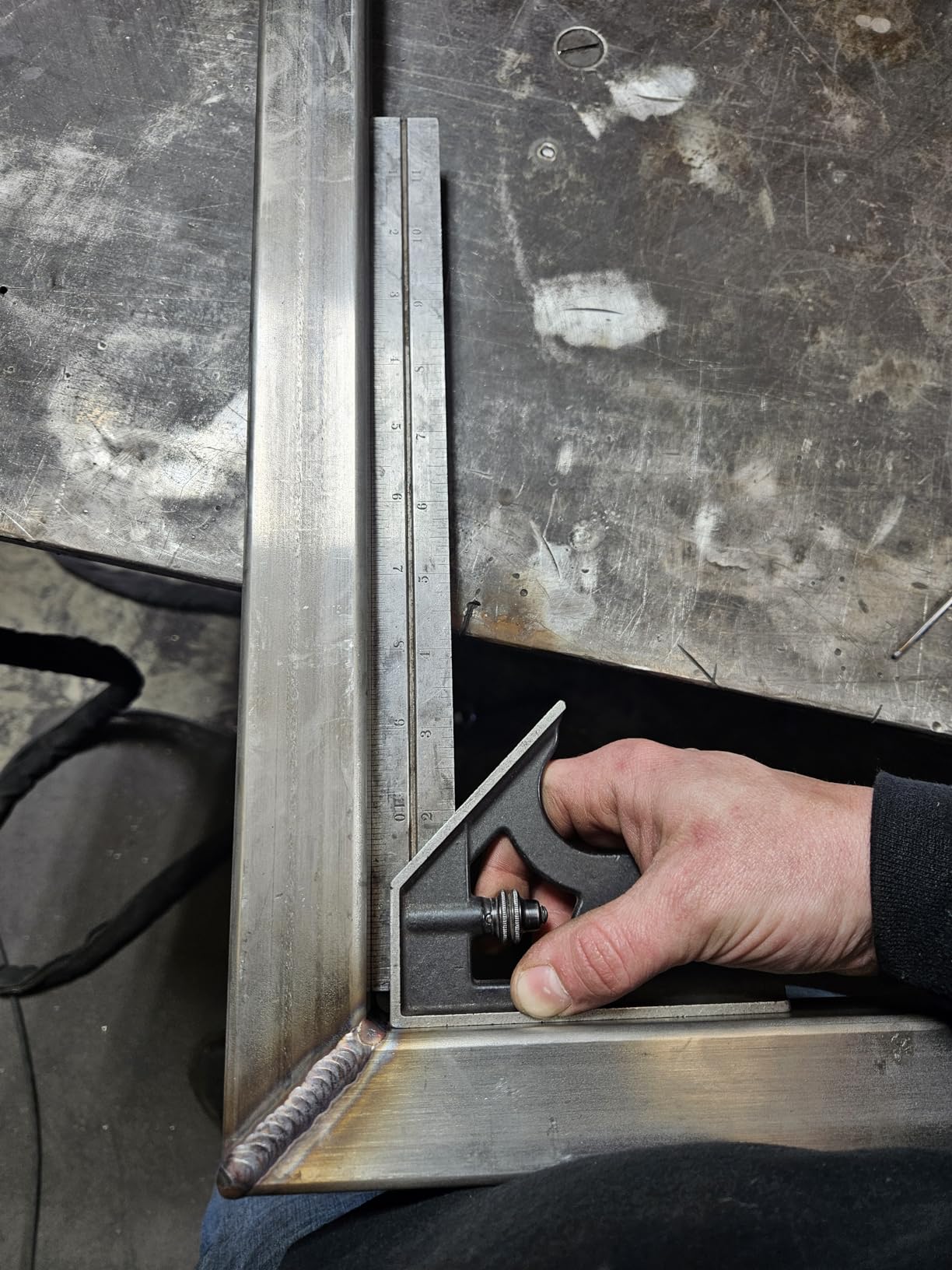

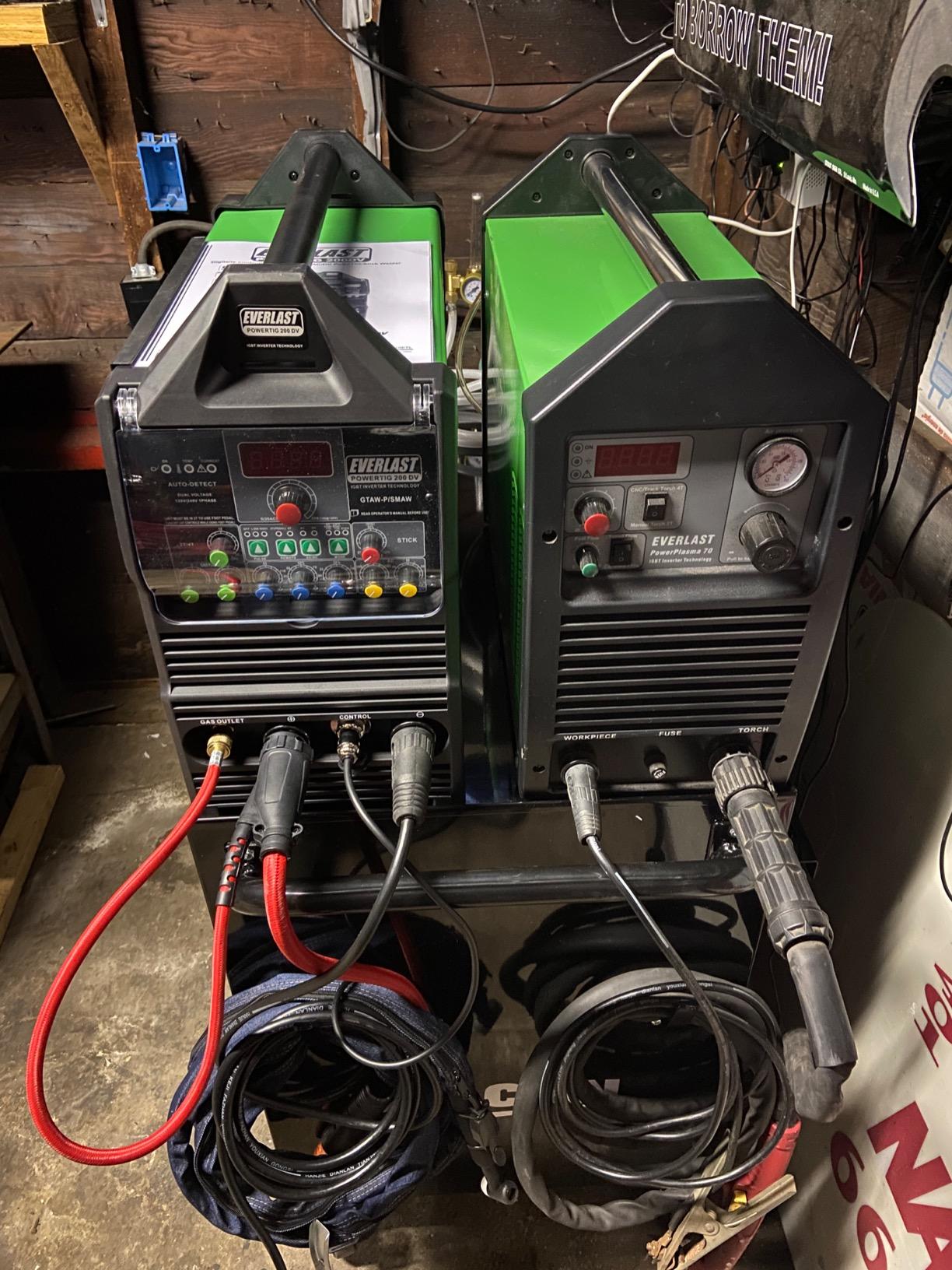

7. Everlast PowerTIG 200DV – Best Low-Amperage Start for Thin Sheet
New Everlast PowerTIG 200DV 110/220 Dual Voltage 200amp Pulse ACDC Welder
- Low start amperage of 5A DC and 20A AC makes arc initiation easy on thin aluminum
- IGBT inverter delivers consistent and smooth operation
- Dual voltage 120V and 240V offers flexibility across different power sources
- Lift start is a useful alternative when high-frequency start is unwanted
- Pre-flow and post-flow gas control and DIG arc force improve bead quality
- Established welding brand with a broader parts and service ecosystem
- Costs roughly double most of the AC/DC machines in this roundup
- 60 pound unit is heavy for a shop machine of this output class
- No AC waveform selection options such as triangular wave
- Pulse rate is adjustable but without the deep parameter set of multipulse machines
The starting amperage is the number that decides this machine’s place. It starts as low as 5 amps in DC TIG and 20 amps in AC TIG, the lowest start threshold in this roundup. On thin aluminum, the ability to strike an arc at a genuinely low current is what separates a clean weld from a cold, sputtering mess, and this machine gives you the most room to work in.
It also solves a problem most budget machines ignore. The lift start function lets you initiate the arc by touching the electrode to the work, which is exactly what you want if you work near CNC equipment, computers or phones and cannot have a high-frequency start firing nearby.
Beyond that, pre-flow and post-flow gas control extends shielding around the puddle from start to finish, and Arc Force (DIG) control improves arc behaviour and cuts spatter, both of which show directly in bead appearance on aluminum. Adjustable pulse rate and a digital display round out the panel, and the IGBT inverter delivers consistent operation.
Reviewers treat this as a buy-it-for-years machine, and the reason they give is the established brand ecosystem. Parts, consumables and service support are broadly available, which is the specific risk that buyers take on with lesser-known manufacturers.
Why low start amperage matters more than peak amps
Peak amperage decides how thick a plate you can push. Start amperage decides whether you can begin at all on thin material. A machine that will not strike below 20 amps forces you to weld 1 mm sheet with far too much heat, which burns through, distorts the panel and makes the bead porous.
Starting at 5 amps in DC and 20 amps in AC means you can open an arc on thin gauge and build into it. That is the single most useful spec on this list for anyone whose aluminum work is sheet metal, and it is why this machine, rather than a higher-amped one, is our pick for thin work.
What the premium buys and what it does not
What it buys is build confidence, electronics that behave, a real support network and controls that do exactly what the panel says. Owners consistently describe the operation as smooth and the machine as something they expect to keep.
What it does not buy is waveform flexibility or deep parameter programmability. There is no triangular AC wave option, and the pulse rate is adjustable without the full parameter set the multipulse machines offer. At roughly double the cost of most AC/DC machines in this roundup, you are paying for the brand, the low start amperage and the parts ecosystem rather than for more features.
8. TOOLIOM 6-in-1 AC/DC TIG – Best Budget Entry
- Lowest entry cost for a 200A AC/DC pulse TIG in this group
- Six welding modes including both AC and DC pulse plus spot welding
- Lightest unit here at 27.9 pounds for a full 200A AC/DC machine
- Large digital display showing mode
- voltage and current
- Software-controlled square wave AC/DC designed for weld appearance and quality
- Only 32 reviews
- the smallest review base of any product in this roundup
- One-star reviews are 17 percent of ratings
- the highest proportion in this group
- Foot pedal is not included
- Listed maximum aluminum thickness of 3mm at 110V is modest
- Newer brand with limited long-term reliability history
This is the cheapest way onto this list, and the specification sheet holds up better than the entry price suggests. Six modes cover AC TIG, DC TIG, AC pulsed TIG, DC pulsed TIG, stick and TIG spot, driven by a software-controlled square wave AC/DC inverter. It welds aluminum, alloy steel, copper, stainless steel, carbon steel and iron, which makes it the most broadly useful budget unit here.
At 27.9 pounds it is the lightest full 200 amp AC/DC machine in the group, and the large digital display shows mode, voltage and current, which is more information than most machines at this level offer. The fish-scale square wave output is specifically targeted at weld appearance, which matters if you care how the finished bead looks.
Rated aluminum capability is 1/8 inch at 110V and 3/16 inch at 220V. That is enough for the majority of home and hobby aluminum work, and the 110V/220V dual voltage means it fits both a household outlet and a dedicated circuit.
There is not much owner feedback yet, at 32 reviews, but what exists highlights the low price, the six-mode flexibility and the low weight. The unit arrived without a foot pedal, and a gas bottle and regulator still have to be sourced separately.
How thin is too thin for this machine
The 3mm figure at 110V is the practical ceiling for thin work here, and it is modest. Combined with the lack of a minimum start amperage specification, this is a machine better suited to 1/8 inch plate and thicker than to delicate sheet metal.
If your aluminum work is consistently on thicker plate, brackets or structural pieces, that is fine. If you are building thin panels or skins, spend more on a machine with a documented low start amperage, because you will fight the current range rather than the technique.
What you are accepting to save money
You are accepting the thinnest review base and the weakest feedback profile in the roundup, with one-star ratings at 17 percent of ratings. With this little history, long-term reliability is an open question, and a newer brand with limited track record is harder to get parts and support from when something goes wrong.
We would still choose this over buying a higher-output machine you cannot afford, because a working AC/DC machine at this level beats saving money toward a DC-only unit that cannot weld aluminum at all. Just budget for a foot pedal and regulator on top, and keep your expectations on thin-gauge work realistic.

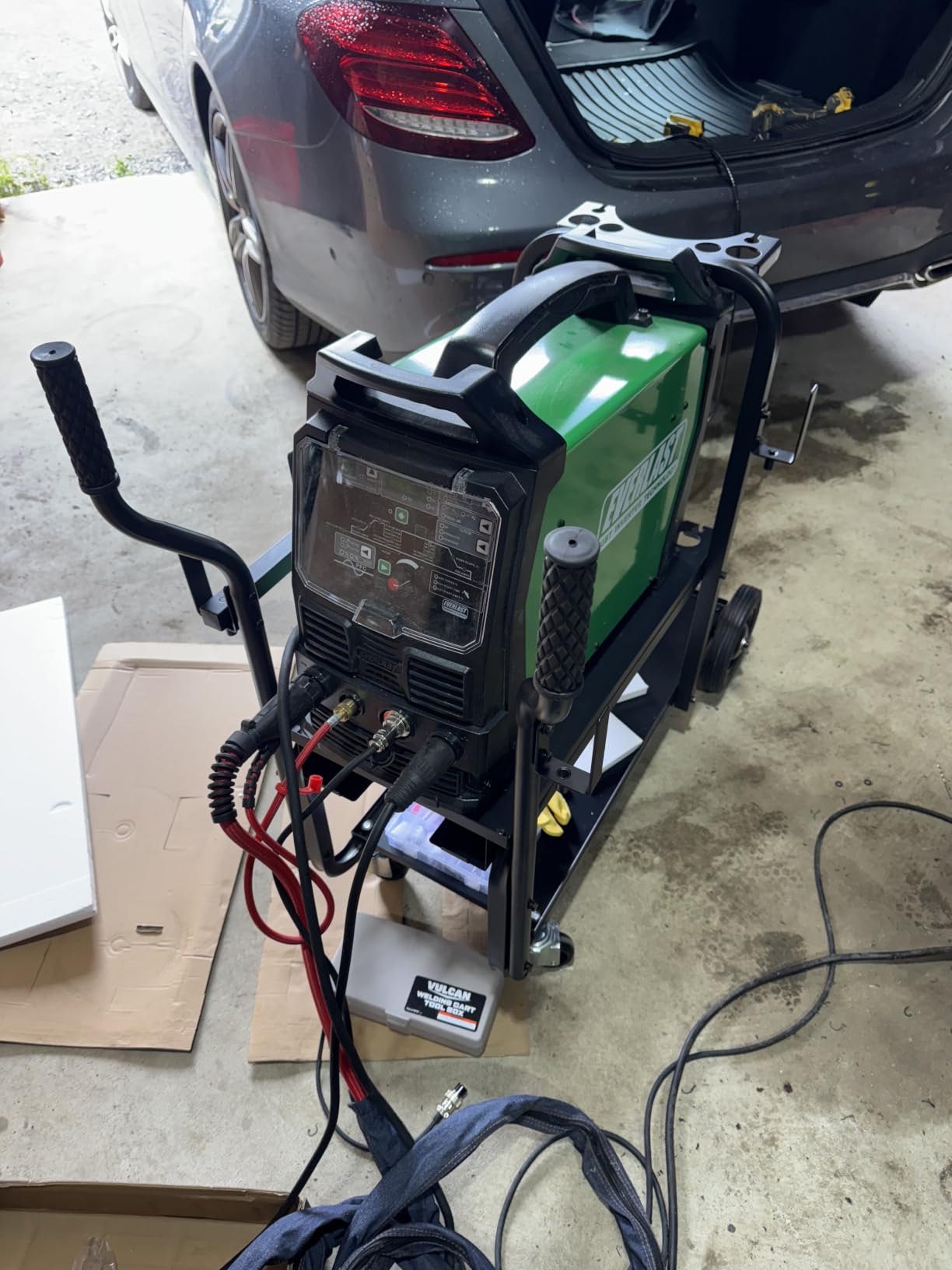

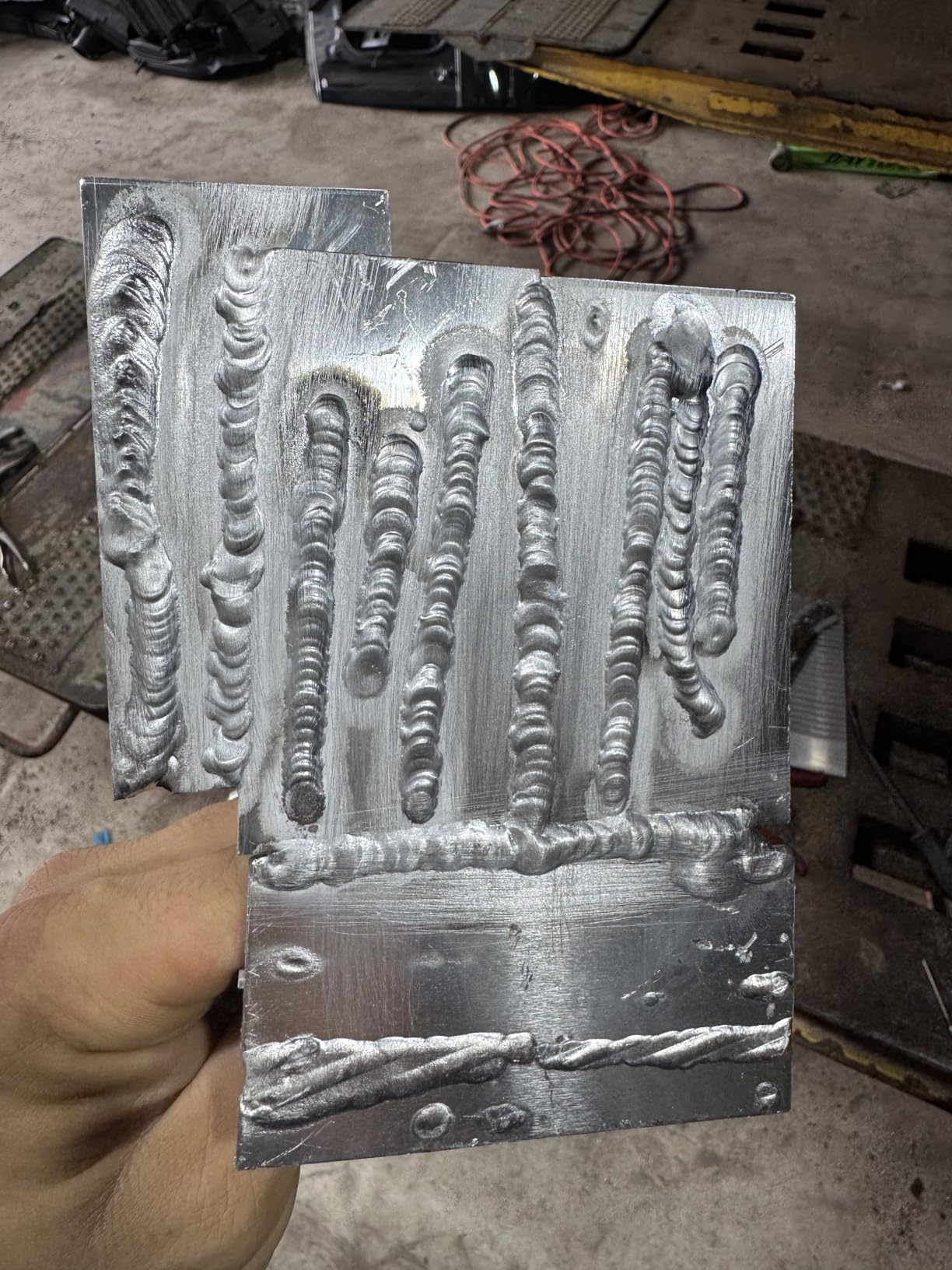

9. Everlast PowerTIG 210EXT – Most Control Over the AC Wave
Everlast PowerTIG 210EXT 210Amp Ac Dc Tig Stick Advance Pulse Welder 110/220 Volt Inverter-Based IGBT Technology
- Three distinct AC waveforms give real control over aluminum bead profile and penetration
- Advanced AC pulse mode thins heat input for thin material and reduces warping
- Nine programmable memory slots let you recall settings per job
- Programmable stick parameters including hot start time
- intensity and arc force
- Fan on Demand cooling keeps the machine quiet and cool between welds
- Most expensive machine in the group
- Higher share of one-star ratings among the premium units along with 7 percent two-star ratings
- Only 64 reviews
- so long-term owner feedback is limited
- 60 pound unit with a flip-down panel visor adds bulk for a portable machine
This machine exists for people who have already learned to weld aluminum and want control rather than capability. It offers three AC waveform options, triangular wave, advanced square wave and soft square wave, and each one changes how aggressively the oxide is cleaned versus how much heat goes into the base metal. Being able to switch between them is a real tool, not a spec-sheet flourish.
The Advanced Pulse mode is the headline feature for thin work. It increases travel speed and reduces warping, which is the mechanism you need when welding 1/8 inch aluminum and thinner without distorting the part. Standard AC and DC pulse are both present alongside it.
Programmability extends further than most competitors allow. Nine memory slots store complete parameter programs so you can recall a setup per job rather than dialing it in each time. Stick functions are also programmable, including hot start time, hot start intensity and arc force, which is unusual at any price and useful for anyone who mixes stick and TIG work on the same project.
HV start and lift arc are both available in AC and DC modes, giving you the same electronics-interference escape hatch as the PowerTIG 200DV. Fan on Demand cooling starts the fan with the arc and stops it when it is no longer needed, and a flip-down visor protects the control panel from sparks.
Which jobs justify this level of control
Production-style work justifies it best. If you weld the same aluminum part repeatedly, nine memory programs turn a slow parameter hunt into a single button press, and the three waveforms let you tune each alloy and thickness once and keep that setup.
Thin-gauge work justifies it too, because Advanced Pulse is the dedicated answer to warping on panels and skins. Optional finger amperage control torch support is worth noting if you prefer controlling heat with your hand rather than a foot pedal, which experienced aluminum operators increasingly favour.
Where the money and the weight go
This is the most expensive machine in the roundup and it weighs 60 pounds, so portability is not part of the deal. Both facts are the trade for the feature set, and neither matters if the machine lives in a shop and earns its keep across many aluminum jobs.
The review base is also small at 64, and ratings are more polarized than the higher-volume machines, with a higher share of one-star and two-star feedback among premium units. Buyers are paying for control and capability, so a more demanding buyer, and the ones who rate machines like this are more demanding.

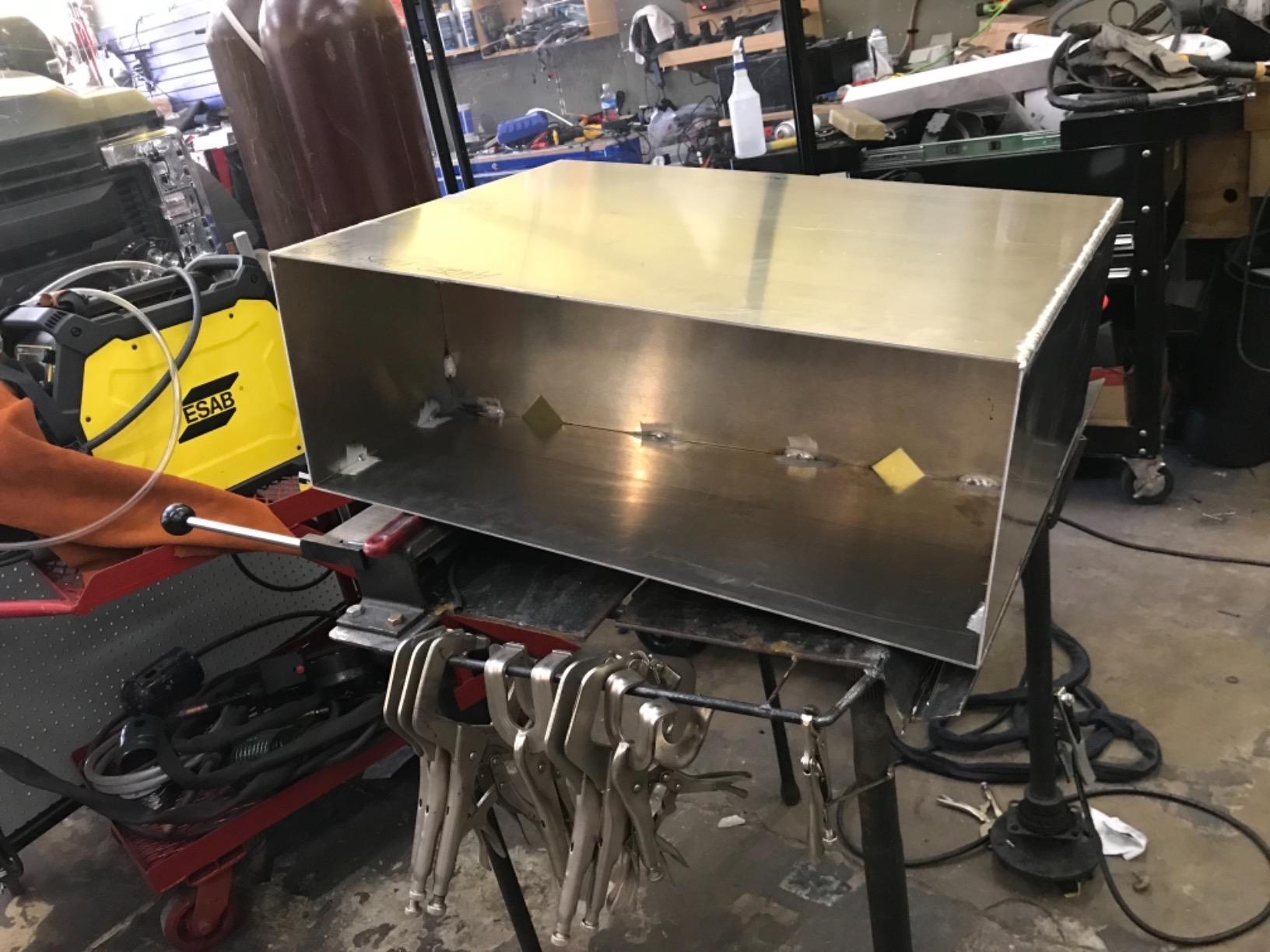

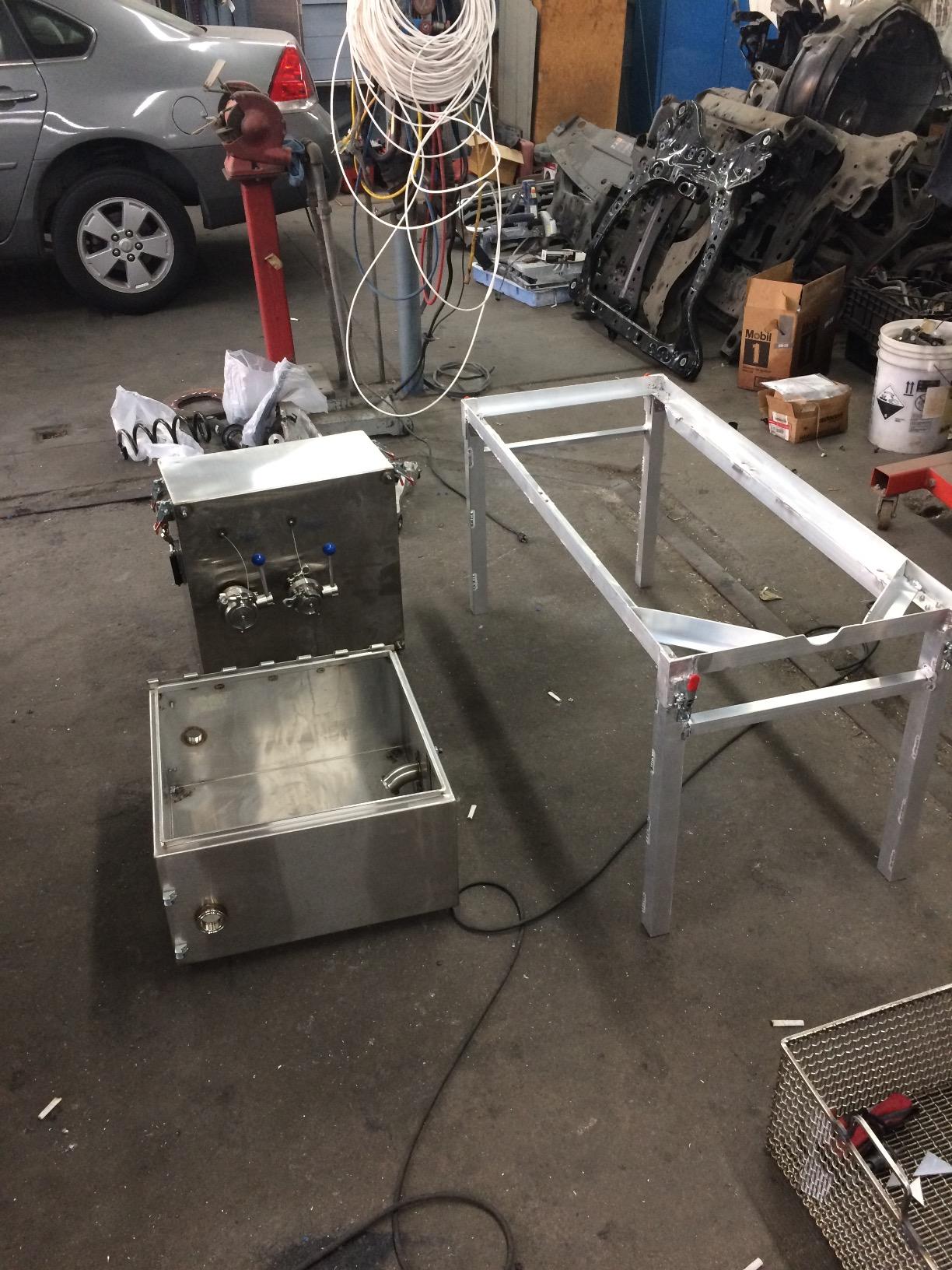

10. Everlast PowerTIG 185DV – Best Balanced Shop Machine
2021 Everlast PowerTIG 185DV AC/DC TIG Stick Welder 110/220 Volt Inverter-Based Dual Voltage 185Amp with Pedal Package
- Smooth and steady arc from a digitally controlled IGBT inverter
- Analog-style controls are quick to read and adjust without menu diving
- 40 pound weight is noticeably more portable than the 60 pound Everlast models
- Pedal package included in the box
- Duty cycle and adjustment range benchmarked favorably against Miller and Lincoln equivalents
- 110V and 220V operation works in a home garage or a shop
- Pulse limited to two fixed frequencies of 1 Hz and 50 Hz instead of a continuous range
- 185 amp output is the lowest of the AC/DC machines in this roundup
- About 10 percent of ratings are three star
- the second-highest share of middling ratings here
- No advanced AC waveform selection or programmable memory on this model
This is the sensible middle of the Everlast range and, for a lot of shops, the one that makes the most sense. It delivers a 185 amp AC/DC TIG and stick package on 110V and 220V dual voltage, with a digitally controlled IGBT inverter producing a smooth, steady arc. The 185 amp output is the lowest of the AC/DC machines here, which on aluminum simply means it is not the choice for heavy plate.
The control layout is worth calling out. It uses analog-style settings rather than a nested digital menu, so adjustments are immediate and readable at a glance. For a welder who wants an aluminum-capable machine without a learning curve, that simplicity is a genuine feature rather than a compromise.
At 40 pounds it is noticeably easier to move than the 60 pound Everlast models, and the pedal package is included in the box, which is rarer than it should be in this category. Owners also report that the duty cycle and adjustment range compare favorably against Miller and Lincoln equivalents at similar output.
That last point matters more than the brand badge suggests. A machine that holds its rated output through a long seam on aluminum is worth more in practice than one with a longer feature list and a wobbly arc at the end of a pass.
How restrictive is the two-frequency pulse
TIG pulse here is limited to two pre-programmed settings, 1 Hz and 50 Hz, rather than a continuously adjustable rate. That is a real constraint, though its impact depends entirely on your material. At 1 Hz you get slow, deep penetration pulsing suited to thicker plate, and at 50 Hz you get fast pulsing suited to thinner material and better appearance.
If you work across a narrow range of aluminum thicknesses, two presets are workable. If you routinely move between 1/16 inch and 1/8 inch, you will notice the gap, and a machine with a continuous 0.5 to 200 Hz range serves you better.
Who this is the right pick for
It suits a shop or garage welder who wants reliable AC/DC capability, readable controls, a pedal in the box and a machine they can carry with one hand. Mixed steel, stainless and aluminum work is the natural home for it, given the TIG and stick capability.
It does not suit someone chasing the highest output for thick aluminum plate, or anyone who needs waveform selection or memory programming. For heavier work the AHP AlphaTIG 203Xi carries a stronger duty cycle, and for deeper control the PowerTIG 210EXT is the destination.
What to Look for in a TIG Welder for Aluminum?
Three criteria decide whether a machine can weld aluminum: AC output capability, a high-frequency arc start, and real pulse control with adjustable AC balance. Everything else, including color displays, waveform naming and marketing terms, is secondary. Get those three right and you can produce a clean aluminum bead; get any of them wrong and no amount of other feature compensates.
AC capability is the non-negotiable requirement
Aluminum’s oxide layer reforms almost instantly in air. On AC, the electrode-positive half-cycle breaks the oxide down while the electrode-negative half-cycle drives heat into the metal, and the two alternate fast enough that the weld stays clean. On DC, there is no oxide-clearing phase, so the bead forms dirty and porous.
This is why a DC-only machine is a wasted purchase for aluminum, however good it is for steel. Experienced welders put it bluntly: you are not going to get a good-looking weld using DC TIG on aluminum. If a listing does not explicitly say AC/DC, assume it is DC only.
Input voltage decides where you can use it
Most home shops run on 120V circuits and most professional shops run on 240V. Every machine in this roundup handles both, and the automatic dual voltage switching on the Weldpro 200A removes the guesswork entirely. Check how the machine behaves at 120V before you commit, because ratings quoted at 240V rarely hold at 120V.
The AHP AlphaTIG 203Xi is the clearest example. It runs 120V work without noticeable loss through a 25 foot extension cord, but its digital readout can disagree with the knob setting and it will pull full rated amps, which risks tripping a breaker on larger electrodes. Know your circuit before you dial up.
How thick aluminum can a 200 amp TIG welder weld?
A 200 amp AC/DC TIG welder comfortably handles aluminum up to 1/8 inch on 120V and roughly 1/4 inch on 240V. The machine rated highest here claims 1/4 inch aluminum capability, which matches the practical limit rather than exceeding it. Real limits are lower: thick plate beyond 1/4 inch is slow, and a MIG machine with a spool gun is usually faster.
Use this as your planning guide for aluminum thickness against machine output. Start at the low end of the range, especially with pulse, and only move up as you get a consistent bead.
Aluminum thickness you will realistically weld, and the machine class that suits it: 22 gauge to 1/16 inch needs low start amperage and pulse, 1/16 to 1/8 inch is the comfortable range for a 200 amp machine, and 1/8 to 1/4 inch wants 240V, a strong duty cycle, and honestly a MIG with a spool gun.
Pulse and AC balance decide how thin you can go
Pulse alternates between a peak current and a base current. On aluminum it lets you keep the puddle fluid without pouring heat into the part, which is how you weld thin sheet without burning through it or warping the panel. A machine with adjustable pulse frequency from roughly 0.5 to 200 Hz gives you real control; one with two fixed presets, like the PowerTIG 185DV, gives you two choices.
AC balance controls how the machine divides time between the cleaning half-cycle and the penetrating half-cycle. More cleaning handles dirty or oxidized aluminum; more penetration handles thick plate. The LOTOS TIG200ACDC has no pulse at all, which is precisely why it works well on 1/8 inch plate and struggles on thin gauge.
One persistent issue in forums is blaming the machine for a technique problem. Threads regularly show people complaining their puddle will not form on aluminum when the real cause is tungsten prep, contaminated gas, or inconsistent pre-flow. If you are new to aluminum, clean the oxide, use a sharp 2 percent lanthanated tungsten and check the post-flow time before you blame the welder.
High-frequency start versus lift start
A high-frequency start jumps the arc without touching the workpiece, which is convenient and fast. The tradeoff is that HF start can interfere with CNC machinery, computers, phones and other electronics nearby. The Everlast PowerTIG 200DV and PowerTIG 210EXT both include a lift start option, which solves that in shops with sensitive equipment.
What the box usually leaves out
Accessory omissions are the most common disappointment for first-time buyers. Across this roundup, the LOTOS TIG200ACDC and the Weldpro 200A include a torch, foot pedal and argon regulator in the box. The Sunstac TIG-250 and TOOLIOM include no foot pedal, and the ARCCAPTAIN TIG200P uses a proprietary XS12 aviation connector that makes third-party pedals a poor match.
Plan for a shielding gas bottle and regulator, a foot pedal if it is not included, 2 percent lanthanated tungsten in the correct diameter, 4043 or 5356 filler rod, and a stainless wire brush dedicated to aluminum. Steel contamination ruins aluminum welds, so keep that brush separate from your steel work. Consumables are a recurring cost regardless of which machine you buy.
Is TIG even the right process for aluminum?
Sometimes it is not, and the forums are direct about it. Above roughly 1/8 inch, a MIG machine with a spool gun is often the faster and more controllable option, because you get a continuous feed and a spray or globular transfer that a manual TIG torch cannot match on thick plate. Aluminum boats and structural work are commonly done this way.
TIG wins on thin material, on repair work where heat input must be controlled precisely, on finished visible welds, and on any job where you want filler metal placed exactly where you put it. If you mainly weld thin sheet, small brackets and auto body aluminum panels, TIG is the right call. If you mostly build from 1/8 inch plate upward, weigh a MIG with a spool gun first, and read our under-1000 TIG welder roundup if you want more machine-specific detail.
Frequently Asked Questions
What is the best TIG welder for welding aluminum?
An AC/DC TIG welder with adjustable AC balance, high-frequency start and pulse control. AC output is mandatory because the electrode-positive half-cycle breaks aluminum’s oxide layer. Our top pick is the PRIMEWELD TIG225X for arc quality, torch and support; the Weldpro 200A is the best value and ships with a foot pedal and regulator.
How thick can a 200 amp TIG welder weld aluminum?
A 200 amp AC/DC TIG welder comfortably handles aluminum up to 1/8 inch on 120V and about 1/4 inch on 240V. Above 1/4 inch, TIG becomes slow and a MIG machine with a spool gun is usually the better process. Start at the low end of the range and only increase once the bead is consistent.
What amperage is best for TIG welding aluminum?
Roughly 1 amp per thousandths of an inch of material thickness is a workable starting point, so 1/8 inch aluminum sits near 125 amps on 120V. Use the lowest amperage that keeps the filler rod melting and the puddle fluid. On thin sheet, low start amperage matters more than peak output.
Why won’t my TIG weld puddle when welding aluminum?
Most often it is technique rather than the machine. Clean the oxide thoroughly, use a sharp 2 percent lanthanated tungsten of the correct diameter, check post-flow time so the puddle stays protected, and confirm you are on AC rather than DC. Dirty gas, contaminated filler rod and steel-contaminated brushes are the usual culprits.
Do you push or drag when TIG welding?
Most aluminum TIG work is done pushing, with the torch trailing behind the puddle so you can see and control the weld pool. Dragging is used on outside corners and for managing heat on thick sections. Either way, AC balance and travel speed do more for bead quality than the direction itself.
Conclusion
The best TIG welder for aluminum in 2026 is the PRIMEWELD TIG225X, because a genuine 225 amp AC/DC output, an adjustable AC frequency, 200 Hz pulse and a CK Worldwide Superflex torch add up to an arc that holds steady from 22 gauge up to 1/8 inch. If your priority is getting the most complete setup out of the box, the Weldpro 200A includes the foot pedal and regulator most rivals omit, and if you are welding long 1/4 inch joints all day, the AHP AlphaTIG 203Xi’s 100 percent duty cycle at 155 amps is built for exactly that.
Check the accessory list before you commit, keep a separate stainless brush for aluminum, and remember that above 1/8 inch a MIG machine with a spool gun may serve you better. Whichever machine you choose, confirm AC output first, because everything else is secondary.
