A drum sander is a thicknessing machine: a rotating drum wrapped in abrasive paper pulls down against a powered conveyor belt, and the belt carries your workpiece under the drum while rollers set the exact depth of cut. That combination makes it the only affordable way to make a glued-up panel flat, or to bring a thin part to a consistent thickness without chewing it into chips. For a small shop, that capability fills a real gap your thickness planer cannot.
When people ask for the best drum sander for a small shop, they are usually asking three things at once: will it fit, will it trip my breaker, and is it worth buying at all. I have read every owner report I could find on these machines, weighed the published specs against each other, and filtered out anything that needs a three-phase supply or a dedicated sub-panel. Every drum sander below runs on 110V or 115V single-phase power and can be handled by one or two people. If you are still building out your machine list, my guides to table saws for small shops and benchtop jointers for small shops cover the two machines most shops buy first.
The short answer to whether drum sanders are worth the money: yes, but only if you handle panels, doors, resawn lumber or parts under about 1/8 inch, and only if you already have room for a dedicated 20-amp circuit and 12 to 20 square feet of floor. If your work is all narrow solid-wood boards, a wide belt sander or a good random orbital sander will serve you faster. Every owner I found agrees on one thing, though: once you start flattening panels, you stop paying a millwork shop to do it.
Table of Contents
Top 3 Best Drum Sanders for a Small Shop in 2026
JET JWDS-1020 10-Inch Benchtop
- 1 HP 115V 8A motor
- Up to 20 inch capacity in two passes
- Toolless abrasive changes
JET JWDS-1632 16-32 Open Stand
- SandSmart auto-feed control
- 16 inch drum sands 32 inch panels in two passes
- Stand and 4 inch dust port included
VEVOR MS3140 16-Inch with Stand
- 1.5 HP at 1720 RPM
- Variable speed conveyor with belt tracker
- Two extension tables included
All Six Drum Sanders Compared in 2026
Every machine listed here shares the same basic layout, so the differences that actually matter in a small shop are drum width, how many passes you need for a full panel, machine weight, and whether feed control is automatic or left to you.
| Product | Specifications | Action |
|---|---|---|
| JET JWDS-1020 10-Inch Benchtop Drum Sander |
|
Check Latest Price |
| JET JWDS-1632 16-32 Drum Sander with Stand |
|
Check Latest Price |
| VEVOR MS3140 16-Inch Drum Sander with Stand |
|
Check Latest Price |
 SuperMax 16-32 Drum Sander Open Stand |
|
Check Latest Price |
 JET JWDS-1632OSC Oscillating Drum Sander |
|
Check Latest Price |
 JET JWDS-2550 25-Inch Closed Stand Drum Sander |
|
Check Latest Price |

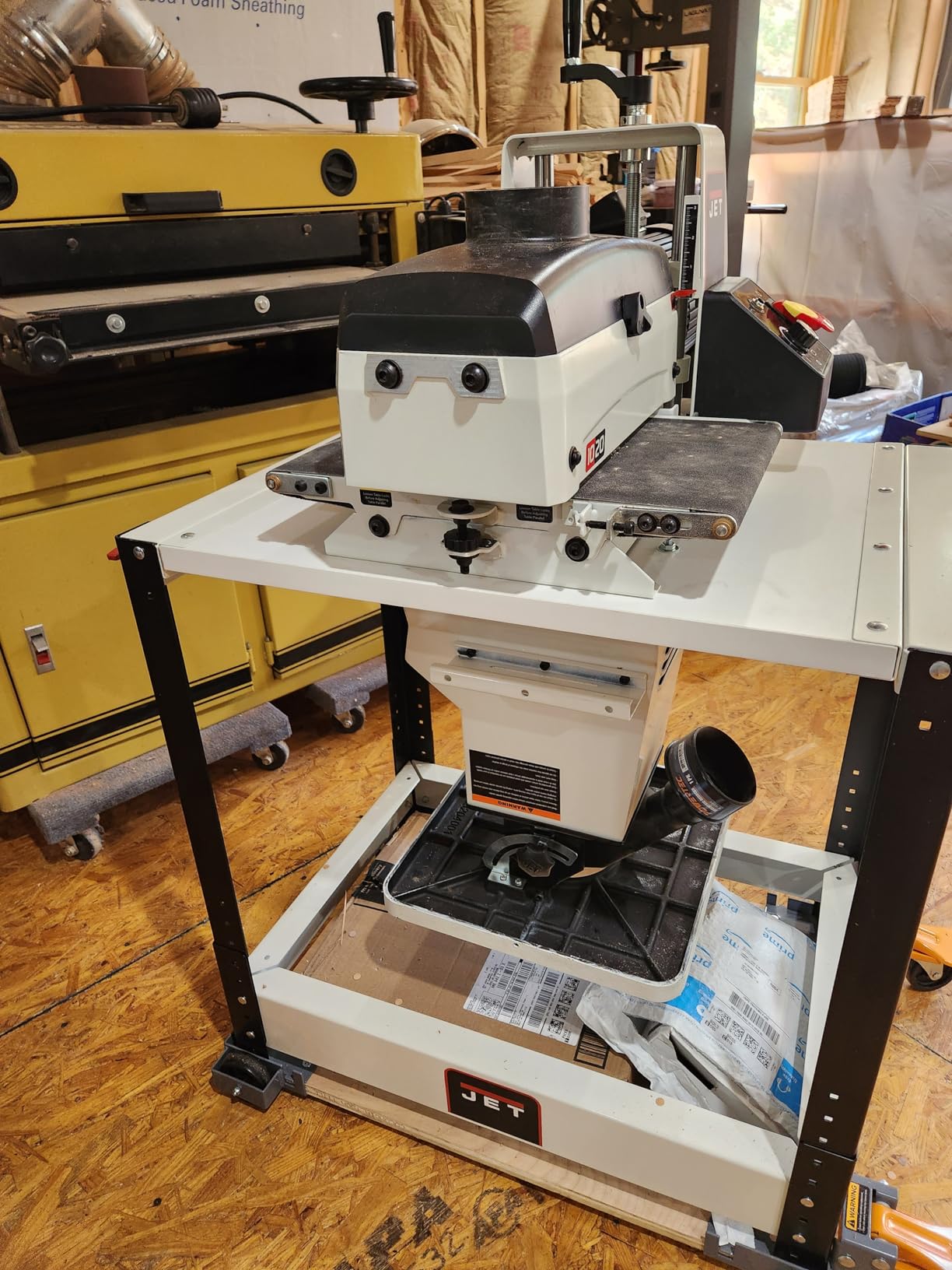

1. JET JWDS-1020 10-Inch Benchtop Drum Sander – Best Overall for Tight Shops
- Die-cast aluminum and steel body gives repeatable results
- Eliminates the snipe that came with my planer
- Handles short boards and veneer-thickness parts
- Infinitely variable speed control
- 5-year warranty
- Heavy at 73 pounds and needs two people to bench-mount
- Conveyor belt tracking takes patience to adjust
- Only one 80 grit wrap is included with the machine
This is the most-reviewed drum sander in this group and the one most small-shop owners already own. It is a benchtop 10-inch machine, which means the entire footprint is smaller than a shop stool, and the die-cast aluminum and steel body gives it the rigidity you would expect from something an order of magnitude heavier.
The open-ended design is the reason it stretches so far in a small space. A 10-inch drum sands 10 inches in one pass, and the open ends let you flip a workpiece for a second pass, so it handles up to 20 inches of width. That covers most cabinet doors, most small tabletops and every panel you will build on a bench.
The infinitely variable speed control is manual, so feed rate is on you. Owners running veneer and thin parts tend to work around the middle of the range and rely on a test piece before every job. That habit is worth forming early, because it is the difference between a clean edge and a burned one.
What impressed me most is the extruded aluminum drum, which is designed to shed heat rather than hold it. Heat is the number one complaint on this class of machine, and an aluminum drum is a meaningful defense against burning a panel when you take a heavy pass.
Owners also credit the toolless abrasive take-up fasteners and the integrated circuit breaker. The first makes a grit change a five-minute job, the second means a stalled paper or an over-cutting mistake will not cook the motor.
What you get for the footprint
At 26.85 inches long by 17.9 inches wide by 17.87 inches tall, this fits on a bench that a planer would otherwise occupy. If you want it mobile, a flip-top cart works, though you will want a second person when you lift it.
The catch on weight is real. Seventy-three pounds is bench-mount territory, not something you want to walk across a shop floor daily. Budget a helper for the initial lift and treat the machine as a permanent bench fixture afterward.
Where it falls short
Only a single 80-grit abrasive wrap is included, so plan on buying 120 and 180 grit before your first real project. The toolless fasteners make those changes fast once the roll is threaded correctly.
Setup and calibration take patience. A small but vocal group of owners reports drum shaft runout and inconsistent factory conveyor alignment on their units. Check parallelism across the full width with a straightedge before you trust a panel.
2. JET JWDS-1632 16-32 Open Stand Drum Sander – Best Value
- SandSmart auto-feed holds the fastest safe rate
- 16 inch drum handles 32 inch panels in two passes
- 4 inch dust port pairs with a cyclone collector
- Stand assembles in under an hour
- Accepts casters and extension tables
- Abrasive changes need three hands or a block
- Some new machines arrive out of parallelism
- 156 pounds is awkward without casters
If your shop handles real panels, this is the machine most of them should be looking at. The 16-inch drum covers a full-size door in one pass and a standard sheet-goods panel in two, and SandSmart auto-feed control removes the single biggest reason people give up on drum sanders.
SandSmart watches drum motor load continuously and slows the conveyor automatically when you take a heavy bite. That is not a convenience feature. On manual machines the owner has to find the one feed rate that works for every species and every board, and forum owners report it as the difference between a machine you trust and a machine you fight.
The dust hood is shaped to mirror the drum and channels chips straight to a 4-inch port. JET rates the machine for collecting up to 97% of sanding dust when paired with its cyclone collector, which matters in a small shop where dust control is usually the weakest part of the system.
On the mechanical side, a toolless parallelism dial and dual self-aligning belt trackers keep the conveyor level and centered. Owners with end-grain cutting boards and inlay work report this machine replaces planer snipe almost entirely, which is the reason many shops buy it.
The open stand footprint is 20 by 37 inches. It comes in two boxes with a complete steel stand and assembles in under an hour with basic hand tools, so you are not waiting on a carpenter the week it arrives.
What the stand situation costs you
At 156 pounds with the stand, this is a two-person lift. Optional locking casters and infeed and outfeed extension tables are both supported, and adding the casters is the single most useful accessory for a shop this size.
The 20-amp rating is the number to plan your electrical layout around. Put it on its own circuit rather than sharing with a dust collector, which is the most commonly reported cause of breaker trips on this class of machine.
Where it falls short
Abrasive changes are the weak point. Owners describe the spring clamps as stiff and the drum as needing to be held by hand, which means a block or a second person. Budget a little practice time on a scrap board before you change paper over your good work.
Some new machines arrive out of parallelism and need calibration before first use, and replacement parts for older JET drum sanders have reportedly been discontinued. If you are buying used, ask for the serial number before you assume parts are available.

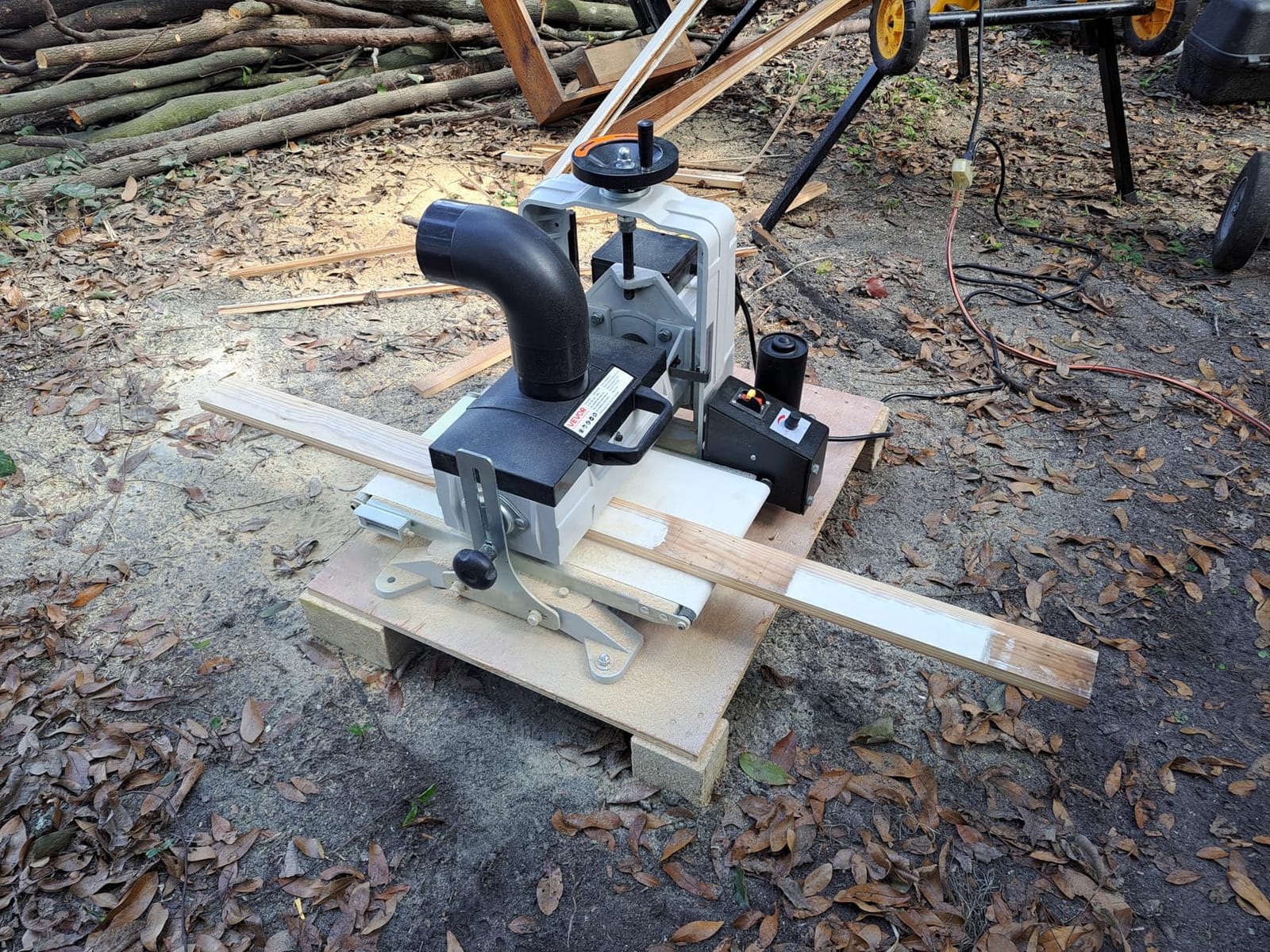

3. VEVOR MS3140 16-Inch Drum Sander with Stand – Best Budget
- Stout cast frame with geared drum gives square results
- Runs quietly with minimal vibration
- Accurate height handwheel down to 1/64 inch
- Extension tables and caster kit included
- Arrives crated and largely assembled
- 193 pounds is hard to reposition
- Thin review history of only 10 ratings
- Abrasive clamp is cramped and sharp-edged to reach

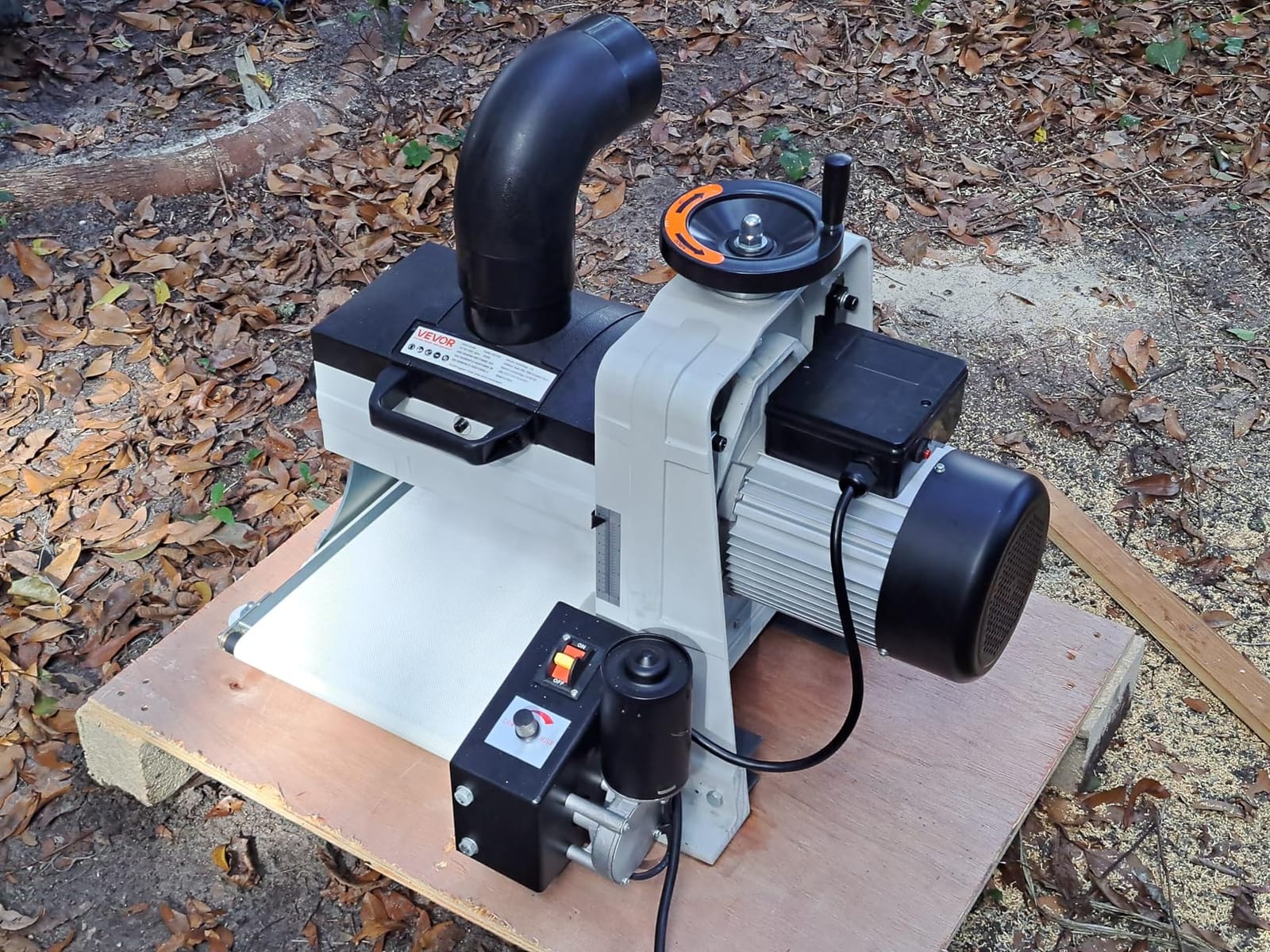

The VEVOR MS3140 is the value entry here: a dual-motor 16-inch machine on an open stand, with extension tables and a caster kit in the box. Owners describe a stout cast frame and a geared drum that produces consistent, square results across passes, which is more than the specification sheet alone would suggest.
The dual-motor layout splits the work. A direct-drive sanding motor handles the drum while a separate gear-reduction motor runs the conveyor, and a conveyor belt tracker plus variable speed control let you match the feed rate to the wood and the cut.
Stated material capacity runs from 1/32 inch to 3 inches thick at up to 16 inches wide, and the height adjustment handwheel is reported as accurate down to 1/64 inch or less. That range is what makes it useful for the thin-part work a planer would destroy.
Two extension table assemblies come in the box, which matters because a 16-inch machine with no infeed or outfeed support is awkward on long panels. It also arrives in a wooden crate and largely assembled, so setup time is a matter of bolting together rather than building a frame.
Operation is quiet with minimal vibration for a machine in this class, a real advantage if you share a space with a workshop in the same building.
What you get beyond the drum
The 4-inch dust port is the right size for the collector class most small shops already own. Wheel handles, a dust port adapter and two handle assembly kits are included alongside the extension tables and caster assembly.
At 193 pounds and 42.9 by 40.7 inches, the footprint is the widest in this group. Measure your floor before ordering, and plan to use the caster kit if the machine needs to move at all.
Where it falls short
The review base is thin at 10 ratings, and 22% of those are one-star. Several of the reviews quoted actually describe the 10-inch sibling in the same family, so read the sentiment as brand-level rather than strictly for this 16-inch configuration.
Owners report the abrasive clamp sitting in a cramped, sharp-edged area that is hard to reach from the infeed side. The feed belt also slipped during initial testing on a cupped board, and some snipe persists until belt tension is dialed in. Budget time for setup tuning.
4. SuperMax 16-32 Drum Sander Open Stand – Best for Compact Footprints
SuperMax 16-32 Drum Sander Open Stand INTELLISAND Technology Built-in DRO Quick Adjustment Lever
- Quick Adjustment Lever cuts setup time
- Built-in DRO holds consistent thickness
- IntelliSand designed to reduce gouging and burning
- Turbo vented port adds 15 percent airflow
- Smallest open stand footprint here
- Only 6 ratings so far
- Feed belt would not stay centered for one owner

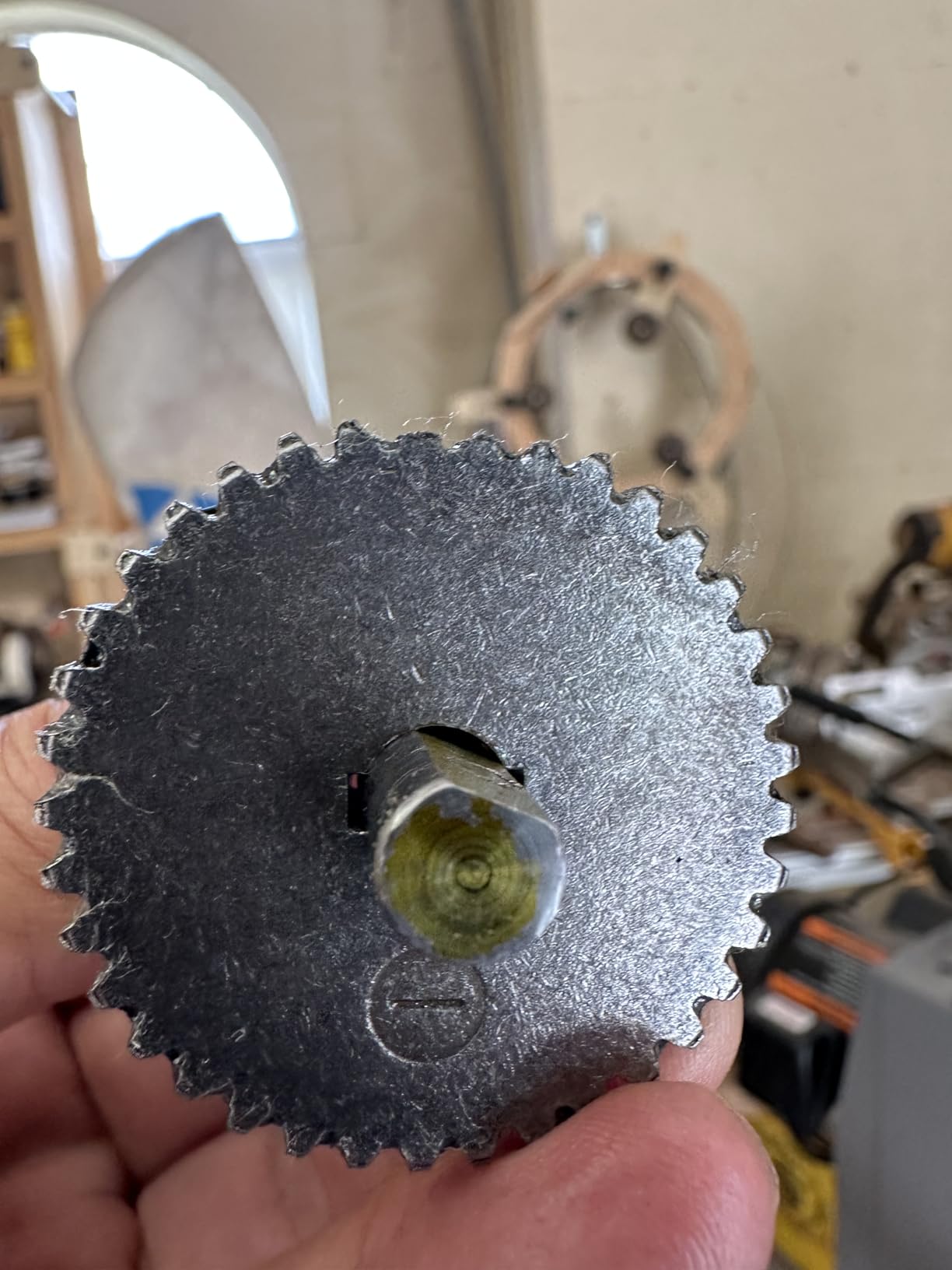

- Conveyor belt gears reported as plastic
The SuperMax 16-32 has the smallest stand footprint in this roundup at 20 by 27 inches, and it is the machine to shortlist first if your floor space is the binding constraint. Everything else about the specification sheet is built around a small shop too.
IntelliSand technology monitors drum load and adjusts the conveyor to prevent gouging, damaging or burning material, which is the closest equivalent in this group to the JET SandSmart system. The built-in digital read out lets you hold a consistent material thickness and return to it later in the batch.
The Quick Adjustment Lever is a patented setup shortcut that reduces changeover time, and the rear placement of the gear motor is meant to improve conveyor belt tracking. The Turbo Vented dust port claims 15% more airflow to your collector than a standard port.
Owners who get it running report it sands effectively once set up, and the read out is genuinely useful when you are working through a batch of identical parts and do not want to re-dial the depth every time.
Why the footprint matters more than the rating
A 20 by 27 inch open stand fits behind a bench in a one-car shop, where a 20 by 37 inch stand may not. If your space is tight, that difference decides the shortlist before any spec does.
At 158 pounds it is lighter than the VEVOR and the two larger JET machines, though still a two-person lift. The drum runs at 1740 RPM, close to the 1725 on the JET machines.
Where it falls short
Six ratings is too small a base to read confidently, and what feedback exists is sharply split. One owner is happy with the results while two of the most detailed reviews describe a feed belt that will not hold center alignment, including one case where support alignment calls did not resolve it.
That same owner reports support instructing them to discard the ceramic belt alignment blocks, after which tracking worsened. Conveyor belt gears have also been reported as plastic and breaking. If you buy this machine, confirm the belt and gear parts with the seller before you commit.

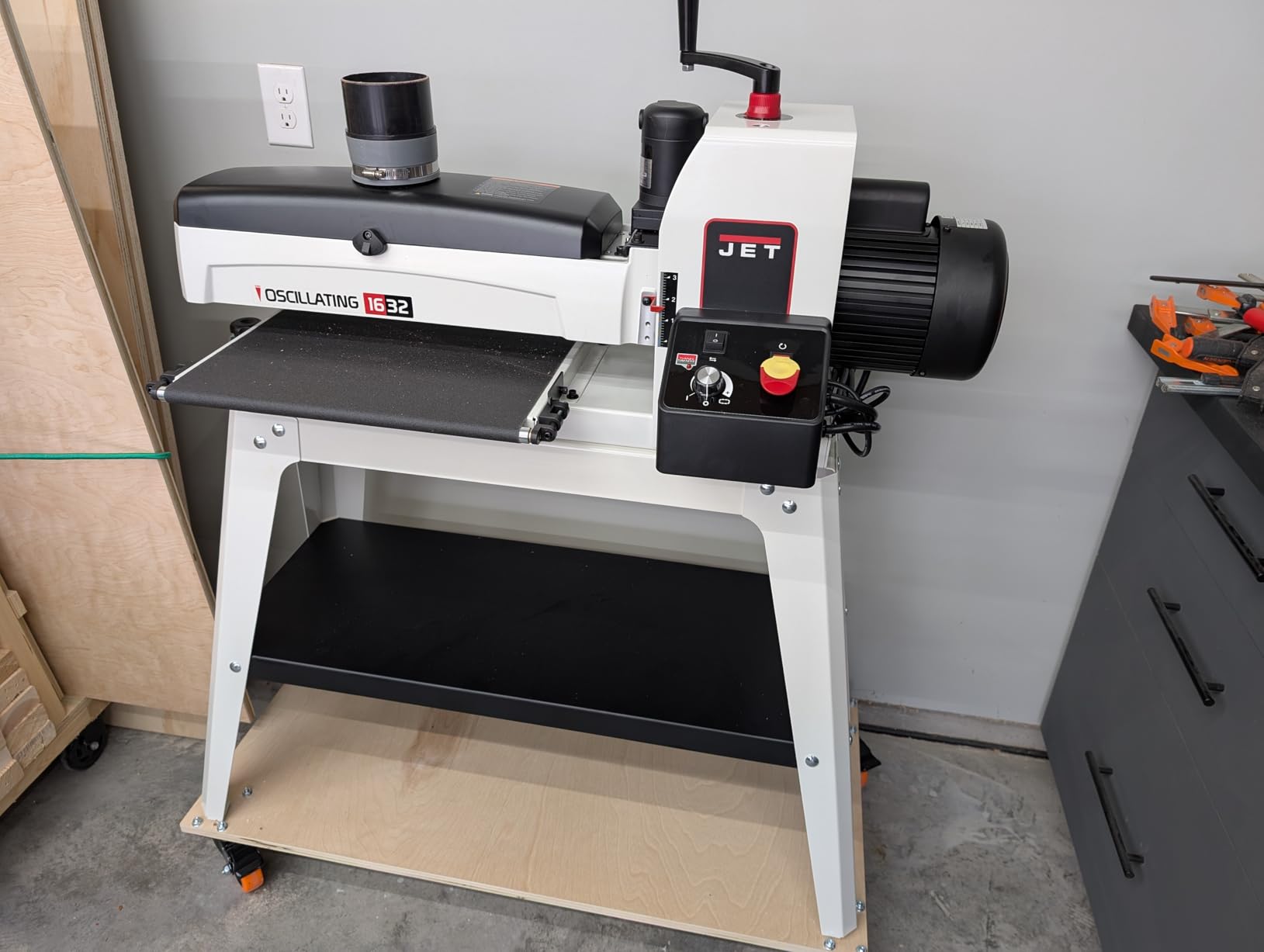

5. JET JWDS-1632OSC Oscillating Drum Sander – Top Rated for Finish Quality
JET 16-Inch Oscillating Drum Sander, 1-1/2 HP, 115V 1Ph (Model JWDS-1632OSC)
- Oscillating stroke removes snipe and tear-out
- Highest rated machine in this group
- SandSmart feed plus ceramic belt trackers
- Fast on thick lumber including 2 inch cutting boards
- Separate feed and drum motors
- 227 pounds needs two or three people to move
- Dust cover lid rattles loudly in operation
- Abrasive strips shift and overlap until you get practice
This is the machine owners rate highest, and the reason is a single design change: the drum oscillates up and down through 3/4 inch of stroke. That movement is what eliminates both snipe and tear-out, which are the two defects that push people back to a planer or a wide belt.
The drum itself is precision-machined and dynamically balanced, and the SandSmart feed control monitors drum motor load and regulates conveyor speed automatically. Separate feed and drum motors give you independent control of each, which matters when you are cutting thick hardwood one panel at a time.

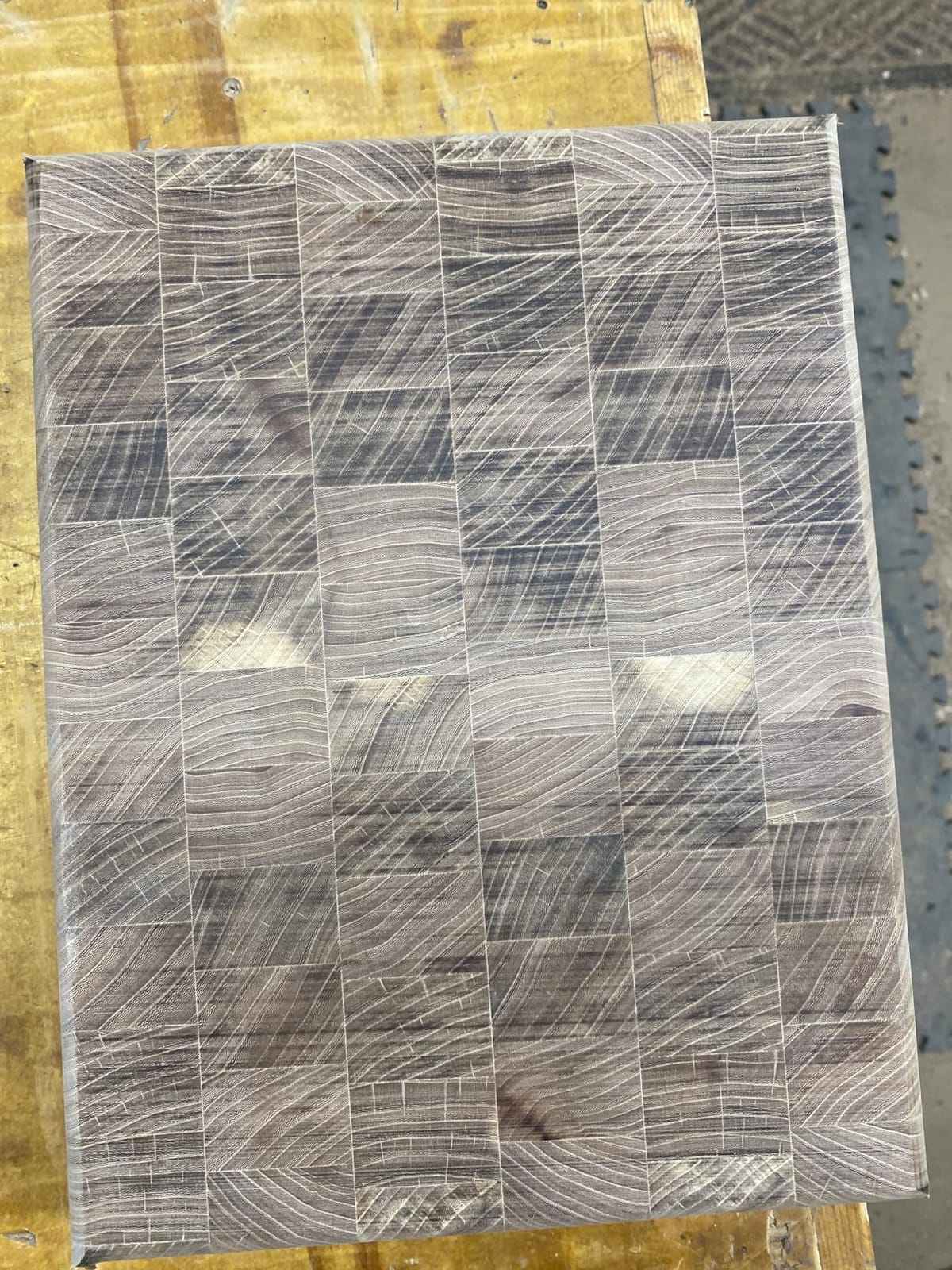

Owners report it is fast on thick lumber, including 2-inch cutting boards and cabinet frames, and several say it replaced the planer in their workflow entirely. Build quality is consistently praised and assembly is reported as easy.
The conveyor bed parallelism is adjusted by an external dial with no tools required, and ceramic conveyor belt trackers reduce the manual adjustment that other machines in this group need constantly.
It comes in two boxes: the sander with conveyor table and an 80-grit strip pre-installed, plus the stand assembly and hardware. A 4-inch dust port and a dust hood channel mirroring the drum shape handle collection.
When oscillation is worth the extra size
At 42.75 by 20.25 inches and 227 pounds, this is not a machine you tuck into a corner. It earns its space if you are doing furniture, cabinetry or luthiery work where a visible tear-out mark means a second sanding pass by hand.
The optional bed extensions are described as effectively necessary for the machine to be efficient on long workpieces. Plan for them in your floor space calculation, not as an afterthought.
Where it falls short
Two hundred and twenty-seven pounds is genuinely hard to move. Owners say you need a second or third person, and a cart for the stand is advisable if the machine is not going to live in one spot permanently.
The drum dust cover lid rattles against the housing and is loud in operation because there is no cushion seal. Abrasive changes also take practice to get the strips to stop shifting or overlapping, and the machine needs a moderate amount of calibration before it runs right.
6. JET JWDS-2550 25-Inch Closed Stand Drum Sander – Best for Enclosed Storage
JET 25-Inch Drum Sander, Closed Stand, 1-3/4 HP, 115V 1Ph (JWDS-2550)
- Direct drive is a genuine timesaver on wide lumber
- SandSmart slows the conveyor on heavy cuts automatically
- Closed stand with lockable storage door and integrated wheels
- Die cast carriage and parallelism stop speed repeat setup
- 270 pounds is hard to move
- Base cabinet arrived dented for one owner
- Conveyor belt tension must be set correctly or material slips
The JWDS-2550 is the top of this ladder and the only closed-stand machine here. If your shop produces wide panels in volume, the 25-inch drum is the difference between one pass and two, and the closed stand keeps the machine enclosed and lockable when the shop is not in use.
At 1-3/4 HP with direct drive, owners describe it as a genuine production timesaver. Direct drive replaces the belt drive used on older machines and is consistently reported as a clear step up in both power delivery and consistency.
What the closed stand actually gives you
The footprint is 17.5 by 38.5 inches, tighter than most open stands of this width, plus a solid door for closed storage and integrated wheels. That storage angle matters more in a small shop than it does in a commercial one, where the machine just stays running.
SandSmart feed control slows the conveyor automatically on hard material or heavy cuts, and the die cast drum carriage is designed for rigidity. The parallelism dial carries a stop that returns the conveyor bed to a flat position quickly, which speeds up repeat setups.
Where it falls short
Two hundred and seventy pounds is the heaviest machine here. Owners wish it had swivel wheels, and the top is heavy enough that setup wants a second person. One owner reported the base cabinet arrived in a light box and dented.
Two setup details catch people out. Conveyor belt tension has to be set correctly or workpieces will slip, bog and burn, and the abrasive needs re-tightening after the first minute or two of use as it heats and expands.
Should You Buy a Drum Sander at All?
Do the math before you commit. A local millwork shop with a wide belt sander bills by the hour, and two large panels still tie up roughly a quarter hour of its time before you add the round trip across town. For occasional panel work, that is cheaper than buying a machine and giving up floor space for it.
The case flips when the work is regular. If you are flattening cabinet doors, acoustic panels, glued-up tabletops or resawn veneer every week, the out-sourcing bill compounds fast, and you also lose the ability to run a part at 2 a.m. without a schedule. Our rule of thumb: buy when panel work is a weekly task, out-source when it is a monthly one.
Also decide whether a drum sander is the right machine at all. A spindle sander handles inside corners and curved edges that a drum can never reach, and a detail sander is better for final surface work on furniture parts. A drum sander is a thicknessing machine first and a finishing machine second.
One honest note from owners: drum sanders are slow. Multiple passes are normal, and a helical planer will beat it on thick, narrow lumber every time. If all your material is solid boards under 8 inches wide, the drum earns nothing and a wide belt sander would serve you better, though that machine class starts far above what any small shop should spend.
How to Buy a Drum Sander for a Small Shop
Drum width and what it really covers
A 10-inch drum gives 10 inches per pass and, on an open-ended machine, up to 20 inches in two passes. That covers shop-made doors and small tabletops. A 16-inch drum handles a full door in one pass and a standard panel in two. A 25-inch drum is for wide material in production.
Measure the widest thing you intend to run before you decide. Most small shops are buying a 16-inch machine, because it is the smallest width that covers a standard interior door without flipping it.
Benchtop or stand, and the floor it eats
Benchtop machines under about 100 pounds go on a bench you build or buy. Everything above that wants a stand, and stands are where footprint becomes the binding constraint. Open stands in this group run from 20 by 27 inches to 20 by 37 inches; closed stands are wider but enclose the machine.
Add clearance for infeed and outfeed support. Long panels need something to rest on, and the machines that include extension tables save you from building it. Also check the ceiling: the taller stands in this group are close to 50 inches, and dust collection needs room above them.
Circuit load, feed control and burned paper
Every machine here is 110V or 115V single phase, which is the main reason they suit a small shop. But the larger 16-inch and 25-inch machines draw 14 to 20 amps, which is most of a 20-amp circuit. Put the sander on its own circuit and do not share it with a dust collector, or you will trip the breaker mid-pass.
Feed control is the variable worth paying for. Manual speed control means you find the rate yourself and change it for every species and thickness; SandSmart on the JET machines and IntelliSand on the SuperMax watch drum load and slow the conveyor automatically. That is what stops paper from burning and tearing at the workpiece.
Board snipe happens because the drum deflects slightly under load and contacts the trailing edge more than the leading edge. It is worse on shallow, wide cuts, which is exactly where an oscillating drum earns its keep.
Dust collection port size
Five of the six machines here use a 4-inch port, which pairs with the mid-size cyclones and two-bag collectors most small shops already own. Match the port to your collector and check the rated CFM, since a small machine feeding an undersized collector will push dust back into the room.
The SuperMax Turbo Vented port claims 15% more airflow than a standard port at the same size, which is worth knowing if your collector is the weaker half of the system.
Used versus new
Used open-end drum sanders are common and worth a look, because the heavy cast frames hold up well. The parts to inspect are the conveyor belt and its tension, the belt trackers, the parallelism adjustment hardware, and the drum surface for scoring. Ask for the serial number, since parts for older machines at some brands have reportedly been discontinued.
Do not buy a used machine without a dedicated circuit ready. Replacing a tired belt or a cracked roller costs a fraction of a new machine, but a machine you cannot power safely is scrap. For our full small-shop machine roundup, see 10 best drum sanders for woodworking shops.
Frequently Asked Questions
What is the best drum sander for a small shop?
For most small shops the JET JWDS-1020 10-inch benchtop drum sander fits best, because it covers up to 20 inches in two passes, draws only 8 amps on 115V and needs no floor stand. If you regularly sand full-size doors or wide panels, step up to a 16-inch machine like the JET JWDS-1632, which handles 32 inches in two passes with automatic SandSmart feed control.
Are drum sanders worth the money?
They are worth it when panel work is a weekly task. A millwork shop with a wide belt sander bills by the hour, so even two panels taking about fifteen minutes of shop time adds up quickly. Buy a drum sander when you flatten doors, tabletops or resawn lumber regularly, and keep out-sourcing when that work is occasional.
Which drum sander is better, Grizzly or Jet?
Within this roundup only JET machines appear with enough review volume to judge. What their owner reports share is consistent: strong frames, effective automatic feed control, and accurate drums once calibrated. The recurring complaints are also consistent, including abrasive changes that need practice, heavy machines to move, and factory parallelism that sometimes needs adjustment on arrival.
What type of sander is best for sanding small spaces?
For genuinely tight spaces, a benchtop model under 100 pounds wins. The JET JWDS-1020 occupies less floor than a shop stool and needs no stand. If you have room for a stand, the SuperMax 16-32 has the smallest open stand footprint here at 20 by 27 inches, which matters more in a one-car shop than the extra drum width.
What size drum sander does a small shop need?
Most small shops should look at 16 inches. A 10-inch drum covers 20 inches in two passes, which suits shop-made doors and small tabletops. A 16-inch drum covers a full interior door in one pass and a standard panel in two, and that is the width most small furniture and cabinet shops settle on.
Final Verdict: The Best Drum Sanders for Small Shops in 2026
The JET JWDS-1020 takes our top spot as the best drum sander for a small shop because it solves the space and power problem while still sanding a 20-inch panel in two passes. It is the most-reviewed machine here, and it fits on a bench instead of a floor.
Buy the JET JWDS-1632 if your work includes full-size doors and you want automatic feed control, the SuperMax 16-32 if floor space is your hardest limit, and the JET JWDS-1632OSC if you need finish quality with no snipe or tear-out. Whichever you choose, give it a dedicated 20-amp circuit, a 4-inch dust collector, and your first hour of calibration before it touches your good work.
