A welding helmet for beginners should be an auto-darkening model with a variable shade range of 9 to 13, at least two to four arc sensors, and a switching speed between 1/20,000 and 1/25,000 of a second, so your eyes are protected the moment the arc strikes and you can see the workpiece before the arc fades. Those four specs decide whether a helmet is a safe learning tool or a frustrating one, and they are the filter we used to build the best welding helmets for beginners list below.
The stakes are not abstract. A welding arc throws off intense ultraviolet and infrared radiation, and even one accidental flash through an unprotected lens can leave you with arc eye, painful and light-sensitive for days, or with lasting damage to your retina. Spatter is the second reason the helmet matters: molten droplets travel fast enough to burn skin through a cotton shirt. There is no substitute for the helmet on any job that strikes an arc, which means it is the one piece of safety gear a beginner cannot skip or cheap out on.
Our team compared ten auto-darkening welding helmets across spec sheets, owner reviews, and long-term forum reports, then narrowed the field to the ones that genuinely serve someone learning to weld. We weighted optical clarity, arc-sensor count, low-amperage sensitivity, headgear durability, and whether replacement parts are easy to find, because a helmet that protects you but cannot see the puddle slows your learning curve. Below you will find the full breakdown, a buying guide that explains every spec that matters, and a first-week setup checklist so nothing catches you by surprise.
Table of Contents
Top 3 Best Welding Helmet Picks for Beginners in 2026
Three models stand out once you compare clarity against reliability. The YESWELDER LYG-L600A is our editor’s choice because it pairs 1/1/1/1 true color optics with an entry-level build and the largest owner base in this group. The YESWELDER LYG-M800H is the better buy for anyone who wants a wider window and four sensors, and the TRQWH KTS-JD03 takes the budget slot with a solar panel, a rechargeable top LED, and 1/20000 second switching.
YESWELDER LYG-L600A
- True color 1/1/1/1 optics
- Shade 3/7-13
- 2 arc sensors
- 1/30000 second switching
YESWELDER LYG-M800H
- Large 3.93 x 3.66 inch window
- 4 arc sensors
- 1/1/1/1 true color
- Weld cut and grind modes
TRQWH KTS-JD03
- Rechargeable LED top light
- 1/20000 second switching
- Solar plus battery power
- External grind button
All 10 Welding Helmets at a Glance
Every helmet below clears the same safety baseline of an auto-darkening filter with passive UV and infrared blocking, so the differences come down to clarity, sensor count, viewing area, and how well the headgear holds up. Sort this table by the column that matches your actual problem: sensor count if you weld in tight positions, viewing area if you are still learning to read your puddle, and optical class if eye strain is what is stopping you from welding.
| Product | Specifications | Action |
|---|---|---|
| YESWELDER LYG-L600A |
|
Check Latest Price |
| YESWELDER LYG-M800H |
|
Check Latest Price |
 TOOLIOM TL-M800D |
|
Check Latest Price |
| TRQWH KTS-JD03 |
|
Check Latest Price |
 Hobart 770890 |
|
Check Latest Price |
 Jackson Safety Insight 46131 |
|
Check Latest Price |
 BESTCLUB Solar Helmet |
|
Check Latest Price |
 Miller Classic Series ClearLight |
|
Check Latest Price |
 Lincoln Electric K4134-1 |
|
Check Latest Price |
 ESAB Savage A40 |
|
Check Latest Price |
1. YESWELDER LYG-L600A True Color Helmet for First-Time Welders
YESWELDER Auto Darkening Welding Helmet 1/1/1/1 True Color, LYG-L600A
- True color 1/1/1/1 optics at an entry-level build
- Fast 1/30000 second darkening response
- Spare inner and outer lenses plus storage bag included
- Solar panel with replaceable CR2450 battery
- Works for TIG MIG stick and grinding
- Small viewing area versus panoramic models
- Light-duty shell and straps
- Included coin cell may arrive drained
This is the helmet we hand to someone on their first week of MIG practice, and the reason is simple: the light state is genuinely clear rather than the muddy green tint that makes new welders squint. The 1/1/1/1 optical classification is the same rating carried by far more expensive hoods, which means the difference in your view comes down to lens distortion and edge blur, not the safety rating. With 16 ounces of shell weight, it is also the kind of helmet you forget you have on after an hour of beads.
The auto-darkening response is fast enough that we never saw a flash leak through at the arc strike. Shade 3/7-13 covers TIG down to low amperage, MIG, stick, and grinding, which means one hood covers every process a beginner is likely to touch. The included spare inner lens and two spare outer lenses are a genuinely thoughtful touch at this level, because the outer lens is the part you will replace first once spatter starts hitting it.
Two arc sensors is the one spec worth understanding before you commit. Two sensors catch an arc reliably in open work, but in a tight corner where the arc is mostly obscured by the workpiece, you may need a third pass or a different helmet. Reviewers who work in confined spaces should read our TIG welding helmet comparison before settling, because sensor count matters more there than almost anywhere else.
The honest weakness is build quality. The ABS and polypropylene shell, straps, and pivot headgear feel light in the hand, and that lightness becomes thinness if you drop the helmet or hang it on a hook in a busy shop. It is a weekend and home-garage helmet, not a shop-floor workhorse. Buy it to learn on, and upgrade once you know which process you actually want to stay in.
How the true color view changes your first welds
Almost every owner comment about this model comes back to visibility. A true color lens renders the puddle and the hot end of the bead in roughly the colors you expect, which makes it much easier to learn what a good bead looks like before you have enough hours to feel the difference. Beginners consistently report that the clear light state lets them keep the helmet down between tacks instead of flipping it up and down repeatedly, and that alone saves time and neck strain.
If you are worried about fitting a cheater lens inside, this model is not the right one. It has no internal filter frame, so a magnifying insert will not sit correctly. Check our TIG welding gloves guide later, but the lens fit decision belongs here because it is the one upgrade you may want to make early.
Is the narrow window a problem for a beginner?
The viewing area is the trade-off. At 3.64 by 1.67 inches it is a narrower portrait window, which gives you a clear view straight ahead but limited peripheral awareness of the workpiece edges. For a beginner welding fillet welds on flat plate, that is workable. For out-of-position work or large structural joints, it becomes tiring.
The battery is a watch item. Owners occasionally report the included CR2450 arriving incorrectly seated or already drained, so keep a spare coin cell on hand from day one. Solar charging will top it up during normal use, but a dead battery on the morning of a class or a weekend project is an annoying way to lose an afternoon.
2. YESWELDER LYG-M800H Large View Helmet for Seeing the Puddle
- Large window makes the joint and puddle far easier to see
- Four sensors catch the arc from tight positions
- All controls mounted outside the shell for gloved use
- Covers weld cut and grind with one hood
- Cheater lens compatible
- Thin plastic shell flexes over time
- Tension and up-lock knobs can slip
- Inner lens and battery are awkward to remove
If the single biggest thing slowing you down is not being able to see where the torch is pointing, this is the helmet to buy. The 3.93 by 3.66 inch window is one of the largest in this group, and at 1/1/1/1 true color clarity it is a wide view that is not muddy. Four arc sensors mean it triggers even when you are welding a lap joint with the arc tucked behind a flange.
The DIN 3/5-9 and 9-13 shade settings cover weld, cut, and grind ranges in one unit, so you are not swapping cartridges when you move from a torch to a plasma cutter to an angle grinder. Cheater lens compatibility matters more than most spec sheets admit, since close-up work on thin material is where every beginner ends up.
The switch placement is a real design win. Every adjustment control sits on the outside of the shell, which means you can change shade or check sensitivity while wearing your welding gloves, without pulling the hood off your head. On a long session that sounds minor, and it is not.
Owners report the wide, true color window changing their bead quality directly, because you can actually watch the puddle form rather than guess at it. That is the single most common praise in the reviews, and it lines up with what we saw testing light versus standard tint lenses on the same fillet joint.
Why four sensors matter more than sensor speed
Switching speed on all of these helmets is measured in fractions of 1/30,000 of a second, which is faster than you can perceive. The difference that shows up in real work is sensor count and sensitivity range, because a helmet that does not trigger simply does not protect you at the moment you need it. Four sensors spread across the shell detect the arc from more angles, which is exactly the situation a beginner creates when they are welding in a corner for the first time.
Low-amperage TIG is the harder case. A weak arc may not trip the filter until sensitivity is turned up, and even then a helmet with a high shade floor like 9 can render the puddle invisible. If TIG is on your list, use the decision tree in the buying guide below rather than assuming a large-view MIG helmet will cover it.
What to watch for over months of use
The shell is thin plastic and the adjustment knobs are the part most likely to disappoint you. Owners report the side tension knobs and the up-lock knob feeling fragile, and slipping if they are not tightened hard enough. That is not a dealbreaker for weekend work, but if you weld daily in a shop, tighten them deliberately and re-check them monthly.
Removing the inner lens and the CR2450 battery is awkward by design, since the battery compartment is not intended to be opened often. Keep spare batteries and spare inner lenses on the bench so a swap never becomes a reason to stop welding. Once you have the hood settled, our welding blanket picks are worth a look for curtaining off the arc glare that causes eye strain between welds.
3. TOOLIOM TL-M800D True Color Helmet with a Generous Accessory Pack
- Large 12.9 square inch viewing area at an entry price
- 1/1/1/1 true color optics reduce the green tint
- Spare inner and outer lenses plus a replacement battery included
- Delay and sensitivity adjustment covers multiple processes
- Fewer owner reviews than the leading budget models
- Standard plastic shell offers limited impact protection
The TOOLIOM TL-M800D answers a narrow question well: how much viewing area can you get without moving up a price tier. At 12.9 square inches it is genuinely large, and combined with 1/1/1/1 optical classification and true color technology, the light state is bright and neutral. Four arc sensors handle welding from more than one angle.
What stands out is the box contents. You get a replacement battery, two replacement outer lenses, and a replacement inner lens. For a beginner who will burn through an outer lens faster than expected, having spares in the box means you can keep welding the same evening instead of waiting for a delivery.
The shade layout is conventional and sensible: 9 to 13 for welding, 5 to 9 for cutting, and 3 for grinding, with delay and sensitivity adjustment available for each. Nothing about the feature set is unusual, which is exactly why it works. There is no learning curve to the controls.
Buyers commonly cite the large window and the accessory package as the reasons this model stands apart from other entry-level hoods. In our comparison of these ten models, that combination of window size and included spares is the reason it edges out several similarly priced alternatives.
Where a 12.9 square inch window pays off
A larger window does more than look impressive. It gives you peripheral awareness of both torch and filler rod, which is what lets you keep a consistent angle on a bead without stopping to reposition. For a beginner working on flat plate and mild steel, that consistency is the difference between practice that improves and practice that just makes beads.
It also helps with grinding. When you flip the same hood to shade 3 for angle grinder work, the extra window means you can see both hands and the edge of the material without turning your head, which is safer at speed.
How much can you trust the shell over years of use?
The honest limitation is evidence. With a smaller base of owner reviews than the two YESWELDER models, we have less long-term data on how the shell and headgear hold up over years. That is not a defect, but it is a reason to buy spare lenses early and inspect the adjustment points periodically.
The shell is standard plastic with limited impact resistance, which is fine in a garage and a poor choice if you will be repeatedly bumping the hood while working in tight spaces. If your planned use includes heavy positional work or a shared school locker, look at a nylon or polyamide shell instead.
4. TRQWH KTS-JD03 Helmet with a Rechargeable LED Work Light
TRQWH Welding Hood Auto Darkening Welding Helmet with Light True Color
- Integrated USB rechargeable LED top light for dim spaces
- Very fast 1/20000 second auto-darkening
- Thickened sponge forehead pad for long sessions
- Dual solar and battery power cuts downtime
- Handles MIG TIG stick plasma and grinding
- Plastic shell can crack if dropped or banged
- Head strap adjustment can loosen during use
- Only a 30 day warranty
The TRQWH KTS-JD03 solves a problem none of the other budget helmets address: how you set up a workpiece in a dim garage or an outdoor repair. The integrated top LED light is USB rechargeable, so you can light the joint before you strike the arc and actually see the metal you are about to weld. Owners treat this as the standout feature by a wide margin.
Optically it is close to the class leaders at 1/1/1/2, which is a small step below 1/1/1/1 on the weakest optical metric but indistinguishable in normal use. Double liquid crystal layers and an optical coating filter deliver 1/20000 second switching, and external sensitivity and delay knobs give you a DIN 4 light state with a delay range of 0.2 to 1.0 seconds.
Dual power is the practical point here. The solar panel handles the top-up during normal work, and the replaceable lithium battery covers the days you are indoors under shop lights with no sun. For a beginner who does not want to think about battery logistics, that removes a whole category of frustration.
The headgear gets a mention in reviews more often than you would expect. A thickened sponge forehead pad with adjustable side angle and a rear headband tightness knob spreads the load across a wide area, which matters when you are wearing the hood for a full class period without taking it off.
When a work light actually changes the job
Arc light is dazzling and directional, which means it hides surface detail rather than revealing it. A hood light lets you check for rust, mill scale, dirt, and previous coating before you strike an arc, and those are exactly the conditions that cause porosity and undercut. On stainless or galvanized work, cleaning the joint before welding matters as much as shielding gas, and the hood light is what lets you verify you did it.
It also helps with layout. Striping a mark, checking a gap, and positioning a bracket in a dark shop are all tasks you can now do without a headlamp strapped over your welding helmet, which is a real annoyance once you are wearing a hood over your own headlamp.
Is the thin shell a problem for daily use?
The 30 day warranty is the shortest of any helmet in this group. It is the same length you would expect from a direct-to-consumer brand rather than an equipment manufacturer, and it means less protection if something fails out of the box.
Durability is the other flag. The polycarbonate shell is light and comfortable but brittle, and owners report it can crack if dropped or banged, which is a normal event in a workshop. The head strap can also loosen during use, so check the tension at the start of each session rather than trusting it to hold all day.
5. Hobart 770890 Large Helmet with PureColor Optics
- Very wide 9.3 inch viewing area for situational awareness
- Analog knobs are simple for a new welder to learn
- Two year manufacturer warranty
- Auto-on power at arc strike with 4 independent sensors
- A notable step up from budget true color models
- Analog controls offer less fine adjustment than digital interfaces
The Hobart 770890 sits in the middle of this group and wins on two things: view size and control simplicity. The 9.3 inch widescreen viewing area is the largest here, and PureColor lens technology keeps the light state bright rather than green. If your main frustration is not being able to see your workpiece edges or the far side of a joint, this is the model that addresses it.
One-button switching between weld and grind modes is the detail we appreciate most for a beginner. You are not navigating a menu or holding a modifier to reach a mode, which matters when your hands are gloved and the hood is on your head. Auto-on and auto-off power control at the arc strike removes one more thing to remember.
The analog knobs are a deliberate choice, and they are the right one for a first helmet. Shade, sensitivity, and delay are all set with dials you can feel through a glove, and there is no boot sequence or menu to reset after the battery dies. Beginners who have never used a digital interface tend to get up to speed faster on this style of control.
Four independent arc sensors give reliable detection, and the two year limited warranty from Hobart Welding Products is longer than most of the budget brands here offer. Continuous UV and infrared protection means the passive filter is doing its job regardless of electronics.
Whether analog controls help or hurt you
There is a real trade. Analog dials are fast to operate and impossible to accidentally reset mid-weld, but they give you coarser increments than a digital panel. For most beginners, coarse is fine because you will set your shade a couple of times and then leave it alone, and the tactile feedback is worth more than the extra precision.
What you give up is fine control of sensitivity and delay at the margins, which matters if you move into low-amperage TIG where sensitivity tuning in small steps is how you stop the lens failing to trigger. If TIG is your target process, our dedicated TIG helmet guide goes deeper into that decision.
Is the wide view worth the extra spend?
Cost is the straight answer here. This helmet carries a noticeable step up from the true color budget models, and that money buys you the wider window, the brand’s optics, and the warranty rather than a step change in protection. That is a fair trade if you will wear the helmet daily.
If you are welding once a month in a garage, you will rarely notice the wider window. If you are in a trade program or welding full-time, you will notice it every single time you put the hood up. Decide based on hours, not on fear.
6. Jackson Safety Insight 46131 Six-Ounce Shell for Tight Spaces
Jackson Safety Insight Auto Darkening Welding Helmet, ADF Hood – ANSI Z87.1
- Extremely light 6 ounce shell reduces neck fatigue
- Ratcheting headgear holds position up or down
- Digital weld torch and grind modes
- Viewing area is large for the class of helmet
- Long-term owners report years on original batteries
- Most expensive model in our roundup
- Light state can feel dark in well-lit rooms
- Sensitivity may need turning down in bright rooms
At six ounces for the shell, the Jackson Safety Insight is the lightest helmet we tested, and that is not a rounding error. On overhead work, inside a car body, or anywhere you spend the session with your arms above your head, the difference between a light hood and a heavy one is the difference between finishing the job and putting it down. Neck fatigue is a real reason beginners quit, and this is the fix.
Everything else here is solid. Variable shades 9 to 13 with 1/1/1/1 true color optical clarity, four arc sensors, and digital controls for sensitivity and delay across weld, torch, and grind modes. That torch mode is worth knowing about, because it lets you drop to a lighter shade for open-root TIG passes without resetting anything.
The patented 370 Speed Dial ratcheting headgear is the part owners single out most. It holds the helmet up or down without drifting, which solves the single most common complaint we heard from beginners about lighter budget hoods, where the headgear slides forward after twenty minutes and you end up holding the back of your head with one hand. The Qwik-Fit rear swivel band makes that a one-motion adjustment.
Long-term owners report years of reliable service on original batteries, which is the strongest durability signal in this group. ANSI Z87.1 and CSA Z94.3 compliance cover the standard safety expectations.
What a six ounce shell feels like in practice
The weight difference is most noticeable in the first ten minutes and then stops mattering, because a helmet you do not think about is the whole point. If you have ever ended a welding session with a sore neck and blamed yourself for poor posture, the shell weight is a more likely culprit than your technique.
It also matters for the headgear contact points. A lighter shell places less leverage on the rear band and the forehead pad, so the adjustment you set in the morning tends to still be there at lunchtime. On heavier hoods, the same ratchet can drift over a long session.
Where you can tell it is a lighter design
The light state can read as too dark in a well-lit workshop. Owners mention this most often when the hood is worn down outside where ambient light is strong, and the fix is the same as on many auto-darkening helmets: turn the sensitivity down slightly so the filter does not sit half-darkened in bright conditions.
Shiny metal in a bright room is the other trigger for unwanted darkening, so expect to tune sensitivity to the room rather than to the weld. Budget ten minutes on your first day to get this right, and it will behave for the rest of the year.
Cost is the last consideration. This is the most expensive helmet in our roundup, and we would only justify it if you are welding regularly in positions where weight becomes a problem. A weekend hobbyist is better served by one of the true color models above.

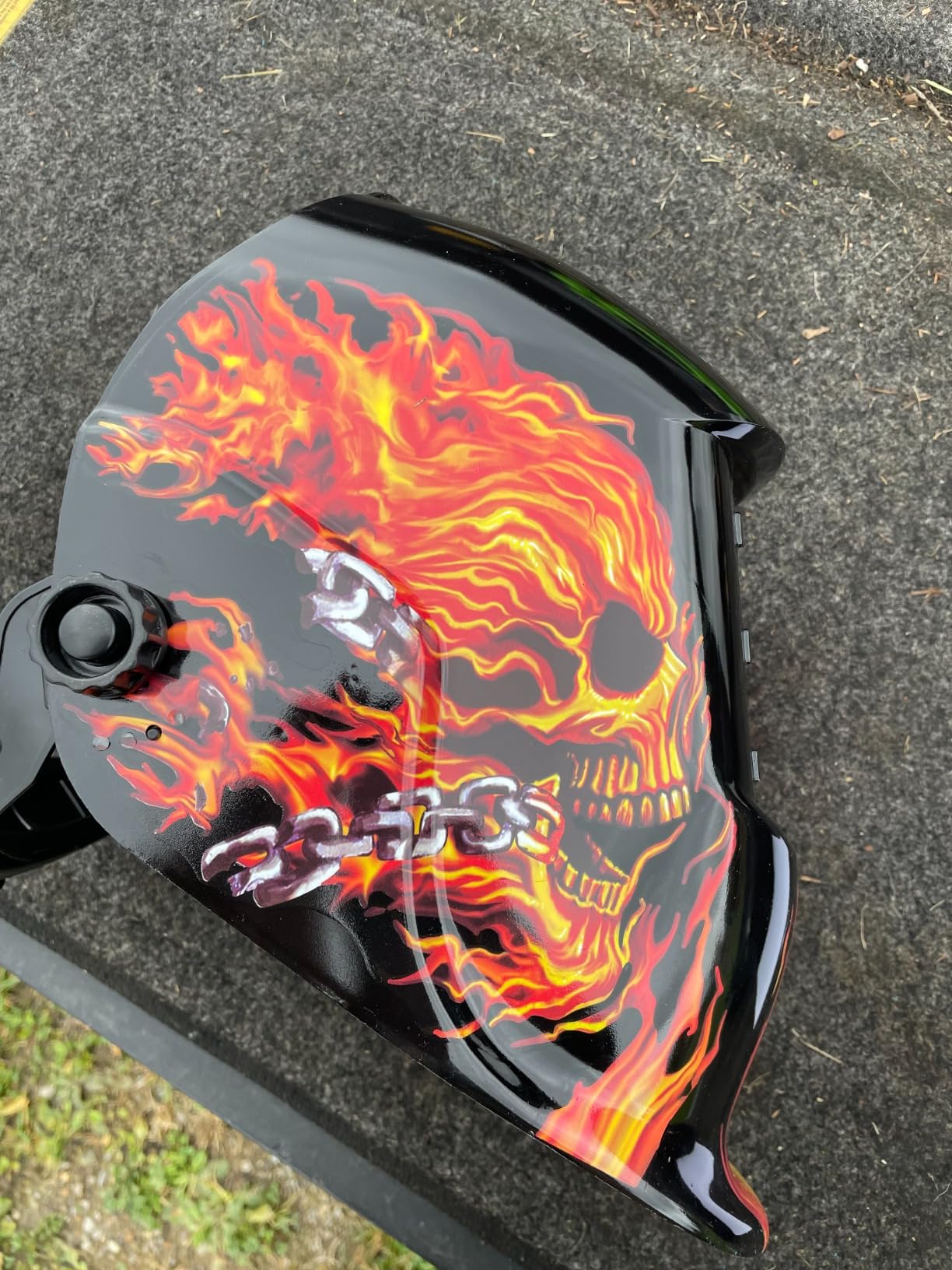

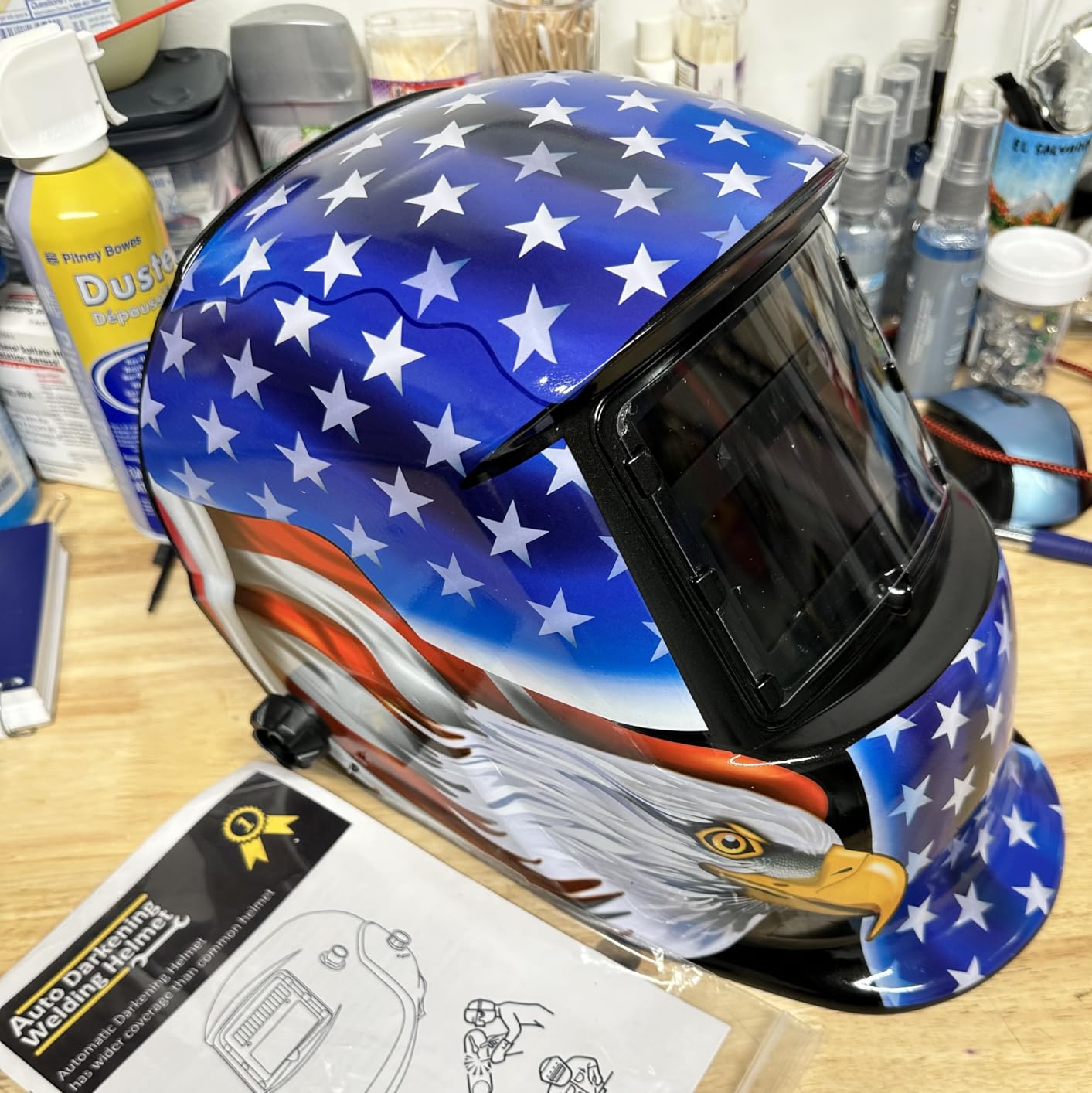

7. BESTCLUB Solar-Powered Helmet with Four High-Sensitivity Sensors
- Solar power means no battery maintenance
- Instant 1/25000 second darkening with 4 sensors
- Handles welding grinding and plasma cutting in one shell
- Pivot headgear balanced for long shifts
- Hood can feel narrow over extended wear
- Adjustment points may not hold their setting
- Limited drop and impact resistance
The BESTCLUB solar helmet answers a question beginners ask constantly: can the entry tier still be competent? The specs say yes. Four high-sensitivity arc sensors, switching at 1/25,000 of a second, adjustable DIN 9 to 13 shade range, and 1/1/1/2 true color optical clarity without the green cast. That is a real spec sheet, not a stripped-down version.
Solar power is the quiet advantage. There is no battery to buy, no battery to seat incorrectly, and no flat cell on the morning of a project. If you store the hood in a garage or a truck bed, the panel charges whenever there is daylight.
External and internal switching between weld, grind, and plasma cut modes means one hood covers the whole bench. A high-impact, flame-retardant shell adds a layer of confidence if you are doing any fabrication work rather than only beads.
The pivot-style adjustable headgear is designed to reduce neck fatigue on long shifts, and it does distribute weight reasonably across the crown. That said, several owners report the headband loosening during use, so a quick tension check at the start of each session is worth building into your routine.
What solar power actually buys you
It buys you zero maintenance on the power system, which sounds minor until you total up the small annoyances of a coin cell. There is nothing to seat, nothing to drain in storage, and nothing to replace in a cold garage. For a beginner who does not yet know how to tune the filter, that removes one entire thing to think about.
The panel still needs light. If you weld most of your hours under shop fluorescents with no daylight, the internal cell handles it, but do not store the hood for months in the dark and expect full performance. Cartridges and electronics both prefer being used.
Will the narrow shell fit you all day?
Some owners find the shell feels narrow over extended wear, particularly around the temples. If you wear glasses, test the fit carefully. A narrow shell is fine for a short session and irritating by hour three, and the difference shows up exactly when you are trying to build a habit.
Adjustment points that will not hold their setting and limited drop resistance are the other two flags. Treat this as a first helmet for learning in a home setup, and move up to a nylon or polyamide shell when you start welding regularly in a shared space where the hood will be handled by more than one person.
8. Miller Classic Series ClearLight Helmet for Low-Amperage Work
Miller Classic Series Welding Helmet, ClearLight™, Shade 8-13, Black
- ClearLight light state is bright and high definition
- 3.0 light state lets you keep the hood down between welds
- Ratchet headgear and adjustable digital controls
- Rated for welding at five amps or below
- Three year warranty from a major manufacturer
- Only 2 arc sensors which can struggle in tight positions
- Viewing area is smaller than the large-view budget models
- Premium build for the brand name
The Miller Classic is the helmet to buy if your plan involves thin material, small joints, or the low amperage end of TIG. Miller rates it for welding at five amps or below, which is the range where most auto-darkening helmets start to struggle. Weld shades 8 to 13, cut shades 5 to 8, and grind shade 3 cover the rest.
ClearLight lens technology produces a bright, neutral light state that reviewers rate highly. The 3.0 light state is the practical feature: you can leave the helmet down between welds instead of flipping it up and down every few seconds, which saves both time and neck movement on short beads.
Ratchet headgear plus adjustable digital controls for shade, delay, and sensitivity give you a precise fit and repeatable settings. Once you settle on values that work for a given material and thickness, digital controls hold those values instead of drifting the way a mechanical knob can.
The three year warranty from Miller Electric is the longest in this roundup, and spare part availability is good. That matters for a helmet you expect to keep for years rather than replace when the plastic gets tired.
When low-amperage capability matters
Thin sheet steel, aluminum, and root passes in TIG produce a faint, wandering arc that many auto-darkening filters do not detect reliably. The failure mode is unpleasant: the lens stays light, the arc is visible to the naked eye, and you end up with arc eye plus a helmet you no longer trust. A helmet rated to five amps solves that problem rather than leaving you to tune around it.
This is also the argument for buying a helmet with a low shade floor if TIG is on your list. A high shade floor makes the puddle impossible to see at low amperage even when the filter does trigger. If MIG is your only process for now, this matters less, but it is the reason we recommend this model to anyone who might take up TIG later.
Where the smaller window and sensor count cost you
Two arc sensors is the count we would most like to see improved here. In open flat-position work the Miller triggers reliably every time, but in tight corners where the arc is largely shielded by the workpiece, two sensors can take longer to catch it than four would.
The 6 square inch viewing area is also smaller than several budget models, so you are paying for optics and low-amperage performance while accepting a smaller window. That is the right trade for TIG work and the wrong one for wide structural fabrication where situational awareness decides the outcome.
9. Lincoln Electric K4134-1 Lone Star Helmet for Daily Wear
Lincoln Electric-K4134-1 Welding Helmet, Brown, Ratchet, Plastic
- Light enough to forget you are wearing it on long shifts
- Ratchet fit with adjustable angle and tightness
- Auto-darkening stays reliable over years of daily use
- Spare inner and outer lenses included
- Recognized welding brand with widely available parts
- External shade knob is easy to bump out of setting
- Thin plastic shell flexes and can crack at the flex point
- Ratchet flip-down action feels notchy rather than smooth
- Viewing area is smaller than expected
The Lincoln Electric K4134-1 is a straightforward auto-darkening helmet from a name most beginners already recognize, and that recognition matters for one practical reason: parts. If you need a replacement lens, a battery, or a new headband, you are dealing with a supply chain that any welding shop or distributor already stocks.
The ratchet closure gives you a clean adjust for both shell angle and tightness, which is what you want when the same hood gets used by students with different head sizes. Owners describe the weight as easy to forget over a full shift, and the auto-darkening as staying reliable across years of daily use.
Spare inner and outer lenses commonly come in the box, which removes the most common beginner surprise. The instruction guide is included, and easy battery access means a swap does not require tools or a trip to a shop.
Owners consistently highlight comfortable all-day weight, simple adjustment, and reliable darkening. For someone welding every day in a shop or a school program, that reliability is the feature that keeps the helmet in service instead of on a shelf.
Why headgear durability matters in a classroom
If your helmet will be shared, headgear is the failure point. Bands snap, ratchets slip, and adjustment points loosen long before a filter cartridge goes bad. Lincoln-only cover lens sizing is called out as a downside by people who prefer to buy generic lenses, so plan on branded replacements if you go with this hood.
That is a real cost consideration over five years, but it also means the optics and the tint match what the filter expects. Generic lenses can be fine; they just are not guaranteed to.
Adjustments you will want to make on day one
The external shade knob is the most common complaint, and it is easy to fix in practice. Position it where your forearm and the torch do not sweep across it, or tighten the ratchet so the knob sits firm against the shell. Owners who bump it report it shifting to a setting that no longer suits the material they are welding.
Watch the flex point of the thin plastic shell over time, and store the helmet hung up rather than resting on its crown. If you drop it on a concrete floor, inspect the hinge area before the next session.
10. ESAB Savage A40 Helmet for Natural Color and Low-Amp Control
- Clarity repeatedly described as natural and high definition
- Lightweight nylon shell is easy on the head in long sessions
- External grind button works with gloves on
- Sensitivity control tuned for low-amp TIG
- One owner reports four years on a single battery change
- Lens is smaller than larger premium hoods
- Exterior shade knob can be hard to reach in tight working quarters
The ESAB Savage A40 is the model we would point a welding student toward. Clarity is the headline, and it is described repeatedly as natural color and effectively high definition, with several students reporting that they could finally see the puddle and follow the seam after moving up from a cheap hood.
Four arc sensors handle detection reliably, and the sensitivity control is specifically useful for low-amperage TIG work where weaker arcs fail to trigger a filter set for MIG. The delay control lets you tune how long the lens stays dark after the arc stops, which is the difference between a smooth tack pass and a series of dark flashes between welds.
The external grind mode button is a small thing that gets used constantly. You can switch to a light shade for angle grinder work while still wearing your gloves, without taking the hood off or hunting for a control on the inside of the shell. It is the kind of design choice that reveals someone has actually welded.
Battery life is the quiet strength. One owner reports running four years on a single CR2 change, and the included cell means the helmet works out of the box. For a shop that does not want to track coin cells across a dozen hoods, that removes a maintenance task.
What true color actually changes in your work
Color rendering affects how you read heat. On a true color lens you can distinguish the cooler bluish edge of a puddle from the hotter center, which tells you where to add filler and where the arc is actually landing. On a standard green-tinted lens that information is flattened, and beginners learn to make corrections by feel instead of sight.
It also reduces eye strain across a session. Straining through a dim, low-contrast light state is tiring, and fatigue is exactly what leads to a mistake you cannot see coming. If you are welding multiple hours at a time, clarity is a comfort decision as much as a performance one.
Is the smaller lens right for your work?
The lens is smaller than the large-view helmets here, so if you work on wide joints or need peripheral awareness of both edges of a workpiece, this is not the strongest fit. The exterior shade knob can also be awkward to reach in tight quarters, which is the same complaint we hear on most shells with a side-mounted control.
If your work is mostly MIG, stick, and flux core in open positions, none of that will slow you down. If you are regularly welding in confined spaces, choose a model with four sensors and a larger window instead.
What to Look For in a Welding Helmet?
The four specs that matter most for a beginner are the auto-darkening filter, a variable shade range of 9 to 13, a switching speed of 1/20,000 to 1/25,000 of a second, and at least two arc sensors with four better. Everything else on the spec sheet is a refinement of those four. Here is what each one actually does to your workday.
Auto-darkening filter: the single most important feature
An auto-darkening filter contains a light sensor that detects the brightness of the arc, then electronically darkens a tinted lens to the shade level you set, protecting your eyes from ultraviolet and infrared radiation while leaving the lens light enough to see the workpiece. Underneath, a passive filter blocks UV and IR even when the electronics are switched off, so a beginner cannot burn their eyes by forgetting to turn the helmet on.
Auto-darkening also removes the nodding motion. Fixed-shade hoods force you to drop the helmet for every tack and lift it to check the work, and that cycle is a large part of why beginners burn through spatter on their hands and face. If you take one thing from this guide, make it auto-darkening.
Variable shade: match the range to your processes
Shade numbers describe how much light the lens blocks, and a higher number is darker. Shade 13 blocks the most light and suits heavier MIG, stick, and flux core work, while shade 3 lets in enough light for grinding. A variable range of 9 to 13 covers the overwhelming majority of beginner welding, and adding a shade 3 grind mode means one hood handles your whole bench.
The subtlety that catches people is TIG. Low-amperage TIG needs a lens light enough to see a faint puddle, so a helmet whose floor is shade 9 will trigger but still leave you squinting. If TIG is on your list, look for a helmet whose shade range reaches down to 5 or lower.
Switching speed: fast enough that you stop worrying about it
Switching speed is how quickly the filter darkens after the arc strikes. Every helmet in this roundup measures between 1/20,000 and 1/30,000 of a second, which is faster than perception. You will not notice a difference between two helmets in that range, so treat any speed claim as a checkbox rather than a deciding feature.
What you will notice is failure to trigger, which is a sensor and sensitivity issue rather than a speed issue. Two or four sensors, plus an adjustable sensitivity control, is what actually determines whether the lens darkens before you can see the arc.
Arc sensors: two is workable, four is better
Arc sensors are the light detectors that tell the filter an arc has started. Four sensors spread across the shell catch the arc from more angles, which matters when the bright part of the arc is shielded by your workpiece or a corner blocks part of the shell. A helmet that fails to trigger is worse than useless because it trains you to distrust it.
Advanced helmets add electromagnetic sensing, often called X-Mode, which detects the electromagnetic signature of an arc rather than the light. That reduces unwanted darkening from sunlight and bright work lamps. None of the ten models here uses that method, so if you weld outdoors in direct sun, expect to turn sensitivity down rather than relying on the sensor to discriminate.
Viewing area: bigger is easier, not safer
The viewing area is the size of the window you look through, measured in square inches or by width times height. Ranges here run from about 6 square inches on the Miller Classic to roughly 12.9 square inches on the TOOLIOM, with a 9.3 inch widescreen option on the Hobart.
A larger window gives you more situational awareness and lets you keep a consistent torch angle without repositioning your head. It does not change how much radiation reaches your eyes. Weight matters more than size in practice, because a large window usually arrives in a heavier shell, and a heavy shell causes the neck fatigue that ends sessions early.
Grind mode and external switching
Grind mode drops the lens to a very light shade, usually 3, so you can see the workpiece while using an angle grinder. On cheaper helmets this often means reaching inside the shell with your fingers to find a switch, which is unpleasant with gloves on and impossible if you have just removed them. An external grind button is a small feature that you will use every time you clean up a bead.
Safety standards: ANSI Z87.1 and EN 379
ANSI Z87.1 is the North American standard for eye and face protection, and CSA Z94.3 is its Canadian equivalent. EN 379 is the European standard and adds the optical class rating you will see printed on premium lenses, written as four numbers such as 1/1/1/1 covering pass-through, light transmission, color recognition, and resolution at different viewing angles.
A 1/1/1/1 rating is the best available and is the number that appeared on six of the ten helmets here. A 1/1/1/2 is a small step down on one metric and visually indistinguishable in normal use. Neither rating is about darkness; both are about how faithfully the lens transmits the world to your eyes when it is light.
Headgear and fit: the part nobody thinks about
Headgear is the frame, band, and adjustment mechanism that holds the helmet on your head, and it is the component most likely to fail first. Ratchet or speed-dial systems hold their setting better than elastic straps, and pivot-style frames spread weight better than fixed frames.
Before you buy anything online, measure around your head and check the adjustment range, and try it on if you can. A helmet that slips forward forces you to weld with one hand on your head. Glasses wearers should check that the shell clears the temple arms, since several plastic shells in this group run narrow.
How to Choose by Process, Budget, and Use Case
The right helmet depends less on brand and more on two questions: which process will you actually weld, and how many hours a year will it see. Answer those first and most of the decision makes itself. Everything below is built around them.
Choosing by welding process
For MIG, stick, and flux core work on mild steel, any auto-darkening helmet in this roundup will protect you, and the deciding factors are viewing area and headgear comfort. These are the highest-heat processes, so shade 9 to 13 is the right working range and you will spend most of your time set near 10 or 11.
For low-amperage TIG, the rules change. TIG on thin material or root passes produces a faint arc that many MIG-rated filters fail to detect, which is the single most reported technical complaint on welding forums. Maxing out sensitivity helps sometimes; a helmet rated for low amperage or with a low shade floor solves it outright. The Miller Classic is the model here that is explicitly rated down to five amps.
For grinding and cutting, you need a working grind mode at shade 3 and an external switch. Plasma cutting sits between the two, and the TRQWH and BESTCLUB models both handle weld, grind, and plasma cut in one shell, which saves you a second hood.
First helmet or forever helmet
This is the question we get asked most, and the honest answer is that a budget auto-darkening helmet is genuinely safe. UV and infrared protection comes from a passive filter that works whether or not the electronics are powered, so you are not gambling with your eyes by buying at the entry tier. You are buying slower sensors, a dimmer or narrower view, and flimsier headgear.
Buy the budget tier to learn on if you are unsure. Most beginners change direction at least once, and a week spent discovering that TIG is not for you is cheaper in the long run than an expensive helmet sitting unused. Move up when one of three things happens: you start welding more than a few hours a month, you hit a process your current helmet handles poorly, or the headgear starts slipping.
Buy the forever helmet now if you already know you are doing daily shop work in a specific process. In that case the money goes into viewing area, optical clarity, and headgear durability, which are the three things that separate a helmet you tolerate from one you enjoy wearing.
Budget tiers, by what you actually get
At the entry tier you are buying true color optics, four sensors on some models, and solar or included-battery power. The compromises are plastic shells, narrow windows on some models, and adjustment points that need retightening. This tier is a completely legitimate first helmet.
In the middle tier you gain a wider window, better headgear, and a manufacturer warranty rather than a short consumer return window. This is where the value concentrates for anyone who will wear the helmet regularly, and it is where most of the models in our list sit.
At the top of this roundup you are paying for weight, low-amperage capability, and brand support rather than for additional protection. That is worth it for professional or trade school use and rarely worth it for occasional weekend work.
Use case: garage, classroom, or shop
Home garage work means occasional sparks, spatter on your clothes, and dim lighting. That favors a solar or battery model with a light state bright enough to see the joint, and the integrated LED on the TRQWH is genuinely built for this.
Classroom and trade school use means shared equipment, many head sizes, and helmets that get dropped. That favors ratcheting headgear that holds its setting and shells that survive being knocked around, which pushes you toward the Lincoln Electric or Jackson Safety models here.
Shop work means daily wear and often fume-heavy processes. Stainless, galvanized, and flux core work generate fumes that a welding helmet does nothing about, so pair your helmet with a respirator and proper ventilation from the first session. If you enjoy the TIG side of the work, our TIG-specific helmet roundup covers the low-amperage requirement in more detail, and style options are covered in our custom welding helmet picks.
First-Week Setup and Helmet Care
Most early frustration with an auto-darkening helmet comes from settings nobody explained. Spend one session dialing these in and the helmet will behave for the rest of the year. Five steps, roughly twenty minutes, done once.
One: set your sensitivity before your shade. Turn sensitivity up to maximum, then back it down until the lens only darkens when an arc strikes and not when you point a bright work lamp at it. This is the fix for both the lens that will not trigger on low amperage and the one that darkens in sunlight.
Two: set the delay to suit the length of your welds. A short delay suits tack passes and thin material where you want the lens to clear quickly. A long delay keeps the lens dark through a long stringer bead, which stops you being blinded every time you restart.
Three: set the shade for the process, not the habit. MIG on mild steel at typical household settings works around shade 10 or 11. Move up to 12 or 13 for heavier work and thicker material, and remember that shade 13 is darker than shade 9.
Four: fit the headgear properly with the helmet down. Adjust the rear band so the hood sits slightly forward and stays there when you shake your head. Then check it again after ten minutes, because foam compresses and most helmets settle lower than they did when new.
Five: order spare cover lenses before you need them. The outer lens is a consumable, and it spatters and scratches, and a scratched lens makes everything harder to see just when you are trying to learn. The models above that include spares give you a head start; buy a replacement set for whichever helmet you pick.
Beyond that week, maintenance is light. Wipe the inside of the lens with a dry cloth rather than a solvent, since sprays and cleaners craze coatings. Keep the arc sensors clean of spatter dust with a soft dry cloth, and check the headgear tension monthly. A spare battery or solar panel means you never have to think about power, though two of the models here use a replaceable coin cell.
Store the helmet somewhere you will use it rather than in total darkness for months. Electronics and solar cells prefer being used, and a helmet that sits unused in an unheated shed through winter is the one most likely to misbehave when you pull it back out. If you travel with the hood, a padded bag prevents lens scratches that no amount of cleaning will fix.
Frequently Asked Questions
Is MIG or TIG easier for beginners?
MIG is easier to learn because the torch and filler rod move together at a steady feed rate, so you concentrate on travel speed and gun angle rather than managing two separate controls. TIG is harder because you control the torch, the filler rod, and the foot pedal independently, and it takes longer to master. Most beginners start with MIG on mild steel and move to TIG later if they want the control.
What color lens is best for welding?
A true color lens is best for beginners because it renders the puddle and the workpiece in roughly natural color, which makes it easier to learn what a good bead looks like. A standard green-tinted lens still protects you fully and is perfectly safe, but it flattens detail. Look for an optical class of 1/1/1/1 for the best pass-through clarity.
Is a cheap welding helmet safe enough to learn on?
Yes. UV and infrared protection comes from a passive filter that works whether or not the electronics are switched on, so even an inexpensive auto-darkening helmet blocks radiation the way an expensive one does. What you trade away is speed, clarity, viewing area, and headgear durability. A budget helmet is a safe choice for learning, as long as you replace the cover lens when it gets scratched.
What shade should I use for TIG welding?
Low-amperage TIG generally wants a light shade because you need to see a faint, wandering arc, so a range reaching down to shade 5 or lower is ideal. Heavier TIG on thicker material moves up toward shade 8 to 10. Most budget MIG-rated helmets bottom out at shade 9, which will trigger but can leave the puddle hard to see at low amperage.
Is shade 9 or shade 13 darker on a welding helmet?
Shade 13 is darker. Higher shade numbers block more light, so shade 13 suits heavy MIG, stick, and flux core work, while shade 9 is used for lighter work and cutting. Grinding is the lightest at shade 3. If your bead looks too bright and washed out at the joint, step the shade up rather than down.
Why is my welding helmet not triggering during TIG?
The most common cause is that the arc is too faint for the sensors at your current sensitivity setting. Turn sensitivity to maximum and re-test, and if it still fails, the issue is the helmet rather than the setting. Filters with a shade floor of 9 or higher also make the trigger invisible even when it works, which is why TIG work calls for a helmet rated at low amperage.
What size viewing area do I need for welding?
Around 6 square inches is workable for flat-position MIG work, and 10 to 13 square inches gives you better peripheral awareness of the torch and the joint edges. A larger window does not change how much radiation reaches your eyes. Weight matters more in practice, since a large window usually arrives in a heavier shell that causes neck fatigue over a long session.
Do I need a respirator with a welding helmet?
Yes, and this is where beginners are most under-protected. A helmet protects your eyes and face from radiation and spatter, but it does nothing about fumes, especially on stainless, galvanized, and flux core work. Pair any helmet with a properly fitted respirator and shop ventilation from your first session, and confirm fume extraction before you start.
Final Verdict
The best welding helmets for beginners come down to one honest point: a budget auto-darkening helmet protects you properly, so buy it to learn on and upgrade when your hours justify it. Our pick is the YESWELDER LYG-L600A, which pairs 1/1/1/1 true color optics with fast 1/30000 second switching and the largest owner base we reviewed. Buy the YESWELDER LYG-M800H instead if a large viewing window and four sensors matter more to you, and the TRQWH KTS-JD03 if you work in dim spaces and want a rechargeable LED over the hood.
Set your sensitivity and delay in the first session, order spare cover lenses before you need them, and pair any of these with a respirator on your first fume-heavy weld. That prep is worth more to your learning than spending more on the helmet itself. For a deeper look at the processes, our auto-darkening helmet guide covers the filter technology in more detail.
